Woodworking Equipment For Sale

SUPERBRUSH 24 x 2 Double Brush Sander.SUPERBRUSH applications include, but are not limited to: White wood sanding, de-nibbing, sealer, and primer sanding applications, as well as UV roughing and reclamation projects. De-burring, graining, and polishing of steel, stainless steel polishing and aluminum finishing and solid surface materials. These sanders are well suited to shutter sanding, de-glossing and de-stressing.24" Sanding width, 11" min. part length and 4" max. thickness; 5/8" typical brush dia., 1-1/4" to 3" Typical Brush length; 3/32" per turn height adjustment, depth gauge included.Drive Motor: (2) 7.5 HP MotorsRubberized conveyor belt grips and pulls parts through the sander. via 0 -30 FPM variable speed feed system1-1/2" Dia., rubber covered, infeed and outfeed rollers provide tension to support the belt over reinforced steel conveyor bed.Bristle contact gauge (depth gauge) included.RPM Gauge displays brush speed, variable 400 - 1,200 RPM.Hinged Dust Hood with (4), 4″ vacuum ports, 1800 CFM min.Machine Design: Cast stand, zinc-plated steel bed, centerless ground column tubes.Ball bearings are sealed and permanently lubricated.Accessories: Casters, Infeed-Outfeed tables & DRO (Digital Depth Guage).

Superfici Flat Line Will be removed from service by the end of January 2024. Still under power.

SUPERFICI/VALTORTA F1SPECIFICATIONS: --Belt width - 1370 mm / 54 inches, Roller width 1500 mm / 59 inches --Working height 900 mm / 35 inches --Panel thickness 3 - 120 mm / .11" - 4.75" -- Min. panel length - 300 mm / 11.8" -- Application roller diameter - 245 mm / 9.6" -- Standard hardness of the application roller - 50Sh -- Doctor roller diameter - 175 mm / 6.8" -- Feed speed - 7 - 20 m/min / 23 - 65.5 fpm -- Compression air consumption 25 NI/min -- Approximate installed power 2kW

SPERFICI - "Climber Easy 150-C-2/2100", ...Automatic Moulding StackerThis equipment collects strips/profiles coming from a Painting Line and stacks them up automatically on suitable Racks for drying.General Description: -- Machine structure built with electro-welded and painted steel with some aluminum profiles parts. -- On the base of the machine are the columns of the balance devices, as well as the roller way where profiles are fed into the Stacker. -- Side of the roller way built with aluminum profiles having PVC-covered cantilever rollers with different pitch. -- Rollers are driven by an electric motor controlled by an Inverter. -- Lifting balance devices are driven by chains with top system for profiles, movement is mechanically synchronized. -- The machine has (3) Cantilever arms, supported by cross parts & plates sliding on nylon wheels, driven by (3) vertical aluminum profiles. -- The cantilever arms, which place the profiles on the rack arms, have (3) driven V-belts which are covered with soft polyurethane and have different speeds controlled by an Inverter.Technical Data:- Overall dimension: 3,850 mm.- Rollers conveyor speed: 20 - 70 MPM (avg. working speed 150 FPM).- Working height: 900 +/-20 mm.- Working width: 150 mm (6").- Arms pitch: 2,100 mm (6'-8").- Max. profile length: 3,200 mm (10-1/2').- Min. profile length: 1,300 mm (50").- Max. height for profile deposit: 2,000 mm.- Min. height for profile deposit: 490 mm.- Max. cycle: (20) Pcs./Min.- Installed power: 3.8 kW.- Compressed air consumption: Negligible.

SUPERFICI Compact Spray Automatic Spraying Machine; System is ideal for medium to high volume production. Product: Kitchen cabinet components, panels, furniture components, doors, etc.Coatings: TBDGENERAL EQUIPMENT FEATURES:Pass-line Height: 900 mm (35-7/16")Operating side: RH, as viewed from inlet of line.Work piece Dimensions (Approx.):Min. - max length: 300 mm - 4,800 mm (12" - 16')Min - max width: 25 mm - 1,300 mm (1" - 51")Min - max thickness: 3 mm - 80 mm ( 1/8" - 3-1/8" )Max. weight: 2.2 Lbs per sq ft maximumSpeeds:Mechanical Speed: 2 - 6 m/MinAvg. production speed: TBD based on coatings and Drying system used. -- Photocell Reading System to detect the incoming workpieces profile and the electronic control to adjust the spray profile of the parts. The guns will trigger only when the parts are present. -- Closed belt conveyor system mounted on an open structure for easy removal. The belt conveyor is made of a special material to work with all types of stains and paints. -- Reclamation system for spray lacquer, varnish, multicure (UV) and water base solvents. Patented lacquer recovery system for recovery and cleaning of the conveyor belt; the system is mounted on trolley that is extractable from the machine for easy maintenance. -- A double arm reciprocator driven by inverter controlled motor and sliding on high precision guide rails. -- The two arms are equipped with guns holder supporting up to max four (4) guns each arm with two active lacquer circuits. -- Pressurized spray cabin with access windows from both sides; filtering roof intake celling in the spray cabin with blowing fans on the top of the roof. -- Exhaust system with double stage paint filters over exhaust ventilator.Technical Specifications: -- Mechanical speed: 2 - 6 MPM (6-1/2 - 19-1/2 FPM) Avg. - Typical Production speed: 2 - 3 MPM (6-1/2 - 10 FPM). -- Working width of 1,300 mm (51"), max. part thickness 80 mm (3-1/16"), Pass through working height above floor 900 mm (35-1/2"); -- Exhaust air volume of 7,000 cbm/Hr. -- Compressed air consumption (with guns) 1,500 N1/Min. Approximatley.Utility Connections:Voltage: 480 V / 3Ph / 60 Hz + groundCompressed air: 6 bars (90 PSI)USED LAMINAR DRYER, is available with this sprayer at an additional cost (not included in this price)CEE standard execution. Conveyor executed according to the European norms, to be positioned in a safe environment (not classified as an area with risk of explosion).

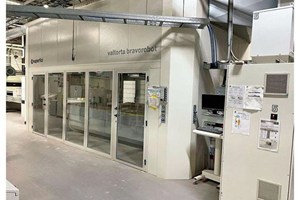

SUPERFICI BRAVOROBOT Complete Spray LineThis line consist of Sanding, brush cleaning, Robot sprayer, IR flash oven, Forced air dryer, Cooling off section, Panel turner and outfeed conveyorThis Robot can be used for 5 axis or flat line sprayingSpecifications: -- Part length: Minimum 12" Maximum 120" for panel and 144" for moulding -- Part width: Minimum 1", Maximum 51" -- Part Thickness: Minimum 1" , Maximum 4" -- Working height 900 mm +/- 20 mm (35 7/16") -- Feed speed 2-6 meter/min. -- Sprayer speed 40-140 Meter/min. -- Overall line dimensions 112' long X 40' wideLine Composition:1) Infeed conveyor2) Denibbing sander PROFICANDERr-C "Flextrim" (2) brush3) Belt conveyor for quality control4) Cleaning brush FV/SISAL/1 5) Infeed conveyor 6) Valtorta Bravorobot P1 with (4) guns for flat spraying and (1) 5 axis robot sprayer, Paper belt cleaning system7) Outfeed conveyor8) First drying tunnel flash off IRS Laminar Dryer 5M, Second section Hot air dryer with gas heating unit 6,000,ooo BTU9) Third drying zone with Hot Air10 Fourth drying zone with Air Blade with UV Lamp11) Cooling conveyor and quality control zone12) Doucet panel turner13) Outfeed belt conveyorNote The system has been professionally tear down and could be re-instal by the serme technician

Manufacturer’s Specification - Maximum Width: 24” - Brush: 9"-11" Typical Diameter - Speed: Ranged Variable, 400-1200 rpm Brush - Motor: 5 HP, 220 Volt, Single Phase - has (1) broken caster

TAKEKAWA - RG-30S, ...Straight Line Rip SawSpecifications: -- 15 HP - 5,000 RPM Belt driven arbor, overhead arbor design. -- 1-1/4" Dia. arbor. -- 12" Dia. max. blade cap., 2-3/4" max. depth of cu.t -- 12" Min. part length. -- Throat clearance to the right of blade 26". -- Table size: 74" Long x 38" wide; 2 HP step feed drive, 33 - 66 & 131 FPM.Equipped with and Features: -- Automatic chain lubrication. -- Top pressure system with spring loaded rollers. -- Adjustable rip fence. -- Antikickback fingers. -- Push buttons and magnetic starters.

Runs good and is still in operation Hooked up to 460 Table Extension has been repaired Main table has almost zero wear on it.

TANNEWITZ - XJ, ...Table SawSpecifications: -- 5 HP - 3,600 RPM Fan cooled motor, 1" right tilting arbor Table Saw with a 1-piece main table; table size 42" wide x 44-1/2" deep. -- Base formed from hot rolled steel of 5/16" thickness & welded into (1) solid unit; 10" dia. handwheels for easy adjustment of tilting, raising & lowering of arbor. -- Complete with: Extended rack & pinion adjustable rip fence for greater ripping capacity; left- & right-hand T-slot miters. -- 16" Blade dia., 4" dado width cap.; 4" cut depth at 90°; 3" cut depth at 45°. -- Equipped with: Taper pin miter with micrometer adjustment on fence, magnetic controlled off switch, and 6" dust outlet with auxiliary rear opening for easy access. -- Power safety electrical breaker box included. Please NOTE: No blade guard.

16" Blade cap., 3-3/4" max. cutting height, 5 HP - 3,600 RPM direct drive motor, arbor tilts 45ø, 44" x 40" cast iron table size, table with miter gauge slot. -- Complete with: Rack & pinion fence and large hand wheels for easy adjustments.

TANNEWITZ - XJ: Table SawSpecifications -- 5 HP - 3,600 RPM Fan cooled motor; 1" right tilting arbor Table Saw with: 1-Piece main table; table size 42" wide x 44-1/2" deep. -- Base formed from: Hot rolled steel of 5/16" thickness & welded into (1) solid unit; 10" dia. handwheels for easy adjustment of tilting, raising & lowering of arbor. -- Complete with: Extended rack & pinion adjustable rip fence for greater ripping capacity; left- & right-hand T-slot miters. -- 16" Blade dia., 4" dado width cap.; 4" cut depth at 90°; 3" cut depth at 45°. -- Equipped with: Taper pin miter with micrometer adjustment on fence; magnetic controlled off switch; 6" dust outlet with auxiliary rear opening for easy access.Please NOTE: No blade guard.

Capacities: 11” minimum length 98” maximum length 1” minimum width 32” maximum width 5/8” minimum thickness 3” maximum thickness with a conversed glue spreader(model 30J)

TAYLOR 40 Section Clamp Carrier.Specifications: -- 40-Section, 8-1/2' width capacity -- Average 4/5 clamps per section (175 clamps total), all with 32" max. clamp opening. -- Equipped with (175) clamps plus a pallet of spares that require repair, 32" clamps with 2-1/2" high jaws .Complete with: -- Heavy Duty Drive for rotation,& clamp tightening. -- Foot pedal control. -- Includes a glue applicator.

--In Auction: https://exfactoryauctions.com/Detail/CR-230068/event/A122024$1 --No Reserve!-- TAYLOR 800036 7' W 12-Section Semi-Automatic Pneumatic Clamp Carrier, with Flattener & Tightener Equipped with: (71) 32” Cap. Clamps, with 4-5/8” W x 3-1/2” H Jaws. Air motor drive. Dual foot pedal control. Complete with: Pneumatic Panel Flattener. Pneumatic Clamp Tightener.

TAYLOR - 6-Section: Pneumatic Clamp Carrier6-Section x 10-1/2' width cap.; (36) total clamps; 30" opening on clamps; 3-1/2" high jaws; includes: Pneumatic rotation; tightening; panel flattening. -- Overall assembled dimensions: 9-1/2' Deep x 13-1/2' wide x 9' tall.NOTE: Teardown not included.

TAYLOR - 16-Section: Hydraulic Automatic Clamp Carrier8-1/2 Feet capacity; (16) sections. -- (6) Clamps per section but sold with: (96) total clamps; 32" max. opening; 2-1/2" high jaws. -- Heavy dual Hydraulic Drive for automatic rotation. -- Automatic pneumatic panel flattening & hydraulic clamp tightening. -- Operator applies: Glue to the stock; loads parts for clamping; then unloads. - The rest is automatic.Tightening assembly with: Panel flatteners automatically advance to each clamp; flattens the panel & tightens the clamp; moves on to the next clamp. -- Operator. controls: Start & Finish. NOTE: Machine originally with (28) sections; reduced to (16) sections. There are approx. (70) additional Clamps available.Machine already torn down; ready to ship!

TAYLOR - 800036: 7' W, 12-Section Semiautomatic Pneumatic Clamp Carrier with Flattener & TightenerEquipped with: -- (71) 32"; Cap. Clamps with: 4-5/8"; W x 3-1/2"; H Jaws. -- Air motor drive. -- Dual foot pedal control.Complete with: -- Pneumatic Panel Flattener. -- Pneumatic Clamp Tightener.

TERCO NORTHSTAR 10-8 Spindle Carver.8-Spindle Carver with 10" center-to-center chuck spacing. -- (2) 0.5 HP - 3,450 RPM spindle motor direct "belt drives" spindles for 11,000 RPM rotation. -- 36" Long carving cap, with optional length extensions up to 72". -- Manual rotation for round parts. -- Operator manually traces the pattern details of the master with copying stylus. -- Capable of doing both base relief (flat backed) and 360° full round carving. -- Includes: (1) Set roughing bits, (2) sets finishing bits, tools, and manual.

MLS Number 11772789 2015 Thermwood FB53-510 CNC Router Very good working condition Low hours. Used for only 1 year. Excellent condition Moving gantry, fixed table, roller hold down CNC router Designed to machine low profile sheet materials(MDF, plywood, particleboard) Uses Microsoft Windows 10 Professional operating system
