Description:

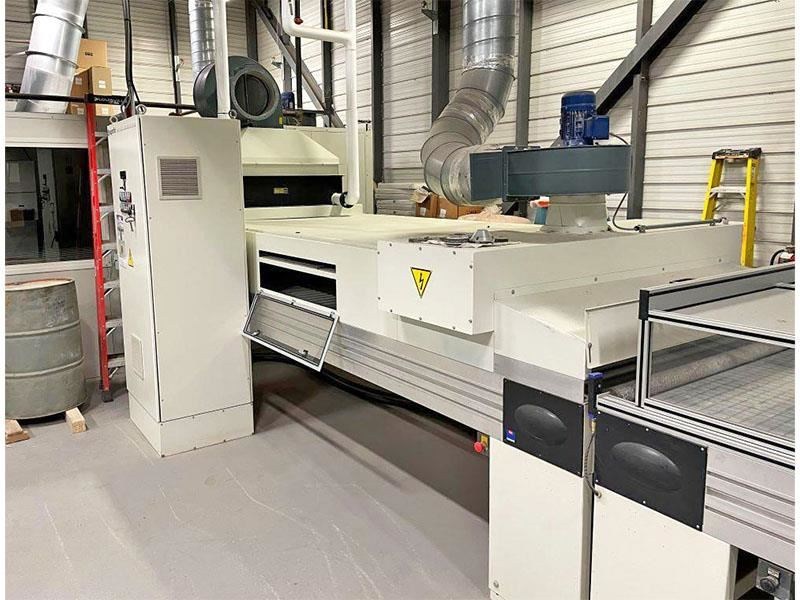

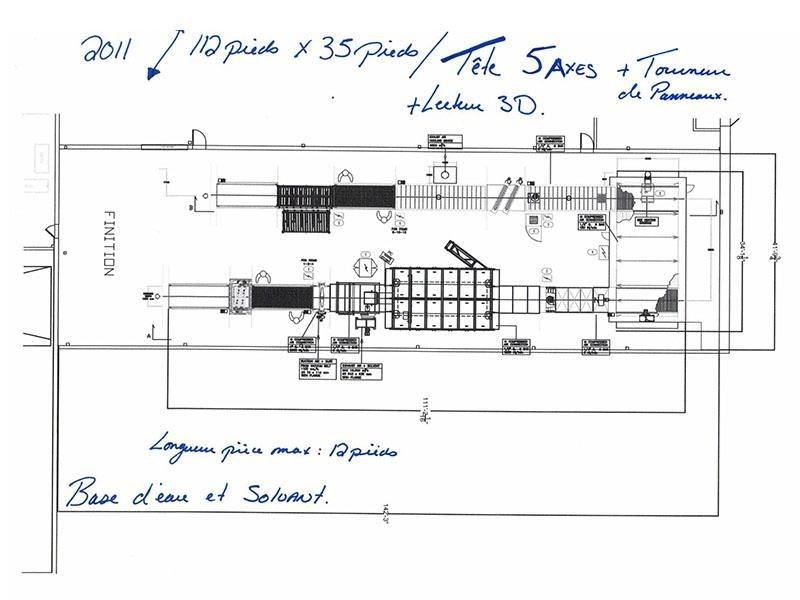

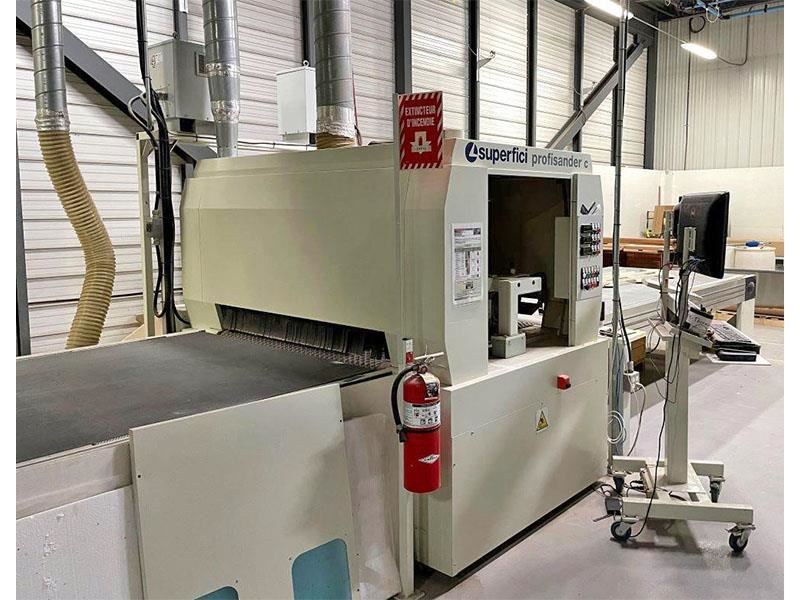

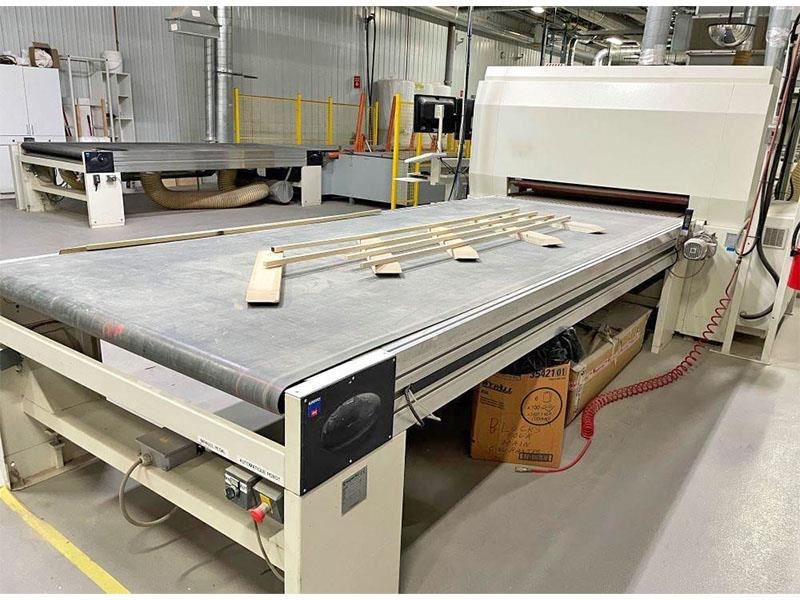

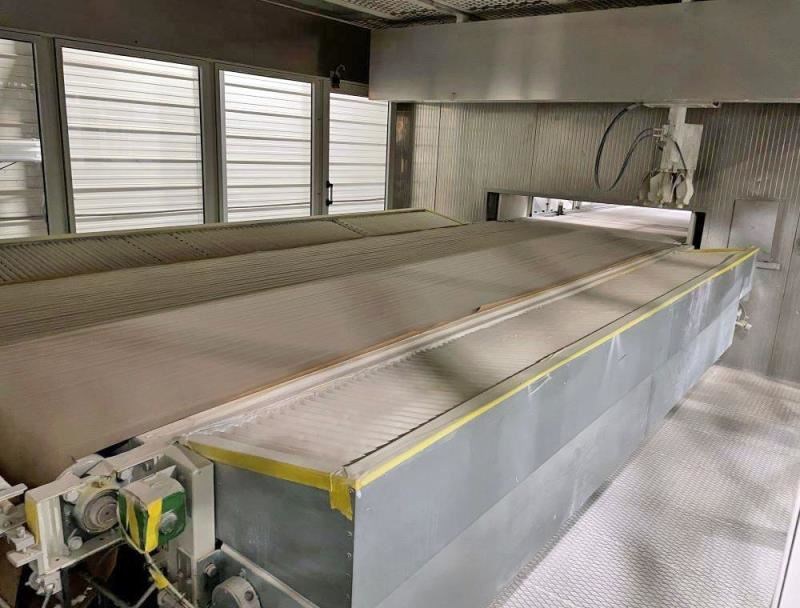

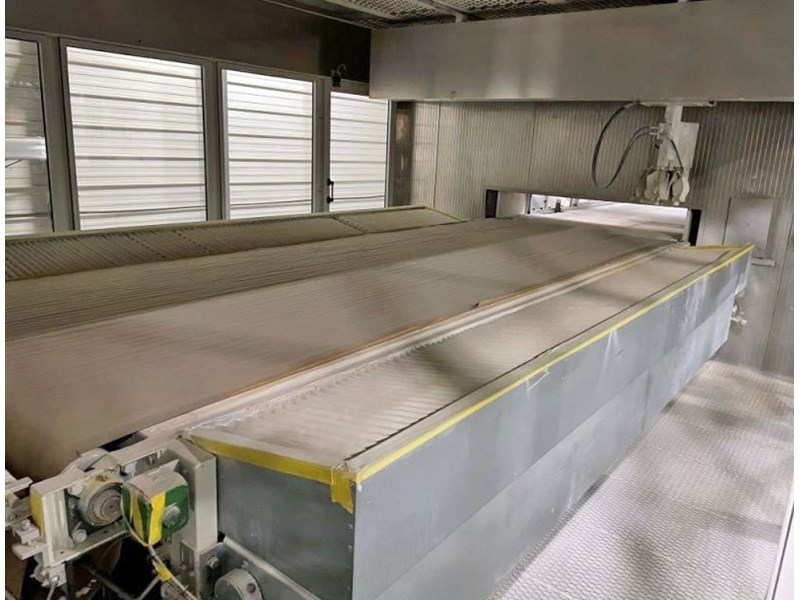

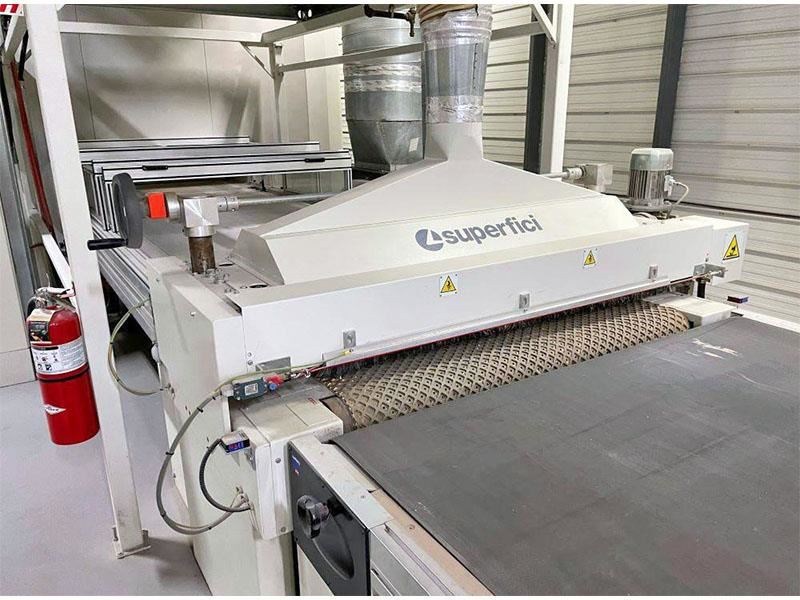

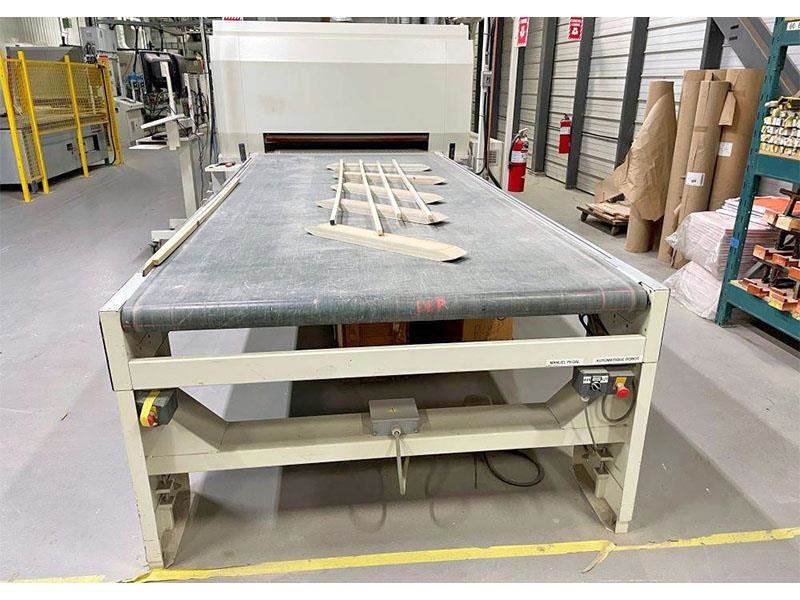

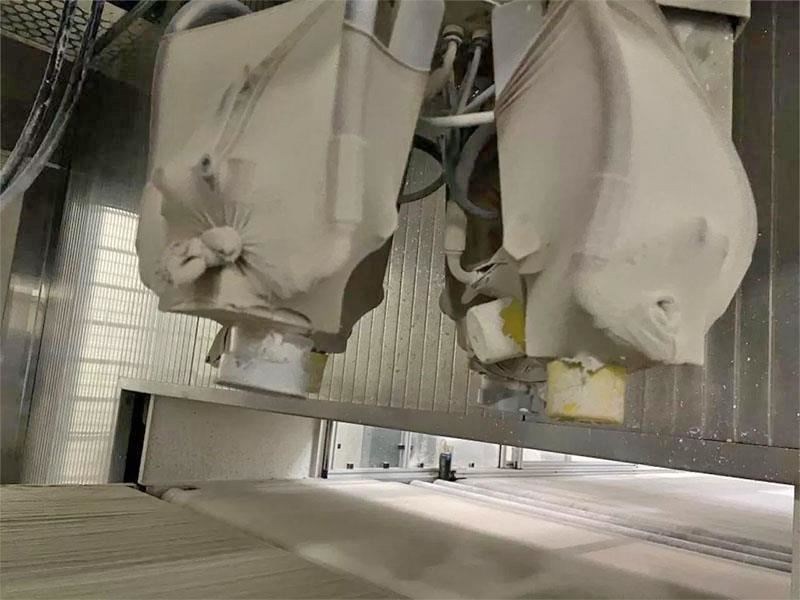

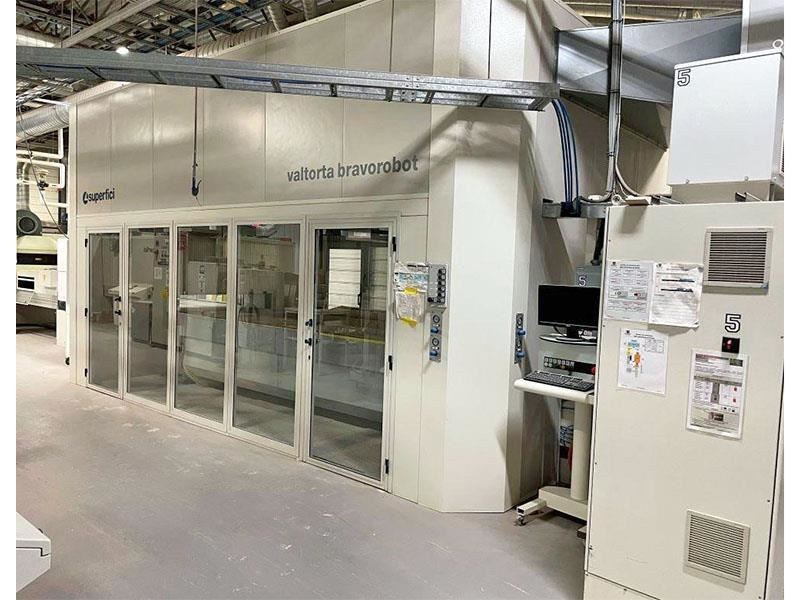

SUPERFICI BRAVOROBOT Complete Spray LineThis line consist of Sanding, brush cleaning, Robot sprayer, IR flash oven, Forced air dryer, Cooling off section, Panel turner and outfeed conveyorThis Robot can be used for 5 axis or flat line sprayingSpecifications: -- Part length: Minimum 12" Maximum 120" for panel and 144" for moulding -- Part width: Minimum 1", Maximum 51" -- Part Thickness: Minimum 1" , Maximum 4" -- Working height 900 mm +/- 20 mm (35 7/16") -- Feed speed 2-6 meter/min. -- Sprayer speed 40-140 Meter/min. -- Overall line dimensions 112' long X 40' wideLine Composition:1) Infeed conveyor2) Denibbing sander PROFICANDERr-C "Flextrim" (2) brush3) Belt conveyor for quality control4) Cleaning brush FV/SISAL/1 5) Infeed conveyor 6) Valtorta Bravorobot P1 with (4) guns for flat spraying and (1) 5 axis robot sprayer, Paper belt cleaning system7) Outfeed conveyor8) First drying tunnel flash off IRS Laminar Dryer 5M, Second section Hot air dryer with gas heating unit 6,000,ooo BTU9) Third drying zone with Hot Air10 Fourth drying zone with Air Blade with UV Lamp11) Cooling conveyor and quality control zone12) Doucet panel turner13) Outfeed belt conveyorNote The system has been professionally tear down and could be re-instal by the serme technician
