Woodworking Equipment For Sale

SAND-RITE DUO-DLX Spindle Sander; Horizontal spindle sander with 3/4 HP BALDOR motor. -- Optional brush heads sand irregular surfaces with out loss of shape, and the optional pneumatic drum heads (available in 2" to 8" diameters) allow the operator to regulate how firm the sanding head needs to be to conform the head to what they are sanding. -- Price does not include the stand - Add $308.00 Cast iron stand."Drums, brush heads, and sleeves are additional".Brush Head: ADD $ 175.00 2" X 8" pneumatic drum: ADD $ 140.008" X 9" pneumatic drum: ADD $ 302.00 Special note: 220 grit is the finest grit supplied for Brush Head

SANDINGMASTER - KSB-900, ...Single Head Wide Belt Sander36" Width cap.; combination sanding head.Head: Rubber covered spiral grooved contact roll & finishing platen.Specifications:15 HP Main motor.37" x 75" Abrasive belt size.Electronic tracking and air tensioning of abrasive belt.Rubber covered infeed & outfeed holddown rollers & holddown shoes.Variable feed speed 15 - 45 FPM via 1.5 HP motor.0" - 5" Manual part thickness opening.Includes: Optional floating bed for sanding fine veneers.Equipped with & Features:Extended infeed.Load meter.Disc brake on main motor.Safety stop bar.

SANDINGMASTER SA3300-900 TRIPLE HEAD WIDE BELT SANDER3-Head, 36" max. width cap. - 1st Head: 11" Dia. rubber covered contact roll, 24 HP motor; 2nd Head: 11" Dia. rubber covered contact roll, 18 HP motor; 3rd Head: Combination head with rubber covered contact roll and finishing platen, 18 HP motor. 37" x 75" Abrasive belts with electronic tracking. -- 2-Speed conveyor feed, 23 & 46 FPM, 1.0/1.7 HP motor, 0" - 6" motorized part thickness with LED readout, a joystick lever controls raise and lower of feed bed and start and stop of conveyor belt, also includes "SP-Matic" automatic part thickness setup. -- Thin veneer sanding package with rigid table setting for solid wood dimensioning and floating table setting for veneer sanding, infeed and outfeed spring loaded holddown shoes. -- Includes: Motor load meters, electronic brakes on sanding heads, infeed safety shutoff bar and 18" infeed conveyor area. Actual model "SA-3300-900".

SAVI HFK-250 Veneer Guillotine; General Specs: -- 102.4" (2,600 mm) Width cap., 4" daylight opening, hydraulically operated knife, 4 HP Leroy-Somer motor powers hydraulic unit with reservoir. -- Originally fitted with motorized parallel fence with 0.5 HP two speed gearmotor drive, push button operated, adjustable from 1" - 50" with magnified tape reader in front of machine. -- Equipped with: 2nd Cut feature with automatic reset, laser guide line light, photoelectric barrier guard for knife & hold-down beam, 2-hand operation of knife cycle. -- Note: Rear fence has been removed or modified. Shaft has chain/sprocket.

5 HP motor with 8" or 10" blade cap. -- Features: SawStop Safety System, blade stops and retracts on accidental contact, protection is always on, performs continuous self checks, invisible protection, does not interfere with work, compatible with all standard blades; works on all woods and non-conductive materials. -- Includes bypass switch for cutting metal. European style riving knife to minimize kickback; Low profile blade guard for narrow cuts; Quick-change mount for guard and riving knife ÷Large start/stop paddle for hands-free shut off; Main power switch with removable lock-out key; Magnetic contactor motor control; Blade shroud for improved dust collection; Zero-clearance insert; Extra heavy castings ÷Widely spaced trunnions; Infinitely adjustable trunnion assembly for precision alignment. -- Also includes: Vertical slide blade elevation for increased stability; Long-lasting V-ribbed belts; cast iron handwheels; Two access doors in cabinet; Powder-coated cabinet.

SAWSTOP - ICS 73230, ....Table Saw w/Safety "Stop Feature"Specifications: -- 10" Blade cap.; 7-1/2 HP motor; 3-1/8" depth of cut @ 0°; 2-1/4" depth of cut @ 45°; 13/16" max. dado width; 5/8" arbor dia. -- Features: -- Enclosed cabinet; Heavy-Duty belt drive; cast iron trunnions; SAWSTOPS's revolutionary flesh detecting safety mechanism. -- Includes: -- 52" "T-Glide" rip fence system; side support table and laminated top; 4" dust collection port; magnetic contractor motor control; main power switch with removable lock-out key. Actual model is: "ICS 73230"

SCHELLING FXH 430/410 FRONT LOAD, AUTOMATIC PANEL SAW: -- Specifications:169" (4,300 mm) Cutting length & 167" (4,250 mm) pull back; 3.9" (99 mm) max. saw blade projection, 23 HP (17 kW) main & 3.5 HP ((2.6 kW) scoring motor. -- Saw Carriage: Electronically controlled saw carriage with rack & pinion drive; variable travel speed 1 - 394 FPM (1 - 120 MPM), constant return of 394 FPM (120 MPM). -- Pusher Fence: Electronically controlled overhead pusher fence, rack & pinion driven on both sides; (9) Gripper clamps that open up to 3.5" (90 mm). -- Forward speed 0 - 262 FPM (0 - 80 MPM), return speed 262 (80 MPM) FPM; travel via brushless AC Servo Drive -- Operator & Machine Control:PC Front-end with Schelling "MCS" + Windows "NT" operating system.17" Color display with SVGA resolution (displays cutting dimensions & patterns w/moving graphics); virtually unlimited storage capacity, standard keyboard & mouse.Ethernet card; 128 MB Ram, 56K modem. Integrated graphical self-diagnostic, remote diagnostics by the factory is possible via dedicated phone line; data input by keyboard or possible direct downloading from office PC.SCHELLING "MCS" software displays simulation of patterns before actual cutting; graphical representations of cut-to-size parts in production shows the operator what to do in "real time". -- Complete with:2,300 mm Long crosscut fence (front-to-back), (2) automatic side/crosscut aligners for up to 87" (2,210 mm) crosscuts, (1) in front & (1) behind pressure beam cut line.(3) Front mounted air floatation tables, each table 24" x 83" (609 x 2,108 mm), rear of machine fully enclosed for safety with man-height safety fencing. -- Actual Model is SCHELLING FXH 430/410

SCHELLING FM-430/410 CNC Front Load Panel SawSpecifications & Features: 169" (4292 mm) Cutting length & 165.3" (4,200 mm) pull back, 3.75" (95 mm) max. saw blade projection; 25 HP (19 kW) 4,100 RPM main & 3.4 HP (2.5 kW) 5,600 RPM scoring motor. -- Equipped with: Variable saw carriage travel speed from 0 - 278.8 FPM (85 MPM), constant return of 278 FPM (85 MPM). -- Electronically controlled overhead program fence with rack & pinion driven on both sides; forward speed from 0 - 278 FPM (85 MPM), return speed of 278.8 FPM (85 MPM); equipped with (8) gripper clamps (open up to 5" (130 mm). -- Features: SCHELLING "COMPOSER" IBM-AT Compatible Computer Control; aftermarket color monitor (displays cutting dimensions and patterns w/moving graphics) , self-diagnostic, data input by keyboard; onboard optimization program. -- Complete with: 2-3/4" to 87" (2,200 mm) Long side/cross-cut aligning zone, (1) aligner in front & (1) behind the cut line. -- (3) Front mounted air float tables for moving panel from rip section to the cross-cut section, (2) movable and (1) fixed; each with their own blower. -- Rear of machine fully enclosed for safety with man-height sheet metal panels & wire screen windows. T

Schuetz Tool Bladder Press Specifications: (2) Shuttle tables, approx. 55” x 106” press capacity. Hot air design with 3mm silicone membrane to press veneer into profile, typical cycle time 3 minutes using proper glue that sets at 200°F. Can use PVA which would extend cycle time to approx. 15 > 45 minutes depending on the actual glue mix used to achieve 80%+ cure strength. Includes Hydraulic Pump. SPECIAL NOTE: Fully operational, however, need 4 or 5 heating rods replaced, new rod parts are included for you to install ( don't have the capability to remove them). The current average operational temperature is 150° F. NOTE: Above specs are taken from literature and thought to be accurate. As always please take advantage of the inspection period to verify. Items seen in the background are NOT a part of this Lot.

--In Auction--Starting bid: $100-- Schuetz Tool Bladder Press Specifications: (2) Shuttle tables, approx. 55” x 106” press capacity. Hot air design with 3mm silicone membrane to press veneer into profile, typical cycle time 3 minutes using proper glue that sets at 200°F. Can use PVA which would extend cycle time to approx. 15 > 45 minutes depending on the actual glue mix used to achieve 80%+ cure strength. Includes Hydraulic Pump. SPECIAL NOTE: Fully operational, however, need 4 or 5 heating rods replaced, new rod parts are included for you to install ( don't have the capability to remove them). The current average operational temperature is 150° F. NOTE: Above specs are taken from literature and thought to be accurate. As always please take advantage of the inspection period to verify. Items seen in the background are NOT a part of this Lot.

SCM SANDYA - 40 M3 135, ...3-Head Wide Belt Sander 52" Width cap. Drum, Drum, Combination HeadHead Configuration:1st Head: Steel Contact 22 kW Pneumatic blowdown and alignment.2nd Head : Rubber Contact 18.5 kW Pneumatic blowdown and alignment.3rd Head: Combination Platen 15 kW Pneumatic blowdown and alignment.Note:The SCM sander does not have a brush. After the 3rd head, it has this pneumatic blow-off bar with multiple blow-offs running the length of the sanders width. Sander can be seen under power if needed.Specifications: -- 53" x 103" Abrasive belts with electronic tracking. -- All heads with abrasive belt grit compensation. -- Conveyor belt feed with dual feed speed, 5 HP motor. -- Automatic part thickness adjustment. -- Motorized thickness opening via (4) precision conveyor bed jacks with LED readout. --0" - 7-7/8" opening. -- Equipped with & Features -- Outfeed rubber covered holddown rolls or shoes on all heads. -- Motor load meters. --Infeed and outfeed conveyor extensions. -- WYE-DELTA soft start.Note: The SANDYA model "40" is more or less the same as the SANDYA "30" but more Heavy Duty.

SCM Sandy 10 -RCS-110 Wide Belt Sander (2) Heads43" Width cap. Drum, Combination HeadHead Configuration:1st. Head: 7" diameter corrugated metal roller for calibration 35 HP ( Drives both Heads )2nd Head: Combination head with 7" dia. contact roller (spiral grooved rubber covered); air/jump finishing platen controlled with timers to eliminate any rounding on leading & trailing edges of the panel, 2" wide platen.Specifications --103" long x 43" wide Abrasive belts --Air tracking, floating & rigid bed for sanding of veneers & solid panels; infeed & outfeed spring loaded holddown rolls -- Minimum workpiece length 16" --Thickness capacity 6.25". --Separate 2.5 H.P. variable speed feed motor delivering feed speeds from 15 to 70 FPMNote: The seller has 20 boxes of various sandpaper belts (80 – 150 grit) that will be included.

2008 SCM Morbidelli Universal 3612

1998 SCM TECH 30 Super Router

SCM OLIMPIC K 560 T-ER2 EDGEBANDER (W/PER-MILL & CORNER ROUNDING): -- SpecificationsEdge Capacity: 0.4 to 6 mm (0.016 to 1/4") For strip feeding. -- Panel Capacity: Min. panel width: 60 mm (2.375"); Min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); Min. distance between panels: 600 mm (24").Equipped with: -- Pre-milling Station: (2) 2.0 HP (1.5 kW) motors; rectifies/cleans panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station "SGP" for EVA (Hot Melt) with: Quick change/disconnect Teflon glue pot for fast glue tanks change if needed; heat up time approx. (10) Min. -- Pressure Section: Manual digital positioning; Teflon coated pneumatic driven roller, and (2) spring loaded idle rollers.Workstations: -- End Trimming Station: (2) Front & rear 0.5 HP - 12,000 RPM motors, mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit: (2) 0.7 HP - 12.000 RPM Motors; capable of tilting & pneumatic positioning for (3) settings, flush/bevel/radius trimming for quick setup. -- Corner Rounding Unit "Round 2M" Corner rounding unit with: (2) 0.8 HP independent motors that slide on THK guides. -- Top & Bottom Profile Scraping Unit with: Digital indicators; large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue scraping Unit: "RC-N": Eliminates any excess glue. -- Buffing Unit: "SP-V": (2) Top/bottom 0.25 HP - 2,800 RPM motors; tilting up to 12°.Operator Interface: -- "STARTOUCH" Controller with: 12" Touchscreen display; capable of storing (100) programs. -- Machine automation by PLC function and encoder positioned in the panel feed track pinion. -- Diagnostics for a quick solution to errors: Process statistics data (i.e., number of pieces/edges) and track feeding.Features & Complete with: -- 2-Speed feed speed of 40 & 60 FPM (12 & 18 MPM); (1) 2.5 HP feed drive motor. -- 200 Hz frequency inverter for all trimming units. -- Electronic Positioning of the top hold-down pressure beam. -- Nesting Copying Device. -- Full sound enclosure cover and outboard panel support. -- Actual Model is: SCM OLIMPIC K 560 T-ER2

SCM PRATIX S-15-B FLAT TABLE MACHINE (W/ATC/BORING) -- Specifications: Single 5' x 12' traveling "Bridge Gantry" and stationary aluminum dual vacuum table with: "MATRIX" Square grid pattern for fixturing parts.Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining".Part location pop-up pins mounted on the table perimeter. -- Working Field"X" Axis is 145.11" (3,686 mm); "Y" axis is 61.2" (1,555 mm); "Z" axis stroke is 9.8" (250 mm); max. material thickness: 5.9" (150 mm). -- Positioning Speed"X" & "Y" Axis 229 FPM (70 MPM); "Z" axis at 82 FPM (26 MPM); closed loop AC Servo drive system.High precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screws "Z" axis; all axes ride on extra-large precision profile linear guideways. -- Boring Unit - 3 HP (2.2 kW) - 6,000 RPM Motor; (7) vertical spindles on 32 mm centers; (5) spindles in "X" axis & (2) spindles in "Y" axis. -- Machining - (1) 9 HP (6.7 kW) Air-cooled electrospindle with: HSK F63 Adaptor; variable spindle speeds from 1,500 - 24,000 RPM.(1) 10-Position ATC tool rack mounted to the machine base. -- Operator & Machine ControlPC Front-End with: "XILOG Plus" + Windows "XP Pro" Operating System; 17" high resolution LCD; ergonomic keypad; CD ROM & 1.44 MB disk drives.USB Ports; serial ports RS-232 & RS-242 & Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible.All computer components are mounted on a mobile stand.XILOG Plus - Offers incredible list of functions from: (a) Auto diagnostic to (z) zooming; controlled acceleration & deceleration; encoder feedback; dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- Additionally Equipped with:Onboard mini CAD with built-in programming for: Writing circles, ellipses & angles with only a few keystrokes; onboard cycle optimization; onboard calculator; mirror imaging, and repeat imaging. -- Complete with:(2) 150 cbm/Hr Vacuum Pumps; safety enclosure around the spindle carriage; (1) Universal Remote Pendant; 7" color display allows for the effective management of all machine functions from manual Jog Mode to loading & execution of a program.The pendant is fitted with a USB port to allow quick load & setup of new programs; safety "bump stop" bumpers; emergency stop rope, manuals. -- Options Include:Rake System for removing finished product and sweeping up dust residue. -- Actual Model: SCMI PRATIX S 15 B

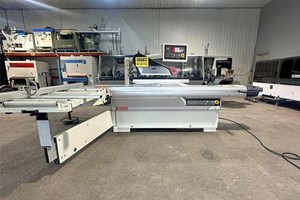

SCM FORMULA S35 Sliding Table SawSpecifications: -- 10' Cap. with scoring, 9 HP motor for main and scoring blade, tilting arbor 0° - 45°. -- 126" Table stroke, 51" rip cut capacity with movable fence. -- 350 mm (13-3/4") Main saw blade dia., 120 mm (4-3/4") scoring blade dia., max. cutting height is approx. 120 mm at 90°; 4,000 RPM. Complete with: -- Overhead guard w/4" dust extraction outlet. -- Crosscut fence assembly with (2) flip stops.

SCMI SIGMA PRIMA 50 FRONT LOAD, AUTOMATIC PANEL SAW: -- Specifications: Working cap:149.6" (3,800 mm) Max. rip cut cap. 125.9" (3,200 mm) pusher stroke; 1.96" (50 mm) max. saw blade projection; 12 HP (9 kW) main saw motor (3,900 RPM); 2 HP (1.5 kW) scoring saw motor (6,300 RPM).Main blade diameter: 11.8" (300 mm), Main blade arbor diameter: 80 mm; Scoring blade diameter: 6.37" (160 mm), Scoring blade arbor diameter: 55 mmAutomatic exclusion of scoring unit when motor is in off position. -- Saw carriageFeed speed 0 - 327 FPM (0 - 100 MPM), return speed 327 FPM (100 MPM),Automatic saw carriage lubrication, balanced on hardened cylindrical guides; external score saw adjustment, THK guides for vertical saw movement. -- Pusher Fence:Feed Speed 0 -230 FPM (0 - 70 MPM) forward speed, 230 FPM (70 MPM) reverse speed;Programmable rear fence with (7) material gripper clamps, rack & pinion movement,Grippers fit into a slotted pressure beam for positive material control during the final cut. -- Operator & Machine Control:PC front-end with: SCM Real time "WinCut" + Windows "7 Professional" operating system; Pentium 300 MHz, 6.4 GB hard drive, 64 MB RAM,17" color super VGA flat screen monitor, on-screen diagnostics & production reports; (2) serial ports & (1) parallel port, spacing available for networking cards. "Cutty" optimization software is included which allows: 30 lines per program, 300 max number of pieces per line, and 3 cutting levels. -- Complete with:Side alignment device: Min. part width 2.36"; Max. part width 48"; Rear support rails with rollers;(1) Front fixed air table 98" x 24" (2,500 x 609 mm), (2) Adjustable air tables 59" x 24" (1,500 x 609 mm).Plastic safety guards; emergency stop bar; enclosed cutting area; triple dust collector outlet. -- Actual model is SCMI SIGMA PRIMA 50.

SCMI OLIMPIC S1000 T-ERL EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) -- Specifications:Edge Capacity, 0.4 to 15 mm (0.016 to 5/8") for strip feeding. -- Panel Capacity, min. width 50 mm and 140 mm min. length, (2.0" and 5-1/2"). Panel thickness min./max. 8 - 60 mm (3/8" - 2-3/8"). Equipped With:&#9679 Adjustable In-feed Fence: Manually pre-set with digital indicator and pneumatic panel spacing device. -- Pre-Milling Station, RT-E: Spindles 2 x 5.25 HP, 12,000 RPM, (1) with PLC controlled jump action and manual digital indicators positioning and Diamond Cutter-heads. -- Anti-Adhesive Spraying System: Top/Bottom, positioned prior to the Pre-Milling Unit, it prevents glue buildup on the work-piece surfaces. It consists of (2) independent spray nozzles, and a tank for anti-adhesive liquids. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station, Vc/1000: For EVA (Hot Melt) with Teflon coated glue tank and quick disconnect to change glue tanks fast if needed. Heat-up time approx. 10 Min. -- Pressure Section: Servo motor positioning, (4) pressure rollers, first larger, Teflon coated and powered. Workstations:&#9679 End Trimming Station K-SEL: Front & rear 2 x 0.5 HP, 12,000 RPM motors mounted on THK guides, swivels 0ø - 15ø, rapid set up between straight and angled cutting with the automatic swivel cylinder. -- Flush Trimming Unit, Rsp: Top/Bottom, 2 x 1.5 HP, 12,000 RPM with 2 pre-set pneumatic positions, flush and overhang, remote pneumatic in/out positioning. -- Bevel/Radius Trimming Unit, Ri/S: Programmable, servo motor positioning, 2 x 1.0 HP - 12.000 RPM motors for change-over on the fly. -- Corner Rounding / Trimming Unit, Round-K: For additional top & bottom trimming of linear an/or vertical leading & trailing corner when edgebanding all (4) sides, 2 x 0.8 HP - 12,000 RPM motor. Comes with (2) pre-set pneumatic positions to allow to go from thick to thin pvc automatically. -- Profile Scraping Unit "RAS/1000": Top/Bottom with (2) indexed manual pre-sets. Large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue Scraping Unit, "Rca/2c": Top/bottom flat glue scraper with pneumatic positioning through controller and air-blow off nozzle to keep the knifes clean. -- Buffing Unit "SPN": Top/bottom, oscillating 2 x 0.25 HP - 3,000 RPM motors, tilting up to 12°. -- Hot Air Unit: Single blower with adjustable heat range and directional heat shield for top/bottom coverage. Restores color luster on thick pvc edging materials that my be lost during the edge scraping process.Controls: -- Startouch Controller, 12" color touch screen, swivels 270° at in-feed of machine. Capable to store (100) programs, (6) at the touch of a single key. Graphical display of all working units. Tracks production data, diagnostic information and monitors maintenance schedules. Complete With & Features: -- Feed-speed, 40/60 FPM, 1 x 2.5 HP feed drive motor, 200 Hz frequency inverter for all

Tubeless Vaccum (TNV) Electro-Spindle with HSK63F quick release Toolholder Rotation speed 600-2400 rpm Air Cooling by rear electrofan Static Inverter Centralized dust collection system with automatic blast gates
