Description:

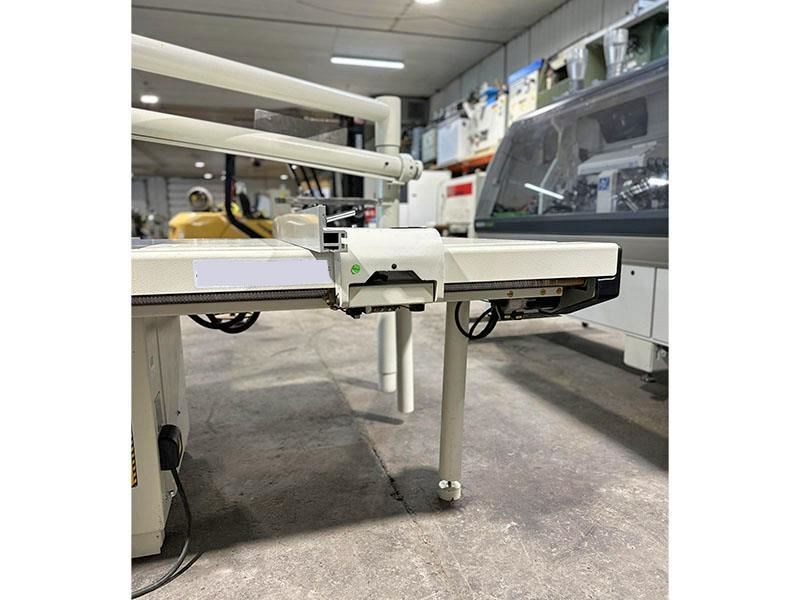

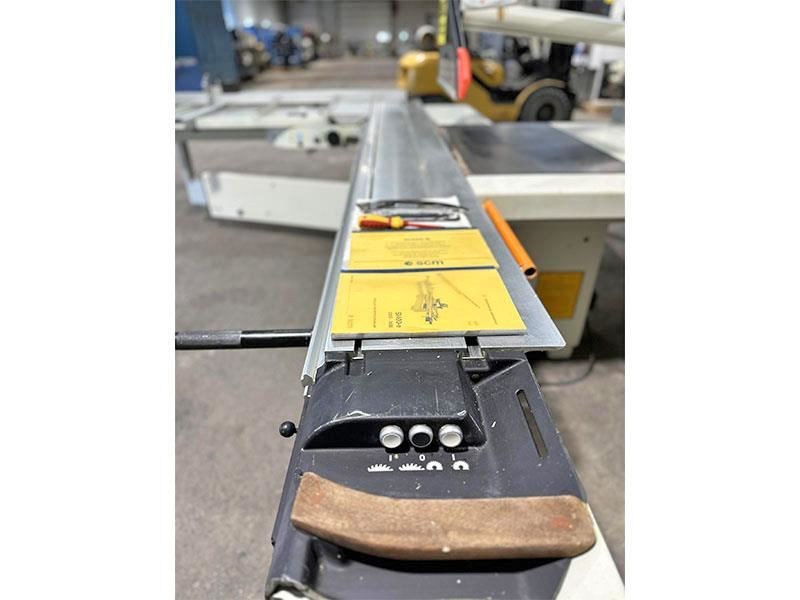

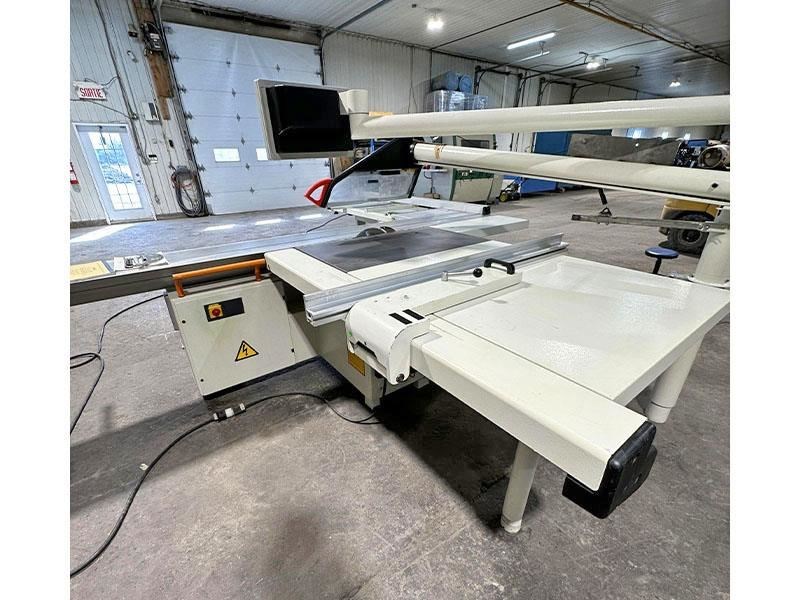

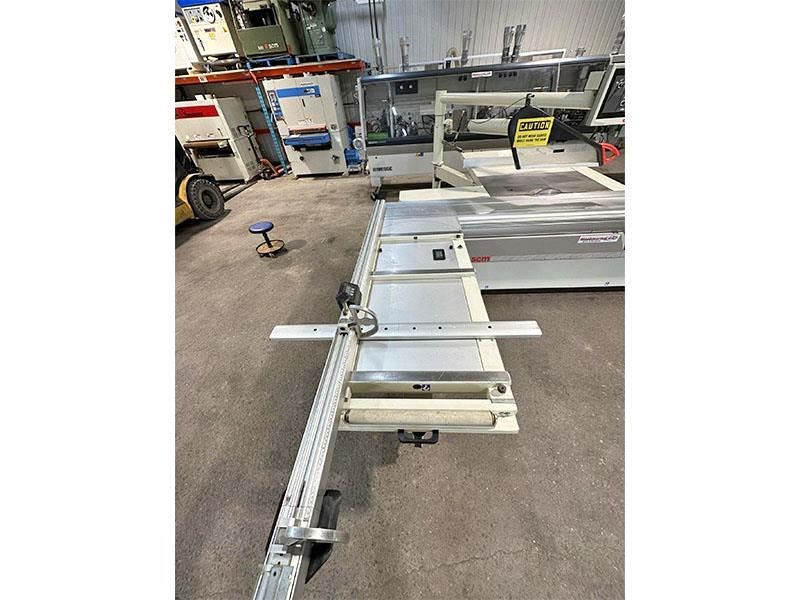

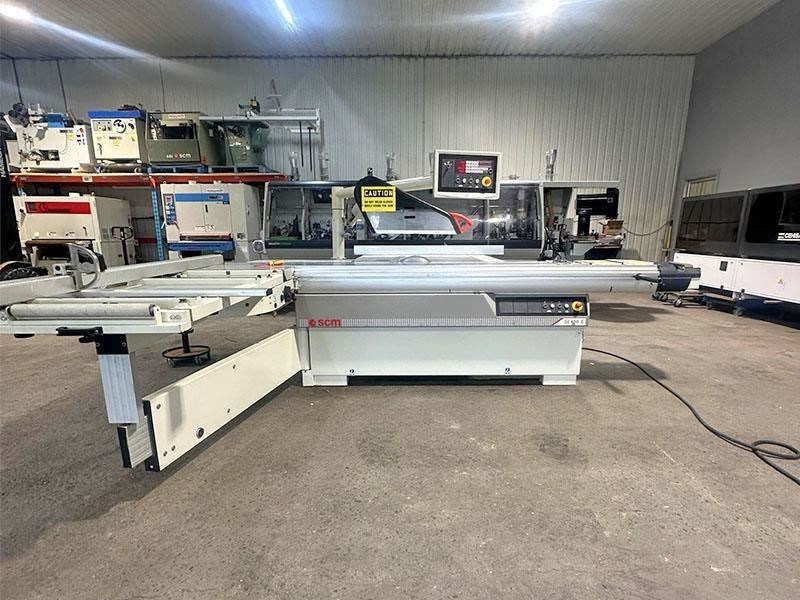

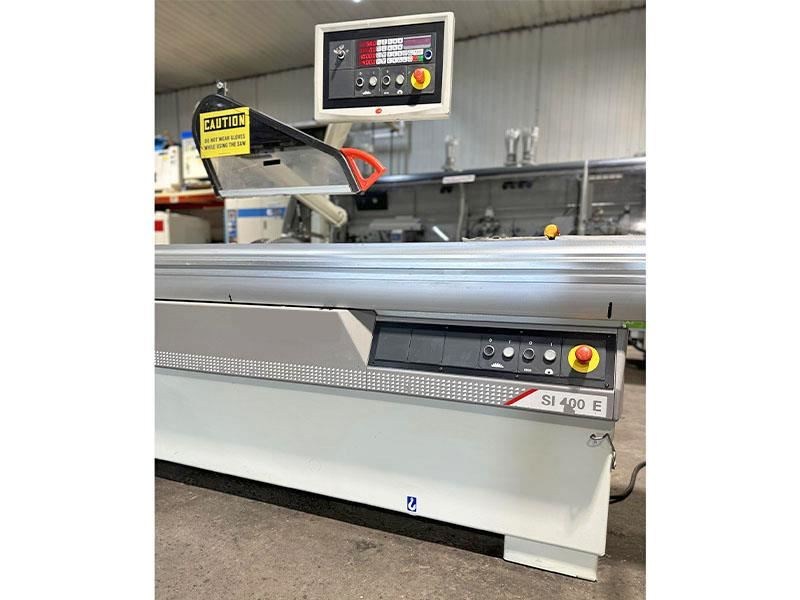

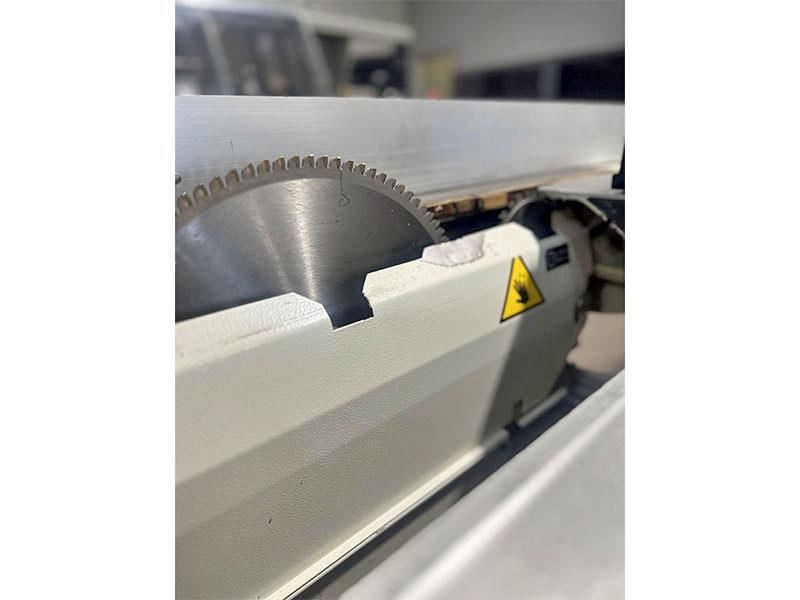

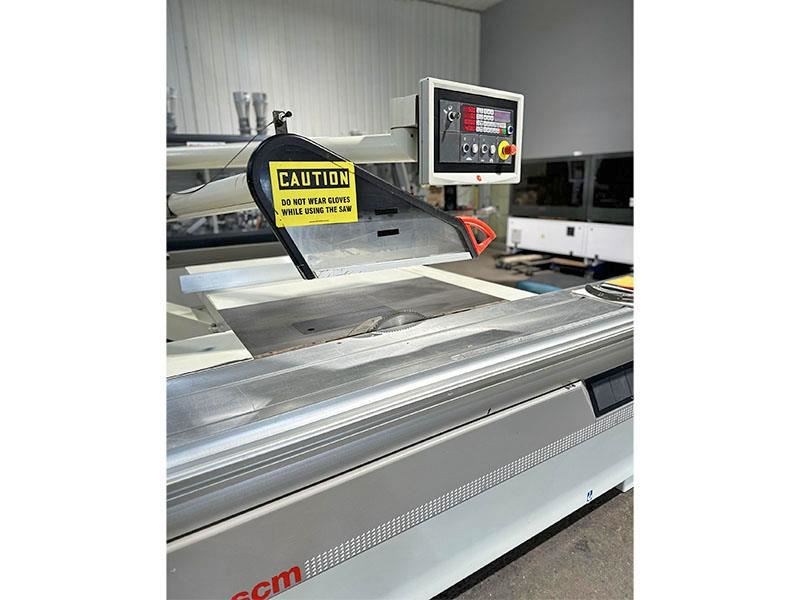

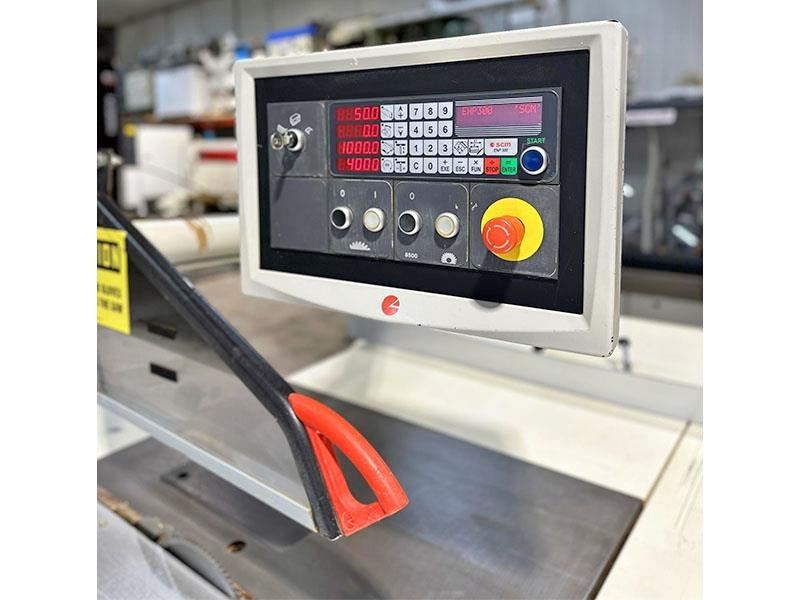

SCMI SI 400 E Sliding Table Panel Saw with motorized adjustments. Sliding Table Panel Saw with Motorized Blade adjustments and powered Rip Fence positioning.Specifications: -- 3,200 mm (126") Stroke length, anodized aluminum 14-1/4" wide sliding table, and 2-position table locks for easy panel loading in any position. -- 45° Tilting, 1" dia. main saw arbor, 400 mm (15.8") blade dia. cap., 130 mm (5") max. cut height @ 90° - 90 mm (3.1") @ 45°; 59" rip capacity. -- 9 HP Main saw self-braking motor, (3) cutting speeds of 3,600 - 4,800 & 6,000. -- 1.0 HP Scoring saw motor, 3/4" dia. arbor, 120 mm (4-11/16") dia. split scoring blade - 8,500 RPM; scoring unit w/external adjustment with stops. -- Electric control for blade group raise, lower and tilt, LED readouts, and separate controller to position rip fence accurately with fast/slow control to accomplish the left & right movement.Equipped with: -- Articulating overarm protection guard, Heavy Duty tubular steel support, and dust guard. -- 41" x 25" Fixed table size, square crosscut fence with (1) stops, extension table with miter fence & sliding outrigger support. ÷ Includes: -- (1) 5" & (1) 4" Dust outlet, centralized control panel with magnetic controls, and safety micro-switches on access panels & doors. -- Control panel programmable SCM EP 300Overall dimensions: 280" x 165" x 36", Net weight approx. 2,200 Lbs and requires dust collection of 1,100 CFM.
