Woodworking Equipment For Sale

ORIGINAL 3546 RADIAL ARM SAW (Heavy Duty Series)The Heavy Duty Series is a very precise machine made for the rigors of every day industrial use. Straight, miter, bevel and compound bevel cutting in a heavy gauge steel powder coated frame & legs. Specifications: 5 HP TEFC Saw motor; 16" dia. blade; 1" x 2-3/16" saw arbor; 4-15/16" thickness cap. @ 90°, 2" @ 45°; 24" crosscut cap.; 15-1/2" max. miter cut @ 45°; 37-7/8" rip capacity. Features: -- Swivel arm for miter cuts, swivel motor for bevel cuts; indexing yoke to 90° for rip cutting panels; saw head with automatic motor brake and automatic spring return; positive locking device for tilting; upper and lower blade guards with anti-kickback attachment. Complete with: -- 42-1/2" x 31-1/4" MDF table; sturdy powder coated cast iron frame; heavy gauge steel base and support legs. Optional: -- 16" x 60-Tooth x 1" Bore saw blade; pneumatic clamping systems; power carriage feed; 14" & 22" wide roller tables.

ORIGINAL 3558 RADIAL ARM SAW (Super Duty Series)The Super Duty Series is the ultimate workhorse of the industry, capable of operating 2 to 3 shifts per day. Miter & bevel cutting, compound miters and dado operations. Constructed of heavy-duty cast and ductile iron for vibration-free operation. Specifications: -- 7.5 HP TEFC Saw motor; 20" dia. blade; 1" x 3-1/8" saw arbor; 6-1/4" thickness cap. @ 90°, 3-1/4" @ 45°; 32" crosscut cap.; 21-5/8" max. miter cut @ 45°; 48-3/4" rip cap. Features: -- Swivel arm for miter cuts, swivel motor for bevel cuts; indexing yoke to 90° for rip cutting panels; saw head with automatic motor brake and automatic spring return; positive locking device for tilting; upper and lower blade guards with anti-kickback attachment. Complete with: 58" x 50" MDF table; sturdy powder coated cast iron frame; heavy gauge steel base and support legs. Optional: -- 20" x 60-Tooth x 1" Bore saw blade; pneumatic clamping systems; power carriage feed; 14" & 22" wide roller tables.

ORIGINAL 3691-03 Overhead Rail Panel SawSpecifications: -- Sturdy welded steel frame for saw head and beam arm; 7.5 HP motor; 1" dia. arbor; 1-3/8" long arbor; saw head with automatic electro-mechanical motor brake. -- 20" Max. blade dia.; 7" max. cutting depth @ 90°; 3-1/2" @ 45°; 62" long x 1", 4" & 6" thick max. crosscut cap. -- Complete with: -- 36" x 60" MDF table; heavy gauge steel base & legs for solid support. -- Includes: -- Upper & lower blade guards; magnetic starter and overload protection. -- Single-phase option available for;...$ 250.

ORIGINAL 3691-01-7 Overhead Rail Panel SawSpecifications: -- Sturdy welded steel frame for saw head and beam arm; 7.5 HP motor; 1" dia. arbor; 1-3/8" long arbor; saw head with automatic electro-mechanical motor brake. -- 20-1/2" Max. blade dia.; 8" max. cutting depth @ 90°; 4" @ 45°; 60" long x 1" max. crosscut cap. -- Complete with: -- 36" x 60" MDF table; heavy gauge steel base & legs for solid support. -- Includes: -- Upper & lower blade guards; magnetic starter and overload protection.

ORTON - TYPE F, ...Ship Shaper/RouterORTON Type "F" Ship Shaper/Router with: 40" x 60" Table Size. -- 5 HP - 230 Volt, 3-Phase. -- Oil Mist Lubrication. -- Machine "Completely Restored". -- Can be used as a Shaper or Router. -- Comes with: Mandrel with Top Bearing Attachment so the machine can be used as a Tilting Spindle Shaper. -- Also used as a Tilting Spindle Router with: Collet Chuck attachment with: 1" HSS spiral cutter and template guide. -- Heavy-Duty spindle with: BROWN & SHARPE "#11 Tapered Socket" in Spindle. -- Spindle tilts: 30° forward and 45° backward. -- Includes: BROOKS Frequency changer to increase 60-Cycles to 250-Cycles to increase speed of routers to 4,700 RPM. -- Great for cutting changing bevels. -- Approx. weight 3,000 Lbs. -- Lamp & cord NOT included. 5 HP - 230 Volts, 3-phase; in "Excellent Condition." Routers come with: 4 Ft x 14 ft table for clamping down work with patterns.

Complete OSAMA Feed Through White Glue Laminating Line, with MIDWEST AUTOMATION Laminate Indexing/Lay-up Table & HMT Laminator Specifications: Line was designed to use the HMT Laminator as a pinch roller with heaters for large quantity runs. The HMT Laminator was used as a stand-alone machine for small quantity runs. Max. panel size 60" x 120" (Based on current outfeed scissor lift platform size. With a 60" x 144" or larger scissor lift, 144" L panels could be run.) Consisting of the following machines as late as 2016: AREDON 48" x 96" Electric/Hydraulic Scissor Lift Platform. 2007 OSAMA SP/RSI-1600 1600 mm (63") Top & Bottom Brush Panel Cleaner, S/N 8103, Min. panel length 430 mm (16.93"), Panel thickness 0 - 100 mm (3.94"), Feed speed 22 MPM (72 FPM), with 290 mm (11.42") Dia. Top & bottom brush rolls with 0.6 mm (0.02") Dia. Black nylon bristles, Spare pair of brushes, 460 V, 60 Cy, 3 Ph., Dimensions 108" X 36" X 70" H, Weight 1,100 Lbs. 2006 OSAMA S2R-1600 1600 mm (63") Top & Bottom Glue Spreader, S/N 20944, Panel thickness 0 - 100 mm (3.94"), Pass line height 800 mm (31.50"), Feed speed 18 MPM (59 FPM), with 185 mm (7.28") Dia. x 64" L Grooved anti-acid rubber-covered top & bottom applicator rolls, each with Manual brush washer, Side glue wipers, Removeable bottom pan, Front & rear safety fences, 230 V, 60 Cy, 3 Ph., Dimensions 90" x 30" x 60" H, Weight 1,500 Lbs. MIDWEST AUTOMATION LT 500 60” x 144” Laminate Indexing/Lay-up Table. 2016 HMT ADVANTAGE PLUS 61" Laminator, S/N 5A391, with 10.5 kW Heatbank, 208 V, 60 Cy, 1 Ph., Dimensions 120" x 83" x 55" H, Weight 1,400 Lbs., NOTE: This machine is also being offered for sale separately (EXF #LA-011186). SOUTHWORTH 5,000 Lb. Capacity 60” x 120” Electric/Hydraulic Scissor Lift Platform, with Gravity roller conveyor top. CURRENCY NOTE: Negotiable Price is listed in U.S. Dollars.

OSAMA SP/RSI-1600 1600 mm (63") Top & Bottom Brush Panel CleanerSpecifications: -- Min. panel length 430 mm (16.93"), Panel thickness 0 - 100 mm (3.94"). -- Feed speed 22 MPM (72 FPM).Equipped with: -- 290 mm (11.42") Dia. Top & bottom brush rolls, with 0.6 mm (0.02") Dia. Black nylon bristles.Available at additional cost: -- Spare pair of brushes.NOTE: This machine is also being offered for sale as a part of a Feed Through White Glue Laminating Line (EXF #LA-011187).

OSAMA S2R-1600 1600 mm (63") Top & Bottom Glue SpreaderSpecifications: -- Panel thickness 0 - 100 mm (3.94"). -- Pass line height 800 mm (31.50"). -- Feed speed 18 MPM (59 FPM).Equipped with: -- 185 mm (7.28") Dia. x 64" L Grooved anti-acid rubber-covered top & bottom applicator rolls, each with Manual brush washer, Side glue wipers. -- 21-3/4"; x 72"; x 2-3/4"; D Removable stainless steel bottom pan. -- Front & rear safety fences.NOTE: This machine is also being offered for sale as a part of a Feed Through White Glue Laminating Line (EXF #LA-011187).

OSI End Matcher with 91" x 75' slat bed conveyor set for 3 1/4" s/n 6145

(7) Air Operated OSI Defect Saws, Pneumatic Defect Saws

OSI SM-450 Side Matcher LineSide Matcher:FEATURES -- Directly opposing heads (Side-Matcher): Enhances width tolerance and eliminates pistol grip -- Guarantee machining accuracy of +/- 0.002"; (0.05 mm) on width and on tongue/groove position -- Through feed system in both machines: work boards as short as 9"; (229 mm) out of the defecting station; can be processed directly into the Side-Matcher -- Process twisted, crooked and bowed boards -- Hydro-lock collars on all axis -- Feed wheels on independent suspension -- Very low friction -- High precision spindle -- Very short setup time Easy and quick width adjustment -- Easy opening for tool replacement -- Hydraulic unjammingSpecifications: -- Pre-Milling top and bottom with (2) 15 HP motor -- Feed speed 200 to 450 FPM -- Board width 1 1/2" to 8" -- Board thickness: 1/2" to 1 1/2" -- Board length: minimum of 9" trough feed -- Tooling: (2) X 8", RPM 6,000 -- Spindle drive: (2) X 30 HP -- Feed wheels: (2) rows of (4) wheels on top driven by (2) 3 HP motors -- Feed rolls: (3) chromed rolls on bottom driven by (3) 2 HP motor -- Axis movement: on linear bearings

Single End Tenoner that will handle straight or curved material. Carves round ended tenons through the use of (2) worktables which independently slide on steel rails. Tables independently adjustable for height and tilt Max width 100mm Max thickness 30mm Max Depth 50mm Table adjustment (vertical) 100mm Tilting 20^ front 15^radial Fence 45^ Spindle motor 2.25KW (3HP) (2) dust hoods Weight 960KG Dims 1320 x 1120 x 1250 mm 230 volt 3phase

PANHANS - 436, ...24'' Single Surface Planer -- Specifications24.8" (630 mm) Width x 1/8" to 10" opening; 10 HP Motor; 4-knife - 4-3/4" dia. cutterhead belt driven @ 5,000 RPM; max. cutting depth: 5/16". -- 1 HP Feed motor with: (2) Feed speeds: 22 - 44 FPM. Segmented rubber-covered infeed and outfeed rollers, sectional chip breaker, motorized raise-and-lower of bed w/LED readout, table size 43" x 21". -- Options Include: (16) Cutter knives: Power lift up & down. -- Complete with: Emergency stop;, magnetic starter w/overload protection; knife setting gauge: & 5-1/2" dia. dust hood; includes: Operations manual; parts list; tool kit.

Model P30N 600 V / 3 Ph / 60 Hz Includes Transformer

Paul AB920 Rip Saw Scanning Fenceless Infeed Infeed & Outfeed (not including decks) The machine has one fixed and 2 moving blades. The minimum distance between the moving blades is 44 mm (1.73"). The maximum distance between the moving saw blades is 210 mm (8-1/4"). The machine is designed for incoming boards with the following min./max. dimensions Length: 4' - 16' Width: 2" - 19" Ripped widths: 1.75" - 8" Thickness: 1" - 2" 480 Volt, 60 hz., 3 phase electrics 75 HP main motor Automatic edging separation after the saw Feed speed up to 300 fpm Fenceless infeed system with automatic skewing capability 16 width sensors on the infeed system

4 Head drill station 20' with powered roll case Hydraulic set stops

PHI IR-3 Preheater;Overall dimensions 5' wide x 4' long, consisting of: (3) IR Medium Wave heating banks, each 1" wide x 54" long, bank has gold foil quartz heating elements.This IR unit is designed to preheat the board to facilitate out gassing and help eliminate solvent pop and air bubbles in the coatings of deep pored materials such as oak. Also used to standardize board temps during colder months as well as decrease dry times of other substrates. These units are primarily (but not exclusively) designed for use before the application of stain and sealer coats. Features: Explosion proof electrics, electrical heat temperature adjustable from 100° - 150° F, variable feed speed from 8 - 30 FPM (2.5 - 9 MPM).

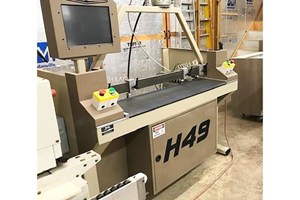

PILLAR H49 CNC BORE, GLUE & DOWEL INSERTER: -- Specifications: (2) Working zones and an overall 49" max. width capacity.(1) CNC Controlled head assembly with rapid (side-to-side) traverse, assembly with boring, gluing & insertion unit, 1 HP - 18,000 RPM drill motor.(4) Vertical pneumatic hold-down clamps, function selector control for boring only or doweling, adjustable drilling speed.1-9/16" (40 mm) Max. dowel length, setup for 8 mm dowel dia.; height adjustment up to 1-1/8" material thickness with digital readout. -- Operator & Machine Control:CNC "Color Touchscreen" Controller for function & part programming and program storage. -- Complete with:(1) 12" Dia. vibratory feed hopper. Totally sealed electronically metered glue system with 1-button flushing.100 PSI high power glue pump, 2-1/2-gal. glue tank. Anti-slip table surface. 49" X-axis cap.Rack & pinion drive, and centralized dust collection manifold.

PILLAR MACHINE HPLD 96" CNC BORE & LOCK-DOWEL INSERTER: -- Specifications:(4) Working zones of 24" each and "OPTIONAL" working table length of 96"; CNC controlled head assembly with rapid (side-to-side) traverse.Head assembly with: (1) Horizontal boring & insertion unit with a 3 HP - 18,000 RPM Direct-Drive Spindle motor; "X" Axis is servo controlled for positioning; Digital Mechanical Readouts for Height and DepthHead is currently set up to bore/machine/insert 20 mm Lock-Dowel "Eclips", H-clips, Channel Locks & 8 mm Spring Pin Fasteners.Material thickness capacity 0.5" - 1" max. Material thickness with digital readout for height adjustment. -- Clamping System:(8) Pneumatic, quick side-to-side adjustable hold-down clamps for horizontal "Lock-Dowel" processing on the panel edge.(1) Pneumatic Clamping Bar for vertical boring into the panel face/back. -- Operator Interface:15" Color Touchscreen control + Windows 10 Operating System. Ethernet 1 x PCIE Broadcom GbE (or similar), USB: 2 x USB 2.0 (or similar), Serial Port: 1 x RS-232 (or similar)The on-screen graphics of the operator interface have been designed to allow for quick programming at the machine. Typically, programs can be written and recalled in less than one minute.The Interface is open architecture allowing it to integrate with design software that can give hole locations in the form of a .xml file or a bar code (with bar code reader purchase found in options).Standard Features in the software include: 1. Graphic interface to show where holes are to be drilled and if a dowel is to be inserted. 2. Pattern Drilling/Inserting.3. Password protection of certain features/functions. 4. Online diagnostic capability (if machine is connected to an internet connection). 5. Toggle between Metric or Imperial programing parameters. -- Features: This machine will insert H-clips, Channel Locks and Spring Pins with ease. Using CNC control, this machine positions the drilling spindle to bore holes and insert the Lock dowel hardware. -- Complete with:Anti slip table surface, rack & pinion drive, and centralized dust collection manifold. -- Actual model is: PILLAR MACHINE HPLD

The seller has confirmed that this Pinheiro planer is in good working/running condition. - Double sided planer with side saw - Complete package - Manual - no year...Motor HP 20 bottom, 10 top
