Description:

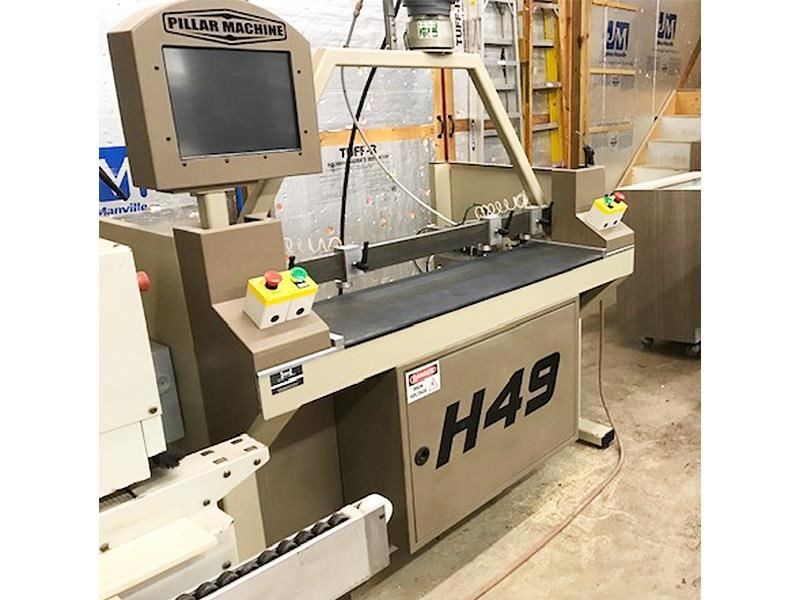

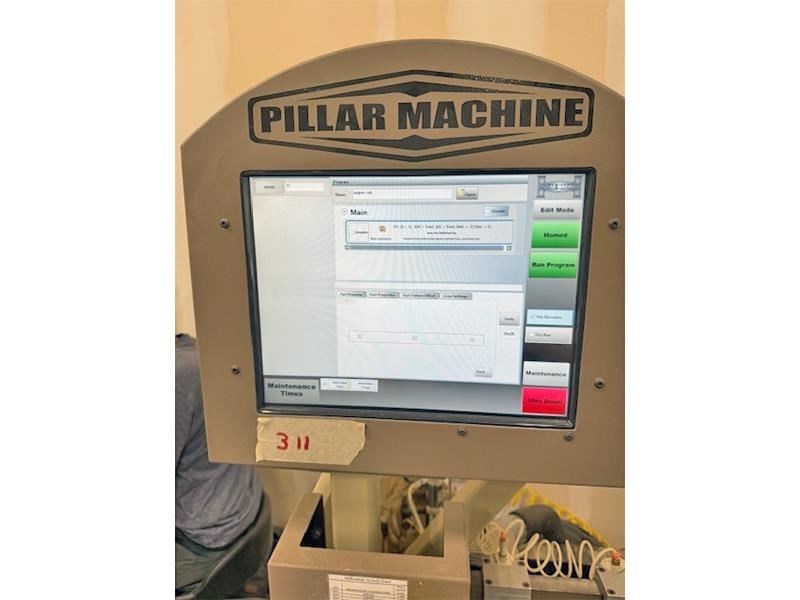

PILLAR H49 CNC BORE, GLUE & DOWEL INSERTER: -- Specifications: (2) Working zones and an overall 49" max. width capacity.(1) CNC Controlled head assembly with rapid (side-to-side) traverse, assembly with boring, gluing & insertion unit, 1 HP - 18,000 RPM drill motor.(4) Vertical pneumatic hold-down clamps, function selector control for boring only or doweling, adjustable drilling speed.1-9/16" (40 mm) Max. dowel length, setup for 8 mm dowel dia.; height adjustment up to 1-1/8" material thickness with digital readout. -- Operator & Machine Control:CNC "Color Touchscreen" Controller for function & part programming and program storage. -- Complete with:(1) 12" Dia. vibratory feed hopper. Totally sealed electronically metered glue system with 1-button flushing.100 PSI high power glue pump, 2-1/2-gal. glue tank. Anti-slip table surface. 49" X-axis cap.Rack & pinion drive, and centralized dust collection manifold.
