Woodworking Equipment For Sale

MAKOR Q1 Spray Line including Paint Pumps and Guns:This line was set up with the idea of adding a stack oven after the sprayer in the future if it is required. This line has seen very little use.Station #1: Infeed loading conveyorStation #2: MAKOR Q1 paper belt sprayer 3 circuits plus a cleaning circuit.Station #3: Powered roller conveyorsStation #4 (3) three lamp UV oven. Station #5: Outfeed conveyor. The line comes with (2) two paint pumps and (4) four spray guns, the brands GRACO MERKUR and GRACO spray guns. Reciprocating Spray Machine, Makor Q-ONE 1300 with Changeover SystemFlexibility, reliability, and ease of use, combined with limited managing cost and investment, make Q-ONE the ideal machine for companies with low-volume production applying water-based or solvent-based paints, or glues. Even companies switching to automatic coating applications for the first time can realize the advantages of the Q-ONE: Higher production and paint savings, uniform coating, and higher and more consistent quality.Structure and Transport System:The single steel frame guarantees perfect stability and the absence of vibration during the oscillating spraying. A part reading bar is located at the entrance of the machine to detect the workpiece shape to optimize paint consumption. The workpiece transport system consists of a paper belt or plastic film supported by a vacuum belt system makes the machine self-cleaning, eliminating downtime and maintenance costs, but does not allow the recovery of the sprayed productoverspray is prevented from accumulating on the lower side of the workpiece paper roll replacement is quick and easy.Spraying Group:The guns, mounted to oscillating supports, are adjustable to allow optimal orientation of the spraying zone the entire oscillating group is connected to the frame of the machine through pads that guarantee the absolute absence of vibrations, resulting in perfect paint quality on the workpieces, the pressurization of the zone containing the oscillating mechanisms extends its life and requires little maintenance.Four (4) guns can be connected to one of the three (3) coating circuits three (3) high-pressure circuits with recycle for coatings one (1) high-pressure circuit (without return) for solvent. Coating circuits have return hoses for quickly washing the circuit and for the recirculation of paint-standard supply provides two (2) gun holding plates with a quick disconnection system to allow for fast replacement of the spraying unit.Paper Unrolling and Rewinding System:The unrolling system at the entrance and the rewinding device at the exit are designed to maintain constant tension of the paper, avoiding breakage even when it is soaked by the paint, loading and unloading the support rolls are easy due to lateral pull out on wheeled carriers. An independent vacuum hold-down fan enables superior control of the paper belt rewind station and includes a self-adjusting system to maintain a consistently flat paper belt transport (

ROTOFAST 10 panel cleaner is designed for automatic cleaning of parts just prior to coating application for a dust-free finish. A rotating brush is combined with air blow-off units and an anti-static bar in order to efficiently clean flat or profiled parts of different shapes and dimensions. KEY FEATURES --Top surface One rotating brush with variable speed and height adjustment --One de-ionizing (anti-static) bar --One group of rotary blowers with timed entry --One group of fixed blower nozzles with timed entry Bottom surface --One group of fixed blower nozzles with timed entry --All components housed in single cabinet with suction hoods --Feed speed adjustable by potentiometer --Rubber pressure rollers to secure parts while brushing --Belt conveyorWeight 600 Kg.

MAKOR LTS/6E Profile Sander(6) Stations, 6"Width Capacity (approx), PLC Controller. -- 5.5HP Variable Speed Feed Motor with (6) 6"W Powered Feed Belts. -- 1st Station: Tiltable Polishing Head 2HP MAKOR Motor with Powered Cooling Fan and J1000 Drive. -- 2nd Station: Tiltable Polishing Head 2HP MAKOR Motor with Powered Cooling Fan and J1000 Drive. -- 3rd Station: Tiltable Polishing Head 2HP MAKOR Motor with Powered Cooling Fan and J1000 Drive. -- 4th Station: Tiltable Polishing Head with with 2HP MAKOR Motor with Powered Cooling Fan and J1000 Drive. -- 5th Station: Tiltable Polishing Head with 2HP MAKOR Motor with Powered Cooling Fan and J1000 Drive. -- 6th Station: Tiltable Polishing Head with 2HP MAKOR Motor with Powered Cooling Fan and J1000 Drive.

MAKOR LTSI/6 Profile Sander(6) Stations, 6"Width Capacity (approx), PLC Controller. -- 5.5HP Variable Speed Feed Motor with (6) 6"W Powered Feed Belts. -- 1st Station: Tiltable Polishing Head 2HP MAKOR Motor with J1000 Drive. -- 2nd Station: Tiltable Polishing Head 2HP MAKOR Motor with J1000 Drive. -- 3rd Station: Tiltable Polishing Head 2HP MAKOR Motor with J1000 Drive. -- 4th Station: Tiltable Polishing Head with with 2HP MAKOR Motor with J1000 Drive. -- 5th Station: Tiltable Polishing Head with 2HP MAKOR Motor with J1000 Drive. -- 6th Station: Tiltable Polishing Head with 2HP MAKOR Motor with J1000 Drive.Dimensions are 20’ L x 5’ W, 8’ H, and weighs approximately 7,000 lbs.

Two Bay 52" capacity Pneumatic clamping

2005 Marathon Spray Booth 14' wide x 25.5' long x 8'9" tall Booth only no racks, spray guns, paint pots etc included

MARCON M6000C DOUBLE ROW LINE BORER --(2) Rows of (23) spindles on 32 mm spindle centers; up-stroke boring heads w/panel supports & each with 1 HP motor. -- Adjustable from 6"-24-1/2" on double 1-1/8" round supports w/ACME hand wheel screw positioning; drill bits operate individually or both heads at once. -- (2) Spring loaded holddowns; (2) index pins for accurately locating additional holes, 10 mm collets. -- Equipped with: Air/electrical controls, and foot-operated switch.

--In auction: https://exfactoryauctions.com/Detail/SH-230492/event/A122024$1 --NO RESERVE!-- MARTIN T 23 Tilting Spindle Shaper, with 30 mm (1.18") Interchangeable Spindle & Power Feeder Specifications: Table size 940 x 1100 x 850 mm (37.01” x 43.31” x 33.46”) H, with Table insert dia. 90, 130, 205, 305, & 480 (3.54”, 5.12", 8.07”, 12.01”, & 18.90”). Spindle tilt 0° to 45°. Maximum capacity under nut 7". Vertical spindle adjustment 145 mm (5.71"). Spindle speeds 3000, 4,500, 6,000, & 90,000 RPM. Equipped with: 6.4/7.8 HP Motor. "MK5" Spindle shaft. Mechanical spindle brake, with Foot pedal. Hand spindle lock. Complete with: 11-1/2” x 4-3/4” Left & Right Fences, with 21” x 6” H Left & Right Wood fences. 1996 CO-MATIC 1 HP 4-Speed 4-Roll Power Feeder, with Speeds 13, 26, 26, & 72 FPM. Dimensions with Power Feeder: 42" x 42" x 63” H.

MARUNAKA Model RD – 8J WIDE Single Deck Veneer Roll Dryer;Complete with the following features: -- 1988 - year of manufacture. --Working width – 51"; --Length of the dryer – 24 Ft (4 Sections) --Type of heating - Steam --Operational in 2018 when mill closed --Professional rigging and loading available.

MARUNAKA Model RD-3UB/RD-6UB (Connected) Single Deck Veneer Roll Dryer;Complete with the following features: -- (3) 3 HP circulating fans with (1) 3 HP exhaust blower thru the ceiling. -- Optional heat source: electric (7) Elements/Zones, computer controlled thermocouples in addition to (2) Natural gas burners (OEM).. Both dryers have a 100amp circuit breaker with 100amp fuses. The RD 8 operates with 4 fan motors and 4 heaters. The RD 6 has 3 fan motors and 3 heaters";.. -- Capable of temperatures to 120° Celsius (250° Fahrenheit). -- Working width 1000 mm or about 39 inches. Veneer is fed endo.Please Note: -- Dryer is (2) separate units; all equipment will fit into a 40' container for shipment from Eastern USA. -- All equipment is in good working condition including all fans and blower, temperature control works properly; feed roll drive works well. -- Rolls have been nickel treated to minimize corrosion/oxidation. -- This dryer equipment is still in place. -- MARUNAKA (2) Models: RD-3UB and RD-6UB currently connected to increase capacity. Can easily be separated.NOTE: Refurbished in 2005, operated from 2005 - 2012. Still operational ready to work!

MASTER MACHINERY MC-MDS-1 Single Spindle ShaperSpecifications: -- Table size: 27.5" x 32" -- Spindle speed: 7500 - 10,000 RPM -- Main motor: 3 HP

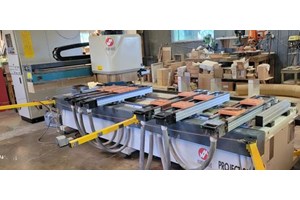

MASTERWOOD PROJECT 313 CNC MACHINING CENTER (W/ACT/BORING): -- Specifications:Working Capacity:"X" Axis 3,080 mm (121"), "Y" axis 1,100 mm (43") width; -- Positioning Speed:Programming speed in X-axis 197 FPM (60 MPM), Y-axis 162 FPM (49 MPM), Z-axis 58 FPM (18 MPM). -- Boring unit:(13) independent vertical spindles, (9) in X-axis, (5) in Y-axis; (4) horizontal spindles with (1 + 1) in X-axis for edge boring in the left- & right-hand panel edges. -- Machining:(1) 7.5 HP (5.6 kW) high speed router (1,000 - 24,000 RPM) by frequency inverter; 1.5 HP (1.1 kW), 6,000 RPM grooving saw with manual rotation for X-axis or Y-axis; -- Work Table: (6) moveable support rails with (2) vacuum cups ea., double zero settings, (6) pneumatic backstops and (2) pneumatic side stops creating (2) working zones. -- Operator & Machine Control:TECNOSUD "K68800" Microprocessor control for (3) axis, lineal, circular, and helical interpolation. Equipped with 14" color video graphic monitor, keyboard for data entry, 1.44 MB floppy disk drive, 64K RAM, RS-232 for possible connection to office PC, all mounted in separate free-standing control cabinet; features to run CPL/Parametric "TRIG" programming and "Spline" CAD/CAM. -- Complete with: Dual zone vacuum pump. Ontario Hydro approved electrics. -- Actual Model is MASTERWOOD PROJECT 313

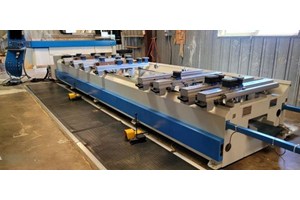

MASTERWOOD - Project 450L: CNC Machining CenterSpecifications -- X-Y-Z Axis strokes: 5,820 - 1,900 - 350 mm.Axis speed X-Y-Z: 80 - 80 - 25 MP.Aluminum panel support blocks: 8.Middle reference stops: 8.Front reference stops: 9.Side reference stops: 2 dx - 2 sx.Panel carrying knives: 4. -- Distance between drills: 32 mm.Engine power: 1.7 kW.Drill rotation speed: 4,000 RPM.12 kW Air-cooled motor with: HSK 63 Tool holder. -- Numerical Control with: P; max. power: 37.3 kVA.Amps: 53.8.Working Pressure: 7 - 8 bar.Compressed air consumption: ~ 100 Nl/Min. -- Upper dust extraction outlet: Ø 250 mm. Dust extraction outlet for sawdust coming out of the conveyor belt: Ø 120 mm; dust extractor air output speed: 25 - 30 m/Sec; dust extractor air consumption: 4,900 cbm/Hr.Includes -- Vacuum Pump; (12) extra ISO collets; aggregate HSD.Note: Description based on Model Type, manufacturer's plate, and information from Seller. Please inspect to confirm the required specifications. Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.

MASTERWOOD PROJECT 317 CNC MACHINING CENTER (P.T.P): Specifications -- Working Capacity: "X" Axis: 102" (2,600 mm); "Y" Axis: 37-1/2" (950 mm); "Z" Axis stroke: 5.9" (150 mm); max. material thickness: 2.36" (60 mm). -- Positioning Speed: "X" Axis: 164 FPM (50 MPM); "Y" Axis: 131 FPM (40 MPM); "Z" Axis: 25 FPM (8 MPM). -- Work Area: (6) Adjustable panel supports; ea. with: (2) Vacuum pods; (4) panel lifting blades for heavy parts; (6) fixed pop up rear stops; (1) side R/H stop; (1) L/H stop.Machine bed is divided into: (2) Independent working zones with mirror image capability. -- Boring Unit:.2 HP (1.5 kW) - 4,000 RPM Motor; (10) independent vertical boring spindles with: (7) Spindles in "X"-axis & (3) spindles in "Y"-axis. (6) Horizontal spindles with: (2 + 2) In "X"-axis; (1 + 1) in "Y"-axis; (1) 12,000 RPM "X"-axis grooving saw with: 125 mm Dia. blade. -- Machining: (1) 9 HP (6.7 kW) Vertically mounted electrospindle router with: ISO 30 Adaptor & ceramic bearings; variable speed: 6,000 - 24,000 RPM.(1) 4-Position automatic tool changer mounted to the machine head for "on the fly" ATC. -- Operator & Machine Control: PC Front-end controller; MASTERWOOD "MW 310" CNC + Windows Operating System; multitask software with: Graphic interactive editing & boring optimization program.Features -- 14" VGA Color monitor; MHZ processor; 64 MB SDRAM; 6.4 GB hard drive; 56 K modem, 1.44 MB floppy & CD ROM drives; Ethernet card; serial port; mouse; RS-232 port for remote programming from an office PC is possible -- Software includes: Realization of profiles & parametric drawings; graphic basic macros for simple & complex elaboration; graphic visualization of the surfaces to be machined; IN/OUT diagnostic; programming for drilling & routing operations with machine settings & tool editor.Includes -- Vacuum Pump.NOTE: Description based on Model Type, manufacturer's plate, and information from Seller; please inspect to confirm the required specifications. Dimensions & Weight data are based on: 3rd Party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.

MASTERWOOD OMB1CN3-TF Horizontal Slot Mortiser. One NC working head (3) axis with a programmable microprocessor. Machines a sequence of slots on windows, doors, shutters, or cabinets without moving the workpiece. Continuous cycles with loading/unloading. -- Equipped with: (1) MAKA style chisel mortising unit, (1) Vertical routing unit, and (1) TF Horizontal routing unit. High-frequency drilling - routing with controlled axis, DC motors, and ball screw is driven. -- Max Mortise workpiece size 150x110x2800 mm length (5.9"x4.3"x110.2"). Vertical and horizontal routers 142"; length. -- Max slot depth 130 mm (5.1"). Max vertical head stroke 140 mm (5.5"). -- Features: Pneumatic hold-downs bar mounted above table. Flip-up pneumatic pressure beam for additional support when needed. Free-standing control and electrical cabinets house computer monitor and keyboard. Master universal electronic system controller (MW CN10 Centromac) -- Vertical routing assembly: 4HP, 220/380v 3 PH, 9,000 RPM -- Horizontal routing assembly 5"; 220/380v, 3 PH, 9,000 RPM -- Memory for 50 cycles. Mirror imaging with preset tool speed (over-writeable knob). -- Total load 21 KVA -- Overall dimensions 4200mm long x1600x1600mm (166"x63x63"). Electrical cabinet 1,000 high x 450x950mm (40"x 18"x38"). Approx. weight 3800 Kg (8,400 Lbs.).

Description Mattison "55-F" Turning Lathe - Back Knife 30" Cap. in length and 4" x 4" cap. dia. - Pneumatic feed; rear arbor with cutter-head driven by a 10 HP V-belt motor. Work piece rotation is belt driven by main motor with variable speed gear box, double end drive, mechanical feed of work piece into cutter head. Rear dust shroud with collection outlet.

MATTISON 69-42 MATTI-MAX Heavy Duty Automatic Rotary, high production Turning Lathe.Microprocessor controlled for quality turnings and ease of setup; 42" long turning cap. with rotating rear arbor, 4" x 4" max. and 3/4" x 3/4" min. stock size. -- Drives & Speeds: Equipped with: 20 HP - 2,700 RPM Cutterhead Drive, 2-5/8" dia. arbor with variable speed, 2 - 45 RPM stock-rotational speed via 1.5 HP DC drive (reversing) & self-contained hydraulic unit for precise feed control.. -- Complete With: Automatic hopper feed; MATTI-MAX microprocessor-based PLC controller with keypad entry; machine functions & operations parameters are set directly from the control; RPM of workpiece and feed rate can be programmed to vary during the cut. Matching the feed rate to the stock-rotational speed produces an efficient cut -- Features: MATTI-MAX also allows rough cutting at higher speeds (especially rounding of corners) and fine finish cutting at slower speeds. . Pneumatic tailstock with dual pressure to insure penetration of spur center at high pressure and can be adjusted lower for small dia. turnings. -- Total electrical load 27 Amps.

MATTISON - 69- 54: Automatic Lathe -- 54" Length capacity with working dimensions: 4" x 4" Max. x 3/4" x 3/4" min. -- Hopper feed with: Automatic chucking and pop-up. -- Spindle drive: 25 HP Motor; spindle dia.: 2-5/8"; arbor speed: 2,700 RPM. -- Feed rates: 2 - 45 RPM; Variable feed speed and double-end drive.NOTE: Lot of additional knives & heads available at additional cost.

MATTISON - 69-42 MATTI-MAX: Heavy-Duty Automatic Rotary, high production Turning Lathe with Hopper FeedMicroprocessor controlled for quality turnings and ease of setup; 42" long turning cap. with rotating rear arbor; 4" x 4" max. and 3/4" x 3/4" min. stock size. -- Drives & Speeds: Equipped with: 25 HP - 2,700 RPM Cutterhead Drive; 2-5/8" dia. arbor with variable speed. -- 2 - 45 RPM Stock rotational speed with: 1.5 HP DC Drive (reversing) & self-contained hydraulic unit for precise feed control.Complete with: -- Automatic hopper feed; MATTI-MAX microprocessor-based PLC Controller with keypad entry; machine functions & operation parameters are set directly from the control; RPM of workpiece & feed rate can be programmed to vary during the cut.Matching the feed rate to the stock rotational speed produces an efficient cut.Features -- MATTI-MAX Allows rough cutting at higher speeds (especially rounding of corners) and fine finish cutting at slower speeds. -- Pneumatic tailstock with: Dual pressure to ensure penetration of spur center at high pressure and can be adjusted lower for small dia. turnings. -- Total electrical load: 26.5 HP. -- Setup Stand.NOTE: Large quantity of knife & heads available for additional cost.

MATTISON 229 Push Feed Moulder4-Head Push Feed Moulder, 4" x 10" capacity. -- Head sequence: 10 HP Top head, 10 HP left head, 10 HP right head, 10 HP bottom head. -- 20 HP feed motor. -- 2-1/8" dia. top and bottom spindles; 1-13/16" dia. left and right spindles. -- Includes (6) extra heads that go with the machine.Approximate dimensions of 11 feet long, 4.5 feet deep, and 5.5 feet tall. The machine weight is approx. 5 Tons.
