Description:

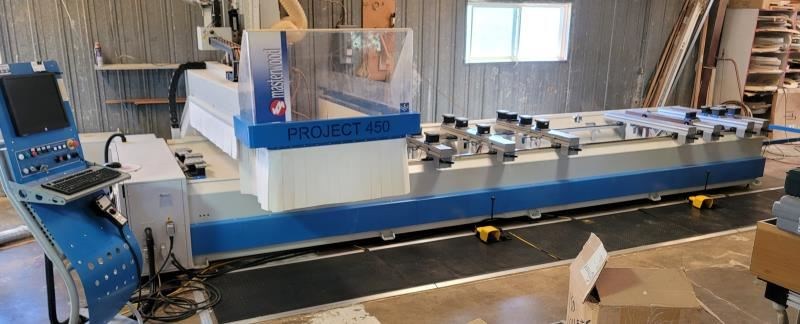

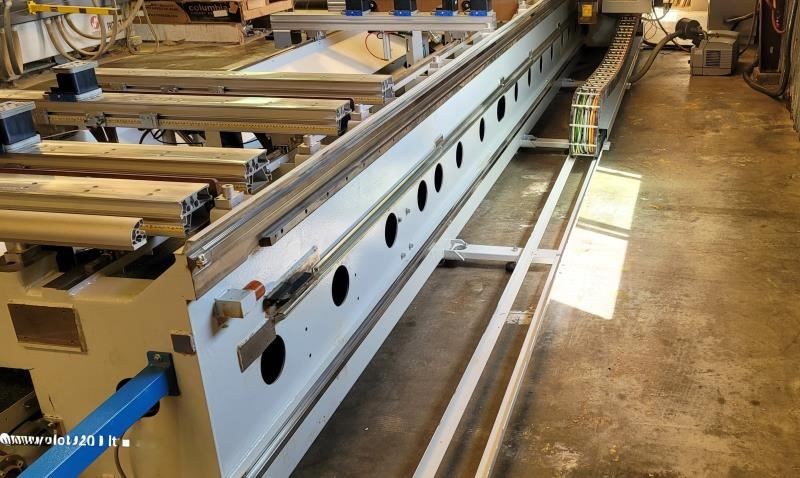

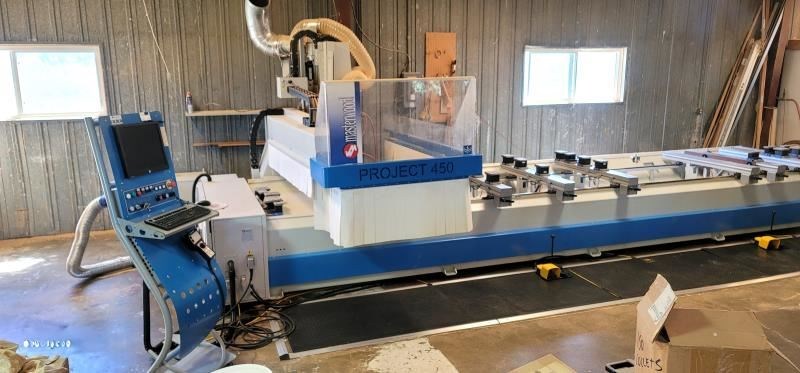

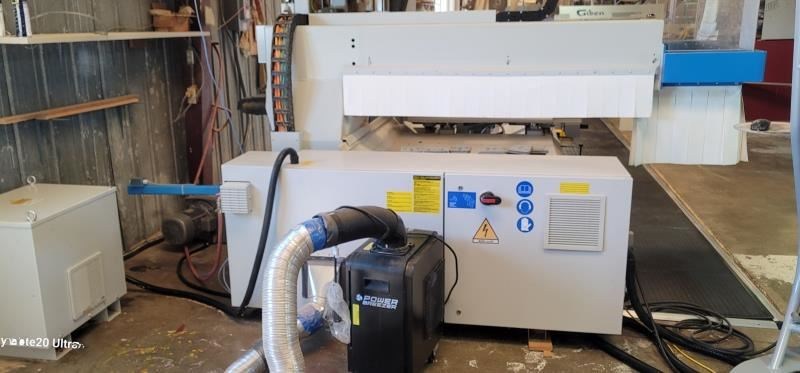

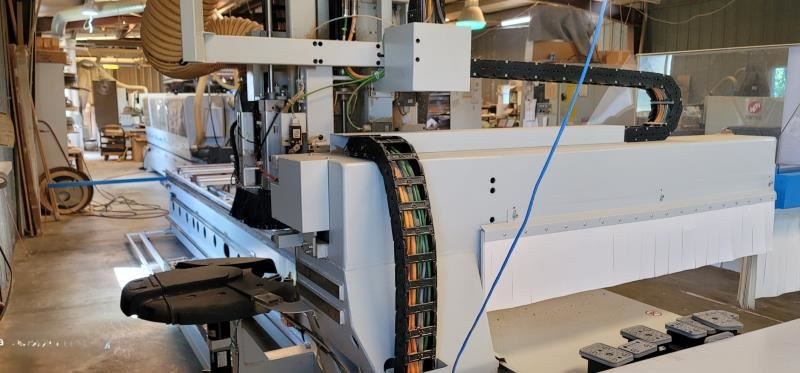

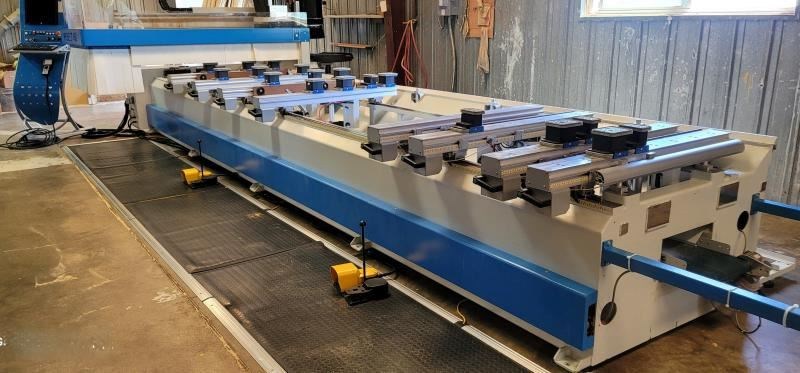

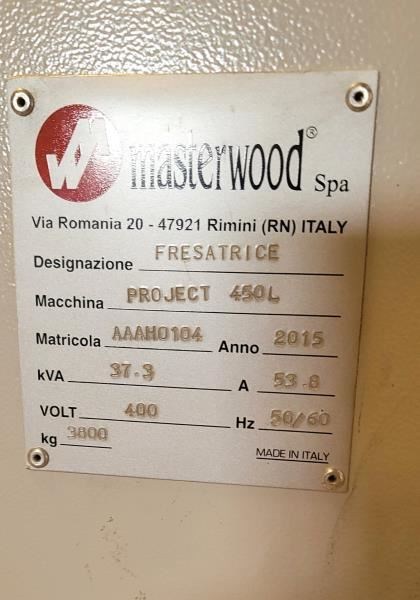

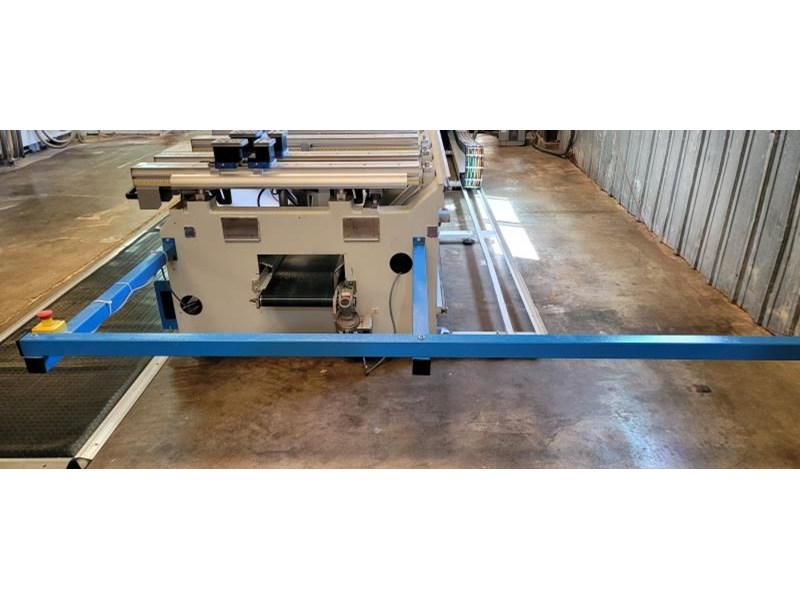

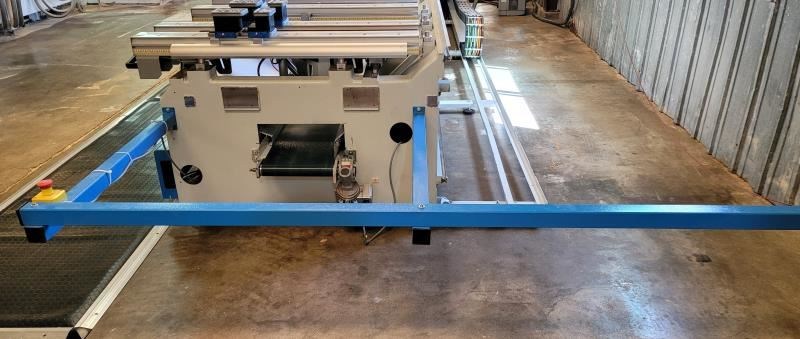

MASTERWOOD - Project 450L: CNC Machining CenterSpecifications -- X-Y-Z Axis strokes: 5,820 - 1,900 - 350 mm.Axis speed X-Y-Z: 80 - 80 - 25 MP.Aluminum panel support blocks: 8.Middle reference stops: 8.Front reference stops: 9.Side reference stops: 2 dx - 2 sx.Panel carrying knives: 4. -- Distance between drills: 32 mm.Engine power: 1.7 kW.Drill rotation speed: 4,000 RPM.12 kW Air-cooled motor with: HSK 63 Tool holder. -- Numerical Control with: P; max. power: 37.3 kVA.Amps: 53.8.Working Pressure: 7 - 8 bar.Compressed air consumption: ~ 100 Nl/Min. -- Upper dust extraction outlet: Ø 250 mm. Dust extraction outlet for sawdust coming out of the conveyor belt: Ø 120 mm; dust extractor air output speed: 25 - 30 m/Sec; dust extractor air consumption: 4,900 cbm/Hr.Includes -- Vacuum Pump; (12) extra ISO collets; aggregate HSD.Note: Description based on Model Type, manufacturer's plate, and information from Seller. Please inspect to confirm the required specifications. Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.
