Woodworking Equipment For Sale

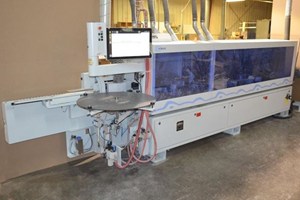

HOMAG KAL 310/7/A3/S2 EDGEBANDER (W/PRE-MILLING & CORNER ROUNDING)Working Capacity: -- Edgebanding thickness in rolls (min/max) 0.3 - 3 mm. -- Panels thickness (min/max) mm 12 - 60 (1/2" through 2-3/8"). -- Feed speed (adjustable) 18 - 25 MPM (59 to 82 FPM). Front-End Equipped: -- In-feed fence, manual digital positioning. -- Pre-Milling Unit (vertical joint trimmers) (2) x 3 Kw each. -- Lamps to pre-heat the work pieces edge. -- Edge Magazine, vertical coil cart with 2 positions. -- Gluing Unit QA 34, EVA (Hot Melt) -- Side Pressure Zone, (3) rollers, adjustable by N.C. servo motor. Working Units: -- End Trimming Unit HL 81 Motors, 2 x Kw 0.22 (0.50 HP) -- Pre-Rough Trimming Unit: Top/Bottom, 2 x 0.55 Kw. (0.75 HP) 12,000 RPM motors, none tilt with digital indicator positioning. -- Multi Function Unit FK 11: Profile Contour Trimming, 2 x 0.4 Kw, 12000 RPM motors, for linear top/bottom edge trimming and vertical front/back corner rounding. -- Profile Edge Scraping Unit:Pneumatic in/out and manual digital indicator positioning. -- Glue Scraper:Top/Bottom, flat panel surface glue scraper. -- Buffing Unit: Top/Bottom oscillating buffing motors 2 x 0.25 Kw (0.35 HP).Operator & Machine Control: -- HOMATIC NC 21 controller, flat color LCD screen with keyboard and mouse input. Complete With: -- Top pressure system with rubber belt. -- Panel Support Outrigger. -- Sound and safety hoods over all working stations. Actual Model is HOMAG KAL 310/7/A3/S2

HOMAG - EDGETEQ S 300 4.5 Servo Quick Melt: Edgebander (w/Premill & Corner Rounding) + EVA/PUR Gluing TechnologySpecificationsRH Feed (BRANDT) Configuration: 0.4 - 3 mm (0.016 - 0.125") Coil cap.; 0.4 - 8 mm (0.016 - 0.315") edge strip cap.; 8 - 60 mm (0.32" - 2.4") panel thickness; 160 mm (6.3") min. panel length; 70 mm (2.76") min. panel width.Equipped with: Premilling Station: (2) Motors @ 2.25 kW (3.0 HP) - 12,.000 RPM; (1) clockwise & (1) counterclockwise rotation for chip-free & clean panel edges.Equipped with diamond cutterheads. -- Infeed fence with: Servo motor positioning. -- Infrared "radiant quartz" Heating Unit: Between glue roller & pressure section. -- Automatic Edge Magazine for: Strip & coil stock; strips 0.4 mm - 8 mm (0.016 - 0.315"); coils up to 3 mm PVC; "HD" guillotine. -- QA-65N Gluing Unit. PUR & EVA Glue with: "Quick-Change" Pot for maintenance, glue purging/color change. -- Pressure Section. 1st Roller driven plus: (2) Idle rollers; timed pneumatic pressure controlled; motorized positioning of the Pressure Zone. -- Feed Speed: Variable 8 - 14 MPM (26 - 46 FPM); 14 MPM (46 FPM) when contour trimming. -- HOMAG "Power Touch" Control: Full HD widescreen multitouch display; keyboard; mouse; Industrial PC.PLC Control according to IEC 61131 standards; USB connection at the operating panel; Ethernet connection 10/100 MBIT RJ45.WorkstationsStraight/Chamfer End Trimming: (2) Motors; each 0.35 kW (1/2 HP) - 12,000 RPM; automatic indexing for straight to bevel trimming from control panel. -- Multistage Fine Trimming "MS 40" Unit: Top/Bottom: (2) Motors; 0.55 kW (3/4 HP) - 12,000 RPM; equipped with: (2) Multi-Profile Radius cutterheads; each with: (4) Carbide insert knives. (4) Profile Options: Profile1, Profile2, Bevel, Flush trimming via the Program Control. Includes: Auto tilt feature; Servo Controlled to edge thickness; nesting top copy system. -- Multi-Function Contour Trimming/Corner Rounding Unit MF-50. (2) Motors with: 0.4 kW (1/2 HP) - 12,000 RPM; dual purpose for CR; continuous Top & Bottom edge trimming with soft touch for high gloss panels. Servo motor control of the cutter: 2-Position automatic indexing for 1 mm, 2 mm & 3 mm thickness for: Leading & trailing edges' vertical corner rounding of panels.Equipped with: Radius cutters; HSK 25 System; 3 mm max. edge thickness. -- Scraping, multistage Profile Scraping Unit "MZ 40". Top/bottom with Multi-Profile for: (2) Radii - 1 mm, 2 mm, or 3 mm in place of 2 mm; Servo control positioning of vertical & horizontal copy wheels.PVC Scrape Collection Box -- Finish Scraping Unit: Flush top/bottom on panel surface with floating insert knives. -- Buffing Unit: Top/bottom (2) motors; 0.10 kW (0.125 HP) - 2,800 RPM. -- Front/Rear Spray Stations.Complete with:Motorized, programmable Top holddown pressure beam; padded sound enclosure; isolation transformer for: Multiple input voltages; used tooling; Original Factory machine documentation. -- Actual Model: HOMAG EDGETEQ S

HOMAG - EDGETEQ S-380/1660 6.6 Edition: Edgebander w/Premill & Corner Routing + "AIRTEC" EVA/PUR Gluing TechnologySpecifications0.4 - 12 mm (0.016 - 0.47") Edgeband thickness; 8 - 60 mm (0.31" - 2.36") panel thickness for EVA/PUR; 40 mm (1.57") max. for "Air Tec" processing.60 mm (6-1/4") Min. panel length; 70 mm (2-3/4") min. panel width.Equipped with: Premilling Station. (2) Motors @ 2.25 kW (3.0 HP) - 12.000 RPM; LH & RH rotation with: Pneumatic jump control for chip free & clean panel edges.Includes: Diamond cutterheads. -- Infeed fence with: Servo motor positioning. -- Infrared Radiant Quartz Heating Unit: Between glue roller & pressure section. -- Automatic Edge Magazine. Strip & coil stock: Strips 0.4 mm - 12 mm (0.016 - 0.47"); coils up to 3 mm PVC & "HD" guillotine. -- "QA-65N" Quick Melt "AirTec" EVA/PUR. Premelter gluing technology with: Auto-Purge function; "Quick Change" Glue Tank for maintenance & glue color change. -- Pressure Section1st Roller driven, plus: (3) Idle rollers; lube spray unit on last pressure zone roller for high gloss peel coat processing; timed pneumatic pressure controlled; Servo motor positioning for programmable edge thickness changeover. -- Feed Spee: Variable 8 - 20 MPM (26 - 66 FPM); 14 MPM (46 FPM) when using contour trimming. -- Operator InterfaceHOMAG "Power Touch Control": Memory 256 MB RAM; 1 GB flash card drive. 22" Color HD widescreen; soft keypad; internal modem for remote diagnostic link.Workstations End Trimming: (2) Motors @ 0.35 kW (1/2 HP) - 12,000 RPM; automatic chamfer from control panel: 0°- 15°. -- MS-40 Multistage. Flush/Bevel-Fine/Radius Trimming Unit: Top/Bottom (2) motors; 0.55 kW (3/4 HP) - 12,000 RPM; auto tilt positioning 0° - 25° with: Combination flush/radius/chamfer cutterheads.Horizontal & Vertical tracing wheels equipped w/brushless multi axis Servo motors for: Positioning of work unit & horizontal copy wheels for quick changeover. Includes: (4) Positioning options: Profile-1, Profile-2 = bevel & flush trimming.Auto Tilt & Servo control for: Edge thickness; nested top copy system. -- MF-50 Multifunction Contour/Corner Rounding Unit. (2) Motors: 0.35 kW (1/2 HP) - 12,000 RPM w/"Soft Touch" Magnetic Linear Drive System for: 1-Mil, 2-mil & 3-mil thickness.For leading & trailing edges vertical corner rounding of panels: Either radius or chamfer cutters can be mounted; 3 mm max. edge thickness. -- MZ-40 Multistage Scraping; Multi profile (PVC). Top/bottom with: (2) Radii profiles: 1 mm & 2 mm or 3 mm instead of 2 mm; Servo control positioning of vertical & horizontal copy wheels. Nested Top Copy System. PVC Scrape collection box. -- Scraping Glue Unit. Flush top/bottom on panel surface with: Floating insert knives. -- Buffing Unit. Top/Bottom: (2) Motors: 0.10 kW (0.125 HP) - 2,800 RPM. Complete with:Separating spraying/cleaning agents; motorized, programmable hold-down pressure beam; padded sound enclosure; isolation transformer for multiple input voltages; used toolin

HOMAG - KAL 210 AMBITION 2262: Edgebander (w/Premill & Corner Rounding) -- SpecificationsCoiled stock min./max. Edge thickness: 0.3 - 3 mm (0.012. - 0.118"); strip material min./max. edge thickness: 0.4 - 6 mm (0.16 - 0.234"). -- Panel stock min./max. thickness:12 - 40 mm (0.472" - 1.574"); panel overhang: 30 mm (1.18"). -- Infeed Fence. Adjustable infeed fence with: Manual digital indicator positioning. -- Premilling Station: (2) 3.0 kW (4.0 HP) 150 Hz - 9,000 RPM Motors; equipped with: Trimming column, (2) horizontal & cross slides with: Spindle adjustment; electropneumatic horizontal jump movement of the 1st motor.Includes: Electronic frequency inverter for control of motor speed & braking; (2) dust extraction hoods; air jet panel blow off device, & SIKO digital counters for adjustments. -- Panel Preheater: Brings the panel to an appropriate temperature for better adhesion; this is especially beneficial in cooler temperatures. -- Multipurpose Magazine: 2-Coil magazine expands capability by running coiled material & strips; magazine height adjustment allows for greater usage of varying panel heights by raising & lowering the magazine table, allowing the Operator to center the panel on the edgebanding. -- Gluing System (EVA - Hot Melt): QA 3 -Quick Melt Overhead Unit & heated roller applicator; digitally displayed thermostat for both upper & lower unit.34 mm Dia. Glue Roller": Allows excellent control of temperature for optimum bonding results with individual adjustment for: Leading & trailing glue gates; lower melting unit equipped with: Automatic glue level control. Melting capacity: 12 kG/Hr (26 Lbs/Hr). -- Pressure Section: Automatic pressure zone adjustment (Servo); (1) large 160 mm dia. driven & (6) 70 mm dia. idle rollers; pneumatic pressure control depending on edgebanding material used. -- WORKSTATIONSEnd Trimming Unit HL 81: 0.8 kW (1.0 HP) x (2) 200 Hz - 12,000 RPM Motors to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer 30° to straight cut. -- Top & Bottom Flush Trimming Unit. Top & Bottom: 0.4 kW (0.74 HP) x 2 - 12,000 RPM Motors; height adjustment with the top pressure beam and tilting range +/- 1°. -- Profile/Bevel/Corner Rounding Unit: FF 12. Multifunction 0.4 kW (0.54 HP) x (2) - 12,000 RPM motor to fine trim the edge overhangs at the workpiece upper & lower edge, as well as trimming around the front & rear vertical edge. - Max. feed speed: 20 MPM (65.6 FPM). -- Profile/Bevel Scraping Unit PN 10. Top & Bottom for: Thick PVC/ABS; pneumatically activated/adjustment. -- Flat Glue Scraper Unit. Top & Bottom: Pneumatically activated to remove potential glue squeezeout. -- Buffing Unit FA 11. Top & Bottom: Edge buffing/polishing; pneumatically activated. -- Operator & Machine ControlHOMATIC - PC 22: Power Control w/Touchscreen. Controller functions in Windows environment and features: Keypad w/LCD flatscreen display, fault diagnostic, OS9 real-time Operating System.Handheld remote c

HOMAG - KDF-440C: Edgebander (Premilling & Corner Rounding w/HIGHFLEX Automated package -- Edge & Workpiece Capacity0.4 - 8 mm (0.016 - 5/16") Edge; 8 - 60 mm (5/16 - 2-3/8") panel thickness; 160 mm (6-3/8") min. panel length; 70 mm (2-3/4") min. panel width.Equipped with: -- Premilling Station: (2) Motors @ 2.25 kW (3.0 HP); 12.000 RPM; LH & RH rotation w/pneumatic jump control for chip-free & clean panel edges. Equipped with: Diamond cutterheads. -- Infeed Fence with: Servo motor positioning. -- Infrared Radiant Quartz Heating Unit between glue roller & pressure section. -- Automatic Edge Magazine for: Strip & coil stock; strips 0.4 mm - 8 mm (0.016 - 5/16"); coils up to 3 mm PVC; "HD" guillotine. -- "Quick Change" Glue Tank for: Maintenance & glue color change. -- Air Tech hot Air System. -- Pressure Section. 1st Roller driven plus: (3) Idle rollers, timed pneumatic pressure controlled; Servo motor positioning for programmable edge thickness changeover. -- Feed Speed: Variable 8 - 14 MPM (26 - 46 FPM); 11 MPM (36 FPM) when using contour trimming. -- HOMAG "Power Touch Control. Memory: 256 MB Ram; 1 GB Flash Card Drive; Operator control panel with: 22" Color HD widescreen; soft keypad; internal modem for remote diagnostic link.Workstations -- End Trimming: -- (2) Motor @ 0.35 kW (1/2 HP) - 12,000 RPM; automatic chamfer from control panel: 0°- 15°. -- Flush/Bevel Fine/Radius Trimming UnitTop/bottom (2) motors; 0.55 kW (3/4 HP) - 12,000 RPM; auto tilt positioning: 0° - 25° with combination: Flush/radius/chamfer cutterheads; horizontal & vertical tracing wheels; equipped with: brushless multiaxis Servo motors for positioning of work unit & horizontal copy wheels for quick changeover.Includes: (3) Positioning options: Profile 1, profile 2, and flush trimming. -- Corner Rounding Unit(1) Motor: 0.35 kW (1/2 HP) - 12,000 RPM for: Leading & trailing edges vertical corner rounding of panels; either radius or chamfer cutters can be mounted; 3 mm max. edge thickness. -- Scraping, Multiprofile (PVC)Top/Bottom with: (2) Profiles; 1 mm & 2 mm or 3 mm instead of 2 mm; Servo control positioning of vertical & horizontal copy wheels. PVC scrape collection box. -- Scraping Glue UnitFlush top/bottom on panel surface with: Floating insert knives. -- Buffing UnitTop/bottom (2) motors: 0.10 kW (0.125 HP) - 2,800 RPM. -- RIEPE Anti-adhesion. -- RIEPE Detergent.Complete with:Motorized, programmable holddown pressure beam; padded sound enclosure; used tooling; Original Factory machine documentation. -- Actual Model: HOMAG - OPTIMAT KDF 440C (corner rounding). NOTE: Available early Dec/2025; possibly earlier.

Homag D-200 Drill & Dowel Inserter

HOMAG - BHT 500: CNC Through-Feed Machining Center (2-Head) + BARGSTEADT Stacker -- SpecificationsHOMAG "BHT 500" CNC 2-Head Through-Feed PtP Machining Center: -- Working Capacity Single panel processing: "X" Axis 98.4" (2,500 mm); "Y" axis 55.4" (1,406 mm); "Z" axis 0.5" - "2.36" (12 - 60 mm) min./max. panel thickness.(2) Panel processing: "X" Axis 98.4" (2,500 mm); Y" Axis 23.6" + 23.6" (600 + 600 mm); 1/2" - "2.36" (12 - 60 mm) min./max. panel thickness. -- Positioning SpeedVertical boring unit(s) Positioning speed: "X" Axis 328 FPM (100 MPM); "Y" axis 230 FPM (70 MPM); "'Z" axis 82 FPM (25 MPM).Panel transfer belt variable feed speed from: 0 - 295 FPM (0 - 90 MPM). -- Horizontal Through-Feed Boring Units(2) 2 HP (1.5 kW) Motors (1-motor each side) with: Variable rotation speeds up to 9,000 RPM. (2) 19-Spindle LH units, (38) total LH spindles; (2) 19-spindle RH units, (38) total RH spindles; spindle are on 32 mm centers.LH Horizontal drilling support is fixed; RH support motorized & equipped with: LED Indicator for precision positioning, pneumatic locking, and individual adjustment for positioning according to the panel size. -- Horizontal PTP Boring UnitsCNC Controlled horizontal PtP boring units with: (2 + 2) spindles in the "Y" axis on each boring head; (8) "Y" axis spindles total) -- Vertical PTP Boring Units(2) 4 HP (3 kW) Motors (1-motor each head) with: Variable rotation speed; up to 9,000 RPM.(2) Independently controlled top mounted CNC PtP boring/grooving heads; each head with: (30) Independent vertical spindles; spindle are on 32 mm centers. -- Grooving Saws(2) 2 HP (1.5 kW) Motors (1-motor each head); "X" axis grooving saw with: Variable rotation speed up to 12,000 RPM & 100 mm dia. blade. -- Operator InterfaceIPC with: HOMAG "Power Control 85T" + WoodWOP + Windows "XP" Operating System; icon driven software with: Graphical interface allows Operator to quickly & efficiently create programs & diagnose malfunctions in simple terminology. 17" TFT Color monitor; multitask Operating System; input/output modules; axes override; 4-axis interpolation; diagnostic graphics aide for programming; machine data & tool management. -- Options Include: BARGSTEADT - "TBH 250/QL/25/12": Vacuum Stacker Device.Work cap. "X" Axis 98.4" (2,500 mm), "Y" axis 55" (1,400 mm), 2.3" (60 mm) Max. panel thickness.High-speed workpiece stack exchange with a cycle time of 35 seconds; thin work piece device for panels from 8 mm thick. -- Actual Model is HOMAG BHT 500

HOMAG BAZ 211 VENTURE 21M Machining Center W "C" Axis -- Maximum Working field: X-Axis 3,225 mm (126.9"), Y-axis 1,500 mm (59"), Z-axis stroke 300 mm (11.8"), max work piece thickness 60 mm (2.4"). -- X-axis travel speed 80 MPM (262 FPM), -- Y-axis travel speed 60 MPM (197 FPM), -- Z-axis 40 MPM (131 FPM), AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration. -- Working area: Working tables consist of (6) adjustable support rails, (2) vacuum cups per rail; laser unit to aid in the quick positioning of the vacuum cups. -- Machining unit: (1) 14.75 HP (11 kW) liquid cooled electro-spindle router (1,500 - 18,000 RPM), "HSK F63" quick change tooling; 12-position ATC automatic tool changer, "C" axis for 360ø horizontal processing. -- Drilling Unit: Vertical drilling head with (17) individual vertical spindles, 11-spindles in "X", 7-spindles in "Y", spindles on 32 mm centers. (1) saw blade aggregate, 125 mm dia; (1) 4-spindle lock case horizontal trimming unit aggregate. -- "POWER CONTROL PC 85" Numerical control with: "WOODWOP + BAZ" interface software, "WINDOWS NT"; icon driven with a graphical interface to allow the operator to quickly and efficiently create programs. -- Includes: 144 MB Disk drive, CD ROM drive, 12" color LCD monitor. -- Features: RS-422 Serial & USB connection to PC (up to 300 meters), (2) line adaptors RS-232 & 485.2 with 9-25 pin and card for RS-232 line (cable not included). -- Features: Multitask operating system, input/output modules, axes override, 4-axis interpolation, "WOOD SCOUT" diagnostic graphics aid for programming, machine data & tool management. -- Editor Module for PC with same look and functionality of software on the machine, allows transmission of programs and work lists; Required office PC configuration (not included): Pentium processor, 8 MB RAM, 8 MB hard disk; VGA video card. Complete with: -- ELMO 100 cm/h vacuum pump; perimeter protection cage; user & maintance manuals on CD with wiring diagrams and operation of Numerical Control. -- "C" Axis -- Actual Model is BAZ 211 VENTURE 21M.Riggers are required for tear don and loading

Houfek Buldog 7-3M-1100-RRC 3 Head wide belt sander43" width cap, Roller / Roller / Combination-headHead Configuration1st Head – Rubber – 90 shore @ 200mm (7.9";) dia.2nd Head – Rubber - 90° shore @ 2000mm (7.9";) dia.3rd Head– Rubber - 45° shore @ 200mm (7.9";) dia. with adjustable platen.Specifications -- Sanding width 1100 mm 43" -- Work piece height 3-160 mm 0.118"~6.3" -- Sand belt size 1120 x 2620 mm 44" x 103" -- Conveyor feed speed 3~15 m/min 9.8~49 FPM -- Table motor 0.18 kW 1/4 HP Equipped with & Features -- Main motor 1st head 18 kW 24HP -- Motor 2nd head 15 kW 20HP -- Motor 3rd head 15 kW 20HP -- Voltage 460/3/60 -- Exhaust outlet (4) 180mm; (1) 100mm (4) 7"; (1) 4" -- CFM requirements 6700 m3/hr 3950 CFM -- Weight 3100 kg (approx) 6820 lbs -- Floor space 3885x1715x2260mm153"x68"x89"

Houfek Maxx 1100 2 Head Widebelt Sander43 width cap Drum, Combination headHead Configuration1st Head : Contact roll2nd Head : Combination contact roll and finishing platen.Specifications -- 1st Head: 6" Dia. rubber covered contact roll, 25 HP motor; -- 2nd Head: Combination head with rubber covered contact roll 6" Dia. and air cushioned finishing platen, timers control platen inflation and deflation, 20 HP motor. -- 43" x 75" Abrasive belts, -- TRU-TRAK solid state belt tracking, -- Variable feed speed with inverer control 15 - 45 FPM -- 1 HP motor, endless belt conveyor with automatic tracking. Equipped with & Features -- Motorized part thickness opening with LED 0" - 6" opening. -- Infeed and outfeed rubber covered holddown rolls, -- Infeed over thickness bar, -- Emergency stops at infeed & outfeed, -- Air operated disc brakes on sanding heads, -- Electrical interlocks on main access doors, and motor load meters.Note from Seller :This machine was damaged by the straps going over the machine during transport. The doors work fine, they just have dents on the top where the straps dented them. Price has been reduced to reflect this (cosmetic) damage.

Hunton Limited Punch Grinder

HYDREX HPX510-1 Hot Press, Single daylight opening. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.Features (Overall): -- Board size up to 5' x10', -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time , emergency pedal, quad temperature protection device. -- (8) Cylinders (upstroke) -- 120 Tons of overall pressure, -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- 122" x 61" Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick, 4" Max Working height.. -- (8) Hydraulic "upstroke cylinders", 85 mm dia.; rack & Pinion guide system for parallel closing of the platens. -- 120 Ton total pressure, 40 PSI specific pressure over the entire platen area; 4.5 KW (6 HP) hydraulic pump motor. Platen moving speed 5 FPM -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120° C (248° F) max. operating temperature. -- Loading from (3) sides; 39-1/2" from floor with lower platen in the down position: heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Features: "Last" (2) cylinders can be turned off to press shorter panels. - Overall press weight is approx. 19,500 Lbs).

HYDREX HPX510-5 Hot Press 120 Tons with (5) Daylight openings. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.Features (Overall): -- Board size up to 5' x 10', -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time, emergency pedal, and quad temperature protection device. -- (8) Cylinders (upstroke) -- 120 Tons of overall pressure, -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- 122" x 61" Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick; -- (8) Hydraulic "upstroke cylinders", approx. 85 mm dia.; Rack & Pinion guide system for parallel closing of the platens. -- 120 Ton total pressure; 54 kW of heating power. 40 PSI specific pressure over the entire platen area; 4.5 kW (6 HP) hydraulic pump motor. -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120° C (248° F) max. operating temperature. -- Max Working height is 4"; Loading from (3) sides; 39-1/2" from the floor with lower platen in the down position: heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Features: "Last" (2) cylinders can be turned off to press shorter panels. - Overall press weight is approx. 24,000 Lbs. -- Overall dimensions: 3,800 length (+610mm -boiler + 610mm -pump/tank) x 1,790 wide x 2,450 mm high.

HYDREX HPX48-1 Hot Press, Single daylight opening. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.Features (Overall): -- Board size up to 4' x 8', -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time, emergency pedal, and quad temperature protection device. -- (6) Cylinders (upstroke) -- 80 Tons of overall pressure, -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- 98" x 51" Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick, 4" Max Working height.. -- (6) Hydraulic "upstroke cylinders", 85 mm dia.; rack & Pinion guide system for parallel closing of the platens. -- 80 Ton total pressure, 40 PSI specific pressure over the entire platen area; 4 KW (5.5 HP) hydraulic pump motor. Platen moving speed 5 FPM -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120° C (248° F) max. operating temperature. -- Loading from (3) sides; 39-1/2" from the floor with lower platen in the down position: heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Overall press weight is approx. 12,500 Lbs). Overall dimensions 129" x 65" x 102" high.Also available with (3) openings - 100 Tons and (5) openings - 100 Tons.

HYDREX HPX410-5 Hot Press 160 Tons using (8) hydraulic cylinders, Five daylight openings. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.Features (Overall): -- Board size up to nominal 4' x 10' (about 51" x 126"). -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time , emergency pedal, quad temperature protection device. -- (8) Cylinders (upstroke) -- 160 Tons of overall pressure -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- Platen size 1300 mm x 3200 mm (51" x 126") approx. Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick; -- (8) Hydraulic "upstroke cylinders", approx. 85 mm dia.; rack & Pinion guide system for parallel closing of the platens. -- 40 PSI specific pressure over the entire platen area; 54 kW heating power. Approx. 7.5 kW (10 HP) hydraulic pump motor. -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120° C (248° F) max. operating temperature. -- Max Working height is 4"; Loading from (3) sides; 39-1/2" from floor with lower platen in the down position; Heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Overall press weight is approx. 27.500 Lbs. -- Optional: Extra Large Oil Heating Tank for Special Higher Temperatures if needed.

2004 Hymmen Proficoater 60" Roll Coat Line - Model ULX-S: Includes spare drum and lights SCMI Finish Sander

IMA Combiform I/R75/1260/V

IMA ADVANTAGE 500 L EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): Production Edgebander -- Specifications:Edgebanding capacity: Coiled material 0.3 - 3 mm (0.012 - 0.118"); strips 3.0 - 12.0 mm (0.118 - 0.472); panel thickness min./max. 8 - 60 mm (0.315 - 2.362").Equipped With:Premill Unit - 08.379 with: 4 kW x 2 (5.3 HP x 2) 9,000 RPM Vertical joining spindles, SIKO digital readouts, particle & debris air jet blower. -- Glue System - EVA (Hot Melt) with: "Quick-Lock" System. -- Pressure Section with: (1) Large dia. driven and (5) idle rollers. Workstations:End Trimming Unit - 08.415: Dual motor, 0.66 kW x 2 (0.88 HP x 2) suspended from the hold-down beam; automatic chamfer adjustment 0° - 8°. -- Rough Trimming Unit - 08.055: Top & Bottom flush trimming, W 1.0 x 2 (HP 1.34 x 2) - 12,000 RPM ea. motor; against the feed (up-milling), vertical & horizontal tracing wheels, digital readouts for adjustments. -- Contour Unit - CT U-L: Multiuse, Top & Bottom linear and vertical corner trimming; total motors: (4) 2 x 180 W and 2 x 400 W; 12,000 RPM. -- Profile Scraper Unit - 08.519: Profile Scrapers for up to 3 mm thick PVC banding, vertical & horizontal tracing shoes. -- Glue Scraping Unit - 08.521: Flat, Top & Bottom self-tracing Glue Scraper. -- Buffing Unit - 08.617-2: Top & Bottom 0.18 kW x 4 (0.25 HP x 4) - 1,400 RPM. -- Edge Smoothing Unit: Top & Bottom for 1, 2 & 3 mm edge.Control System ICOS OPEN TS: Large color LCD display; displays stored data, on/off workstation sequence, troubleshooting diagnostic; data input by touchscreen, alphanumeric keyboard, and mouse. Microprocessor adjusts according to stored programs or input; pressure section position & pressure control, vertical positioning of all hold-down beam mounted workstations.Complete with:Heavy-Duty "sliding" feed chain with: 70 mm Wide x 60 mm long rubber pad inserts; central lubrication of transport chain; variable feed speed from 4 - 20 MPM (13 - 65 FPM). -- Motorized central height adjustment of top pressure beam with double V-belt hold-down. -- Sound Enclosure - All stations; all trimming & milling motors DC electrical motor brakes for immediate stopping. -- Spraying Units: Upfront at infeed for anti-stick solvent and polishing solvent prior to Buffing Station. -- Actual Model is IMA ADVANTAGE 500 L

IMA - HKA CONTOUR EDGEBANDER: Specifications: -- Manually operated Contour Edgebander. -- Designed for straight or curved (contour) edgebanding with: 0.5 - 3 mm Edgebanding thickness, 16 - 45 mm panel & banding height, 23 - 45 mm min. strip width; 100 mm min. panel width; 250 mm min. strip length. -- Equipped with: Versatile glue head can be fixed to 1-side of the table allows operator to manually manipulate smaller pieces.During "fixed" mounted operation, coil material is drawn in automatically to infeed section of machine. -- Work Table:32" (800 mm) Dia. coil dispensing table, large worktable surface (approx. 36" x 36"); Pre-selection counter for edgebanding material; (1) preheating unit with 600 Watts for preheating of PVC/ABS edges -- Operating Process:Floating edgebanding head is clamped to panel to be processed, precut strip of edgebanding material is fed into glue head,Operator guides head around workpiece, glue is directly applied to precut strip of edgebanding material up to end of strip. -- Features: "Floating head/glue pot" unit (hot melt) with 0.5 Liter cap; Guillotine knife for PVC material (within floating head). -- Complete with: (1) 6 m³/Hr cap. vacuum pump for high-flow work table; Jib Crane & hoist to support the edgebanding head; Thermo-control for glue temperature; Foot pedal control to initiate automatic cycle.

IMA Bima 810 V
