Description:

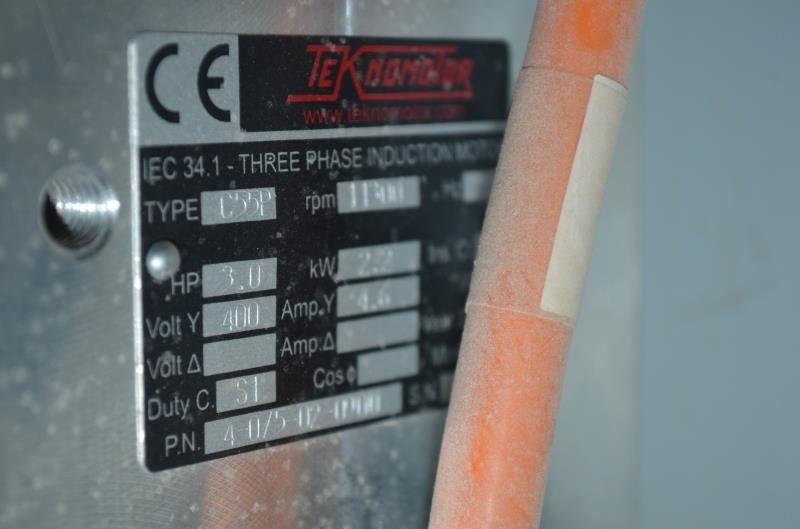

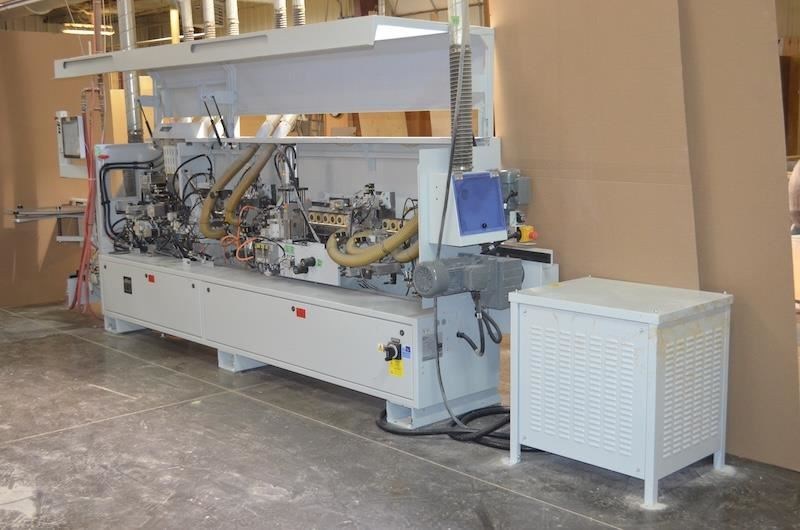

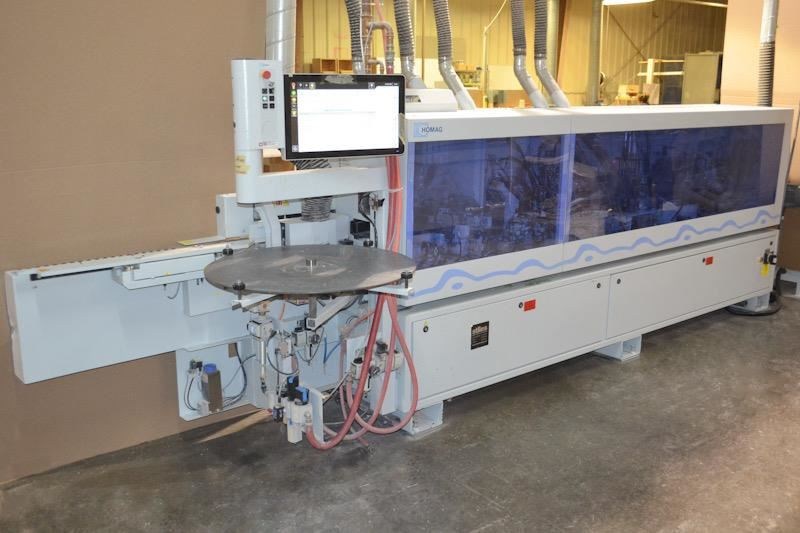

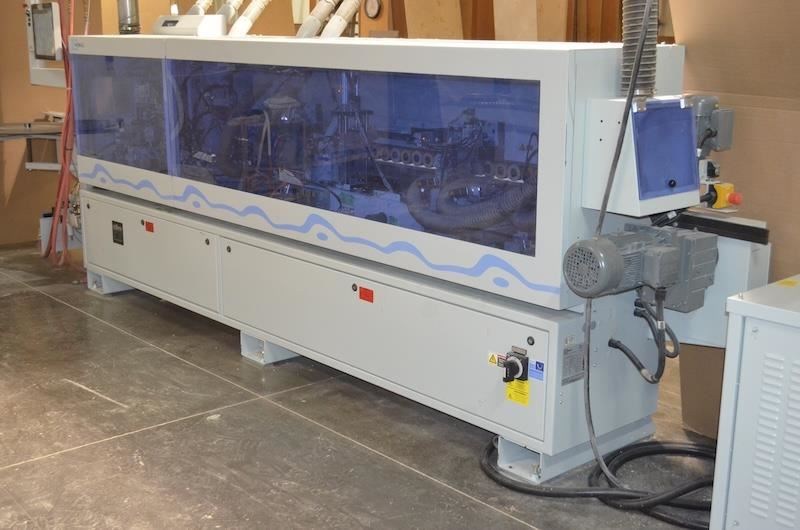

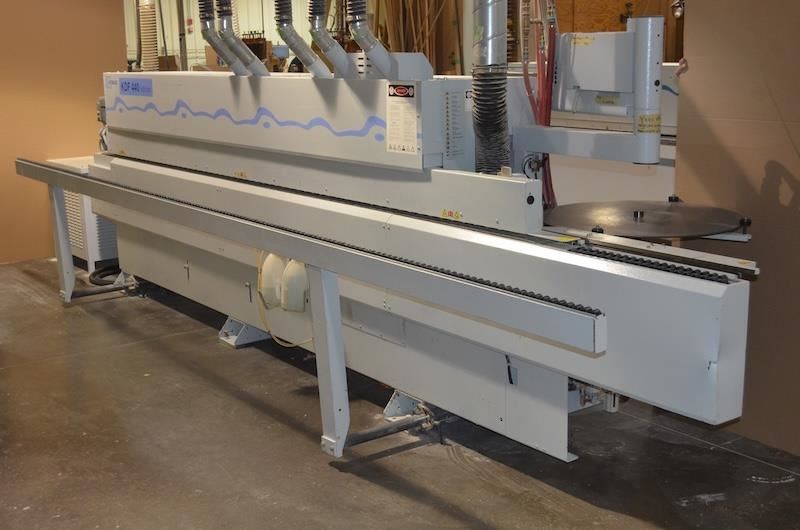

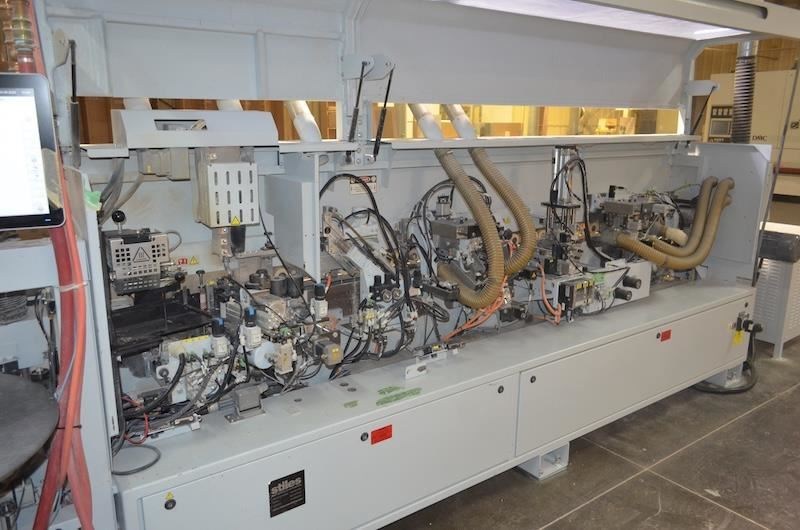

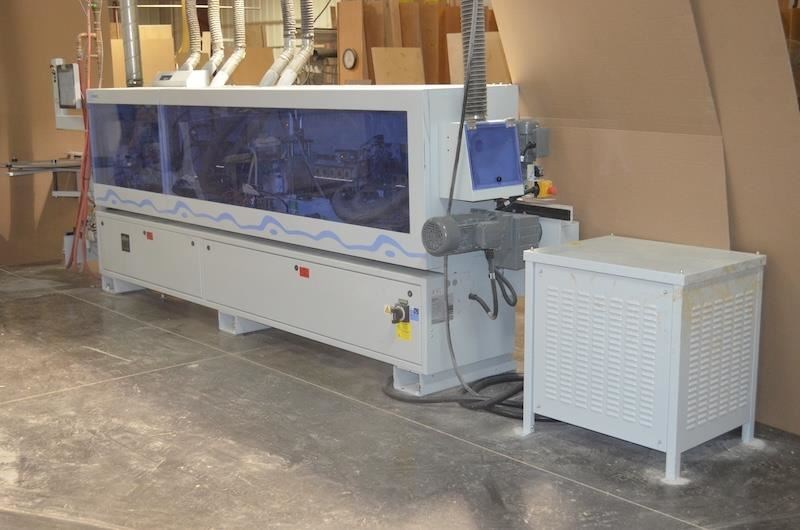

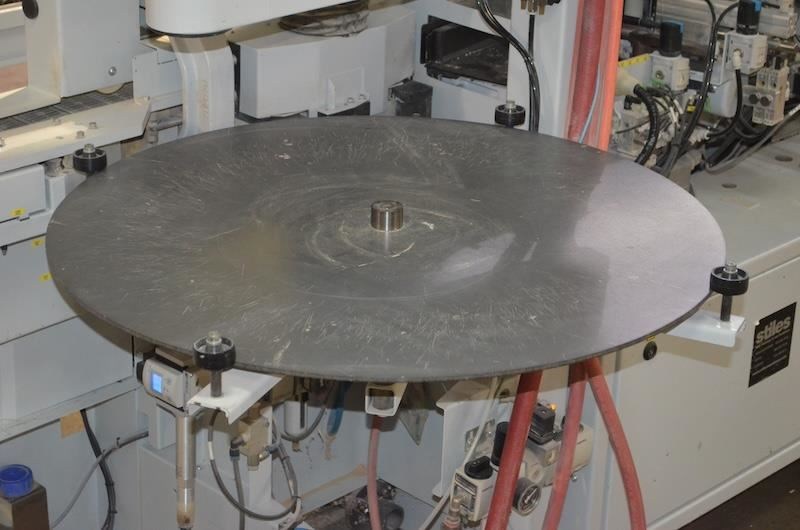

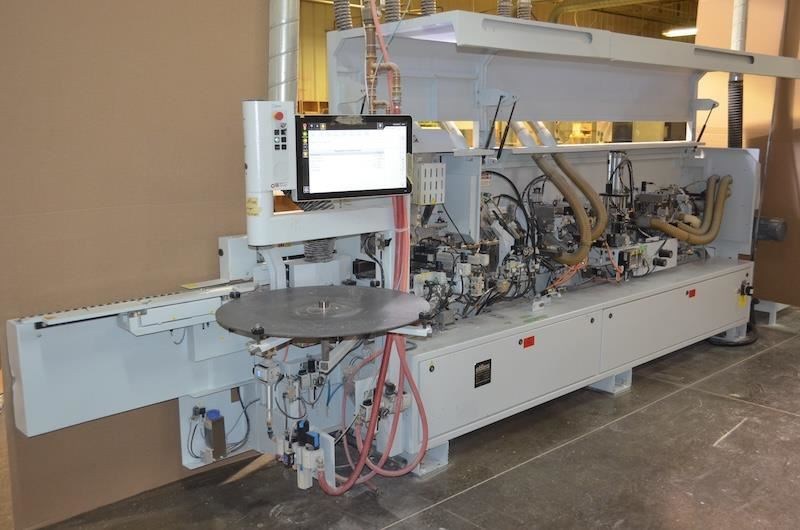

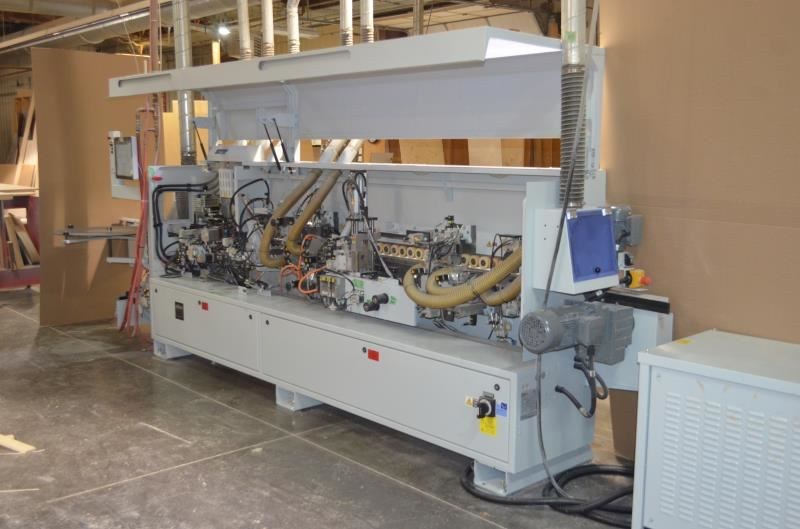

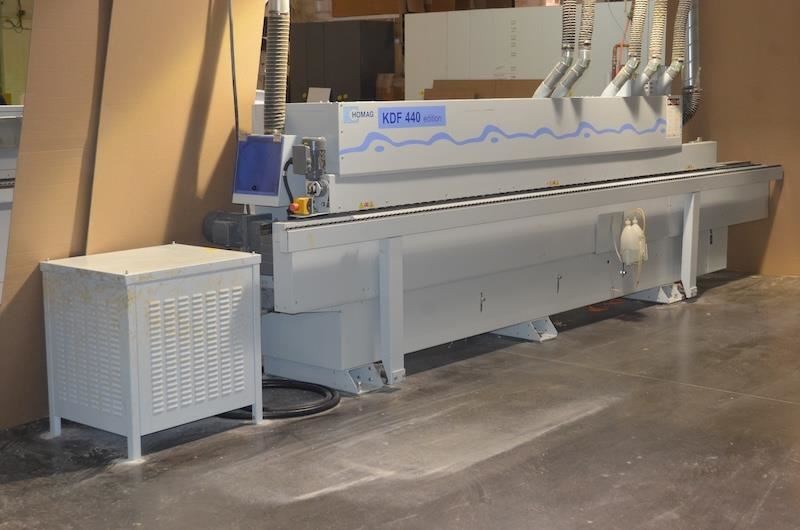

HOMAG - KDF-440C: Edgebander (Premilling & Corner Rounding w/HIGHFLEX Automated package -- Edge & Workpiece Capacity0.4 - 8 mm (0.016 - 5/16") Edge; 8 - 60 mm (5/16 - 2-3/8") panel thickness; 160 mm (6-3/8") min. panel length; 70 mm (2-3/4") min. panel width.Equipped with: -- Premilling Station: (2) Motors @ 2.25 kW (3.0 HP); 12.000 RPM; LH & RH rotation w/pneumatic jump control for chip-free & clean panel edges. Equipped with: Diamond cutterheads. -- Infeed Fence with: Servo motor positioning. -- Infrared Radiant Quartz Heating Unit between glue roller & pressure section. -- Automatic Edge Magazine for: Strip & coil stock; strips 0.4 mm - 8 mm (0.016 - 5/16"); coils up to 3 mm PVC; "HD" guillotine. -- "Quick Change" Glue Tank for: Maintenance & glue color change. -- Air Tech hot Air System. -- Pressure Section. 1st Roller driven plus: (3) Idle rollers, timed pneumatic pressure controlled; Servo motor positioning for programmable edge thickness changeover. -- Feed Speed: Variable 8 - 14 MPM (26 - 46 FPM); 11 MPM (36 FPM) when using contour trimming. -- HOMAG "Power Touch Control. Memory: 256 MB Ram; 1 GB Flash Card Drive; Operator control panel with: 22" Color HD widescreen; soft keypad; internal modem for remote diagnostic link.Workstations -- End Trimming: -- (2) Motor @ 0.35 kW (1/2 HP) - 12,000 RPM; automatic chamfer from control panel: 0°- 15°. -- Flush/Bevel Fine/Radius Trimming UnitTop/bottom (2) motors; 0.55 kW (3/4 HP) - 12,000 RPM; auto tilt positioning: 0° - 25° with combination: Flush/radius/chamfer cutterheads; horizontal & vertical tracing wheels; equipped with: brushless multiaxis Servo motors for positioning of work unit & horizontal copy wheels for quick changeover.Includes: (3) Positioning options: Profile 1, profile 2, and flush trimming. -- Corner Rounding Unit(1) Motor: 0.35 kW (1/2 HP) - 12,000 RPM for: Leading & trailing edges vertical corner rounding of panels; either radius or chamfer cutters can be mounted; 3 mm max. edge thickness. -- Scraping, Multiprofile (PVC)Top/Bottom with: (2) Profiles; 1 mm & 2 mm or 3 mm instead of 2 mm; Servo control positioning of vertical & horizontal copy wheels. PVC scrape collection box. -- Scraping Glue UnitFlush top/bottom on panel surface with: Floating insert knives. -- Buffing UnitTop/bottom (2) motors: 0.10 kW (0.125 HP) - 2,800 RPM. -- RIEPE Anti-adhesion. -- RIEPE Detergent.Complete with:Motorized, programmable holddown pressure beam; padded sound enclosure; used tooling; Original Factory machine documentation. -- Actual Model: HOMAG - OPTIMAT KDF 440C (corner rounding). NOTE: Available early Dec/2025; possibly earlier.
