EMC ROTOPLUS 1350 – LUC (1)5 + BRILL 15 Polishing & Buffing LineHeavy Duty Automatic Polishing & Buffing line for high gloss lacquered panels, consisting of: -- Infeed Conveyor -- ROTOPLUS 1350 LUC 5+1 - Polishing and Wax Application machine -- Intermediate Conveyor -- ROTOPLUS 1350 BRILL 15x - Buffing Polishing machine -- Outfeed Conveyor -- Synchronization of feed speed of all equipment in the line, the Rotoplus machines including all conveyorsFollowing are the full specifications: -- Infeed Conveyor, 1.500 x 1.350 mm (59" x 53") Constant pass line 900 mm (35") +/- 40 mm (1-9/16"). Variable feed speed inverter controlled and electronically controlled for synchronized speed and transfer with all other machines of the line.Feed speeds from 0,4 to 8 m/Min (1,3 - 26 FPM). -- ROTOPLUS 1350 LUC 5+1Polishing and Wax application machine for high gloss lacquered wood panels for Polyurethane lacquer or brilliant straight, brushes adjustable at different angles. Equipped with (1) longitudinal Brush Head plus (5) rotating brushes on carousel.1st STATION - Longitudinal Polishing Brush:Cleaning polishing cotton brush diameter 275 mm (10-13/16").Length of the brush 1,420 mm (55-5/16").Brush inclined 3° in respect to the parallel 180°.Automatic low pressure Spraying Gun.Longitudinal chain rail system for gun movement.Electric adjustment of the working pressure, operated from main touch screen control unit.Main motor power 7,5 kW (10 HP).Rotating speed adjustable from 260 to 960 RPM by means of inverter 7,5 kW (10 HP). 2nd STATION - Polishing Carousel: CAROUSEL with (5) Brushes.Max. Brush diameter: 350 mm (13-3/4").Spindle diameter 80 mm (3-1/8").Spindle length: 400 mm (15-3/4").(5) Independent motors, 5,5 kW (7,5 HP) each, with counter bearing supports.The working angle of the brushes is adjustable.Variable speed adjustable from 3 to 36 RPM by means of electronic inverter, driven by 4 kW (5,5 HP) motor.Clockwise and anti-clockwise direction of rotation.Programmable speed control operated from main electronic touch screen display. (5) Special shafts for brushes support EXTRA in addition to the standard ones.(5) Cotton rags 350 mm (13-3/4") to fit the shafts.Automatic System for Abrasive Wax application:Pressurized tank (50) liters for liquid abrasives, with automatic miscellaneous bottom exit and pressure regulator for gun.Low pressure spraying gun for liquid abrasives.Electronic valve for spray gun control.Infrared high precision photocell to detect the panels and activate the spraying gun.Adjustable support for spraying gun positioning.Software and graphic control, programmable through PLC and touch screen. Software and Plug for Telemetry. Computer remote diagnostics control: Direct computer connection between EMC and customer, for online support. -- Intermediate Conveyor, 1.500 x 1.350 mm (59" x 53"), Constant pass line 900 mm (35") +/- 40 mm (1-9/16"). Variable feed speed inve

EMC FLEXY 1350 2RP Finishing Sander with (2) Sanding Heads, Roller and Segmented Finishing PadUseful working width 1,350 mm (53"). Working thickness min./max. 3 - 180 mm (1/8" - 7-1/16"). Head configuration:1st Head: Roller "R" Belt dimensions: 2,620 x 1,370 mm (103" x 54"). -- Roller diameter: 250 mm (10"). -- Roller rubber hardness 85 Shore. Constant control to any position with accuracy 0.02 mm. -- Electronic motorized roller pressure adjustment "grit-set system". -- Rotation: Against feed (clockwise). -- Motor power: 22 kW (15 HP). Automatic star-delta starter. -- Abrasive belt cutting speed: 18 m/Sec (59 FPS). Oscillating abrasive belt blower for the roller unit.2nd Head: Segmented Finishing Pad "P" Electronic PAD segmented in (50) sections. -- Belt dimensions: 2.620 x 1.370 mm (103" x 54"). -- Width of the segmented element (section): 27.0 mm (1-1/16"). -- Rotation: Against feed (clockwise). -- Timed oscillating abrasive belt blower. -- Motor power: 11 kW (15 HP) with electronic inverter variable abrasive belt speed 3 to 18 m/Sec (9.8 - 59 FPS).Feed system:Constant pass line, 900 mm (35.4") from floor Vacuum conveyor bed, 4 kW Vacuum unit for holddown of smaller parts, mounted inside of the machine base. Idle table rollers support in infeed and outfeed. Rubber covered presser rollers, grooved. Variable feed belt speed, adjustable from 3 to 18 m/Min (9.8 - 59 FPM) Inverter Controlled. Large diameter screws on machined guides with columns and pistons. Automatic feed belt centering device.General Machine Features: -- Independent main motors. -- Analog ammeters, for each motor, on main control cabinet. -- Electronic motorized "grit set" system; control from touch screen for each working group (head).Electronic programmable color TOUCH SCREEN display, 10" wide PLC with micro-processor of latest generation, modular and expandable Connection USB, RS232, Ethernet 10/100/1000 Memory capacity: 100 working programs or more Graphic synoptic to facilitate programmingSoftware facilities: -- Automatic motor sequence starting. -- Display report and reset of alarms (self diagnostic) with memory records. -- Command, programming and display for: all electronic pad functions thickness feeding all inverters and for selected groups (heads). blowers, including compressed air saving function.Centralized Control Cabinet: IP 54 protection against dust & moisture. Analog ammeter on main control cabinet. Table lifting-lowering thickness system electrically controlled. AUTOMATIC Delta - Star starter on abrasive belt motors. Centralized Independent Pneumatic Control Cabinet: IP 54 protection. Pneumatic air filter with automatic water-drain system. Pneumatic adjustment for "Grit set system". Pneumatic plant working without lubrication. Compressed air pressure 6 bar (85 PSI) Options Available: Tampico Brush natural fiber brush for cleaning of

EMC EXPLORER 1100 2RK ... Wide Belt Sander with (2) Sanding Heads; Roller and Combination head roller/pad.Versatile, medium duty machine, ideal for cabinet shops etc.TECHNICAL DATA: -- Useful working width 1,100 mm (43"). -- Working thickness min./max. mm 3 - 170 (1/8" - 6-11/16"). -- Abrasive belt dimension (length) 1,900 mm (75") x (width) 1,120 mm (44"). -- Feed belt speeds adjustable by electronic inverter from 3 to 17 m/Min (10 - 55 FPM). Head configuration:1st Head: Steel Contact Roller -- Roller diameter 142 mm (6") -- Automatic abrasive belt grit compensation with "Grit-Set System". -- On/Off Selector control with pneumatic piston to select roller. -- Motor power 11 kW (15 HP). -- Automatic Star-delta starter. -- Speed rotation: 18 m/Sec (59 FPS).2nd Head: Combination Roller & Pad. -- Roller diameter 142 mm (6"). -- Rubber covered roller with hardness 45 Shore. -- Automatic abrasive belt grit compensation with "Grit-Set System". -- On/Off Selector control with pneumatic piston to select roller. Flexible sanding pad. Quick Change System for removable pad with felt, rubber and graphite. Rotating cutting speed 17 m/Sec (55.8 FPS). --Driven by same main motor.Abrasive belts oscillation by means of electronic photocell sensor.Feed System: -- Working thickness min./max. mm 3 - 190 (1/8" - 7-1/2"). -- Motorized table lifting including fine adjustment, on 4 precision screws. Natural rubber conveyor belt, machined. Automatic feed belt centering device. Electronic digital display for working thickness; resolution 0.1 mm (0.004"). -- Feed belt speeds adjustable by electronic inverter from 3 to 17 m/Min (10 - 55 FPM). Centralized Control Cabinet: -- Control panel with self-diagnostics alarm control unit. -- Analog load meters on main control cabinet. -- Table lifting-lowering thickness system, electrically controlled. -- AUTOMATIC Delta - Star starter on main motor and IP 54 protection against dust & moisture. Centralized Independent Pneumatic Control Cabinet: -- Pneumatic air filter with automatic water-drain system. -- Pneumatic adjustment for "Grit set system". --Pneumatic plant working without lubrication. Compressed air pressure 6 bar (85 PSI). IP 54 protection against dust & moisture. Safety Features: -- Anti-kickback infeed protection. -- Oversized parts infeed protection by swinging bar. -- Emergency push buttons front & rear. --Automatic brakes on main motor. -- Automatic emergency stop and alarm displayOption: TAMPICO Cleaning Brush, 150 mm (6") diameter. Please add ...$3,400USA UL or Canada CSA Safety Features

HOLYTEK MHB 242 Top/Bottom Wide Belt SanderHeavy-duty and powerful double surface sander providing significant time saving and improved productivity.Smooth and quiet oscillation. Belts oscillation controlled electronically by an infrared system which resists dust.Pneumatic sanding belts tensioning ensuring fast and easy belt replacement.Independent motor for each sanding belt.Pneumatic disc brake system automatically activated if power supply is interrupted, thus preserving the sanding belts from being damaged. Top and bottom 24" wide belt sanderFeatures: -- Spiral grooved 8" (D) rollers (R) and 3-1/2" (D) rollers (K) keep the sanding belts cool. -- Sanding belts: 75" Long. -- Elevation of table with digital readout and activated by independent motor. -- Control panel with: Ammeters indicating main motors current. Specifications: -- Upper Drum motor: 15 HP; 600 V; 60 Hz - 3-Ph. -- Upper Combination head motor: 10 HP; 600 V; 60 Hz - 3-Ph. -- Lower Drum motor: 15 HP; 600 V; 60 Hz - 3-Ph. -- Lower Combination head motor: 10 HP, 600 V, 60 Hz - 3-Ph. -- Feeding motors: 2 HP (x2). -- Table elevation motor: 0.5 HP. -- Electrical intensity: 53 A. -- Drums: 8" (D) - 75 DUROS. -- Max. working width: 24". -- Min. working length: 13-3/4". -- Working thickness: 3/16" ~ 5" -- Sanding belts dimensions: 25" x 75". -- Variable feeding speed: 8 - 16 MPM. -- Dust hoods Top: 4 x 4"(D); Bottom: 3 x 4"(D). -- OAL 127" x 70" x 75" high. -- Weight: 9,460 Lbs.

HOLYTEK - KL-36PC, ...2-Head Sander 2-Head Planer Sander 36" with planer head & combination head.Description: -- Planing Head (P): 6'' Dia. made of steel with spiral design for heavy stock removal. 228 TCT Tips: 15 x 15 x 2.5 mm; each disposed on (6) rows. Each knife has: (4) Usable cutting edges; easy access to planing head for tips rotation or replacement. -- Precise dial indicator showing the exact positioning of the sanding pad; quiet & smooth oscillation! Pneumatic oscillation system controlled electronically by an infrared system, which is not affected by dust. -- Combination Head: (1) Drum & (1) sanding pad (C) for superior quality of finishing. Sanding belt with: 120 or 150 Grit; allows finishing sanding in a single pass. -- Elevation Table: (4) Screws. -- Infeed roller table extension: 15-3/4". -- Outfeed roller table: 15-3/4" with (2) Rollers. -- Centralized Control Panel with: Electronic digital readout (Metric or Imperial) for elevation; precise positioning at the elevation requested. -- Ammeter indicating: Electrical intensity on the spiral cutterhead and the combination head motors. -- Electrical box with: CSA Approved electrical components ensuring maximum dependability and an outstanding long-lasting performance.Specifications -- Spiral cutterhead motor: 20 HP - 600 V; 60 Hz - 3 Ph. -- Combination head motor: 15 HP - 600 V; 60 Hz - 3 Ph. -- Table elevation motor: 1/4 HP - 600 V; 60 Hz - 3 Ph. -- Feed motor: 2 HP - 600 V; 60 Hz - 3 Ph. -- Spiral cutterhead dia.: 6''. -- TCT Tips dim.: 15 x 15 x 2 mm (228); (6) rows. -- Max. working width: 36". -- Min. working length: 12". -- Max. working thickness: 5". -- Sanding belt dim.: 37" x 75". -- Dust hoods dia.: 4'' x 2 & 5" x 2. -- Machine dim.: 71" L x 76" W x 77'' H. -- Net weight: 1,450 kG or 3,190 Lbs.

Holytek 37DA Wide Belt Sander (2) Heads37" Width cap Drum, Combination Head1st Head: 7" Dia. spiral grooved rubber covered contact roller, 20 HP motor;2nd Head: Combination sanding head with 5" dia. spiral grooved rubber covered contact roll & 2" wide polishing platen, 15 HP motor.Specifications -- Abrasive belt size of 37" x 60" -- Pneumatic belt tensioning and electronic abrasive belt tracking -- 12" min. working length. -- 2 HP Conveyor belt motor, -- Variable feed speed from 13 - 52 FPM,Equipped with & Features -- Infeed & outfeed rubber covered holddown rolls; -- 0" - 4" motorized thickness adjustment by 0.5 HP motor. -- Safety stop bar, emergency rail stop across the front of conveyor -- Motor load meters.

HOLYTEK - GES 920 RK: Wide Belt Sander(2) Heads; drum and combination head. -- 2-Head; 36" width cap. -- 1st Head: Heavy-Duty rubber covered contact drum; 15 HP motor. -- 2nd Head: Combination head with 6" dia. contact roll; 20 HP motor. -- 2 HP Feed motor; 16 - 55 FPM variable feed speed. -- 37" x 75" Abrasive belts; electronic oscillating belt system. -- Motorized table elevation with: 0.25 HP Motor; max. height: 125 mm (4.9").Equipped with: -- Digital readout and infeed & outfeed spring loaded holddown rolls.

HOLYTEK SS-512 TS Shaper with Tilting Spindle, and Power FeederSpecifications: -- 1-1/4" Interchangeable spindle, 7.5 HP motor with (5) spindle speed settings of 3,000 - 4,000 - 6,000 - 8,000, & 10,000 RPM. -- Approx. 6" max. cap. under nut, 31" x 39" cast iron table. -- Insert ring diameters 2.8", 4/3", 6" and 8". -- Tilting spindle +10° and -45° -- Vertical movement of the spindle 7" -- sliding tableComplete with: -- Reverse rotation switch, adjustable fence assembly, and dust hood. -- 3-Roll Power Feeder

HOLYTEK HP-11P Horizontal Resaw -- Hydraulic Feeding conveyor, hydraulic pump with 3 HP motor -- Main saw motor 20 hp. Specifications: -- Working width capacity 12“ (300 mm) -- Variable Feed Speed 0- 17 m/min (0 to 55 FPM) -- Thickness capacity 4mm to 125 mm (.11/8" to 4.92") -- Conveyor tilting 0 ° to 7° -- Electroni display of cutting height -- Blade Capacity 4270 X 25 X 0.89 mm. -- Wheels Diameter 725 mm -- Return conveyor on machine top

HOLZ-HER - 1516 Case Clamp (Single-Bay) -- Specifications1-Bay Clamp; 100" x 50" x 24" clamping cap.; (1) movable, vertically positioned clamping beam with: (3) Horizontal clamps; (4) adjustable vertical clamps. -- Total of (14) pressure cylinders with: 3-7/8" Stroke & (4) adjustable counterpressure bars; 700 Lbs/cylinder pressure at 100 PSI compressed air; built-in controls with pressure gauge.

HOLZ-HER CUT 85 FRONT LOAD, AUTOMATIC PANEL SAW: -- Specifications:4,250 mm (167") Max. rip cut cap., 3,800 mm (149") pull back pusher stroke; 97 mm (3.8") saw blade projection.15 HP (11 kW) Main saw motor, 3 HP (2.2 kW) scoring motor. -- Saw Carriage:Variable feed speed from 3 - 328 FPM (1 - 100 MPM ), return speed of 328 FPM (100 MPM).Automatic cutting length limiter adjusts the cutting length at the end of the workpiece, automatic saw carriage lubrication. -- Pusher Fence:(7) Material gripper clamps; 259 FPM (80 MPM) forward positioning speed, 259 FPM (80 MPM) return speed.Rack & pinion movement on both sides to assure the pusher remains parallel. -- Operator & Machine Control:PC Front-End with CUTCONTROL "Direct Cut" + "OPTIPRO" + Windows 2000 operating system,15" TFT Display with unlimited program storage via floppy disk, keypad for data entry, USB & RS-232 serial port, CD ROM & 1.44 MB disk drive for additional storage of programs.CUTCONTROL offers Real-Time Graphics, diagnostic for errors or machine malfunction by means of an error signal code, incremental or absolute programming in mm or inches."Direct Cut" allows the operator to easily input information for absolute, serial, format, grooves, perforations, & position cutting which allows the machine to easily adapt to various situations & materials."OPTIPRO" is a very user friendly on-board Optimizing System for all types of various cutting patterns, including angled cutting. -- Complete with: Rear roller support rails; automatic crosscut side aligner; automatic saw blade height adjustment.(3) Air support tables, ea. 78" x 24" (1,981 x 509 mm). -- Actual Model is HOLZ-HER CUT 85 4300.

HOLZ-HER CUT 6120 FRONT LOAD, AUTOMATIC PANEL SAW: -- Specifications: 3,900 mm (153.5") Max. rip cut cap., 3,900 mm (153.5") pull back pusher stroke; 82 mm (3.2") saw blade projection.15 HP (11 kW) Main saw motor, 1.5 HP (1.1 kW) scoring motor. -- Saw Carriage:Variable feed speed from 3 - 320 FPM (1 - 100 MPM ), return speed of 416 FPM (130 MPM).Motorized bi-directional grooving capabilities with electronic adjustment for 0 mm - 35 mm.Automatic cutting length limiter adjusts the cutting height & cutting length at the end of the workpiece. -- Pusher Fence:(7) Material gripper clamps, (1) Double Finger mounted at the cross-cut fence location for narrow strip cutting & (6) standard clamps. 82 FPM (25 MPM) forward positioning speed, 328 FPM (100 MPM) return speed.Variable pressure settings for delicate materials. Pressure beam has an integrated "Last Cut" operation to achieve a "0" mm panel dimension.Rack & pinion movement on both sides to assure the pusher remains parallel. -- Operator & Machine Control:PC Front-End with "CUTCONTROL 2" + "EASY-PLAN" + Windows operating system,19" TFT Display with unlimited program storage; keypad for data entry, USB & RS-232 serial port, "CUTCONTROL 2" offers Real-Time 3D Moving Graphics, diagnostic for errors or machine malfunction by means of an error signal code, incremental or absolute programming in mm or inches."CUTCONTROL 2" allows the operator to easily input information for absolute, serial, format, grooves, perforations, & position cutting which allows the machine to easily adapt to various situations & materials."Opti-Cut" & "EASY-PLAN" is a very user friendly on-board Optimizing System for all types of various cutting patterns, including angled cutting -- Complete with: Non-Marking rear roller support rails: Solid Air Cushion Table before & after the cutting line, ensures easy panel handling. Pneumatic crosscut side aligner, adjustable from 0" - 82.6" (0 - 2,100 mm). Side aligner is "Fully Automatic" adjustment when panel is less than 1,300 mm (51")"Quick Change" Blade system with automatic saw blade height adjustment; Electronic positioning of the scoring blade through the NC control.(3) Adjustable via "pneumatic locking" air support tables, ea. 70.8" x 23.6" (1,800 x 600 mm); -- Actual Model is HOLZ-HER CUT 6120 Dynamic

HOLZ-HER - 1270: Automatic Panel Saw w/Supercut Scoring75" x 169" Cap.; 4 HP motor; 2" depth of cut; 220 mm (8-5/8") dia. saw blade at 6,640 RPM.Features: -- Saw head traverses automatically when rip or crosscutting and returns to starting position; (2) cycle lengths for long or short panels. -- 36 & 72 FPM Saw carriage travel speed; 0.75 HP feed drive. -- Automatically moving back grid w/interlocks. Complete with: -- Rip gauge with: (3) Cam settings. -- (2) Gauging bars throughout frame length with: (2) Flip stops. -- Bottom rollers for easy movement of larger panels.Includes: -- Spare Blades.

HOLZ-HER 1270 Automatic Panel Saw w/Supercut Scoring75" x 169" Cap., 4 HP motor, 2" depth of cut, 220 mm (8-5/8") dia. saw blade at 6,640 RPM.Features: -- Saw head traverses automatically when rip or crosscutting and returns to starting position; (2) cycle lengths for long or short panels. -- 36 & 72 FPM saw carriage travel speed, 0.75 HP feed drive; -- Automatically moving back grid w/interlocks. Complete with: -- Rip gauge with (3) cam settings. -- (2) Gauging bars throughout frame length with (2) flip stops. -- Bottom rollers for easy movement of larger panels.

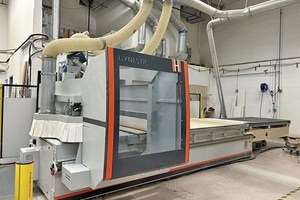

HOLZ-HER DYNESTIC 7516 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications: 5' x 10' MATRIX Table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 122.2" (3,105 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 16.5" (418 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing" with (4) pneumatically controlled reference stop pins. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 4,400 RPM;(10) Independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 8-Position ATC. (dynamic carrousel type) -- Operator & Machine Control: PC Front-End with: CAMPUS Version 6.3.0.3 (BECKHOFF CNC Version 2.3.7) machine control,17" Color Flat Panel Monitor; continuous graphical and barcode interface, (3) axes simultaneous control; feed rate and spindle speed override & axis movement. -- CAMPUS/NC Hops Software: This package provides the prerequisites for effective machining and convenient operation. Our ECO Mode automatic standby control is a standard feature on all HOLZ-HER CNC machining centers for software-controlled minimization of the power consumption.Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete With:(1) BECKER 250 m³/Hr vacuum pump; manual central lubrication pump for guides & ball screw; left & right-side safety enclosure; Hand Control, pendant for set-up and program try-outs -- Actual Model is HOLZ-HER DYNESTIC 7516 10.5.

HOLZ-HER LYNX 7511 FT FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:5' x 10' Phenolic "MATRIX" table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 120" (3,050 mm), "Y" axis 62" (1,575 mm), "Z" axis stroke is 16-1/2" (419 mm), max material thickness 7" (180 mm). -- Positioning Speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable:Flat table designed for "Nested Base Manufacturing" with (3) "Y" axis pneumatically controlled reference stop pins. -- Boring Unit:2.3 HP (1.1 kW) motor for spindle speed from 1,000 to 6,000 RPM; (10) independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 20,000 RPM; (1) 12-position tool rack for ATC. -- Operator & Machine Control: PC Front-End with Holz-Her "CAMPUS" + Windows operating system, 17" Color monitor; continuous graphical and barcode interface,BAUMULLER - PLC for (3/4) axes simultaneous control, feed rate and spindle speed override & axis movement. -- Complete with:(1) 250 m³/Hr BECKER Vacuum Pump; automatic "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. -- Actual Model is HOLZ-HER LYNX 7511 FT.

HOLZ-HER DYNESTIC 7516 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications: 5' x 10' MATRIX Table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 122.2" (3,105 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 16.5" (418 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing" with (4) pneumatically controlled reference stop pins. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 4,400 RPM;(10) Independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 8-Position ATC. (dynamic carrousel type) -- Operator & Machine Control: PC Front-End with: CAMPUS Version 6.3.0.3 (BECKHOFF CNC Version 2.3.7) machine control,17" Color Flat Panel Monitor; continuous graphical and barcode interface, (3) axes simultaneous control; feed rate and spindle speed override & axis movement. -- CAMPUS/NC Hops Software: This package provides the prerequisites for effective machining and convenient operation. Our ECO Mode automatic standby control is a standard feature on all HOLZ-HER CNC machining centers for software-controlled minimization of the power consumption.Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete With:(1) BECKER 250 m³/Hr vacuum pump; manual central lubrication pump for guides & ball screw; left & right-side safety enclosure; Hand Control, pendant for set-up and program try-outs -- Actual Model is HOLZ-HER DYNESTIC 7516 10.5.

HOLZ-HER DYNESTIC 7532 FLAT TABLE MACHINE (W/LOADING, UNLOADING) -- Specifications:5' x 10' Phenolic MATRIX Table for "Nested Base" Manufacturing. -- Working Area:"X" Axis 1122" (3,100 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 4.72" (120 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing";(4) Pneumatically controlled reference stop pins with (3) in "Y" axis & (1) in "X" axis. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 6,000 RPM; (13) independent vertical boring spindles with (5+4) spindles in the "X" axis & (4+2) spindles in the "Y" axis;(4) Horizontal spindles with (1+1) in "X" axis & (1+1) in "Y" axis. -- Machining unit: (1) 15 HP (11 kW) Electro-spindle Router with HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 14-position ATC tool plate for "on the fly" ATC. -- Operator & Machine Control: PC Front-End with Holz-Her "CAMPUS" V 7Basic Bundle + Windows operating system Intel Core i5-6600; 17" Color monitor; standard keyboard, mouse & CD ROM for data entry; (3) axes simultaneous control; feed rate and spindle speed override & axis movement.CAMPUS/NC Hops offers "Real Time" 2D or 3D graphics; Campus aCADemy is a full fledged, high-performance CAD/CAM software package with versatile import features. -- Complete with:(1) 25 HP BECKER Vacuum Pump; "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. -- Options Include:(1) NC Controlled infeed Scissor Lift table with vacuum loading; (1) Rake system; (1) Outfeed table with vacuum sweeping system; Manual label printer at the outfeed table. Actual Model is HOLZ-HER DYNESTIC 7532.

HOLZ-HER LYNX 7511 FT FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:5' x 10' Phenolic "MATRIX" table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 120" (3,050 mm), "Y" axis 62" (1,575 mm), "Z" axis stroke is 16-1/2" (419 mm), max material thickness 7" (180 mm). -- Positioning Speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable:Flat table designed for "Nested Base Manufacturing" with (3) "Y" axis pneumatically controlled reference stop pins. -- Boring Unit:2.3 HP (1.1 kW) motor for spindle speed from 1,000 to 6,000 RPM; (10) independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 20,000 RPM; (1) 12-position tool rack for ATC. -- Operator & Machine Control: PC Front-End with Holz-Her "CAMPUS" + Windows operating system, 17" Color monitor; continuous graphical and barcode interface,BAUMULLER - PLC for (3/4) axes simultaneous control, feed rate and spindle speed override & axis movement. -- Complete with:(1) 250 m³/Hr BECKER Vacuum Pump; automatic "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. -- Actual Model is HOLZ-HER LYNX 7511 FT.

HOLZ-HER DYNESTIC 7505 10.5 PUSH CNC FLAT TABLE MACHINE (W/RAKE/OFFLOADING): -- Specifications:5' x 10.5' Phenolic MATRIX Table for "Nested Base" Manufacturing. -- Working Area:"X" Axis 122" (3,100 mm), "Y" axis 62.2" (1,580 mm), "Z" axis stroke is 12.4" (317 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing".(4) Pneumatically controlled reference stop pins with (3) in "Y" axis & (1) in "X" axis. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 6,000 RPM;(10) independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis;(2) Horizontal spindles with (1+1) in "X" axis. (1) "X" axis Saw for max 120 mm dia. blade. -- Machining unit: (1) 10.7 HP (8 kW) Electro-spindle Router with HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 6-position Linear ATC tool rack mounted to the machine base. -- Operator Interface: PC Front-End with Holz-Her "CAMPUS V7" operating system; 17" Color monitor; standard keyboard, mouse & USB slots for data entry; (3) axes simultaneous control; feed rate and spindle speed override & axis movement.CAMPUS/NC Hops offers "Real Time" 2D or 3D graphics; Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete with:(2) 140 m³/Hr BECKER Vacuum Pumps with ECOVac Intelligent Vacuum that automatically turns on/off vacuum units in reference to required static negative pressure; "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. Perimeter safety devices & fencing. -- Options Include: Pusher/rake offload system with, 5' x 12' gravity roller conveyor with casters. Vacuum evacuation port for dust extraction & Spoil board from below. -- Actual Model is HOLZ-HER DYNESTIC 7505 10.5 PUSH
