Mereen-Johnson 424 Gang Rip sawSpecifications -- 24" Arbor cap., -- 14" max. dia. tooling, -- 3-1/2" max. manual thickness adjustment, -- 14" min. length for glue joint accuracy and 22" min. for busting only, -- 6" throat. Equipped with and Features -- 75 HP - 3,600 RPM TEFC Direct drive motor, -- 2-3/16" dia. arbor with disc brake, -- load meter and slip-off outboard bearing. -- Feed & chain: 3 HP Variable feed speed 30 to 170 FPM, -- M-J "Posi-Feed" dip bed carried on 5" pitch hardened double-V chain -- "Quad Life" hardened dip cams -- Extruded structural aluminum feed bed slats with replaceable steel backed rubber insert strips --, Automatic chain oiler. -- (4) 3" Dia. air loaded overhead pressure rolls; full width spring loaded overhead bed plate, -- Pressure rolls and bed plate unit with scale & pointer thickness reference; -- Anti-kickback finger system with (1) lower & (2) upper on infeed. -- Sound enclosure, -- (2) Upper dust hoods (1) 10" & (1) 5" dia. and (1) lower 4" dia. hood, -- Requires 3,820 CFM;Also included: -- (7) laser with mounting rack -- (2) additional arbor and lots of spacers

MEREEN-JOHNSON - 431DC, ...Gang Rip Saw: Specifications: -- 31" Arbor width cap., 14" max. dia. tooling, 3-1/2" max thickness. -- Motorized thickness adjustment. -- 29" Min. length for glue joint accuracy and 22" min. for busting only; 6" throat. -- 75 HP - 3,600 RPM TEFC direct drive motor. -- Arbor with disc brake & load meter. -- Arbor lockout on the access door.Equipped with & Features: -- Feed, Chain & Holddown. -- 5 HP Variable feed speed 30 - 150 FPM with adjustable jam protection. -- MEREEN-JOHNSON "Posi-Feed" dip bed carried on 5" pitch hardened double-V chain. --"Quad Life" hardened dip cams. -- Extruded structural aluminum feed bed slats with replaceable steel backed rubber insert strips. -- Automatic chain oiler with low-level shutoff. -- (4) 3" Dia. air loaded overhead pressure rolls. -- Full width spring loaded overhead bed plate. -- Pressure rolls & bed plate unit with powered adjustment; scale & pointer for thickness reference; -- Antikickback Finger System with: (1) Lower & (2) Upper on Infeed; (1) upper assembly on outfeed.

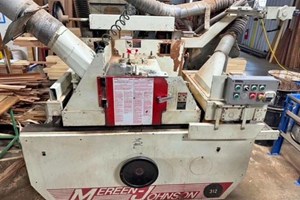

MEREEN-JOHNSON "312-DC-OPH1" DIP CHAIN GANG RIP SAWSpecifications -- 12" Arbor cap., -- 14" max. dia. tooling, 3-1/2" max. thickness, -- 30" min. length for glue joint accuracy & 22" min. for busting only; -- 6" throat. Equipped with: & Features -- 50 HP - 3,600 RPM TEFC Direct drive motor, -- Arbor with disc brake & load meter, arbor lockout on access door.Feed & chain: -- 3 HP Variable feed speed from 30 - 150 FPM with adjustable jam protection, -- M-J "Posi-Feed" dip bed carried on 5" pitch hardened double-V chain, "Quad Life" hardened dip cams. -- Extruded structural aluminum feed bed slats with replaceable steel backed rubber insert strips, -- Automatic chain oiler with low level shutoff. -- (4) 3" Dia. air loaded overhead pressure rolls; -- Full width segmented maple, spring loaded overhead pressure shoe -- Pressure rolls & pressure shoe unit adjust with scale & pointer thickness reference -- Anti-kickback fingers. -- Lasers at infeed for pocket location.

MOLDOW 184 MXN-324 Expandable Baghouse - 18 Total Modules with (4) Inlet Sections. Specifications. -- 72,000 CFM modular/expandable unit, currently with (14) Filter sections @ 5,000 CFM per section (24 bags per section). -- Approx 336 filter (8.6" dia. by 120" long) , 9,300 sq. ft. of total filter media, 7.75:1 air to cloth ratio Shell is under negative pressure allowing a high efficiency clean air fan.. -- Main Fan: Air Handling IAP A600 SWSI, Class IV, S/N 26862-1 rated at 90,000 CFM @ 1321 RPM, 16.0/20.3" SP & 290/308 BHP. Fan is A - Airfoil type wheel & is non-overloading powered by MARATHON "445Ta" belt driven TEFC 300 HP motor.. Currently fan inlet is connected with a 30" pipe. Regenerative Filter Cleaning: -- Each row of filter bags is cleaned continuously during operation by use of a regeneration carriage/trolley rides along top of filter bank) with a 4 KW (5.3 HP) high-pressure fan that sends air from the clean-air chamber back through the filter bags using nozzle pipes.Bags are fitted with an inner spring bracing. Special bag design reduces air velocity which increases air and dust loading considerably. -- Equipped with: Built-in bottom drag link chain which brings dust to one end where it is discharged through approx. 9" x 30" Rotary Air Lock (RAL). Currently a transfer fan moves dust to storage bin.. Summer/Winter Diverter/Abort Gate connected on outlet/return air line.Comes with: -- Relay Fan, IAP 911 RBO, to pneumatically convey collected dust at discharge of RAL. -- Platform with safety railings and ladder to access regeneration cabinet (return air plenum). -- Support frame, and exterior ductwork. Single heavy sheet metal flanged rectangular return air pipe. Overall Dimensions: -- 45' Long by 12'-9" wide by 28.5' high (5.5' hopper to ground, 8' high hopper and 15' top section). -- Professional dismantling, rigging, transport and installation is available upon request.

MOLDOW Style, by ' NEU-JKF', Modular Baghouse with chain-sweep bottom feeding into a Rotary Air Lock (RAL) at the end of filter bank. -- General Data: Approx 35,600 CFM running at a 5:1 Air-to-Cloth Ratio. Total of 7,125 sq. ft. of filter area comprised of (14) modules each containing (27) filter bags. Filter bags are 8.5" dia. by approx. 96" long. All modules including inlets are fitted with filter bags. -- Main fans: Total of (3) Material Handling (MH)fans. (2) NORTHERN BLOWER Size 23, Des 5691, CL 3 Fans each belt driven by 60 HP TEFC motor. Fan inlets supplied by 26" dia. pipes. (1) type JK 25 HP MH blower. -- Filter Cleaning: Each module is supplied with a 2 HP approx. regenerative high pressure fans to sequentially back-flush the dust from the bags during operation and thereby falling into the continuous hopper with a drag-chain-sweep mechanism that rides along the bottom of hopper and feeds into the RAL. -- Return Air: All modules are ducted into one return air manifold pipe. -- Electrical Controls: CONQUEST free standing electrical control panel with visual light indicators for monitoring system status. Panel contains all start/stop pushbuttons and selector switches, and main disconnect. -- Includes: Steel Support frame with a walkway to the access doors which can act as explosion vents. Full set of polyester filter bags. -- Inquire for a cost for professional dismantling and transportation.

MONTGOMERY BLO-HOG Top-Feed Wood GrinderSpecifications: -- 13" x 18-1/2" Top feed opening; 75 HP direct drive motor at 1,200 RPM. -- Unique cutting action involving stationary anvils positioned on the side of the machine with rotating teeth (hammers) that pass through rectangular pockets formed by these anvils. -- This positive cutting action between the teeth and anvils performs what amounts to the first particle-sizing function in a two stage process. -- The second sizing action occurs when the material cut by the action of the teeth against the anvils is directed downward and across a curved particle-sizing screen which fits underneath the rotating element. -- The machine is mounted on a elevated base providing ample room for discharge. -- Actual model is ER 18S315FHDL.

MORGAN "3-Head" Multi Blade trim saw: -- Equiped with:(3) 10 HP motors, 10'capacity 5'6" thick with Disconnects & Controls

MSI - AT-643: Horizontal Auto-Tie Baler with Infeed ConveyorSpecifications: -- 60" x 43" Feed opening. -- Bale size: Variable x 43" x 30". -- Bale weight: 900 - 1,700 Pounds; OCC" 5 TPH. -- Cylinder: 7"; repacked. -- Motor: 40 HP. -- New hydraulic pumps; new "T-1" Liners on floor & platen. -- 60" Wide x 25 feet long slider bed; conveyor included.

DONALDSON TORIT - 232 RF-8, ...24,000 CFM Baghouse Dust Collector (refurbished 2017) with: Rotary Air Lock & AIRCOM 32" Dia. Explosion Isolation Flap Valve (New 2017) -- Specifications. Approx. 10-1/2' Dia. x 24' H Baghouse with: 7-1/2' H Cone bottom & (232) 8' L cloth filter bags totaling appx. 2,414 sq./ft. of cloth area.Air-to-cloth ratio: 9.94:1; Overall system footprint: 25' x 25'. -- AIRCOM - SNR 800. ...32" Dia. SNR (Safety Not Return) Explosion Isolation Flap Valve: S/N 0977003 (2017); certified ATEX EN 15089; Class 2, NFPA Compliant with: Max. air speed 30 m/s; max. dust concentration: 4 LEL; Kst max. 299 bar m/s; pred. max. 0.25 bar, Pmax. 9 bar; Pipe structure to withstand pressure: 0.25 bar; Explosion resistance of flap 850 mbar;, Min. ignition energy 3 - 10 mJ; Min. ignition temperature 420° C (788° F); Temperature range: –20° C to +60° C (-4° f to 140° F); Range of applicable volumes: 10 - 60 cu. meters (33 - 196 cu./ft.); Anti-opening locks on both flaps. -- 75 HP - 1,780 RPM, TEFC Motor Driving Blower: Rated at 24,000 CFM @12" SP with: 36" Dia. inlet & 30" x 36" outlet. -- KOGER - SIZE 12, ...Rotary Air Lock with: 12" Dia. inlet & outlet 1 HP Motor. -- MURPHY-RODGERS - MRT-12, 10 HP Blower: S/N 1272 with 12" dia. inlet & 8" x 11" outlet. -- ROOTS - 32 U-RAI, ...5 HP Lobe Blower: S/N 0802963165. -- Electrical controls included. -- Actual model is: "232FRW8" (Walk-in unit); estimated shipping weight: 15,500 Lbs. -- Available 1st wk in July or sooner if needed.

TORIT - CHECKER BOARD, ...Control PanelTORIT Checkerboard Control Panel for a DFT3-18 Dust Collector with up to a 25 HP BlowerIncludes: -- Start/Stop push control buttons for Dust Collection System. -- Electric disconnect to shutdown power if needed. -- HEPA Filter pressure gauge. -- Alarm with light when dust filters need to be cleaned. -- Pressure gauge showing the air flow in the system. -- Air pressure pulse cleaning controls to clean dust from filters. -- Control box mounted on legs.

DONALDSON-TORIT - 376RFW-10 or 12 , ...Dust Collector: 45,000 CFM @ 9.7:1 Air-to-cloth ratio; 140" dia. round baghouse with: (376) filter bags of 10' length (oval bags provide for radial movement of bag during cleaning for longer life), total 4,632 sq. ft. filter area. -- Filtration media cleaning via a floor-mounted 7.5 HP medium pressure air pump (eliminates the need for compressed air which can be susceptible to condensation and freezing); 36" x 65" return air outlet and 48" x 48" inlet for dust laden air. -- Includes: Rotating cleaning air manifold driven by 0.33 HP motor; (1) NEMA-9 solenoid and diaphragm valve which rotates over the bag openings; walk-in plenum for bag access/maintenance. -- Galvanized steel bag frames with positive bag bolt down to eliminate leakage and ride-up of bags once installed; walk-in access door at top of ladder. -- Equipped with: Structural steel support; maintenance platform; caged ladder; bolt-on involute arm; explosion doors (need to be replaced). -- Includes Backward inclined FAN EQUIPMENT: Size 7 BCS floor-mounted Fan set at 45,000 CFM @ 15" SP belt driven at 1,485 RPM; powered by a 200 HP TEFC Motor via OMRON/IDM E7 Series Inverter. -- 24" Rotary Air Lock at the bottom of the 60° hopper. -- Complete with: Pictured electrical controls are included. -- Note new 200 HP electrical motor was replaced recently. --. Unit had an accidental fire at bottom section near hopper causing the explosion doors to burst. Unit still working as they are not returning the air. Can be sold with of without replacement of doors. Cost of which is negotiable. -- Professional dismantling and rigging available at extra cost. Please call!

TORIT/DAY 156RFW10 Dust Collector with Rotary Air Lock and Non-Return Valve & Fire Prevention.20,300 CFM at 10:1 Air-to-cloth ratio, (156) filter bags 10' long providing a total 2030 sq. ft. of filter area; filtration media cleaning via 3 HP medium pressure air pump eliminating the need for compressed air which can be susceptible to condensation and freezing. -- Rotating cleaning air manifold driven by 0.33 HP motor, uses only (1) Nema-9 solenoid and diaphragm valve which rotates over the bag openings; galvanized steel bag frames with positive bag bolt down to eliminate leakage and ride up of bags once installed. -- Clean air side fan assembly with 24ACF CLASS I-III fan driven by a 40 HP TEFC motor; TORIT "16 AN" 16" rotary air lock at the bottom of 60° hopper. -- Features: (2022) AIRCOM/BOSS PRODUCTS. NRVC Non Return Valve Combo. Extinguishing Box. GM SYSTEMS GMCU161SD-FM Fire Prevention Control Unit which manages 5 independent lines (16 program inputs & 5+10 outputs) - FM Certified. RAPTOR SERIES with related RAPTOR SPARK RS-BOX02. -- Complete with: Walk-in plenum, maintenance platform, caged ladder & support structure, electrical control panel. -- Includes: Outdoor piping & pictured waste bin. -- Please inquire for dismantling & rigging quotations

TSI - TCI 100 Portable Tire CutterSpecifications: --Powerful tire cutter simplifies tire disposal --Eliminates whole tire pick-up costs --Cuts tires (including steel-belted radials) into 4 pieces at a rate of 120 per hour when using the optional T-100-14 passenger tire compressor --Cuts heavy truck tires and Super Singles at a rate of 40 per hour --Dimensions L x W x H (in.) -90.0 x 66.0 x 114.0 in --New in 2024

TYLER 2400 SLOT-WALL MACHINE: -- Specifications:Produces T-slot "slat-wall" for architectural/store fixtures. 4' x 8' (48" x 97") max. panel cap., 2' x 2' (24" x 24") min. panel cap., min. panel thickness = 0.5" max. panel thickness = 1.5"; The Tyler 2400 can machine up to (40) panels/Hr, depending on material density, thickness and the slot profile. -- Equipped with: (18) Router spindles all on 3" fixed centers, spindles are driven in groups of (3) with (6) 7.5 HP - 3,450 RPM motors, all router spindles rotate @ 15,400 RPM. -- Operation: Panels remain stationary on top, pneumatically clamped in place while the bottom mounted router bank traverses the full length of the panel with a high-speed return, variable feed speed control, router assembly traverses on ground & polished rails with chain drive. -- Panels are positioned along the 8' rear edge fence line, distance from the panel edge to the centerline of the 1st cut can be adjusted from 0.0" - 3" (1 router spindle pitch). -- Overhead hold-down assembly with (2) large air cylinders and (5) arms with spring loaded clamping pads hold the panel in place. Panels are loaded from the 8' front and exit to the side. -- Includes: Operator controls for the machine cycle and a "setup" mode of operation; machine cutting cycle is initiated by a 2-hand operator safety buttons located on the right front of machine. - Produces approx. (30 - 40) panels per hour. -- Available Options at Additional Cost:Router spindles on 4'- & 100-mm centers; 48" x 121" workpiece capacity increases left-to-right workpiece (length) capacity.60" x 97" workpiece capacity increases front-to-back workpiece (width) capacity & includes (1) additional multi-spindle router head.60" x 121" workpiece capacity increases front-to-back & left-to-right workpiece capacity & includes (1) additional multi-spindle router head.

UAS -BHT (CALCOR) MIB-11-T19- SVA Pulse Jet baghouse dust collector. MIB is Modular Industrial Baghouse. -- Has qty (18) each of filter cartridge # 04007500 (6.125 x 75") and qty (18) each of filter cartridge # 0400000249 (6.125 x 41.6250"), for a total 1,896 sq. ft with pleated Spunbonded Polyester w/PPTFE filter bags. -- OEM rated for 5,000 ACFM @ 11" SP, resulting in a 2.64 Air-to-cloth ratio. -- 20 HP Siemens motor, on a large floor-mounted blower -- Comes with DPC and Timer board for Pulse Cleaning Control. Allen Brady Starter and air quality motoring. -- Discharges thru Pyramid hopper into a 55 Gallon Drum. Includes dome style explosion vent.. -- Housing dimensions: 60" x 60" x 232" high. Total weight with filters: 3800 Lbs. -- Looks like its brand new. -- Last used for a CNC Laser Cutter.

UMP - BP 450 A: 450 kG/Hr Briquette PressSpecifications: -- Cap. 450 kG/Hr (992 Lbs). -- Max. pressure: 1,700 kG/cbm (24,175 PSI). -- Max. chip moisture content: 15%. -- Max. chip size: 15 mm (0.59"). -- Wood shaving to briquette ratio: 10 to 1 (using mahogany). -- Briquette configuration: Rectangular. -- Briquette length: 40 - 105 mm (1.57" - 4.13"); Briquette width 150 mm (5.91"); Briquette height: 60 mm (2.36"). -- Briquette heat energy: 4,200 kCal/kG (7,558 BTU/Lbs). -- Hopper size: 31"; x 36"; x 36"; with: 1-Side sloping so cutaway from cube of 18"; x 36";; mounting flange at top allows additional capacity to be added.Equipped with: -- Automatic material density adjustment. -- Automatic hopper shutoff. -- SIEMENS PLC Control.

(3) Automatic 20-Yard Self-Contained CompactorsLot of (3) Automatic Compactors in good condition and loaded onto your truck. Specifications: -- Cylinder: 6" -- Feed opening: 60" x 40" -- Motor: 10 HPEquipped with: -- Clear Top with doghouse -- Universal rails

UNKNOWN 21 UNIT MATERIAL CHIP BINChip Bin main components: -- Bin with 21 Unit (4,200 cubic feet) capacity. -- Hydraulic Dump power unit. -- Steel support structure. -- Clamshell-type material discharge doors. -- Hydraulic connections and hoses replaced new in 2021. Industrial mesh fabric attached on long sides to prevent dust blowing during dumping when very windy outside. -- Works great even in winter conditions! -- NOTE: Riggers will be required to de-commission & take the system down & transport, at the "BUYERS" expense.

(2) Forklift Fork Extensions -- Length 72";, Width 7" -- Accommodates 4", 5" and 6" opening, Weight: 72 Pounds.

100HP Single Shaft Shredder With Infeed and Discharge ConveyorsSpecifications: --100 HP --Includes Infeed Conveyor- 50" Wide x 37’6"; Long, Sides 20"; high --Includes Discharge Conveyor - 47" Wide x 16' Long
