Description:

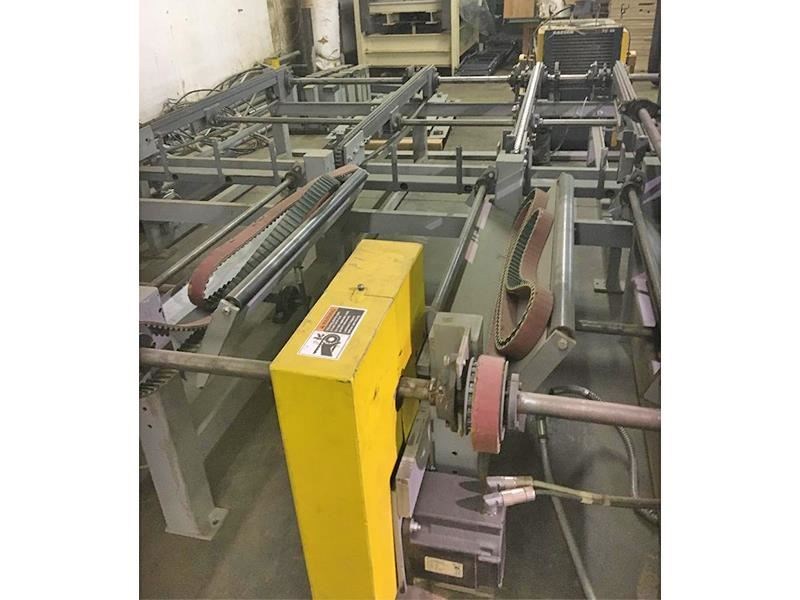

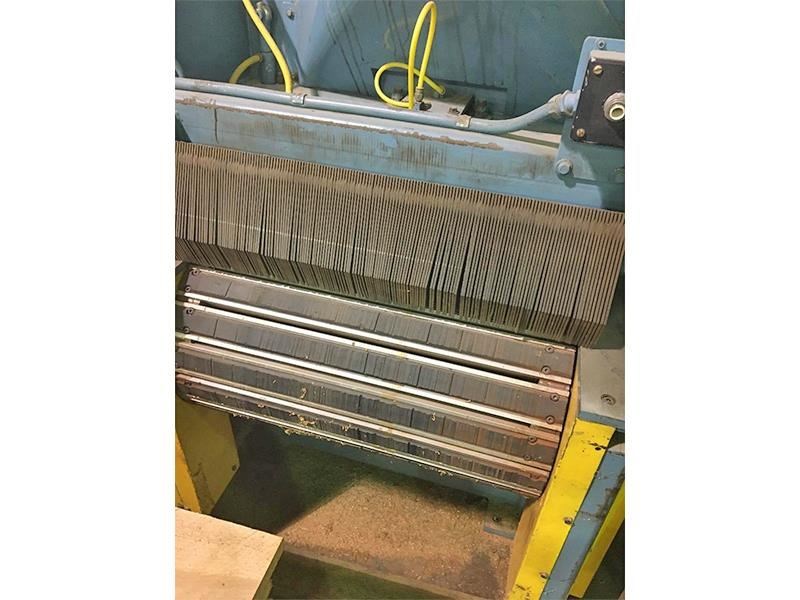

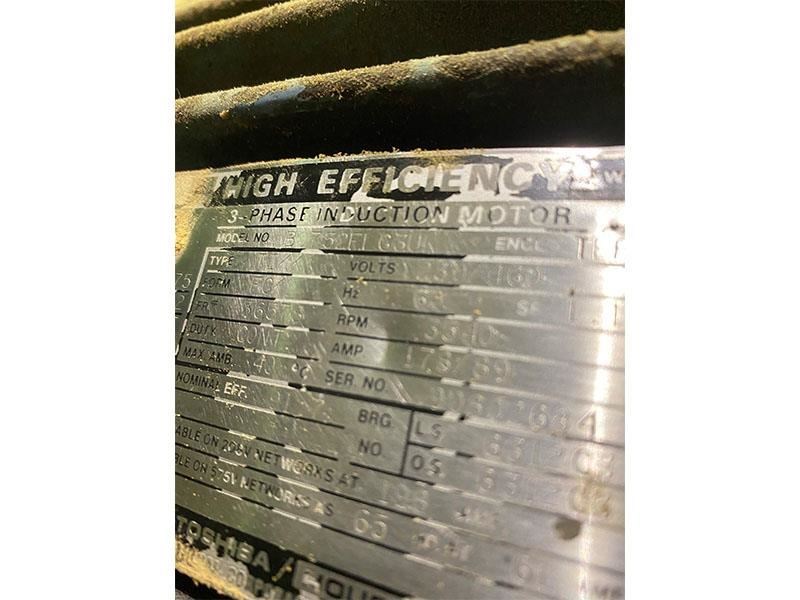

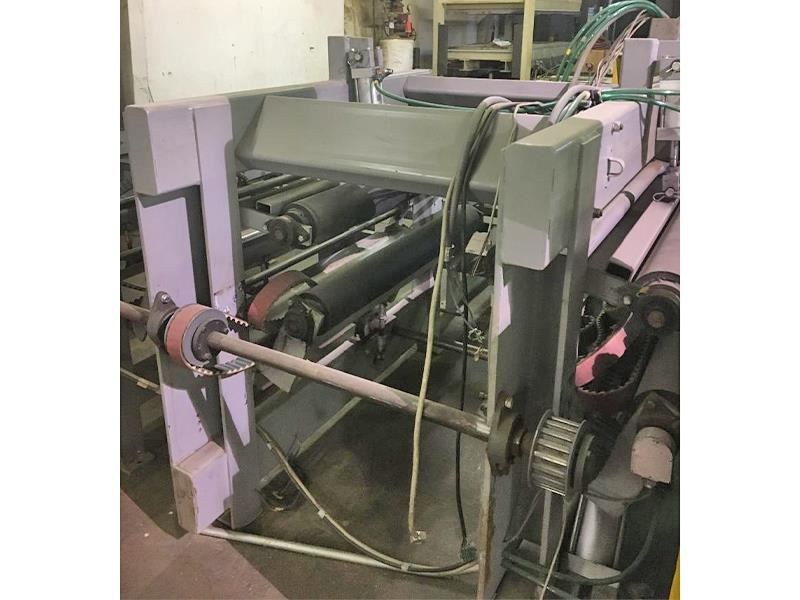

NEWMAN/Cameron KF-24 DIPCHAIN GANG RIPSAW With the Cameron Model 34H-M1 infeed systemSpecifications: -- Saw Arbor: 24" Arbor cap., 14" max. dia. tooling, 4" max. motorized thickness adjustment, 22" min. length for glue joint accuracy, 6" throat. -- 2-13/16" Dia. arbor, 24-1/2" capacity saw sleeve arranged for 3-1/8" Dia. bore saw blades; saw blade options 10" - 14" Dia., spacers 4-5/8" Dia. includes (1) saw sleeve and spacers. -- 75 HP - 3,600 RPM TEFC Direct drive motor, arbor with disc brake and load meter, arbor lockout on the access door. Feed & Chain: -- 5 HP Variable feed speed 20 to 100 FPM, with jam arbor protection. Dip bed carried on 5" pitch hardened Double-V chain, hardened dip cams, extruded structural aluminum feed bed slats with replaceable steel-backed rubber insert strips, automatic chain oiler with low level shutoff. -- (2) 4" Dia. air loaded overhead pressure rolls; spring-loaded overhead bed plate, pressure rolls and bed plate unit with motorized adjustment, slide type infeed guide with handle block, either side of the guide can be used for a stock engraver. -- Anti-kickback finger system with (1) lower & (2) upper on infeed, and (1) upper kickback on outfeed. Equipped with & Features -- Upper outfeed main dust hood 7-7/8" dia. (2,150 CFM), infeed dust hood 4-7/8" dia. (855 CFM). -- Also with (1) spare sleeve, (2) setup fixtures, and a generous array of spacers (see photos).
