Description:

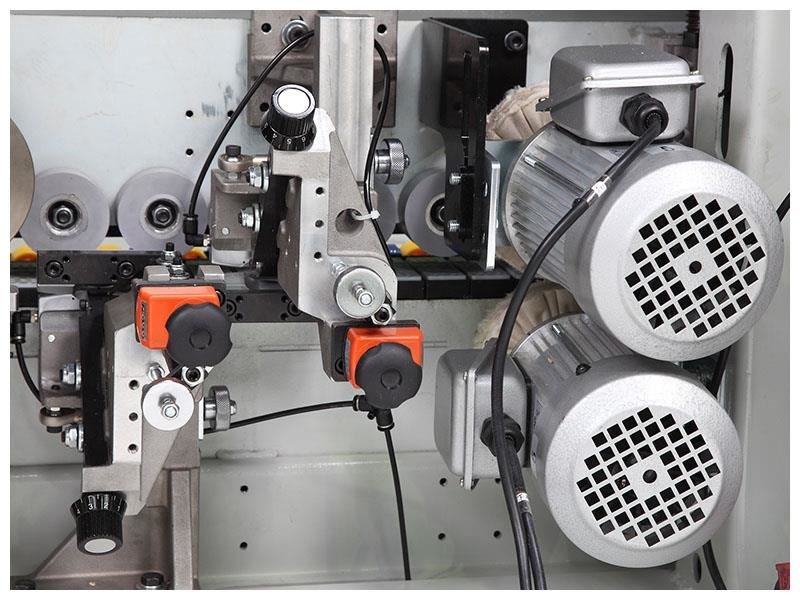

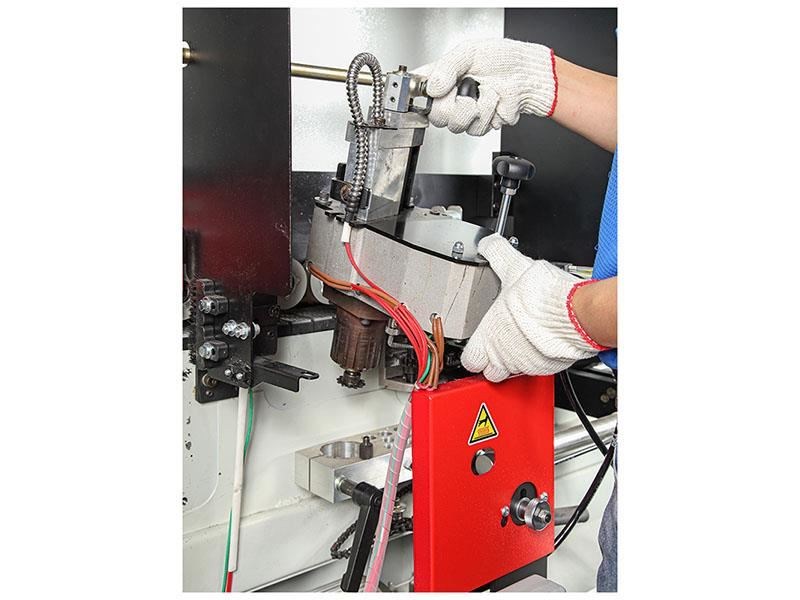

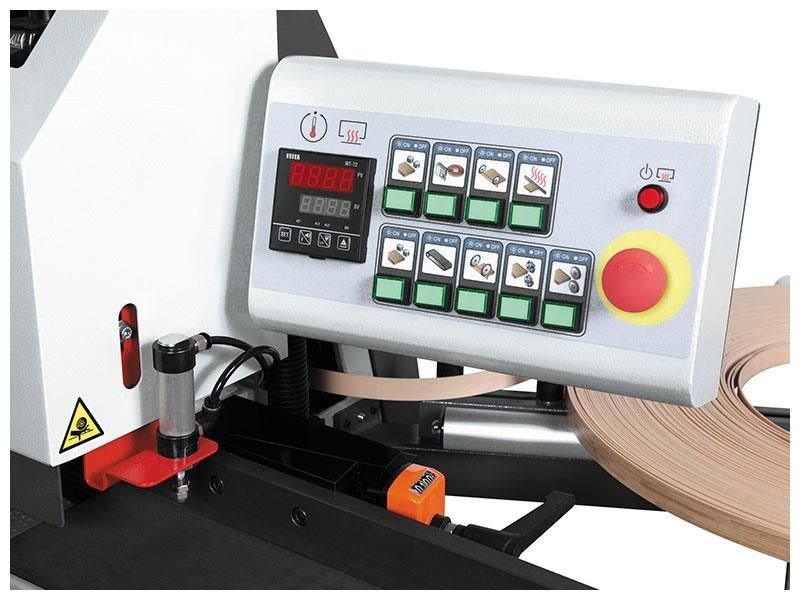

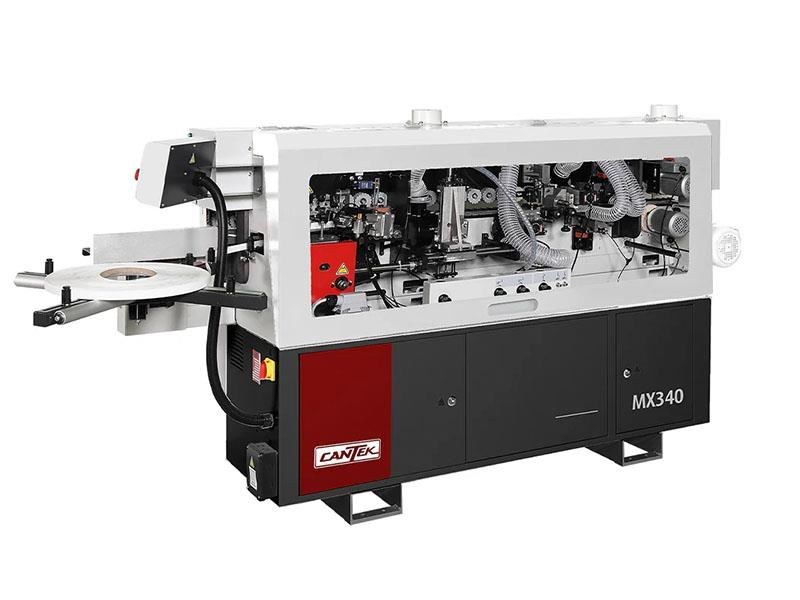

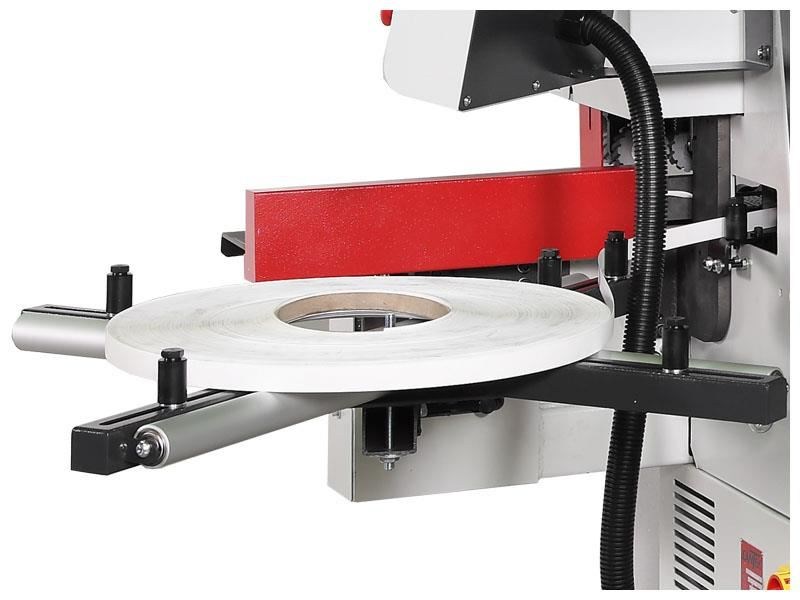

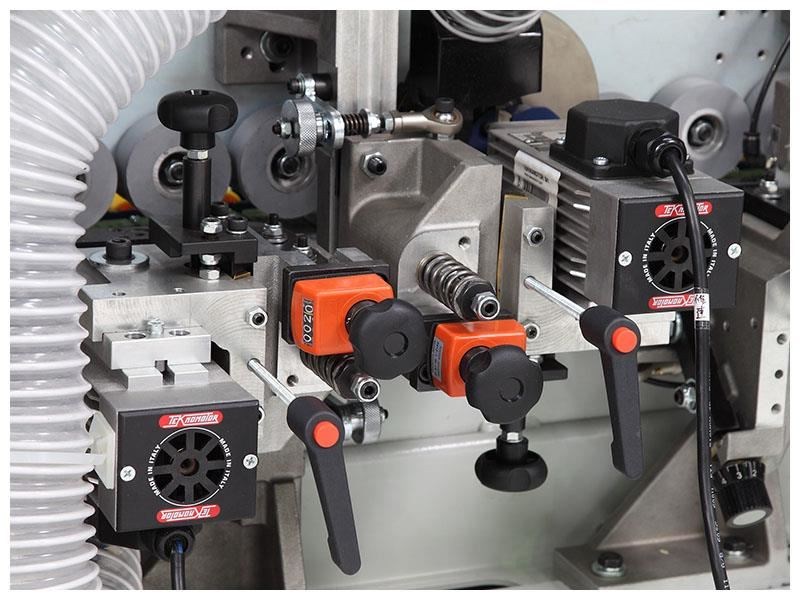

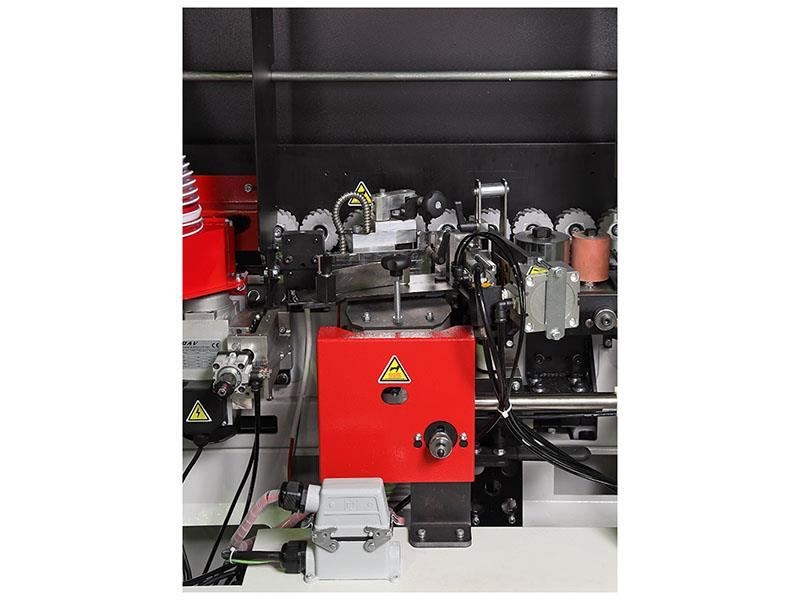

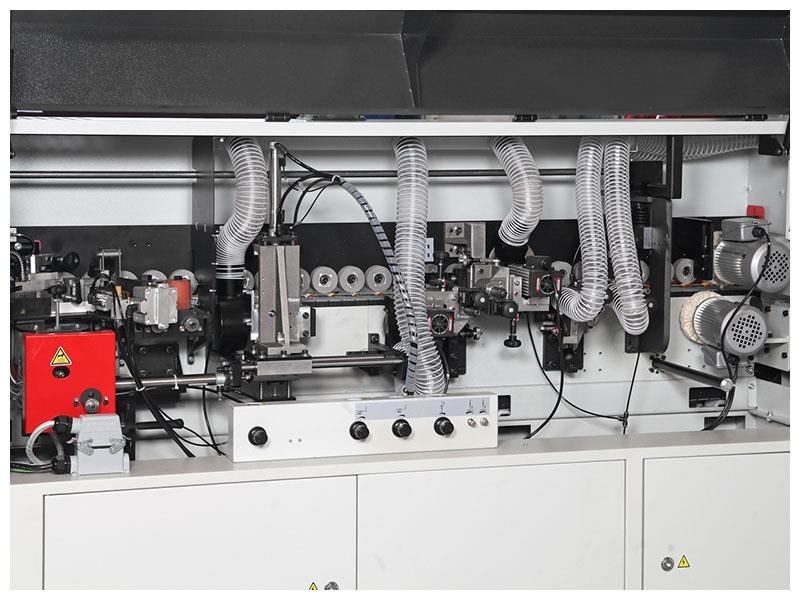

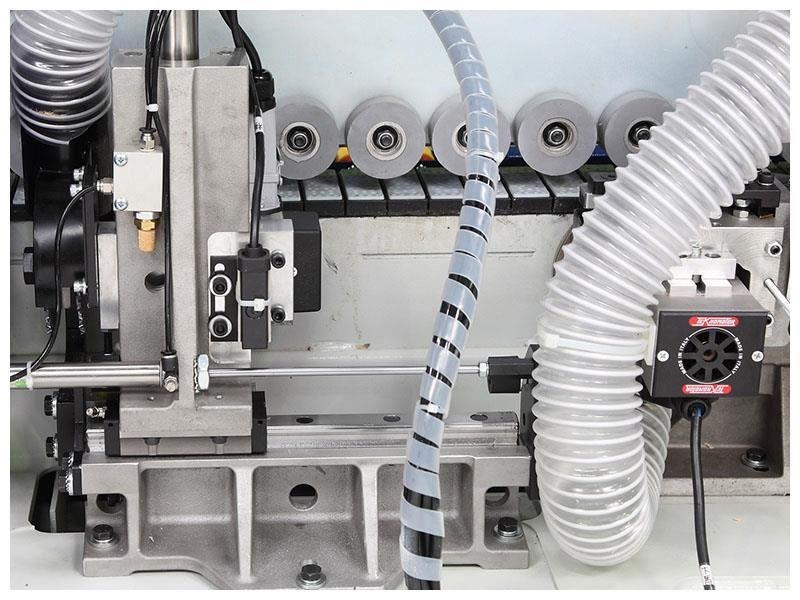

CANTEK MX340 Edgebander (Single Phase or 3-Phase)The MX340 from CANTEK is designed to be a compact, and durable edgebander. -- This machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. -- The CANTEK MX340 Edgebander is operated through a PLC control system with an LED display and keypad.Specifications: -- The MX340 handles panel thicknesses of 0.315" up to 1.77" (8 mm to 45 mm). -- The coil feed accepts edgebanding from 0.4 mm to 3 mm thick, and strip material can be hand-fed. -- Conveyor feed speed is 29.5 FPM (fixed).Work stations: -- Heated infeed fence for optimum glue penetration. Large capacity Teflon coated glue pot (2.64 Lbs). -- Pneumatically operated guillotine for up to 3 mm thick banding, followed by spring loaded double pressure rollers. -- Single front/rear trimming unit 0.3 HP motor. -- Double top and bottom trimming units (2) 1/2 HP motors. -- Top and bottom scraper/radius scraper. -- Top and bottom buffing station (2) 0.16 HP motors.
