Description:

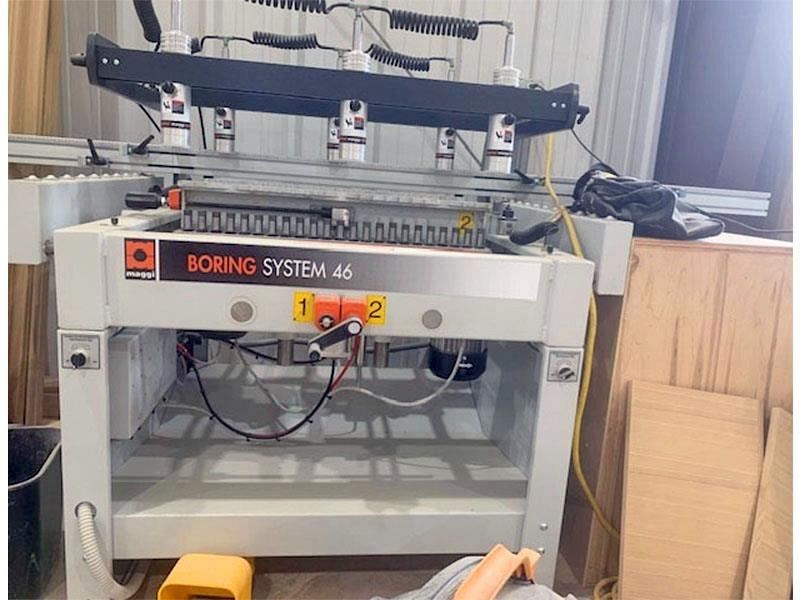

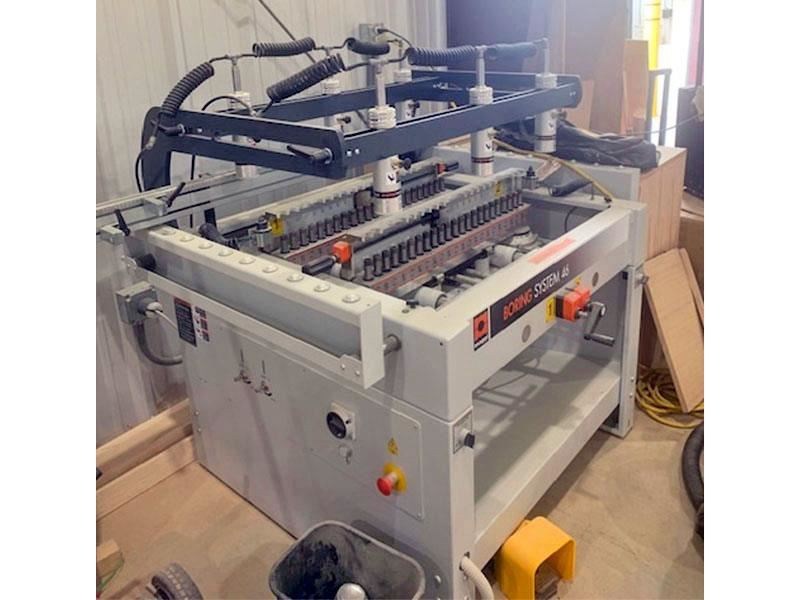

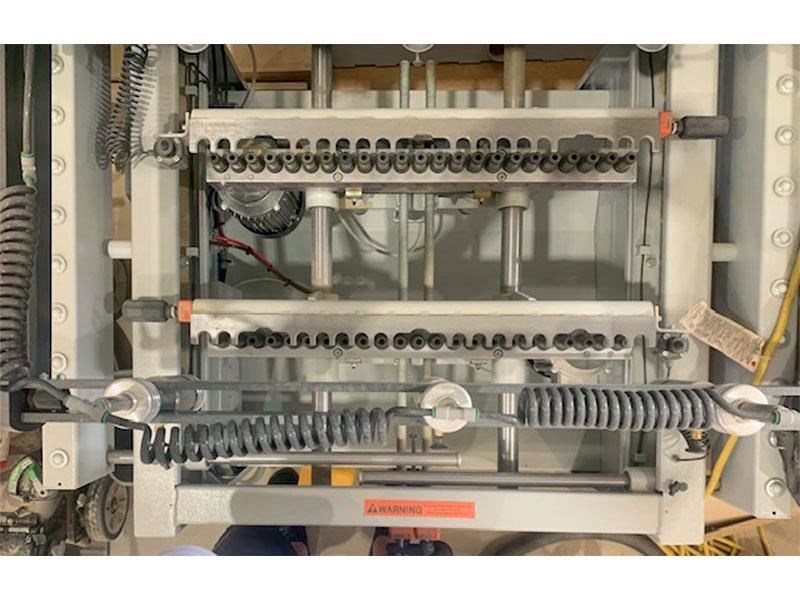

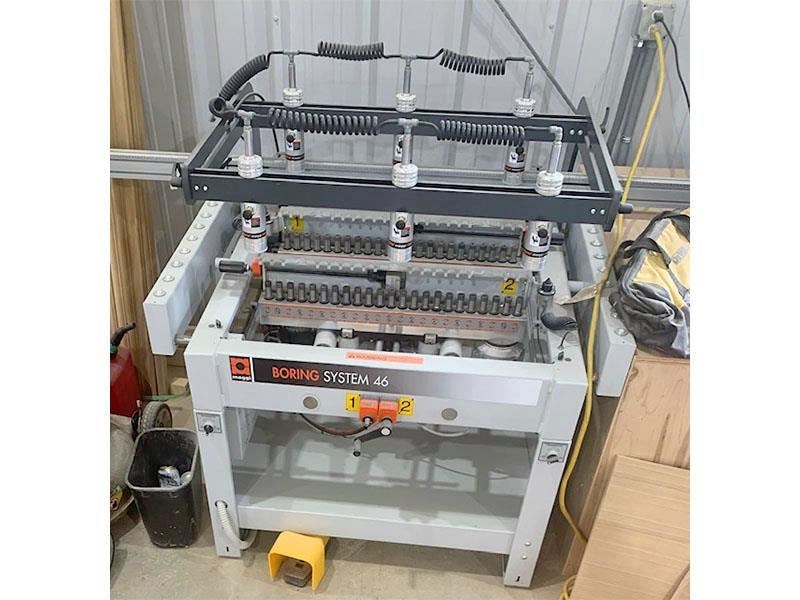

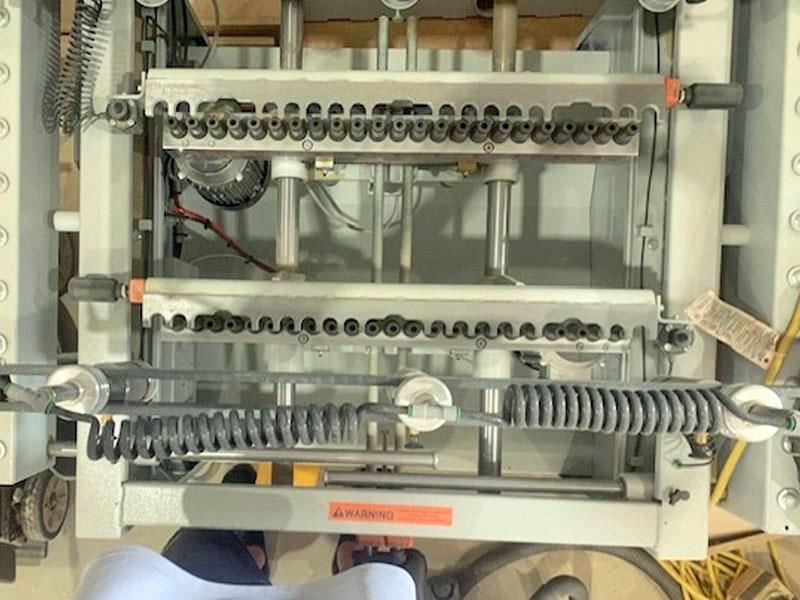

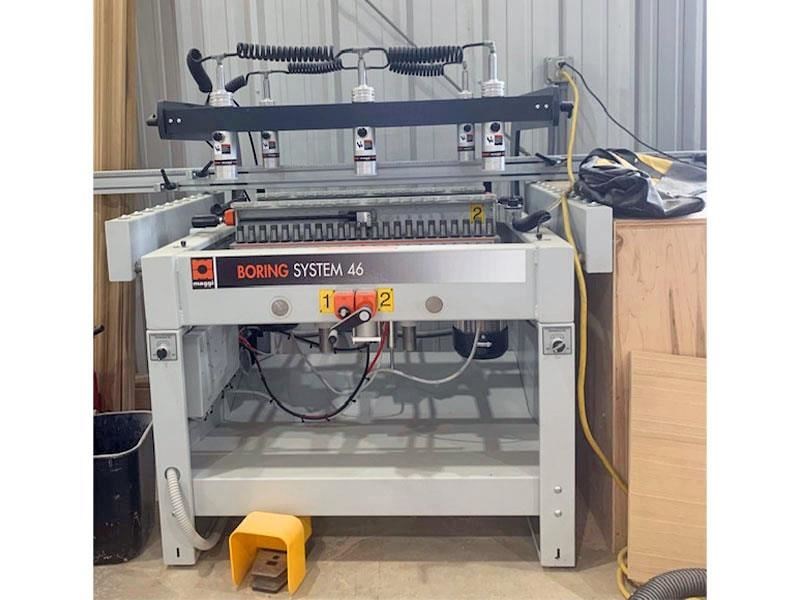

MAGGI SYSTEM 46 Double Row Line Borer(2) 23-Spindle heads on 32 mm centers, drills from bottom up;Specifications: -- (2) 1.5 HP - 2,800 RPM motors, 5" min. and 25-19/32" max. working width between heads, 4" drilling stroke, drills vertically from bottom so chips fall out of holes. -- Heavy overhead material holddown system with (6) pneumatic material clamps. -- 16" Retractable infeed and outfeed support roller system for long panels. Complete with: -- "Quick change" drill adapters, patented "quick set" system for depth of drilling. -- 120" Extension fence with (4) flip-stops, reference pin for continuous line drilling, and foot pedal control.
