Description:

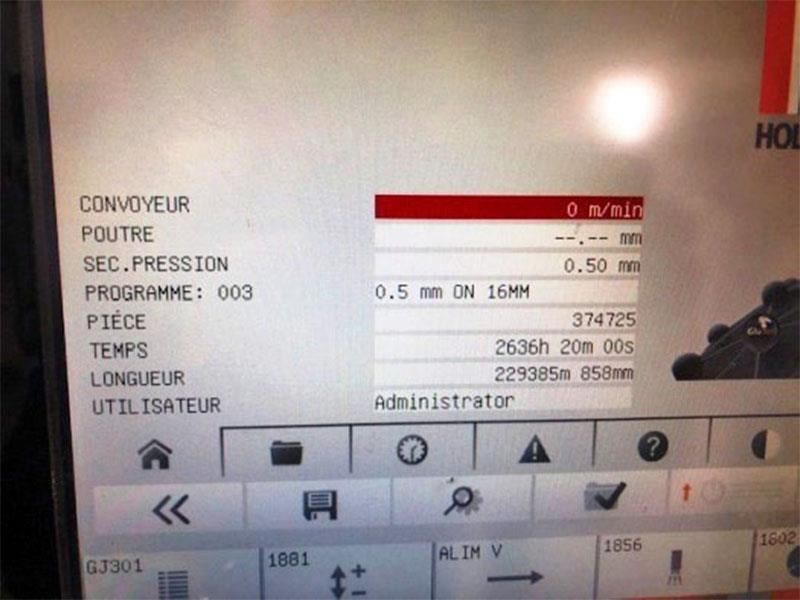

HOLZ-HER - 1329 SPRINT PREMIUM: Edgebander (w/Premill & Corner Rounding) &Features HOLZ-HER's Patented Dual "GLU-JET" EVA & PUR Zero Joint Technology SystemSpecifications -- Edgebanding Capacity: Edge thickness min./max.: 0.4 - 15 mm (0.016 - 0.59"); coiled material: 0.4 - 3 mm (0.016 - 0.157"); panel thickness: 8 - 60 mm (0.236 - 2.362"); workpiece width min.: 60 mm (2.36"); workpiece length min.: 160 mm (6.29"); feed speed: 10 - 18 MPM (33 - 59 FPM). -- Programmable Logic Control (PLC) for: Pre-milling, edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner rounding, buffing. -- HOLZ-HER PPC 315 "EDGE CONTROL TOUCH": Electronically controlled setup processes with ...100% repetition accuracy. 18-1/2" Flat Touch Screen with: Brilliant graphic display of machining process. Simple operation: Rotating and swiveling control panel at eye height.Programs can be easily created & recalled at will; graphic interface makes programming easy,Icon of each unit may be brought up on the screen to show the Operator the status of the unit and the parameters that can be programmed.Edgebander can be operated manually when required, without necessity to write a program.Machine Infeed Configuration -- Pre-milling Station: (2) 2.0 kW (2.68 HP) - 12,000 RPM motors; equipped with "ProLock": quick-change flange including height adjustment for optimum utilization of cutters. -- Edge Feeder Magazine - "SYNCRO" drive. The magazine with its synchronous adaptation to the feed rate guarantees short intervals between workpieces & simultaneously optimizes edging protrusions.Small 3° feed angle (thanks to nozzle design) with: Easy feeding of coils, strips up to 3 mm; solid wood edging up to 15 mm (0.059").Exclusive "Tractor-Belt Feed System": Edge guide equipped with: Automatic guillotine lockout for safety. -- Pressure Section: Servo Controlled pressure section with: (1) Large driven roller; (2) cantered idle rollers.Straight & tapered pressure rollers for perfect glued joints -- GLUING SYSTEM - "GUL Jet": Thin film technology processes "EVA" or "PUR" Glue in cartridge of granulate gorm; motorized, programmable glue nozzle (upper glue line) height positioning.Workstations -- End Trimming Unit (1918-P): Front & rear: (2) x 0.35 kW (0.5 HP) - 9,000 RPM motor each; uniPoint swivel axis for no reindexing when changing from flush to bevel end trim (0° - 10° bevel);"PCS" programmable pneumatic changeover from flush to bevel. -- Multifunction Trimming Unit (1826): Servo controlled; (2) Servo motors: (1) For horizontal copy wheel & (1) for tool spindle position; programmable top & bottom unit: (2) x 0.65 kW (0.87 HP) - 12,000 RPM each motor.UniPoint design with: No second adjustment; pneumatic, programmable tilt action for changing the degree of bevel; digital counters for vertical copy wheel position & pneumatic air cylinder for in/out prepositioning of trimming motor. -- Trimming & Corner Rounding Unit (1833 MOT4): For linear edge trimming or ver
