Description:

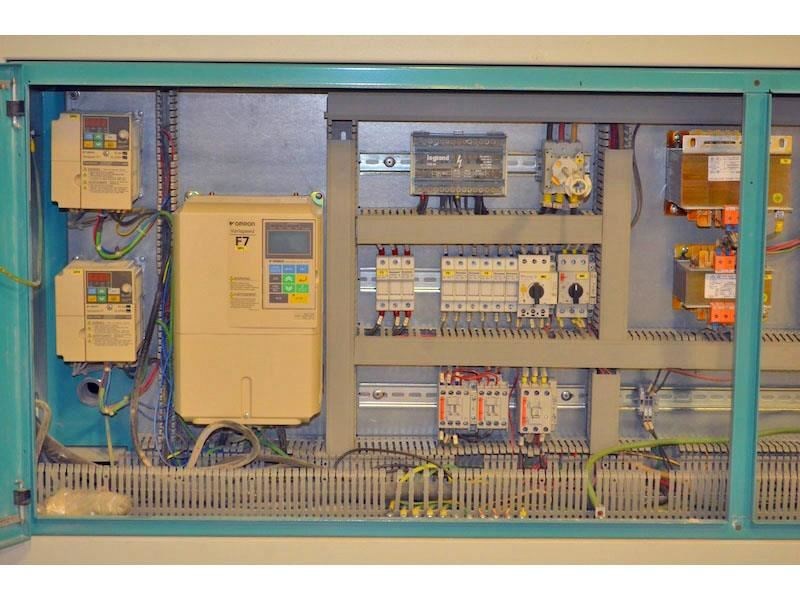

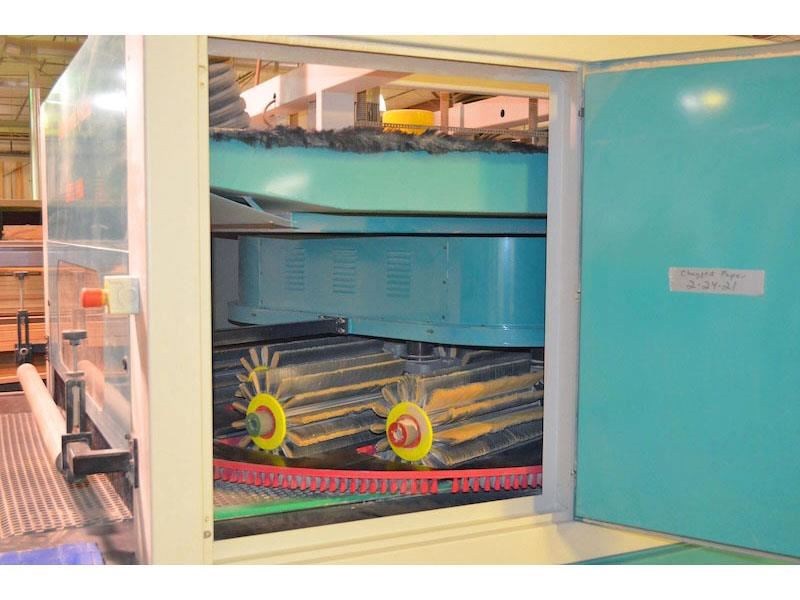

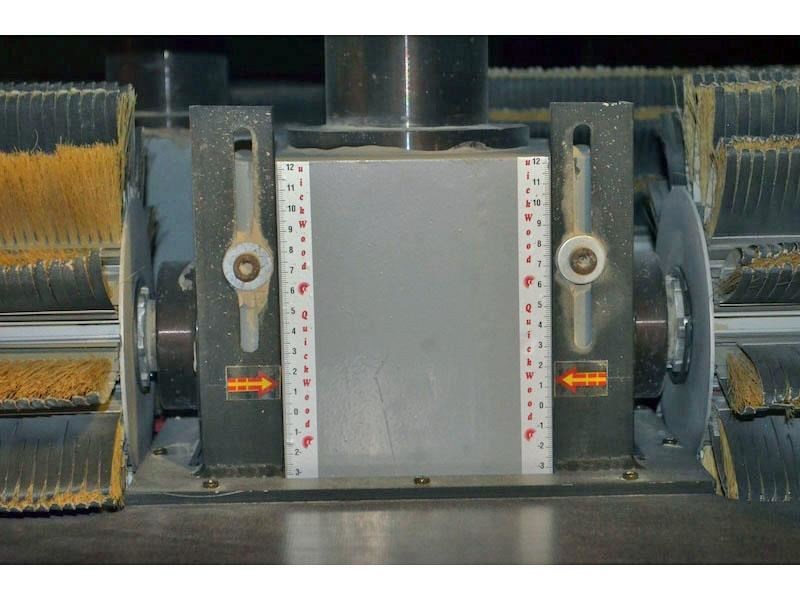

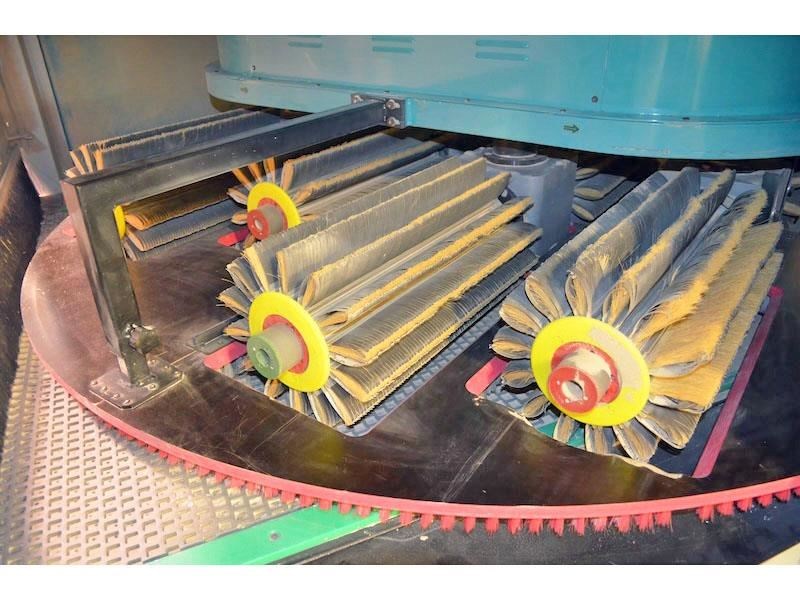

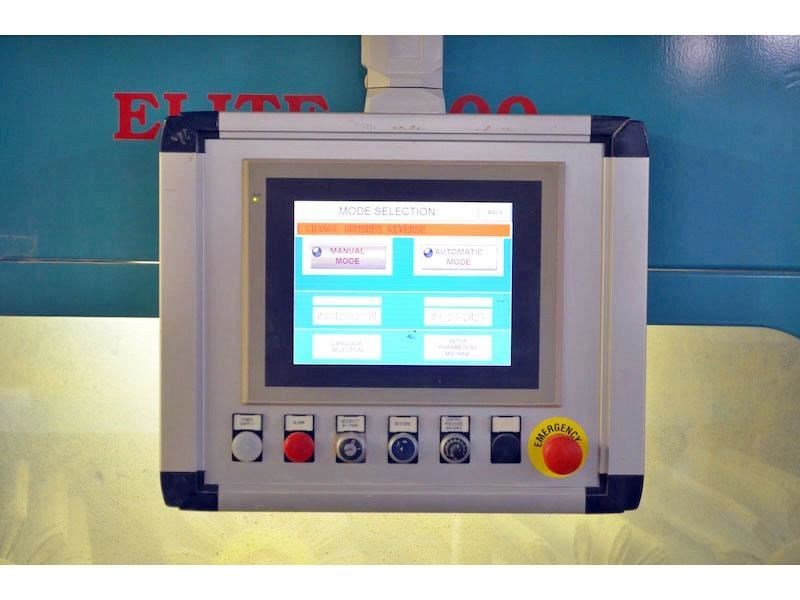

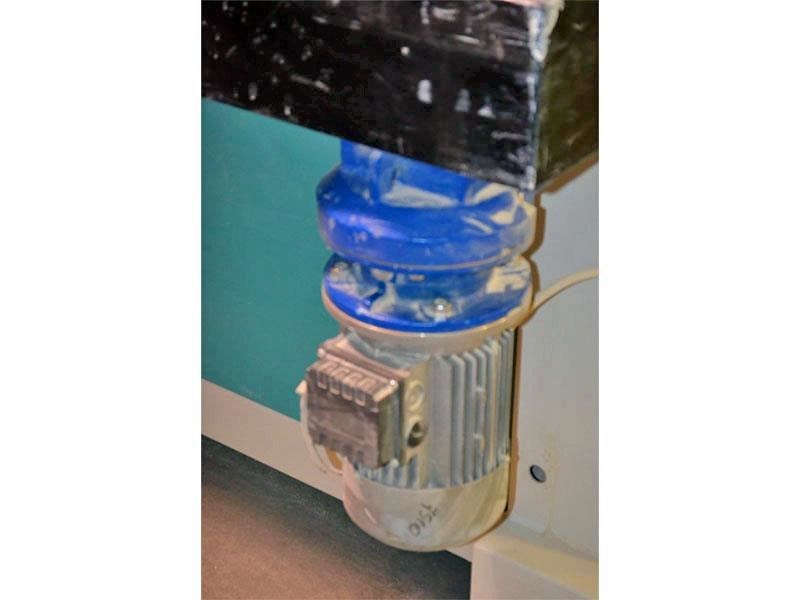

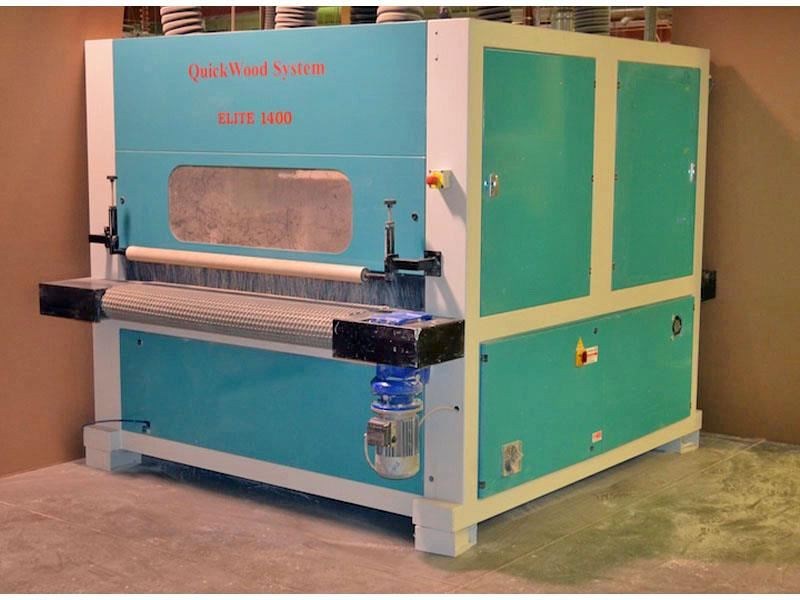

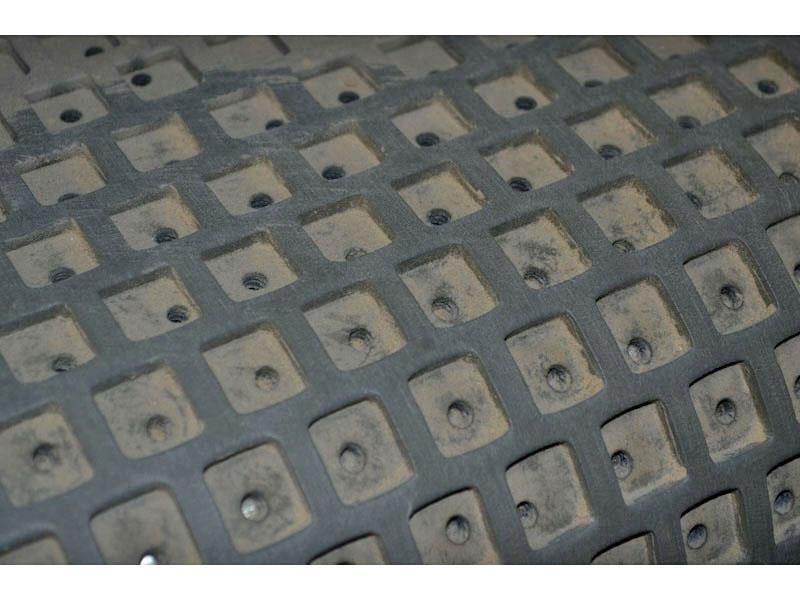

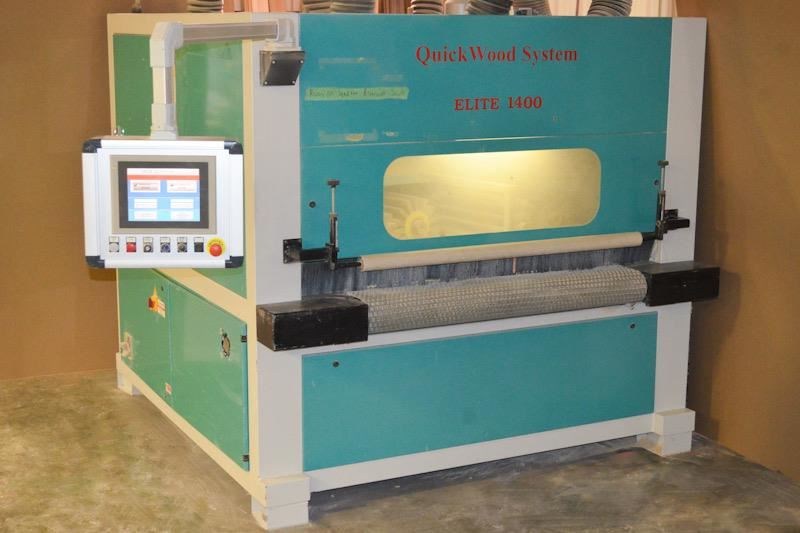

QUICKWOOD ELITE-1400 Denibbing Sander with (8) Abrasive Brush Heads; (1) 8-Head carousel with brush loadings, 55" max. width - for finish & sealer sanding.Equipped with and Specifications: -- (1) Carousel head with (4) double arbor, opposing heads consisting of (8) counter-rotating spindles. -- Heads on each side are staggered left/right and center mounted for carousel operation. -- Each double arbor powered by 2 HP motor, variable spindle speed from 300 to 1,150 RPM, inverter powered and controlled from Operator panel, 21-1/2" long spindles extend out each side of head drive. Features & Brush loadings: -- Carousel variable speed from 3 to 16 RPM, 2 HP drive motor, inverter controlled with keypad and LED readout. -- Spindles hold approx. (344) discs or a combination of QUICK abrasive discs, nylon brushes, or nylon impregnated discs. 14" Max. disc dia., brush loadings mounted on a slight angle to create an oscillating motion. Feed System & Speed: -- "Vactronic" Vacuum bed conveyor feed system, (2) 10 HP vacuum fan assembly, variable feed speed from 6 to 36 FPM, 2 HP feed drive. -- 0" to 4" Motorized thickness opening inverter controlled with keypad and LED readout. Features hold-down brush plate. Complete with & Includes: -- Full sound enclosure, 11 kW frequency inverter, (6) 5-1/2" dia. dust collection outlets, reversible head rotation, Flexi-heads. Operator Control panel with color monitor at eye-level height swivels on swing arm.
