Description:

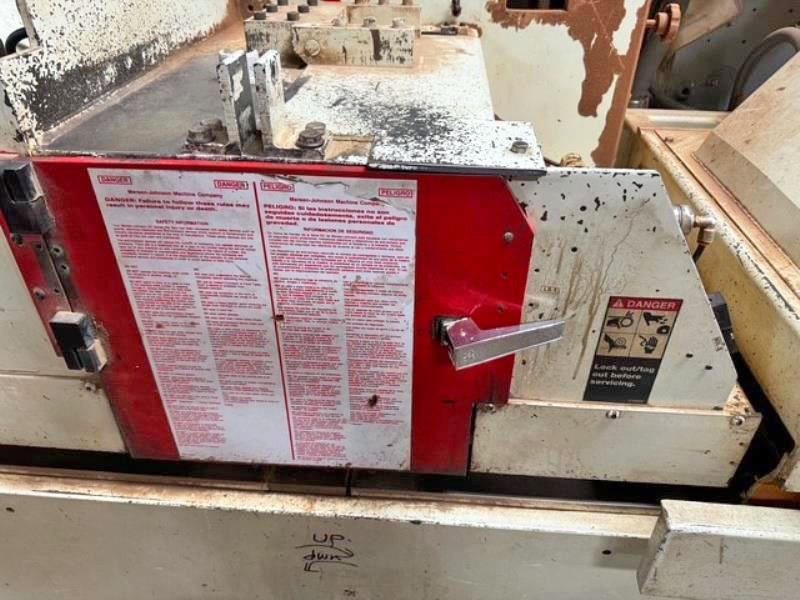

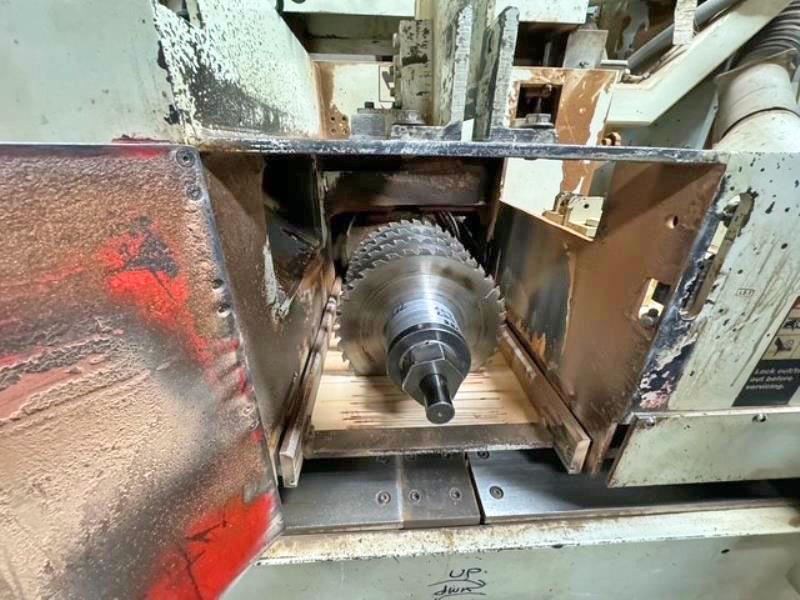

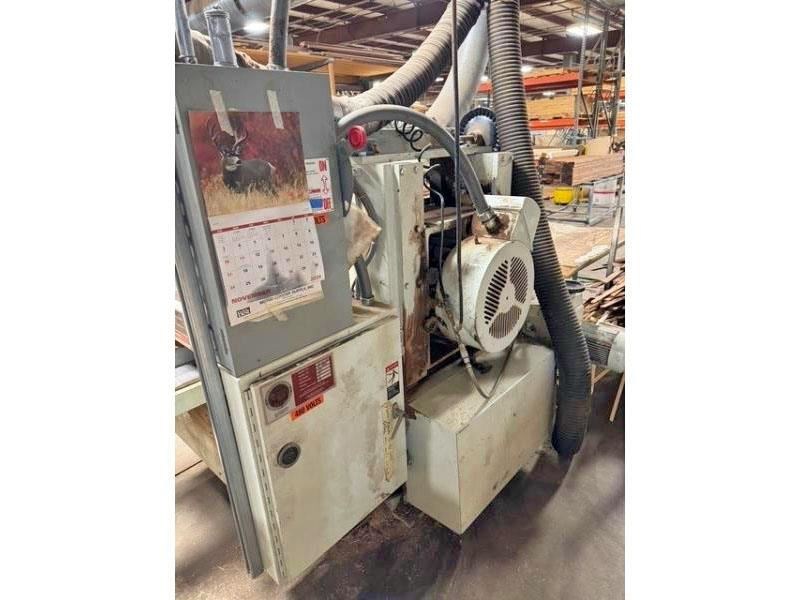

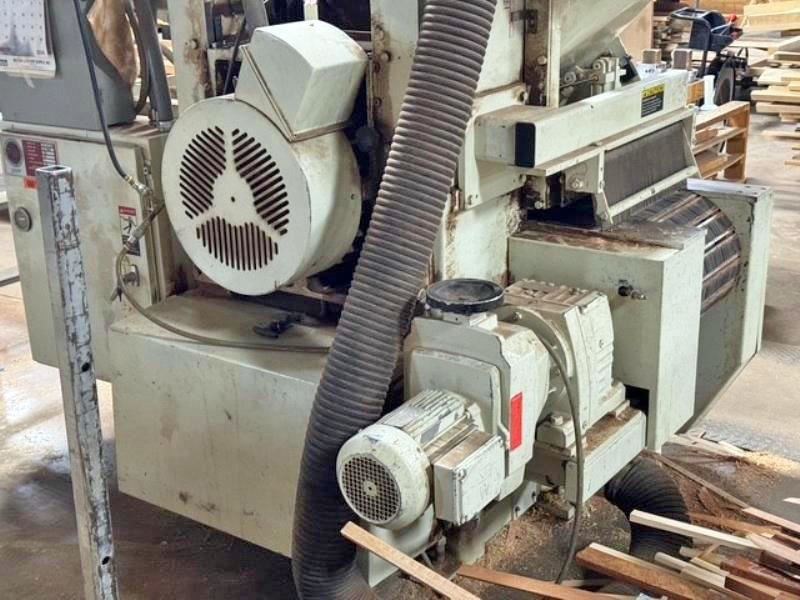

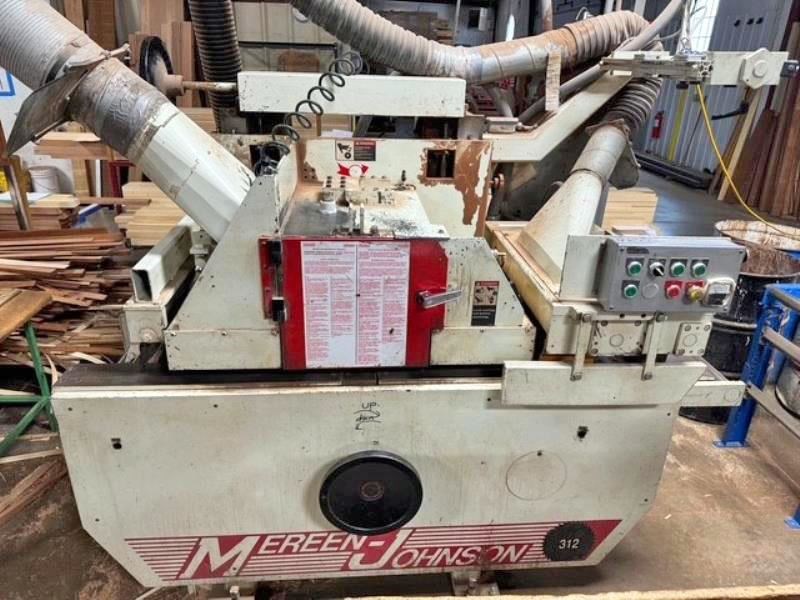

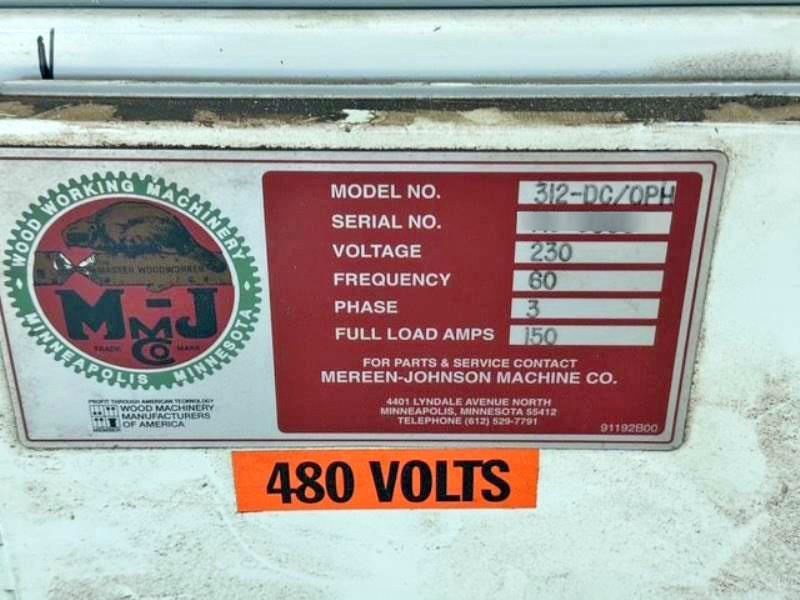

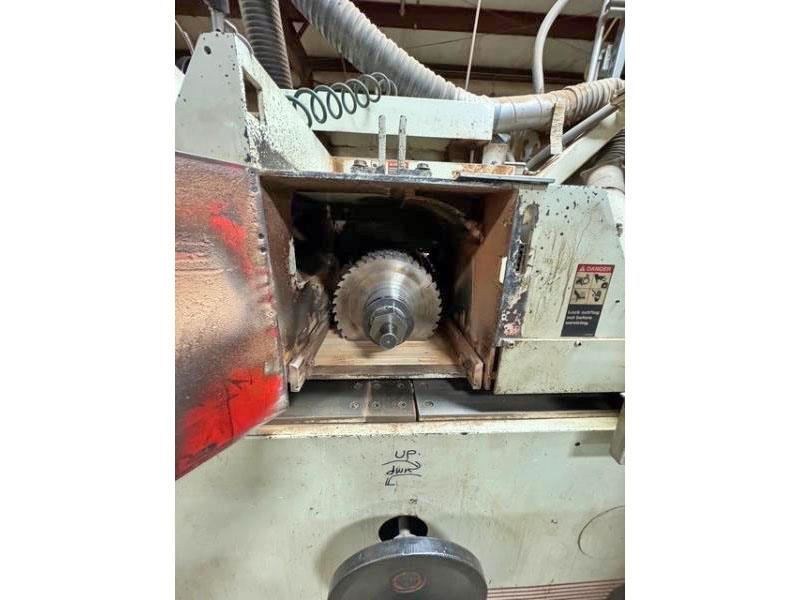

MEREEN-JOHNSON "312-DC-OPH1" DIP CHAIN GANG RIP SAWSpecifications -- 12" Arbor cap., -- 14" max. dia. tooling, 3-1/2" max. thickness, -- 30" min. length for glue joint accuracy & 22" min. for busting only; -- 6" throat. Equipped with: & Features -- 50 HP - 3,600 RPM TEFC Direct drive motor, -- Arbor with disc brake & load meter, arbor lockout on access door.Feed & chain: -- 3 HP Variable feed speed from 30 - 150 FPM with adjustable jam protection, -- M-J "Posi-Feed" dip bed carried on 5" pitch hardened double-V chain, "Quad Life" hardened dip cams. -- Extruded structural aluminum feed bed slats with replaceable steel backed rubber insert strips, -- Automatic chain oiler with low level shutoff. -- (4) 3" Dia. air loaded overhead pressure rolls; -- Full width segmented maple, spring loaded overhead pressure shoe -- Pressure rolls & pressure shoe unit adjust with scale & pointer thickness reference -- Anti-kickback fingers. -- Lasers at infeed for pocket location.
