Description:

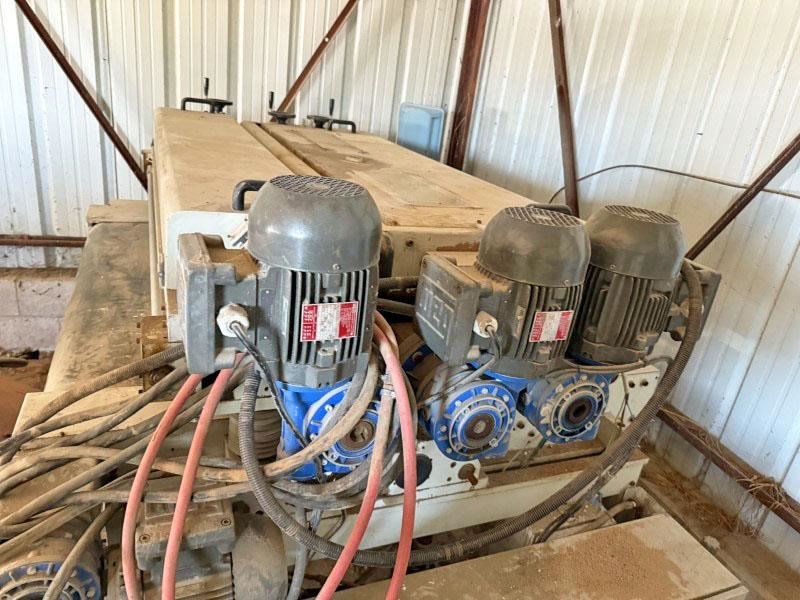

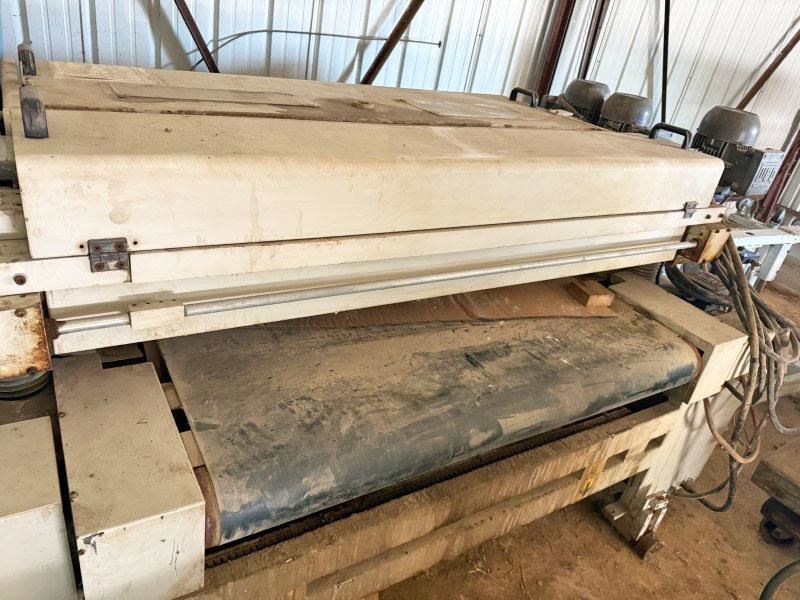

EFLA - BT20 SP - 1/R: Combination Differential/Filling MachineOne of the best units ever produced! -- Dual purpose machine can be utilized as:Standard differential Roll Coater for application of U.V. sealer or topcoat material. As a differential Roll Coater, the 1st application head is independently utilized for precisely controlled application.Filling Machine. For application of U.V. filling material to calibrated substrates with porous veneer. As a filling machine, both heads are utilized for application & reverse smoothing or pressing of U.V. filling material. -- Features: 2-Head, 53" width cap.1st Head: 250 mm (9-3/4") Dia. rubber coated applicator roller; (40 shore) w/separate doctor roller.2nd Head: 245 mm (9-5/8") Dia. chromium coated smoothing/reverse roller; separate chromium doctor roll: 0 - 100 mm (3-3/4") Adjustable opening (manual).HP Conveyor Drive. Variable feed speed from: 26 - 131 FPM; 1/2 HP variable RPM drive on doctor rolls; separate 3/4 HP drive on applicator & reverse rollers; 880 mm (34-1/2") working/pass through height. -- Electrical Power: 480 V - 3 Ph (3.8 kW - 7 amps). -- Includes: Wheels & rails for removal of the Line; has its own operator Control Panel. -- Plus: Pneumatic emergency lifting in case a part is misfed or too thick for the setup.NOTE: Equipment is a Brazil version of the model. all specifications should be the same, but there may be a small variation in details.
