Woodworking Equipment For Sale

Worktable dimensions: 145? x 61? Z -Axis stroke: 9.84? Spindle speed: 24,000 RPM Electrospindle (S1/S6 rating): 7.5 HP / 9HP Tool Changer: 10 position Spindle Taper: HSK 63 Boring Block (7) Spindles: 6,000 RPM Maximum positioning vectorial speeds: X/Y axis: 115 feet/minute Electrics: 208/230/460 volts, 3-phase, 60 cycles EQUIPPED WITH: Windows Based Operating system 17” Flat Panel Monitor Remote Pendant with 7? Display 7-Spindle Boring Block Touch Probe Spindle Air Blowers Built In Vacuum Pumps- 2 Zones

SCM ACCORD 25 FX -M CNC MACHINING CENTER (W/ATC): -- Specifications:4' x 20' Aluminum "MATRIX" Grid 2-zone vacuum table -- Working capacity:"X" axis 242.9" (6,170 mm), "Y" axis 51.9" (1,320 mm), "Z" axis stroke 17.3" (440 mm) & 9.8" (250 mm) max. material thickness. -- Positioning speed:"X" & "Y" Axis 197 FPM (60 MPM), "Z" axis is 82 FPM (25 MPM).Movement is controlled by AC Brushless motors and YASKAWA drives, high precision rack & pinion system for "X" & "Y", precision ball-screw for "Z" axis.Working unit travels on prismatic guideways & sliding blocks with preloaded recirculating balls; NC controlled automatic lubrication system. -- Worktable:"FX-MATIC" Aluminum "MATRIX" Grid 2-zone vacuum table with (6) adjustable pneumatic pop-up reference stops, that can be positioned on the perimeter of the worktable. -- Boring Unit:3 HP (2.2 kW), Boring Block with (8) Independent Vertical units, variable speed from 2,000 - 8,000 RPM, with (4) bits in "X" axis & (4) bits in "Y" axis.(1) NC controlled "X" Grooving saw w/max. 125 mm dia. blade(4) Horizontal Boring units with (2+2) in "X" axis & (2+2) in "Y" axis -- Machining units:(1) 16 HP (12 kW) Electro-spindle router with HSK F63 adaptor, rotation speed from 600 - 24,000 RPM,Constant torque achieved at 12,000 RPM: Router controlled by 12 kW inverter for stepless speed & rapid shutdown rotation.(1) Rapid 16-position ATC plate mounted at the back of the "Y" axis carriage for "on the fly" ATC, center distance between tools is 104 mm (4.13"), max. tool dia. 300 mm (11.18") max. tool weight/tool is 8 KG (17.6 Lbs). -- Operator Interface:PC front with SCMI "Xilog MAESTRO" + "eye-M" + Windows "10-IOT" 64bitoperating system. 21" Full HD, LCD Display, ergonomic industrial keyboard & mouse; central USB connection; Rj45 Ethernet port for possible link to an office PC. "Xilog MAESTRO" + "eye-M" software offers full real-time 2-3D graphic interface for programming assistance & error diagnostics. -- Complete with:Tool Touch-off Probe, "TECPAD" hand-held mobile console, with 7" color display; "Pro-Space" safety system with photo-cell barriers & bump-stop; Safety fences; 208/230/460v Multi-tap autotransformer for various voltages. -- Actual Model is SCM ACCORD 25 FX-MNOTE: No Vacuum Pump is included with this machine.

SCM TECNOMAX SC/4 WS 8-1/2' Sliding Table SawSpecifications: -- Max. depth of cut with 315 mm (12.40") Dia. blade: 100 mm (3.94") at 90°, 70 mm (2.76") at 45°. -- Main saw: 3.6 kW (4.82 HP) Motor, Blade dia. 315 mm (12.40"), Arbor tilt 0° - 45°, Blade speed 4,000 RPM. -- Scoring saw: Blade dia. 100 mm (3.94").Equipped with: -- 11-1/2"; x 102"; x 35-1/2"; H Aluminum sliding table, 840 mm (33.07") LR Fixed table. -- Manual raise, lower & tilt. -- Mechanical digital tilt indicator.Complete with: -- 39-1/4"; L x 3-1/2"; H Rip fence, with 51" Cutting width cap. & Cam-locking. -- 650 x 1,100 mm (29.59" x 43.32") Squaring frame, with Crosscut fence with 1,800 mm (70.87") Cutting cap., (2) Flip stops & Sliding outrigger support.Actual model is SC/4 WS-N.

SCM ACCORD 25 FX -M CNC MACHINING CENTER (W/ATC): -- Specifications:4' x 20' Aluminum "MATRIX" Grid 2-zone vacuum table -- Working capacity:"X" axis 242.9" (6,170 mm), "Y" axis 51.9" (1,320 mm), "Z" axis stroke 17.3" (440 mm) & 9.8" (250 mm) max. material thickness. -- Positioning speed:"X" & "Y" Axis 197 FPM (60 MPM), "Z" axis is 82 FPM (25 MPM).Movement is controlled by AC Brushless motors and YASKAWA drives, high precision rack & pinion system for "X" & "Y", precision ball-screw for "Z" axis.Working unit travels on prismatic guideways & sliding blocks with preloaded recirculating balls; NC controlled automatic lubrication system. -- Worktable:"FX-MATIC" Aluminum "MATRIX" Grid 2-zone vacuum table with (6) adjustable pneumatic pop-up reference stops, that can be positioned on the perimeter of the worktable. -- Boring Unit:3 HP (2.2 kW), Boring Block with (8) Independent Vertical units, variable speed from 2,000 - 8,000 RPM, with (4) bits in "X" axis & (4) bits in "Y" axis.(1) NC controlled "X" Grooving saw w/max. 125 mm dia. blade(4) Horizontal Boring units with (2+2) in "X" axis & (2+2) in "Y" axis -- Machining units:(1) 16 HP (12 kW) Electro-spindle router with HSK F63 adaptor, rotation speed from 600 - 24,000 RPM,Constant torque achieved at 12,000 RPM: Router controlled by 12 kW inverter for stepless speed & rapid shutdown rotation.(1) Rapid 16-position ATC plate mounted at the back of the "Y" axis carriage for "on the fly" ATC, center distance between tools is 104 mm (4.13"), max. tool dia. 300 mm (11.18") max. tool weight/tool is 8 KG (17.6 Lbs). -- Operator Interface:PC front with SCMI "Xilog MAESTRO" + "eye-M" + Windows "10-IOT" 64bitoperating system. 21" Full HD, LCD Display, ergonomic industrial keyboard & mouse; central USB connection; Rj45 Ethernet port for possible link to an office PC. "Xilog MAESTRO" + "eye-M" software offers full real-time 2-3D graphic interface for programming assistance & error diagnostics. -- Complete with:Tool Touch-off Probe, "TECPAD" hand-held mobile console, with 7" color display; "Pro-Space" safety system with photo-cell barriers & bump-stop; Safety fences; 208/230/460v Multi-tap autotransformer for various voltages. -- Actual Model is SCM ACCORD 25 FX-MNOTE: No Vacuum pump is Included with this machine

SCM ACCORD 25 FX -M CNC MACHINING CENTER (W/ATC): -- Specifications:4' x 20' Aluminum "MATRIX" Grid 2-zone vacuum table -- Working capacity:"X" axis 242.9" (6,170 mm), "Y" axis 51.9" (1,320 mm), "Z" axis stroke 17.3" (440 mm) & 9.8" (250 mm) max. material thickness. -- Positioning speed:"X" & "Y" Axis 197 FPM (60 MPM), "Z" axis is 82 FPM (25 MPM).Movement is controlled by AC Brushless motors and YASKAWA drives, high precision rack & pinion system for "X" & "Y", precision ball-screw for "Z" axis.Working unit travels on prismatic guideways & sliding blocks with preloaded recirculating balls; NC controlled automatic lubrication system. -- Worktable:"FX-MATIC" Aluminum "MATRIX" Grid 2-zone vacuum table with (6) adjustable pneumatic pop-up reference stops, that can be positioned on the perimeter of the worktable. -- Boring Unit:3 HP (2.2 kW), Boring Block with (8) Independent Vertical units, variable speed from 2,000 - 8,000 RPM, with (4) bits in "X" axis & (4) bits in "Y" axis.(1) NC controlled "X" Grooving saw w/max. 125 mm dia. blade(4) Horizontal Boring units with (2+2) in "X" axis & (2+2) in "Y" axis -- Machining units:(1) 16 HP (12 kW) Electro-spindle router with HSK F63 adaptor, rotation speed from 600 - 24,000 RPM,Constant torque achieved at 12,000 RPM: Router controlled by 12 kW inverter for stepless speed & rapid shutdown rotation.(1) Rapid 16-position ATC plate mounted at the back of the "Y" axis carriage for "on the fly" ATC, center distance between tools is 104 mm (4.13"), max. tool dia. 300 mm (11.18") max. tool weight/tool is 8 KG (17.6 Lbs). -- Operator Interface:PC front with SCMI "Xilog MAESTRO" + "eye-M" + Windows "10-IOT" 64bitoperating system. 21" Full HD, LCD Display, ergonomic industrial keyboard & mouse; central USB connection; Rj45 Ethernet port for possible link to an office PC. "Xilog MAESTRO" + "eye-M" software offers full real-time 2-3D graphic interface for programming assistance & error diagnostics. -- Complete with:Tool Touch-off Probe, "TECPAD" hand-held mobile console, with 7" color display; "Pro-Space" safety system with photo-cell barriers & bump-stop; Safety fences; 208/230/460v Multi-tap autotransformer for various voltages. -- Actual Model is SCM ACCORD 25 FX-MNOTE: No Vacuum pump is Included with this machine.

SCM TECH Z 30 CNC MACHINING CENTER (W/ATC/BORING): -- Specifications:Working Field "X" axis 120" (3,050 mm); "Y" axis 52.7" (1,340 mm) for routing & 44" (1,118 mm) for boring; "Z" axis stroke 7.8" (200 mm); max. material thickness 3.9" (100 mm). -- Positioning Speed:"X" & "Y" Axes are 197 FPM (60 MPM); "Z" axis is 72 FPM (22 MPM).Axes positioning by: AC Brushless motors and YASKAWA drives; high precision ball screw drive system in "X", "Y". "Z" Axes;All axes ride on prismatic guideways & sliding blocks. -- Worktable:(6) "TV" Tubeless mobile support rails, (2) vacuum pods per rail; (4) pneumatic lifter rails for heavy panels.(6) Pneumatic pop-up backstops, (6) pneumatic pop-up front stops; (2) pneumatic pop-up side stops.LED Display positioning assistance for the support rails & vacuum pods; (2) independent working fields. -- Boring Head:3 HP (2.2 kW) motor - 4,000 RPM; (15) independent vertical spindles: (8) Spindles in "X" & (7) spindles in "Y".(6) Horizontal spindles (2 + 2) in "X" & (1 + 1) in "Y-axis".(1) X-axis grooving saw with 100 mm dia. blade - 6,000 RPM. -- Machining:(1) 10 HP (7.5 kW) Electro-spindle router with: HSK F63 Adaptor; variable speed from 1,000 - 24,000 RPM, max. torque achieved at 12,000 RPM.Static inverter for stepless speed & rapid shutdown rotation.(1) 6-Position ATC tool plate mounted on the on the machine for "on the fly" ATC; max. tool weight is 8 kG (17.6 Lbs). -- Operator & Machine Control:PC Front-End with: SCM "UNIVERSAL K2" + "Xilog Plus" + Windows "XP" Pro Operating System; 15" CRT color display, CELERON 2 GHz processor, enclosed in air-conditioned cabinet. -- Complete with:(1) 100 m³/Hr Vacuum Pump; automatic lubrication system; "BUMP STOP" safety system. -- Actual Model is SCM TECH Z30 R6

SCM STARTECH CN - CNC MULTI SPINDLE DRILLINGFeatures: -- Easy Motion Work Table -- 7" Touchscreen -- (7) Independent Vertical Boring SpindlesSpecifications: -- Maximum Panel Dimensions X-Y-Z (3050mm x 800mm x 50mm), Minimum Panel Dimensions X-Y-Z (300 mm X 90 mm x 10 mm) -- Drilling/Grooving working area: 0mm x 800 mm/0mm x 800 mm ÷X-Axis Stroke: 750 mm÷X-Y maximum axis speed: 25m/Min. -- Vertical Spindles: 7 (4X-4Y one of them is shared) Horizontal Spindles: (along Y-axis): 2 (1+1) -- Horizontal Spindles: (along X axis): -- 1 Fixed Integrated Blade (cutting into direction): X Blade Diameter: 100 mm Maximum Blade Thickness: 5 mm -- Motor Power: 3 HP (2.2 kW) Spindle Rotation Speed: 3350 RPM÷Blade Rotation Speed: 4300 RPM -- Electrical Supply: 230 Volt (60 Hz) Installed Motor Power: 4.5 KVAHigh-performance numeric controlled (NC) Drilling Machine engineered for full-production woodworking shops and craftsmen. The Startech CN drilling head's seven (7) independent vertical spindles, the spindle and blade in the “X"; axis, and the possibility of drilling in the “Y"; axis make it both flexible and ideal for batch furniture productions. This machine allows the operator unparalleled flexibility for tailored products without the need of operator intervention for the worktable and machine set-up according to the panel dimensions.

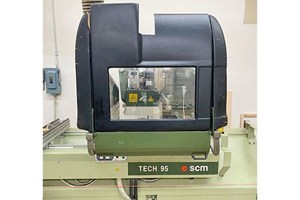

SCM TECH 95 CNC MACHINING CENTERWorking cap.: X-Axis = 110" (2,800 mm) and Y-axis = 35.4" (900 mm), Z-axis = 3-7/8" (100 mm); positioning by ball screw, speed on X-axis = 1,988 IPM, Y-axis 1,771 IPM and Z-axis = 885 IPM, all by Brushless AC Servo Drives. -- Equipped with: (10) Independent vertical boring spindles forming a T-configuration with (2) spindles on the X-axis. A total of (2) horizontal spindles for boring on the front/back edges of the panel, (1 + 1) in the X-axis; -- Work table; Equipped with (6) adjustable panel supports each with (3) vacuum cups and (2) panel back stops. Includes (4) panel side stops & central stop for positioning the perimeter of parts. -- Options included: (1) 9 HP Electrospindle with ISO 30 tool holder inverter driven 1,500 - 24,000 RPM, RH & LH rotation selected through program, 4-position automatic tool changer,; worktable set up for (2) independent working areas with (8) rear stops, (4) lateral stops and (1) central stop for mirror-image operation. -- Separate control cabinet with: "NUM" Controller, 8-1/2" monitor, alphanumeric keyboard, Pentium Micropressor, 3-1/2" disk drive and RS-232 serial port.

SCM - Concept 2000, ...Double End Tenoner.Double End Tenoner with: Jump scoring, Hogging, Shaping with stacked tooling. -- 122" Opening cap., motorized opening with keypad entry & LED readout, 12" infeed chain area in front of holddowns. -- 0" - 4" Motorized thickness opening with mechanical digital readout. -- 6" Min. width, 2-post machine. Each side equipped with: -- 1st Station: Jump scoring. -- 2nd Station: Hogging unit. -- 3rd Station: Coping head with stacked tooling capacity (manually operated). -- 4.5 HP Drive for 10 - 60 FPM variable feed speed. -- Chain dogs on 15-3/4" centers, rubber top nonmarring chain pads. -- Heavy-Duty chain links with: Needle bearings, automatic oil mist chain oiler, automatic brake on feed motor with emergency stop.Complete with: -- Upper driven holddowns with: Continuous feed belts; feed beams can be disengaged for conventional part feeding in front of dogs. -- Mobile remote control for setup; dual lead screw for traversing beam; exhaust hoods on all heads.Note: Tear down and loading not included.

SCM - OLIMPIC K 201 HFA, ...Automatic Compact Edgebander with: 3 mm Max. coiled edgebanding thickness & High Frequency motorsSpecifications: -- Edgebanding thickness cap. (for both coil & strip): 0.4 - 3 mm (0.02" - 0.19"). -- Min. panel length for coiled edges (min. width 200 mm) 140 mm (5.51"). -- Min. panel width for coiled edges: 65 mm (2.56"). -- Panel thickness: 8 - 40 mm (0.31" - 1.57"). -- Feed speed:9 MPM (29 FPM).Equipped with: -- Automatic adjustment of all units when panel thickness is changed. -- 20" Dia. coil table. -- Automatic coil feed magazine; manual strip feed. -- Teflon-coated glue pot. -- 1.2 mm (0.05") Cap. guillotine. -- Eye-level control with: GEFRAN "1000" LED Temperature controller. -- Adjustable feet.Workstations: -- Single-motor end trimming unit with: (1) 0.19 kW (1/4 HP) - 12,000 RPM High-frequency motor & copying device. -- Top & bottom flush trimming unit with: (2) 0.35 kW (1/2 HP) - 12,000 RPM high-frequency motors, and front & vertical copying devices.

SCMI MINI MAX - Formula S 2: Sliding Table SawSpecifications & Features -- 128" Cutting cap. w/standard scoring saw and carriage; 5 HP motor; stop on fence for cuts extendable to 128"; 50" cutting width w/ rip fence.Equipped with: -- 14" Main blade; 4-1/2" scoring blade; 4-1/2" max. blade cutting height at 90°; 3-1/2" max. blade cutting height at 45°. -- 4,000 RPM Main blade speed; 8,500 RPM scoring blade; 90° - 45° blade tilting.

SCMI OLIMPIC S1000 T-ERL EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) -- Specifications:Edge Capacity, 0.4 to 15 mm (0.016 to 5/8") for strip feeding. -- Panel Capacity, min. width 50 mm and 140 mm min. length, (2.0" and 5-1/2"). Panel thickness min./max. 8 - 60 mm (3/8" - 2-3/8"). Equipped With: Adjustable In-feed Fence: Manually pre-set with digital indicator and pneumatic panel spacing device. -- Pre-Milling Station, RT-E: Spindles 2 x 5.25 HP, 12,000 RPM, (1) with PLC controlled jump action and manual digital indicators positioning and Diamond Cutter-heads. -- Anti-Adhesive Spraying System: Top/Bottom, positioned prior to the Pre-Milling Unit, it prevents glue buildup on the work-piece surfaces. It consists of (2) independent spray nozzles, and a tank for anti-adhesive liquids. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station, Vc/1000: For EVA (Hot Melt) with Teflon coated glue tank and quick disconnect to change glue tanks fast if needed. Heat-up time approx. 10 Min. -- Pressure Section: Servo motor positioning, (4) pressure rollers, first larger, Teflon coated and powered. Workstations: End Trimming Station K-SEL: Front & rear 2 x 0.5 HP, 12,000 RPM motors mounted on THK guides, swivels 0ø - 15ø, rapid set up between straight and angled cutting with the automatic swivel cylinder. -- Flush Trimming Unit, Rsp: Top/Bottom, 2 x 1.5 HP, 12,000 RPM with 2 pre-set pneumatic positions, flush and overhang, remote pneumatic in/out positioning. -- Bevel/Radius Trimming Unit, Ri/S: Programmable, servo motor positioning, 2 x 1.0 HP - 12.000 RPM motors for change-over on the fly. -- Corner Rounding / Trimming Unit, Round-K: For additional top & bottom trimming of linear an/or vertical leading & trailing corner when edgebanding all (4) sides, 2 x 0.8 HP - 12,000 RPM motor. Comes with (2) pre-set pneumatic positions to allow to go from thick to thin pvc automatically. -- Profile Scraping Unit "RAS/1000": Top/Bottom with (2) indexed manual pre-sets. Large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue Scraping Unit, "RCA/2c": Top/bottom flat glue scraper with pneumatic positioning through controller and air-blow off nozzle to keep the knifes clean. -- Buffing Unit "SPN": Top/bottom, oscillating 2 x 0.25 HP - 3,000 RPM motors, tilting up to 12°. -- Hot Air Unit: Single blower with adjustable heat range and directional heat shield for top/bottom coverage. Restores color luster on thick pvc edging materials that may be lost during the edge scraping process.Controls: -- Startouch Controller, 12" color touch screen, swivels 270° at in-feed of machine. Capable to store (100) programs, (6) at the touch of a single key. Graphical display of all working units. Tracks production data, diagnostic information and monitors maintenance schedules. Complete With & Features: -- Feed-speed, 40/60 FPM, 1 x 2.5 HP feed drive motor, 200 Hz frequency inverter for all

SCMI OLIMPIC K 800 T-FR2 EDGEBANDER EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): Specifications: -- Edge Capacity, 0.4 to 8 mm (0.016 to 5/16") for strip feeding. -- Panel Capacity, min. width 65 mm and 140 mm min. length, (2-3/8" and 5-1/2"). Panel thickness min./max. 8 - 60 mm (3/8" - 2-3/8"). Equipped With: -- Adjustable In-feed Fence: Manually pre-set with digital indicator and pneumatic panel spacing device. -- Pre-Milling Station, RT-E: Spindles 2 x 3.0 HP, 12,000 RPM, (1) with PLC controlled jump action and manual digital indicators positioning. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with Teflon coated glue tank and quick disconnect to change glue tanks fast if needed. Heat-up time approx. 10 Min. -- Pressure Section: Servo motor positioning, (4) pressure rollers, first larger, Teflon coated and powered. Workstations: -- End Trimming Station K-SEL: Front & rear 2 x 0.5 HP, 12,000 RPM motors mounted on THK guides, swivels 0ø - 15ø, rapid set up between straight and angled cutting with the automatic swivel cylinder. -- Flush Trimming Unit: Top/Bottom, 2 x 1.0 HP, 12,000 RPM with 2 pre-set pneumatic positions, flush and overhang, remote pneumatic in/out positioning. -- Bevel/Radius Trimming Unit: Programmable, servo motor positioning, 2 x 1.0 HP - 12.000 RPM motors for change-over on the fly. -- Corner Rounding / Trimming Unit: For additional top & bottom trimming of linear an/or vertical leading & trailing corner when edgebanding all (4) sides, 2 x 0.8 HP - 12,000 RPM motor. -- Profile Scraping Unit "RAS/1000": Top/Bottom with (2) indexed manual pre-sets. Large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue Scraping Unit, "RC-V": Top/bottom flat glue scraper with pneumatic positioning through controller and air-blow off nozzle to keep the knifes clean. -- Buffing Unit "SPN": Top/bottom, oscillating 2 x 0.25 HP - 3,000 RPM motors, tilting up to 12°. -- Hot Air Unit: Single blower with adjustable heat range and directional heat shield for top/bottom coverage. Restores color luster on thick pvc edging materials that my be lost during the edge scraping process.Operator Interface: -- Startouch Controller, 12" color touch screen, swivels 270° at in-feed of machine. Capable to store (100) programs, (6) at the touch of a single key. Graphical display of all working units. Tracks production data, diagnostic information and monitors maintenance schedules. Complete With & Features: -- Feed-speed, 36/52 FPM, 1 x 2.5 HP feed drive motor, 200 Hz frequency inverter for all trimming units. -- Electronic, programmable hold-down pressure beam positioning, lighted safety/sound enclosure cover and outboard panel support. -- Actual Model: OLIMPIC K 800 T-FR2

SCMI OLIMPIC K230R EVO EDGEBANDER (W/PRE-MILLING): -- Specifications:0.4mm to 3mm Edge thickness, Panel thickness 8mm to 50mm (0.3" to 1.96"), minimum part width 60mm (2.36"), minimum part length 160mm (6.30").Minimum distance between panels: 559 mm (22";), 29.5 FPM (98 MPM) Fixed feed speed, 1.0 HP (0.75 kW) feed drive.Pre-milling station: (2) 2.0 HP (1.5 kW) motors, to rectify/clean panels already sized. -- Adjustable In-feed Fence: Manually pre-set with digital indicator, pneumatic in/out positioning.Equipped with: 1.5 Kg Teflon-coated glue pot, glue roller application system complete w/automatic recycling device for unused glue.Digital thermostat adjustment for temperature control. pneumatic guillotine, heating time approx. 8-10 min.3-Roll pressure unit w/pneumatic controls for all pressure rollers. -- Automatic strip & coil feed magazineWorkstations:2-Motor front & rear End Trimming (0.5 HP - 12,000 RPM ea. motor.), tilts 0° - 15°, end trimmers mounted on THK guide. -- Top & bottom flush & bevel trims with quick release mount and plug-in motors for quick tooling changes(0.5 HP - 12.000 RPM motor ea.), bevels 0° - 15° with precision digital indicators for quick setup. -- Top & bottom scraping unit w/manual positioning. -- Top & bottom buffing unit (0.25 HP - 3,000 RPM motors), tilts up to 12°. Operator & Machine Control:Orion 1 Plus controller, located at the infeed of the machine. It is capable of operating all the work units via soft touch buttons.It pneumatically tilt’s the end trim unit from the control panel, it eliminates the use of micro switches, as well as control the temperature of the glue.The control is tilted slightly upward for a more ergonomically friendly position for the operator. -- Actual Model is SCM OLIMPIC K230R EVO.

SCM OLIMPIC K 360ERT HP COMPACT EDGEBANDER (W/PRE-MILL & CORNER ROUNDING):Specifications: -- Edge Capacity, 0.4 to 6 mm (0.016to 1/4") for strip feeding. -- Panel Capacity, min. width 65 mm and 140 mm min. length, (2-3/8" and 5-1/2"). Panel thickness min./max. 8 - 60 mm (3/8" - 2-1/2").Equipped With: -- Adjustable In-feed Fence: Manually pre-set with digital indicator, pneumatic in/out positioning. -- Pre-Milling Station, RT-VP: Spindles 2 x 2.0 HP, 19,000 RPM, (1) with PLC controlled jump action and diamond cutter heads. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with Teflon coated glue tank and quick disconnect to change glue tanks fast if needed. Heat-up time approx. 10 Min. -- Pressure Section: Manual digital positioning, (3) pressure rollers, first larger, Teflon coated and powered. Workstations: -- End Trimming Station: Front & rear 2 x 0.25 HP, 12,000 RPM motors mounted on THK guides, swivels 0° - 15°, rapid set up between straight and angled cutting with the automatic swivel cylinder. -- Trimming Unit Flush/Bevel/Radius: Top/Bottom remote (via control panel) pneumatic positioning for (3) settings, flush/bevel/radius trimming, 2 x 0.7 HP - 12.000 RPM motors with precision digital indicators for quick setup. -- Profile Scraping Unit "RAS/V": Top/Bottom, manual pre-set up with digital indicators. Large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Buffing Unit: Top/bottom, 2 x 0.25 HP - 2,800 RPM motors, tilting up to 12°. Controls: -- Orion 1 Plus Controller, fixed at in-feed of machine. with "Touch Screen" control with soft keys, graphics and LCD display panel. It handles most machine set-up functions and workstations. Complete With & Features: -- Feed-speed, 36 FPM fixed, 1 x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable hold-down pressure beam, full sound enclosure cover and outboard panel support. -- Actual Model is SCM OLIMPIC K 360ERT HP

SCM OLIMPIC K230-EVO SINGLE SIDED EDGEBANDERSpecifications: --0.4mm to 3mm Edge thickness, Panel thickness 8mm to 50mm (3/8" to 1-15/15"), minimum part width 110mm (4.33"), minimum part length 160mm (6.30"). -- Equipped with: -- 1.5 Kg Teflon-coated glue pot, glue roller application system complete w/automatic recycling device for unused glue, digital thermostat adjustment for temperature control. pneumatic guillotine, 3-Roll pressure unit w/pneumatic controls for all pressure rollers. -- Automatic strip & coil feed magazine --Workstations: --÷Double motor front & rear (0.4 HP - 12,000 RPM motor ea.), tilts 0° - 15°, end trimmers mounted on 45° THK guide. --Top & bottom flush & bevel trims with quick release mount and plug-in motors for quick tooling changes (0.7 HP - 12.000 RPM motor ea.), bevels 0° - 15° with precision digital indicators for quick setup. --Top & bottom scraping unit w/pneumatic positioning from the control panel. -- Top & bottom buffing unit (0.25 HP - 2,800 RPM motors). 29.5FPM Fixed feed speed, 0.75 HP feed drive.

SCM SI 350 N - 10-1/2', ...Sliding Table SawSpecifications: -- Cutting length 3,200 mm (126"); max. depth of cut: 118 mm (4.65") at 90°; 81 mm (3.19") at 45°. -- Main saw: 6.6 kW (9 HP) Motor; blade dia. 250 - 350 mm (9.84" - 13.78"); arbor dia. 1"; arbor tilt 0° - 45°; blade speed 4,000 RPM. -- Scoring saw: 0.75 kW (1 HP) Motor; max. blade dia. 120 mm (4.72"); arbor dia. 20 mm (3/4"); blade speed 8,500 RPM; external scoring blade adjustments.Equipped with: -- 14-1/4"; x 126"; x 35-1/2"; H Aluminum sliding table; 630 mm (24.80") x 1,040 mm (40.94") Fixed table. -- 2-Position table lock mechanism; manual raise, lower & tilt. -- Mechanical digital tilt indicator. -- Pivoting blade guard with dust outlet.Complete with: -- 47-1/4"; L x 3-1/2"; H Rip Fence with: 67" Cutting width cap. -- Crosscut Fence with: 84" Cutting cap.; (2) flip stops & Sliding outrigger support.

SCM OLIMPIC K360 EDGEBANDER (W/PRE-MILLING):Specifications -- Edge Capacity: 0.3 - 3 mm (0.012 - 0.118"); for coiled edges: 0.3 - 6 mm strips with: 6 x 60 mm kit included; Dia. coil holder plate: 780 mm (31"). -- Panel Capacity.Min. width: 90 mm.Min. length: 140 mm (3-1/2" & 5-1/2").Panel thickness min./max.: 8 - 50 mm (3/8" - 2") & max. 60 mm (2.4") with 6 x 60 mm kit included.Equipped with: -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Premilling Station - "RT-VP": Spindles: (2) x 2.0 HP - 19,000 RPM; (1) PLC controlled jump action; diamond cutterheads. -- Automatic Strip & Coil Feed Magazine: For straight edges; 3 mm guillotine for coils. -- Gluing Station for EVA (Hot Melt) with: Teflon-coated glue tank; quick disconnect to change glue tanks fast if needed; Heat-up time approx. 10 Min. Includes 1.5 kG glue pot instead of standard. -- Pressure Section: Manual digital positioning, (3) pressure rollers: 1st Larger; Teflon Coated and powered. Workstations -- End Trimming Station - "K2". Front & rear: (2) x 1/2 HP (included extra); 12,000 RPM Motors mounted on THK guides; swivels 0° - 15°; rapid setup between straight & angled cutting with the automatic swivel cylinder.Automatic positioning for (3) cutting modes: Straight, chamfered, and radius of thick edges. -- Top & Bottom Trimming Unit - "R-K". Remote (via control panel) pneumatic positioning for (3) settings: Flush/bevel/radius trimming; (2) x 0.7 HP - 12,000 RPM motors with precision digital indicators for quick setup. -- Top & Bottom Profile Scraping Unit. Manual preset with: Digital indicators; large dia. copy wheels for max. accuracy; pneumatic in/out positioning. -- Buffing Unit - "SP-V": Top/Bottom; (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°; cleaning & polishing of edges.Controls -- ORION - "1" Plus: Controller. Fixed at infeed of machine; soft keys; graphics; 4" LCD display panel.Handles most machine setup functions & workstations; machine automation by PLC function; encoder positioned in the panel feed track pinion; diagnostics for a quick solution to many errors; process statistics data: Number of pieces/edges and track feeding.Features & Complete with: -- Feed speed: 36 FPM Fixed; (1) x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units; manual adjustable holddown pressure beam; full sound enclosure cover; outboard panel support. -- Overall dimensions: 3,600 mm (142") x 900 mm (36") x 1,600 mm (63"); approx. weight: 997 kG (2,200 Lbs). -- UL/CSA approved version.

SCMI - K201 HFE: Single Sided Edgebander1/8" Max. edge cap.; 1-1/2" max. panel thickness; semiautomatic strip & coil feed magazine (manual single strip feed); Teflon coated glue pot w/fast 8-Minute heat up time; 1.2 mm cap. guillotine. -- Workstations: Single motor front & rear end trim; 0.8 HP - 10,000 RPM motor; top & bottom flush trims, 0.8 HP - 27,000 RPM ea. motor; straight or 12° bevel cutters. -- Top & Bottom buffing unit, 0.25 HP - 2,800 RPM motors; 25 FPM fixed feed speed with 0.8 HP drive. -- Complete with: Sound enclosure, frequency converter, and used tooling.

SCM - OLIMPIC K 560 T-ER2: Edgebander (w/Premill & Corner Rounding) -- SpecificationsEdge Capacity: 0.4 to 6 mm (0.016 to 1/4") For strip feeding. -- Panel CapacityMin. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); Min. distance between panels: 600 mm (24").Equipped with: -- Premilling Station: (2) 2.0 HP (1.5 kW) motors; rectifies/cleans panels already sized. -- Adjustable Infeed Fence. Manually preset with: Digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine: Straight edges & 3 mm guillotine for coils. -- Gluing Station. "SGP" for EVA (Hot Melt) with: Quick change/disconnect Teflon glue pot for fast glue tanks change if needed; heat up time approx. (10) Min. -- Pressure Section: Manual digital positioning; Teflon coated pneumatic driven roller, and (2) spring loaded idle rollers.Workstations -- End Trimming Station: (2) Front & rear 1/2 HP - 12,000 RPM motors; mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit. (2) 0.7 HP - 12.000 RPM Motors; capable of tilting & pneumatic positioning for (3) settings: Flush/bevel/radius trimming for quick setup. -- Corner Rounding Unit "Round 2M": (2) 0.8 HP Independent motors that slide on THK guides. -- Top & Bottom Profile Scraping Unit: Digital indicators; large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue scraping Unit "RC-N": Eliminates any excess glue. -- Buffing Unit "SP-V": (2) Top/bottom 1/4 HP - 2,800 RPM motors; tilting up to 12°.Operator Interface -- "STARTOUCH" Controller with: 12" Touchscreen display; capable of storing (100) programs. -- Machine automation: PLC Function and encoder positioned in the panel feed track pinion. -- Diagnostics for a quick solution to errors: Process statistics data (i.e., number of pieces/edges) and track feeding.Features & Complete with: -- 2-Speed feed speed of 40 & 60 FPM (12 & 18 MPM); (1) 2-1/2 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- Electronic Positioning of the top holddown pressure beam. -- Nesting Copying Device. -- Full sound enclosure cover & outboard panel support. -- Actual Model is: SCM - OLIMPIC K 560 T-ER2
