Woodworking Equipment For Sale

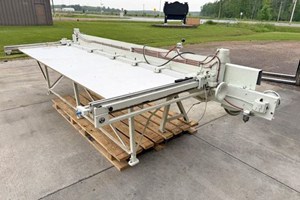

SAFETY SPEED MFG 7400 Vertical Panel Saw: Mid-level Vertical for a variety of materials that do not require a 100% chip-free finish. -- 2 HP single-phase Induction Saw Motor. -- 8" Blade cap. with 2-1/8" max. material thickness. -- 64" Crosscut (vertical position) with spring loaded counterbalance system. -- 120" Frame length with unlimited rip cap. -- 90° Saw head rotation to switch between cross- and rip cut modes. -- Triangulated welded steel frame with base mounted aluminum rollers. -- Midway fence for small part cutting. -- Adjustable scales on a 10' welded steel frame. -- Heavy extruded beams utilizing dual-V bearings. -- 0.005" Squaring or straight cutting tolerance. -- Optional material scoring attachment. 120" L x 46" W x 96" H (Crated Dimensions - 125" L x 51" W x 101" H). Machine pictured with Optional Wheels and Frame.Also available with 3 HP single-phase motor.

2018 Salvador SuperCut 100 Automatic Crosscut Saw PRICE REDUCED

SAND-RITE DB-612 DLX Sander with Heavy Duty Cast Iron StandCustom ordered to fit your requirements with quick 3 week lead-time!Specifications: -- (1) 6" Diameter x 7" Wide pneumatic drum head , which allows the operator to regulate how firm the sanding head needs to be to conform the head to what they are sanding. -- Motor: 3/4 HP -- (1) B-12 Brush Head, which allows the sanding irregular surfaces with out loss of shape. -- And matching Heavy Duty Cast Iron Stand.

SAND-RITE DUO-DLX Spindle Sander; Horizontal spindle sander with 3/4 HP BALDOR motor. -- Optional brush heads sand irregular surfaces with out loss of shape, and the optional pneumatic drum heads (available in 2" to 8" diameters) allow the operator to regulate how firm the sanding head needs to be to conform the head to what they are sanding. -- Price does not include the stand - Add $308.00 Cast iron stand."Drums, brush heads, and sleeves are additional".Brush Head: ADD $ 175.00 2" X 8" pneumatic drum: ADD $ 140.008" X 9" pneumatic drum: ADD $ 302.00 Special note: 220 grit is the finest grit supplied for Brush Head

SANDINGMASTER - CSB2-900: Wide Belt Sander, (2) Heads36" Width cap. and equipped with Drum & Platen.Head Configuration -- 1st Head: 6" Dia. rubber-covered contact roll; 24 HP motor. -- 2nd Head: Finishing platen: 18 HP Motor. Specifications -- 37" x 75" Abrasive belt with: Electronic tracking. -- 1.5 HP Feed motor with: 23 & 46 FPM. -- Electric eye belt tracking.Equipped with & Features --Thin veneer sanding package for sanding solid or veneer stock. -- Infeed & outfeed holddown shoes on both heads. -- 0" - 6" (0 - 150 mm) Thickness adjustment & load meters; digital thickness readout.

SAVI HFK-250 Veneer Guillotine; General Specs: -- 102.4" (2,600 mm) Width cap., 4" daylight opening, hydraulically operated knife, 4 HP Leroy-Somer motor powers hydraulic unit with reservoir. -- Originally fitted with motorized parallel fence with 0.5 HP two speed gearmotor drive, push button operated, adjustable from 1" - 50" with magnified tape reader in front of machine. -- Equipped with: 2nd Cut feature with automatic reset, laser guide line light, photoelectric barrier guard for knife & hold-down beam, 2-hand operation of knife cycle. -- Note: Rear fence has been removed or modified. Shaft has chain/sprocket.

SAWSTOP - ICS 73230, ....Table Saw w/Safety "Stop Feature"Specifications: -- 10" Blade cap.; 7-1/2 HP motor; 3-1/8" depth of cut @ 0°; 2-1/4" depth of cut @ 45°; 13/16" max. dado width; 5/8" arbor dia. -- Features: -- Enclosed cabinet; Heavy-Duty belt drive; cast iron trunnions; SAWSTOPS's revolutionary flesh detecting safety mechanism. -- Includes: -- 52" "T-Glide" rip fence system; side support table and laminated top; 4" dust collection port; magnetic contractor motor control; main power switch with removable lock-out key. Actual model is: "ICS 73230"

SCHELLING FM-430/410 CNC Front Load Panel SawSpecifications & Features: 169" (4292 mm) Cutting length & 165.3" (4,200 mm) pull back, 3.75" (95 mm) max. saw blade projection; 25 HP (19 kW) 4,100 RPM main & 3.4 HP (2.5 kW) 5,600 RPM scoring motor. -- Equipped with: Variable saw carriage travel speed from 0 - 278.8 FPM (85 MPM), constant return of 278 FPM (85 MPM). -- Electronically controlled overhead program fence with rack & pinion driven on both sides; forward speed from 0 - 278 FPM (85 MPM), return speed of 278.8 FPM (85 MPM); equipped with (8) gripper clamps (open up to 5" (130 mm). -- Features: SCHELLING "COMPOSER" IBM-AT Compatible Computer Control; aftermarket color monitor (displays cutting dimensions and patterns w/moving graphics) , self-diagnostic, data input by keyboard; onboard optimization program. -- Complete with: 2-3/4" to 87" (2,200 mm) Long side/cross-cut aligning zone, (1) aligner in front & (1) behind the cut line. -- (3) Front mounted air float tables for moving panel from rip section to the cross-cut section, (2) movable and (1) fixed; each with their own blower. -- Rear of machine fully enclosed for safety with man-height sheet metal panels & wire screen windows. T

--In Auction--Starting bid: $100-- Schuetz Tool Bladder Press Specifications: (2) Shuttle tables, approx. 55” x 106” press capacity. Hot air design with 3mm silicone membrane to press veneer into profile, typical cycle time 3 minutes using proper glue that sets at 200°F. Can use PVA which would extend cycle time to approx. 15 > 45 minutes depending on the actual glue mix used to achieve 80%+ cure strength. Includes Hydraulic Pump. SPECIAL NOTE: Fully operational, however, need 4 or 5 heating rods replaced, new rod parts are included for you to install ( don't have the capability to remove them). The current average operational temperature is 150° F. NOTE: Above specs are taken from literature and thought to be accurate. As always please take advantage of the inspection period to verify. Items seen in the background are NOT a part of this Lot.

Schuetz Tool Bladder Press Specifications: (2) Shuttle tables, approx. 55” x 106” press capacity. Hot air design with 3mm silicone membrane to press veneer into profile, typical cycle time 3 minutes using proper glue that sets at 200°F. Can use PVA which would extend cycle time to approx. 15 > 45 minutes depending on the actual glue mix used to achieve 80%+ cure strength. Includes Hydraulic Pump. SPECIAL NOTE: Fully operational, however, need 4 or 5 heating rods replaced, new rod parts are included for you to install ( don't have the capability to remove them). The current average operational temperature is 150° F. NOTE: Above specs are taken from literature and thought to be accurate. As always please take advantage of the inspection period to verify. Items seen in the background are NOT a part of this Lot.

Tubeless Vaccum (TNV) Electro-Spindle with HSK63F quick release Toolholder Rotation speed 600-2400 rpm Air Cooling by rear electrofan Static Inverter Centralized dust collection system with automatic blast gates

SCMI Compact 22/S 4-Head Moulder4-Head (B-R-L-T), working cap. 8-5/8" x 4-11/16". -- Head sequence: Bottom 5.5 HP motor, right/left 7.5 HP motor and top 5.5 HP motor. -- Spindle dia. 35 mm with cutterhead speed of 6,000 RPM. Variable feed speed 14 to 72 FPM with a 2 HP motor. -- Complete with: 2M (6'6") Infeed straightening table, sound insulation hood, dust hoods, and Owner's Manual.

SCM - FORMULA S35: Sliding Table SawSpecifications -- 10' Cap. with: Scoring; 9 HP motor for main & scoring blade; tilting arbor: 0° - 45°. -- 126" Table stroke; 51" rip cut capacity with movable fence. -- 350 mm (13-3/4") Main saw blade dia.; 120 mm (4-3/4") scoring blade dia.; max. cutting height: Approx. 120 mm at 90°; 4,000 RPM. Complete with: -- Overhead guard with: 4" Dust extraction outlet. -- Crosscut fence assembly with: (2) Flip stops.

SCM - B5L: Edgebander3/4" Edge thickness cap.; panel thickness 7/16" - 2-5/16"; min. panel width 2-1/2"; min. length 6". Equipped with: -- Pre-heated infeed fence; automatic feed magazine for strip or coil stock; glue pot unit with dual thermostat; 3 mm PVC cap. guillotine; (1) large driven & (4) idle roller pressure rollers; gluing unit and pressure section tilt 0° to 6°. Workstations -- Double motor end trim; tilt: 0° to 15°; 1 HP - 8,500 RPM motors. -- Top & Bottom trimming; bevels 0° - 45°; 3-1/2 HP - 12,000 RPM motors. -- Top & Bottom Fine/Radius Trimming: Tilts 0° - 45°; 2-1/2 HP - 12,000 RPM motors. -- Top & Bottom buffing; 0.5 HP - 3,000 RPM motors. -- Dual feed speed: 32 & 48 FPM with: 3-1/2/5-1/2 HP feed drive. Complete with: Sound enclosure; outboard panel support; used tooling.

SCM - ACTION TF 2500: Case Clamp (Automatic Feed Through) -- Specifications Max. standard working dimensions: 2,500 mm (98.4") Wide x 1,250 mm (49.2") high x 800 mm (31.5") depth. -- Min. standard working dimensions: 250 mm (9.8" Wide x 250 mm (9.8") high x 250 mm (9.8") depth. -- Working table height: 600 mm (23.6"). -- Max. Vertical pressing force: 1,500 kG (3,300 Lbs). Max. Side pressing force: 1,200 kG (2,640 Lbs).Features -- Full top & bottom platen for maximizing pressing PSI on the box. -- Rack & Pinion guides at: All (4) corners of the top platen & side pressure to keep the top platen parallel and the side pressure square. -- Sizes of box can be input for efficient cycle control when running repetitive box closings. -- Machine can also find the size of the box, so all the Operator does is place the box onto the powered infeed belt to be clamped. -- The vertical & horizontal pressure is adjustable according to the type of furniture to be assembled. -- Machine is equipped with: (3) Side pressure bars & able to sequence different furniture pieces without manual intervention. -- Pressure supplied by infinitely adjustable brushless electric motors.Complete with: -- 5.7" Touchscreen panel with: Software by CPC to program cycles. -- Rack & Pinion system; Brushless motors. -- Front & rear photocell barriers. -- Actual Model SCM ACTION TF 2500

SCM - ACTION FL 2500: Case Camp (Semi-Automatic) -- SpecificationsMax. standard working dimensions: 2,500 mm (98.4") Wide x 1,250 mm (49.2") high x 800 mm (31-1/2") depth. -- Min. standard working dimensions: 250 mm (9.8" Wide x 250 mm (9.8") high x 150 mm (5.9") depth. -- Working height: 508 mm (20"). -- Vertical pressing force: 15 kN (3,372 Lbs).Features -- Full top & bottom platen for: Maximizing pressing PSI on the box. -- Rack & Pinion guides: All (4) corners of the top platen & side pressure to keep the top platen parallel and the side pressure square. -- Sizes of box can be input for efficient cycle control when running repetitive box closings. -- Machine finds the size of the box; Operator only opens the Clamp to a size larger than the box to be clamped. -- Vertical & horizontal pressure: Adjustable according to the type of furniture to be assembled. -- Machine is equipped with: (3) Side pressure bars & able to sequence different furniture pieces without manual intervention. -- Pressure supplied by: Infinitely adjustable brushless electric motors.Complete with: -- 5.7" Touchscreen panel with: CPC Software to program cycles. -- Rack & Pinion system, brushless motors. -- Front & rear photocell barriers. -- Actual Model SCM CPC ACTION FL 2500

SCMI - OLIMPIC K 560 R HP: Edgebander (w/Premill & Corner Rounding) -- Specifications Edge Capacity: 0.4 to 6 mm (0.016 to 1/4") for strip feeding. -- Panel Capacity:Min. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Premilling Station: (2) 2.0 HP (1.5 kW) motors; Servo controlled; to rectify/clean panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine: For straight edges; 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with quick-change/disconnect Teflon glue pot for fast glue tanks change if needed. Heat up time approx. 10 Min. -- Pressure Section: Manual digital positioning; Teflon coated pneumatic driven roller; (2) spring-loaded idle rollers.Workstations -- End Trimming Station: Front & rear: (2) 0.5 HP - 12,000 RPM Motors mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit: (2) 0.7 HP - 12.000 RPM motors; capable of tilting & pneumatic positioning for (3) settings: flush/bevel/radius trimming for quick setup. -- Top & Bottom Profile Scraping Unit with: Digital indicators; large dia. copy wheels for max. accuracy; pneumatic in/out positioning. -- Glue Scraping Unit: Eliminates any excess glue. -- Buffing Unit: Top/Bottom; (2) 1/4 HP - 2,800 RPM motors; tilting up to 12°.Operator & Machine Control -- "STARTOUCH" Controller with: 21-1/2" Touchscreen display; capable of storing (100) programs. Machine automation by: PLC Function; encoder positioned in the panel feed track pinion.Diagnostics for a quick solution to errors; process statistics data: i.e., Number of pieces/edges and track feeding.Features & Complete with: -- 2-Speed feed speed of: 40 & 60 FPM (12 & 18 MPM); (1) 2-1/2 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- Servo controlled; adjustable top holddown pressure beam. -- Auto. panel spacer to eliminate premature loading -- Anti-adhesive spray. -- Full sound enclosure cover and outboard panel support. -- THIS MACHINE IS FULL SERVO CONTROLLED. -- Actual Model: SCM - OLIMPIC K 560 R HP

SCMI Sandya 3S/ RCS 37" double head wide belt sander37" width cap. Drum, Combination Head1st head: 4.5" diameter steel contact drum with manual grit set2nd head: 4.5" rubber drum with 2" wide soft platenSpecifications -- 30HP 230v 3ph drive -- Delta soft start motor controls -- Electrical requirements: 91amps -- Anti-dubbing control of platen rise-fall to protect leading and trailing edges of panels -- Variable speed conveyor by inverter 12-60 fpm with digital display for working height -- Automatic thickness set up -- 6.6" max thickness capacityEquipped with & Features -- Automatic conveyor belt tracking (pneumatic cylinder) -- Two platens, soft (for veneer), semi-stiff (solid wood) -- 50 durometer conveyor belt -- 2 roller infeed and outfeed roller tables -- 4 Top and bottom fastened jack screws -- Manual adjustment of contact roller and platen positions1800 CFMTwo (2) 5" dust ports

SCMI OLIMPIC S1000 T-ERL EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) -- Specifications:Edge Capacity, 0.4 to 15 mm (0.016 to 5/8") for strip feeding. -- Panel Capacity, min. width 50 mm and 140 mm min. length, (2.0" and 5-1/2"). Panel thickness min./max. 8 - 60 mm (3/8" - 2-3/8"). Equipped With: Adjustable In-feed Fence: Manually pre-set with digital indicator and pneumatic panel spacing device. -- Pre-Milling Station, RT-E: Spindles 2 x 5.25 HP, 12,000 RPM, (1) with PLC controlled jump action and manual digital indicators positioning and Diamond Cutter-heads. -- Anti-Adhesive Spraying System: Top/Bottom, positioned prior to the Pre-Milling Unit, it prevents glue buildup on the work-piece surfaces. It consists of (2) independent spray nozzles, and a tank for anti-adhesive liquids. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station, Vc/1000: For EVA (Hot Melt) with Teflon coated glue tank and quick disconnect to change glue tanks fast if needed. Heat-up time approx. 10 Min. -- Pressure Section: Servo motor positioning, (4) pressure rollers, first larger, Teflon coated and powered. Workstations: End Trimming Station K-SEL: Front & rear 2 x 0.5 HP, 12,000 RPM motors mounted on THK guides, swivels 0ø - 15ø, rapid set up between straight and angled cutting with the automatic swivel cylinder. -- Flush Trimming Unit, Rsp: Top/Bottom, 2 x 1.5 HP, 12,000 RPM with 2 pre-set pneumatic positions, flush and overhang, remote pneumatic in/out positioning. -- Bevel/Radius Trimming Unit, Ri/S: Programmable, servo motor positioning, 2 x 1.0 HP - 12.000 RPM motors for change-over on the fly. -- Corner Rounding / Trimming Unit, Round-K: For additional top & bottom trimming of linear an/or vertical leading & trailing corner when edgebanding all (4) sides, 2 x 0.8 HP - 12,000 RPM motor. Comes with (2) pre-set pneumatic positions to allow to go from thick to thin pvc automatically. -- Profile Scraping Unit "RAS/1000": Top/Bottom with (2) indexed manual pre-sets. Large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue Scraping Unit, "RCA/2c": Top/bottom flat glue scraper with pneumatic positioning through controller and air-blow off nozzle to keep the knifes clean. -- Buffing Unit "SPN": Top/bottom, oscillating 2 x 0.25 HP - 3,000 RPM motors, tilting up to 12°. -- Hot Air Unit: Single blower with adjustable heat range and directional heat shield for top/bottom coverage. Restores color luster on thick pvc edging materials that may be lost during the edge scraping process.Controls: -- Startouch Controller, 12" color touch screen, swivels 270° at in-feed of machine. Capable to store (100) programs, (6) at the touch of a single key. Graphical display of all working units. Tracks production data, diagnostic information and monitors maintenance schedules. Complete With & Features: -- Feed-speed, 40/60 FPM, 1 x 2.5 HP feed drive motor, 200 Hz frequency inverter for all

SCMI OLIMPIC K230R EVO EDGEBANDER (W/PRE-MILLING): -- Specifications:0.4mm to 3mm Edge thickness, Panel thickness 8mm to 50mm (0.3" to 1.96"), minimum part width 60mm (2.36"), minimum part length 160mm (6.30").Minimum distance between panels: 559 mm (22";), 29.5 FPM (98 MPM) Fixed feed speed, 1.0 HP (0.75 kW) feed drive.Pre-milling station: (2) 2.0 HP (1.5 kW) motors, to rectify/clean panels already sized. -- Adjustable In-feed Fence: Manually pre-set with digital indicator, pneumatic in/out positioning.Equipped with: 1.5 Kg Teflon-coated glue pot, glue roller application system complete w/automatic recycling device for unused glue.Digital thermostat adjustment for temperature control. pneumatic guillotine, heating time approx. 8-10 min.3-Roll pressure unit w/pneumatic controls for all pressure rollers. -- Automatic strip & coil feed magazineWorkstations:2-Motor front & rear End Trimming (0.5 HP - 12,000 RPM ea. motor.), tilts 0° - 15°, end trimmers mounted on THK guide. -- Top & bottom flush & bevel trims with quick release mount and plug-in motors for quick tooling changes(0.5 HP - 12.000 RPM motor ea.), bevels 0° - 15° with precision digital indicators for quick setup. -- Top & bottom scraping unit w/manual positioning. -- Top & bottom buffing unit (0.25 HP - 3,000 RPM motors), tilts up to 12°. Operator & Machine Control:Orion 1 Plus controller, located at the infeed of the machine. It is capable of operating all the work units via soft touch buttons.It pneumatically tilt’s the end trim unit from the control panel, it eliminates the use of micro switches, as well as control the temperature of the glue.The control is tilted slightly upward for a more ergonomically friendly position for the operator. -- Actual Model is SCM OLIMPIC K230R EVO.
