Woodworking Equipment For Sale

(2) 2-1/2 HP motors 5/8” arbors 12” blade capacity max width 3 - 5/16” nax depth 2-5/8”

12” blades 1-1/2 HP motors - 3 phase foot pedal control

PMK C 1203 Single End Coping/Tenoning Machine -- With the C-1203 Coping Machine you can run stiles first or cope first, this machine using a 5 HP motor has counter rotating spindles to insure chip free coping of either square, single profiled or double profiled parts. -- Since we are only coping one end at a time the length doesn't matter. We can also cope more than one part at a time up to 9.5" wide on the C-1203. -- (2) Counter rotating spindles 1.25" diameter. -- Spindle Speed 7,000 RPM; cycle time approx. (4) seconds. -- Side Pressure Clamp to insure proper alignment with fence. -- Cutter Heads totally enclosed for Safety!

PMK C 1205 Single End Coping Machine -- With the C-1205 Coping Machine you can run your Styles first or run your cope first, this machine using a 7.5 HP motor has counter rotating spindles to insure Chip free coping of either square. -- Single profiled or double profiled parts. Since we are only coping one end at a time the length doesn't matter. We can also cope more than one part at a time up to 13.5" wide on the C-1205. -- Two counter-rotating spindles 1.25" in Diameter. -- Capacity of maximum (2) cutters on stack tooling -- Spindle Speed 7,000 RPM; cycle time approx. (4) Seconds. -- Side Pressure Clamp to insure proper alignment with a fence. -- Cutter Heads totally enclosed for Safety!

Pneumafil 13.5 460-10 304 Stainless Steel Reverse Air Bag House, 5,922 SQ/FT Cloth Media, 47,000 CFM @ 8:1 Air/Cloth Ratio, Very Good Condition, $82,000.00

Porter Planer Model 700 S/N 5916, Straight Knifes 10HP Motor

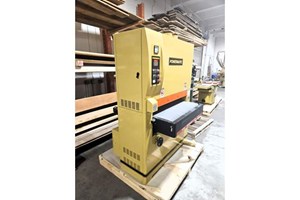

POWERMATIC - WB-25, ...Wide Belt Sander1-Head; 25" width capacity; 1/8" to 6" thickness capacity.Combination sanding head with: 4" Dia. rubber-covered contact roll; 2" wide polishing platen; micro-adjust platen; steel abrasive belt tension roll; steel idler roll: 25" x 75" Abrasive belt capacity.Equipped with: -- 15 HP 3-Phase main motor; 1 HP variable feed motor, 15 - 49 FPM. -- 1/4 HP Table raising & lowering motor with: Auto adjust thickness assist; 1/8" to 6" opening with (4) screw jacks. -- Double infeed & outfeed rubber covered holddown rolls. -- Complete with: -- Digital readout; air eye belt sensing; limit switch overtravel protection; magnetic starter; overload protection; load meter; emergency brake.Includes: Owner's manual & parts list.

TABLE SAW TOP MEASURES 44" WIDE X 76 ½" LONG TABLE HEIGHT FROM FLOOR 34% " COMES WITH 5 - 12" DADO BLADES 1 HORSE POWER POWERMATIC MATERIAL FEEDER 5 HORSE POWER SAW ARBOR MOTOR 440 VOLT 3 PHASE

20" Dia. dynamically balanced aluminum disc, 3 HP - 1,740 RPM direct drive motor; 15" x 27-1/4" table w/miter gage slot, tilts 30° upward & lowers 45° downward, 90° positive table stop; rack mechanism for raising & lowering table by hand crank, heavy bolt-down steel base. Complete with reversing switch and miter gauge. Also available in Single-phase in 2 HP motor.

Powermatic PM-37 Wide Belt Sander Specifications: -- 1-Head, 37" width cap., combination sanding head with 4" dia. rubberized contact roll & 2" wide polishing platen; 20 HP motor. Power raise-and lower with 1/2" HP motor. -- Abrasive belt size 37" x 60", air tensioning, electronic abrasive belt tracking; 2 HP conveyor with variable speed feed - 18 - 72 FPM, 0" - 5" opening with (4) screw jacks, double infeed & outfeed rubber-covered hold-down rolls. Digital read-out displays thickness. Minimum board length 10-1/2". -- Complete with: Infeed conveyor extension, safety stop bar, 6" dust port, and load meter. - Includes owner's manual, tool kit and parts list.

POWERMATIC - TS-80, ...Single Spindle ShaperAccepts: 3/4" - 1" - 1-1/4" Dia. interchangeable spindles; 5-1/2 HP motor; 3,625 - 5,000 - 7,250 - 10,000 Spindle speeds. -- 4" Cap. under nut when using 1-1/4" spindle; 6-19/64" spindle stroke; approx.: 39-1/2" x 31-1/2" Extra thick cast iron main table. -- Complete with: Adjustable split fence; spring hold-downs; removable table inserts; dust collection shroud; reversing switch; spindle brake; cutter-head guard. -- Includes: Infeed & outfeed tables shown in picture and a box of spindles. - NOTE: Needs some work on bearings.

POWERMATIC - 26, ...Single Spindle Shaper -- Specifications: 5 HP (3.7 kW) - 3,600 RPM Belt drive motor; 7,000 & 10,000 RPM spindle speeds via 2-speed step pulley; reversing switch. -- 1" Dia. solid interchangeable spindle featuring 3-7/8" cap. under the nut; 3" spindle travel w/handwheel adjustment -- Complete with:24" x 26" Cast iron table; miter slot; 7" insert opening; adjustable fence; magnetic controls. -- Actual Model is: POWERMATIC 26

POWERMATIC - RB-37, ...Single Head Wide Belt Sander1-Head, 36" width cap., combination sanding head. -- Includes: 4" Dia. contact roll & 2" wide polishing platen, micro-adjust platen; 15 HP main motor. -- Abrasive belt size: 37" x 60"; with air tensioning, air jet abrasive belt tracking. -- 1 HP Feed drive; variable feed speed of 15 - 30 FPM conveyor speed. -- 0" - 5-1/4" Opening with: (4) Screw jacks; double infeed & outfeed rubber-covered hold-down rolls. -- Complete with: Magnetic starter; overload protection; load meter; emergency brake.

POWERMATIC Shaper TS-29, with Sliding Table & Tilting SpindleSpecifications: -- 3/4", 1", & 1-1/4" Dia. interchangeable tilting spindle, 3/8" & 1/2" collet & router bit adapters, tilts 45° forward and 5° back, 7-1/2 HP - 3,600 RPM motor; 3,000 - 4,000 - 6,000 - 8,000 - 10,000 RPM spindle speeds via 4-step V-pulley with "quick release". -- 4-3/4" Cap. under nut when using the 1-1/4" spindle, 7-1/16" spindle travel; 51-1/2" x 33-1/2" extra thick cast iron main table, (3) removable table inserts 2-1/2" - 5-1/2" & 5-7/8" x 4-3/16" (oval).Complete with: -- Large scale "ACCU Fence" with integrated 4" dust collection shroud, reversing switch, AMBI-TECH electronic brake, cutter-head guard, clamping miter gauge & magnetic control; incl. owners manual & parts list. Actual Model # PM9-1791284

POWERMATIC Shaper PM 2700 Spindle Shaper 5 HP, 3 Phase, Single Spindle ShaperSpecifications & Features: -- Digital readout gives the use of exact spindle height and allows for 0.001" adjustments. -- 4" Spindle travel. -- 5 HP Motor -- Heavy-duty 30" x 40" precision ground tabletop for smooth stock feeding and Heavy-duty cast iron base. Includes: -- 3/4" and 1-1/4" spindles -- Independently adjustable fence sides. -- Micro-adjust control knobs allow for precision adjustment for the fence. -- Integrated casters can be raised and lowered to mobilize shaper. -- Superior clear cutter guard promotes safety, allows observation of the entire cut. -- Table predrilled and tapped for Power Feeder mounting.Dust Collection Minimum CFM Required (CFM) 600; 4"Dust Port Outside Diameter

Powermatic - Vertical: Chain MortiserSpecifications -- 3/4" Chain width cap. -- 1.5 HP Direct drive motor. -- 4" Max. depth of cut. -- Table size: 5" x 72".Equipped with & Features -- Cast iron main table. -- Rack & pinion table: Tilts 45° right or left. -- 14" Vertical adjustment., -- 4" Lateral (in & out) adjustment; 12" longitudinal adjustment.Note from SELLER: Machine runs in great condition. It has (2) fairly new chains (1/4 x 1"; 3/8 x 1-3/4"). - Both chains, sprockets, and bars are "close to new!"

Powermatic DDS-225 Drum SanderSpecifications: -- 5 HP Main motor, durometer rubber-coated steel drums, independently adjustable rear drum for fine tuning. The Cast Iron table incorporates (4) jack screws with chain drive timing to keep it level. -- Features: Heavy-duty poly conveyor belt, 0.25 HP feed motor coupled to 2-speed forward/reverse gearbox for 8 or 10 SFPM, and dual dust collection ports with directional baffles.

POWERMATIC 100 Single Sided PlanerSpecifications: -- 12" Cap. with 1/16" to 5" thickness opening -- 5 HP motor - 5,300 RPM -- 3-knife cutterhead with high speed steel knives -- 3-1/8" dia. head; 18 FPM fixed feed speed. -- Solid infeed rolls; 12" x 24" precision ground cast iron table. -- 1/4" max. depth of cut -- 7-1/2" min. stock length (unbutted). -- Complete with: Magnetic controls, cutterhead guard with dust chute on enclosed steel stand. -- Belt driven head

PRO-EDGE TECHNOLOGY SQUEEZETIGHT CASE CLAMP (AUTOMATIC FEED THROUGH): -- Specifications:The SqueezeTight automatic hydraulic case clamp does the work for you. The vertical pressing system with motors & independently controlled crossbars move according to the size of the piece to be pressed, mobile parts slide along linear bearings and guides. -- Operating Cycle;Once the piece of furniture is assembled on the preparation bench the operator starts the automatic cycle and the carcass enters the machine.The reading devices automatically determine the length and height of the workpiece and send this information to the PLC which positions the mobile head and the conveyor and stops the carcass in position. The beam automatically moves to the preset position.Each of the mobile heads are fitted with: (2) RH & (2) LH Horizontal pressure beams + (4) stationary & (1) adjustable top pressure clamps.The Clamping Cycle is 100% programmable & pressing is by a 10 HP (7.5 kW) Hydraulic pump system.The in-out-cross transfer powered belt conveyors are driven by "SIEMENS" AC brushless motors. -- Working Capacity:9.8" - 89.7" (250 - 2,280 mm) working width/length, 9.8" - 42.9" (250 - 1,090 mm) working height, 9.8" - 25.9" (250 - 660 mm) working depth. -- Positioning Speed:32.8 - 131.3 FPM (10 - 40 MPM) Variable speed controlled by programmable inverter. -- The carcass transfer system is located at the bottom of the bed and consists of an electro-welded steel structure on which a closed loop belt is driven by an inverter-controlled "SIEMENS" motor. -- Operator Interface:Automatic cycle control from onboard "HMI" Touch Screen control + "DELTA" VFD's & PLC with adjustment for all clamping aspects. Clamping pressure strength up to 1,200 PSI over-all. -- Complete with:(1) 98" Long powered in-feed conveyor belt with alignment guideways, (1) 98" Long powered cross-feed conveyor belt with alignment guideways & (1) 98" Long powered out-feed conveyor belt. Parameter Safety Light Curtain System. -- NOT included:Cost for Delivery, installation, and training (please call for quotes). -- Actual Model is PRO-EDGE TECHNOLOGY SQUEEZETIGHT

Producto Gothic Fence & Post Picket Machine. Out and Ready to ship. Producto is now Global Marketing Group.
