Woodworking Equipment For Sale
1982 Results Found
$ 19,999
LAGUNA PRO 37 WIDE BELT SANDER1-Head, 36" width cap. - Combination sanding head with 4" dia. rubberized contact roll & 3" wide "dual action" polishing platen.Equipped with: -- Abrasive belt size 37" x 75" -- Pneumatic abrasive belt tensioning. -- Electronic abrasive belt tracking. -- 20 HP main drive motor. -- 1HP Variable feed speed motor for 12 - 60 FPM. -- 1/4 HP Conveyor bed elevation motor, with digital programmable thickness set up and AUTO-SIZE thickness system as well. -- Infeed & outfeed rubber covered holddown rolls. -- 0" - 5-1/2" thickness capacity.Complete with: -- Air-operated disc brakes on sanding head, emergency stop button
$ 52,500

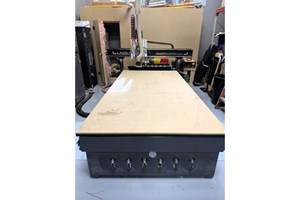

LAGUNA SMART SHOP II, 510 CNC Router with Tool Changer: Specifications: -- 60" x 120" Moving gantry, fixed table design in a front-to-back configuration with a 6-zone vacuum table including manual controls. -- 60" x 120" x 9.5" Z-axis travel, 12" clearance under the gantry; speeds of 900 IPM rapid travel with 600 IPM max. cutting speed. -- Equipped with: -- 11 HP HSD (Italian) Electro Spindle ISO-30 (ATC), 6,000 - 24,000 RPM range, Ceramic spindle bearings supported by Automatic Tool Changer with 8-tool position tool rack. -- Includes: Vacuum pump, dust collector, assorted ISO-30 tool holders, collets, and precision collet nuts. -- All Axed ride on 25 mm Heavy Duty HiWin HG Series linear bearings and rails on all axes rack; Helical rack & pinion drives on "X" and "Y" axis, and precision-ground ball screw drive on "Z" axis. -- Gantry is driven on each end (two "helical" rack-and-pinion drives on "Y" axis). -- Controller & Software: -- The B & R Automation (Austria) System matched controller and drive components for easy diagnosis and exceptional reliability. -- Features: Networking, connectivity and online troubleshooting typically found in Windows environments without the Windows baggage. -- Runs Industry Standard G-Code that can be created from any CAM software package; program transfer to the controller can be accomplished with USB or via Ethernet transfer. -- Complete with: -- Expandable control system for custom applications, spindle speed control through programming, manual overrides of spindle speed & feed speeds during run, centralized lubrication system for all axes. -- Machine supplied with: -- (2) 10 HP Vacuum blowers with Vacuum monitoring gauge, assorted tool holders, and manuals.
Call for Price
1- 5mm Boring and Inserting Unit with Vibratory Hopper 1-8mm Boring and Inserting Unit with Vibratory Hopper Power: 208v-220v, 3 Phase, 30 Amps 96? Maximum Work Zone 4 zone stops 3-Axis Control For Positioning Weight 6,000lbs Solid One-Piece Welded Tubular Steel Frame Footprint (L x W x H): 135? x 45? x 82? Shipping Dimensions (L x W x H): 42.3? x 49? x 43? Shipping Weight: 7500 lbs
LAGUNA BM23E-2 ... Double Row Line Borer(2) 23-Spindle heads on 32 mm centers, (2) 3 HP motors, drills vertically from bottom.Specifications: -- Distance between first and last spindle 851 mm (33.50"). -- Spacing between zero and max. on the first head 0 - 4". Min. distance between two heads 7.25". Max. boring line spacing to the second head 24". -- 2,800 RPM spindle speed; collets accept 10 mm shank bits. -- Heavy overhead material holddown system with (4) pneumatic material clamps. -- (2) independent air throttles to control the drill-heads upstroke speed.Complete with: -- "Set screw" drill adapters, "quick set" system for depth of drilling. -- Extension fence with (3) flip-stops and foot pedal control.
Call for Price

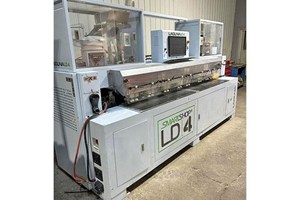

LAGUNA SMARTSHOP LD 4 "Lock Dowel" Boring-Mortising & InsertingThe SmartShop LD4 machine. This budget-friendly machine was designed specifically for the rapid prototyping of cabinetry. It’s a CNC router that drills and inserts fasteners for drawers, closets, desks, cabinets, and so much more. It can even handle processing real hardwood.Even though it looks very intimidating, the LD4 is actually quite easy to learn on. It is constructed out on one welded piece of tubular steel, and it weighs about 6,000 pounds.It has a built-in dust collector, dual precision spindles that produce 2 horsepower, eight pneumatic/adjustable clamps, and dual vibratory hoppers and inserters.This machine is also compatible with the Windows operating system, which allows you to create any kind of design you want.Specifications: -- Maximum material lenght 95" -- (3) Axis positionning -- Requyired no glue or case clamp for assembly -- (2) Spindle for drilling or routoing for 5 and 8 mm diameter -- Up to (4) working zone -- (2) Vibrating hopper feed system for type C and H "Lock Dowel" clips -- (8) Pneumatic hold down -- Laser reading of panel lenght and thickness -- Bar code reader
LANGE MASCHINEN BAU B85K Edgebanding MachineSpecifications: -- Workpiece thickness: 8 – 50 mmWorkpiece width min.: approx. 75 mmWorkpiece length min.: approx. 120 mmEdging thickness: 0,4 – 3,0 mmMax edge thickness = Workpiece thickness + 4mm (2+2)One sided automatic edge banding machine with direct glue application to straight workpieces, high frequency cut off station, high frequency top and bottom milling unit, chain feed, double roller top pressure and work piece support. For ABS,PVC, melamine and strong wood veneer roll materials as well as fixed lengths.
Call for Price
LANGZAUNER G-5920 Cross-Cut Guillotine. Specifications: -- 35.5" Blade hydraulic pressure bar and knife; -- 5 Gal tank, pump is driven by 1.5 HP motor.Complete with: -- 2-Hand operation or foot pedal, Emergency-Stop, (3) photocells for safety, -- All safety guards per international standards.
$ 20,000
The Model 390 Automatic Shaper is a New concept in shapers. -- This "New Shaper" is conveyor fed, making it ideal for shaping small parts which could not be fed with a conventional Power Feeder. -- The 7.5 HP inverter controlled variable speed shaper can shape pre-arched panels automatically. Using a Template, it can also hog out arched panels. -- Horizontal and Vertical shaper adjustments with digital position indicators and the 5-position fence make profile changeovers extremely quick and simple. -- Standard stack tooling spindle -- Optional upgrade to 460 V, additional $ 250.
$ 44,000
LARICK 410 Shaper / Sander (Feed Through)Designed and Manufactured to give years of dependable service.Features: -- The 410 will Shape and Sand a wide variety of workpieces. -- The 410 is Standard with a New easy-to-use Touchscreen that displays RPM and Load for each motor. -- With a 6" Wide Feed Chain and (4) four staggered rows of hold-down wheels.Specifications: -- 7.5 HP inverter controlled variable speed Shaper. -- Two 2 HP Sanding heads with 1" Counter-rotating spindles. -- Each station tilts forward 60° and Backward 40° and will accommodate up to 9" dia. sanding wheels. -- 0.75 HP motor on the Feed Chain. -- All have Digital readouts for speed and Load. -- Horizontal and Vertical shaper adjustments with digital position indicators and the 5-position fence make profile changeovers extremely quick and simple. -- Please call for pricing on the 410-FLT (floating heads).
$ 1,710
LARICK 120 Single Spindle Profile Sander;Sands raised panels, and door edges.Specifications: -- 1" Dia. x 4" long belt driven arbor; 700 - 1700 RPM variable speed, 1 HP motor. Arbor is vertically adjustable. -- Complete with: 25" x 22" butcherblock maple table, enclosed fabricated steel base and large hand wheels for easy spindle adjustment. -- Includes: Sensing safety guard for anti-automatic restart protection.
$ 4,400
Single head; 1.5 HP TEFC direct drive motor, spindle tilts 60° forward & 40° backward, inverter controlled variable speed from 400 - 1,800 RPM, RPM display; 4" vertical & horizontal spindle adjustment. -- Features: 36" x 33" Solid wood table top, 36" table height; 1" dia. x 4" long spindle accepts standard sanding discs but are designed for LARRICK profile discs made to customer specifications. -- Complete with: Enclosed fabricated steel base, dust hood w/piano hinge for easy ascess to sanding disc, stationary fence, large hand wheels for easy spindle adjustment.
$ 4,500
Single head; 1.5 HP TEFC direct drive motor, spindle tilts 60° forward & 40° backward, inverter controlled variable speed from 400 - 1,800 RPM, RPM display; 4" vertical & horizontal spindle adjustment. -- Features: 36" x 33" Solid wood table top, 36" table height; 1" dia. x 4" long spindle accepts standard sanding discs but are designed for LARRICK profile discs made to customer specifications. -- Complete with: Enclosed fabricated steel base, dust hood w/piano hinge for easy ascess to sanding disc, stationary fence, large hand wheels for easy spindle adjustment.
$ 5,200
Single head; 1 HP Belt drive motor, Fixed spindle, Mechanical controlled variable speed from 700 - 1,700 RPM, 4" vertical spindle adjustment. -- Features: 27" x 25" Solid wood table top, 36" table height; 1" dia. x 4" long spindle accepts standard sanding discs but are designed for LARRICK profile discs made to customer specifications. -- Complete with: Enclosed fabricated steel base, dust port, large hand wheels for easy spindle adjustment.
$ 2,250
LARICK 360A Profile SanderSpecifications: -- Single-head Profile Sander;1.5 HP TEFC motor belt drives spindle which tilts 45° forward & 30° backward; -- 400 - 1,800 RPM mechanically controlled variable speed; 4" vertical & horizontal spindle adjustment. -- 36" x 33" Solid wood table top, 36" table height; 1" dia. x 4" long spindle accepts standard sanding discs, but are designed for LARRICK profile discs made to customer specifications. -- Complete with: Enclosed fabricated steel base, dust hood w/piano hinge for easy access to sanding disc, Stationary Fence, and large handwheels for easy spindle adjustment.
Call for Price
LARICK - 2-Head Brush Sander (2017)Machine features: (2) 15" Counter-rotating & rotation reversible heads enclosed in a Dust Collection Shroud. -- Feed belt & sanding head speeds: Variable by means of VFD. -- Machine currently setup with a steel brush & brass insert head. -- Can be used for distressing (bring out the natural grain) or denibbing (with nylon type brushes: not included). -- Head driven by: (2) 2 HP Direct drive motors. -- Current heads: Wire brush on the 1st head & brass inserts on the 2nd head.
This BRIGHTLINE 532 mm Alignment Laser will work well on a variety of machines, and on dark surrfaces shows up better than the common Red line. -- The 5 mW Green line shows four to five times more visable to the human eye than an equally Powered Red line. -- The output power is 5 mW; 100º fan angle. -- Expected life 3,000 - 5,000 hours. -- Projection type (dot/line/cross): Dot. -- Package includes: Alignment Laser mounted in a block, Mounting bracket and power supply. This light can also be powerd by direct 3.0 VDC (300 - 800 mA draw). -- Laser beam thickness at aperture is 3 mm with a divergence of 0.1 mm for every meter of beam length. This is a focus adjustable laser with an operating temperature of 15C - 35C.
This BRIGHTLINE 635 Mm Alignment Laser will work well on a variety of machines. It is ideal for any aplication where a highly visible line projected onto a surface is needed. -- The output power is 5 mW; 100º fan angle. -- Expected life 3,000 - 5,000 hours. -- Projection type is a line and is focus adjustable. -- Package includes: Alignment Laser mounted in a block with mounting bracket and a direct 3.0 VDC (300 - 800 mA draw) power supply. -- Line straightness better than 0.1% over full length, line divergence (beam diameter) will expand 0.3 mm for every 1 meter increase in distance from the Laser to the target surface. The beam diameter at the aperture is 4.0 mm. -- Operating temperature is -10°C to +40°C.
Call for Price
The robot arm can move the Layer Picker® in all directions, offering completely new application possibilities. With up to 8 picking or place positions the Layer Picker® Flex-R can be used for both picking for replenishment and batch layer picking at the same time. This means that the Flex-R solution can be used for pallet to pallet picks and negative picking as well. One machine – multiple applications
$ 3,150
LAZZARI - JUNO 3200: Sliding Table Saw with 126" Carriage TravelSpecifications -- 13" Wide anodized aluminum sliding table w/lateral handle; 45° tilting arbor; 13-3/4" blade cap.; 4-3/4" max. depth of cut; 49" rip cut cap. -- 9 HP Main motor; (3) cutting speeds: 2,800 - 4,000 & 5,600 RPM; 1 HP - 8,500 RPM scoring unit with external fine adjustment; manual height & tilt adjustment; all point slide lock, on/off switches at end of sliding table. -- Complete with: -- Steel overarm protection guard; outfeed table extension; rip fence w/micro-adjust; crosscut fence with: (3) Flip stops. -- Includes -- 3-Phase Transformer.
Call for Price
Leadermac LMC-623H Moulder with Infeed Deck This system has not run in year and will need repair.
