Woodworking Equipment For Sale

14” blade 5 HP 1” Arbor 23” x 25” table

IST (Industrial Surface Technologies) - AW 80, ...Industrial Washer with vibration.ISTpure's Stir Wash Tanks are designed to clean complex parts with an adjustable stirring platform for up to 100 stirrings per minute.Parts washers by stirring are very effective in thoroughly cleaning the surface and interior cavities of parts or batches of parts of any size.Simply load the parts into the tank through the opening in the top, set the cycle time and agitation speed Specifications: -- Tank capacity: 80 gallons -- Stirring System: Self-cleaning stirring platform with top loading that facilitates loading/unloading operations -- Adjustable Stirring Speed: Ranges from 0 to 100 stirrings per minute -- Pneumatic System: Operates at 120 psi pressure -- Inner tub made entirely of stainless steel components -- Included Attachment: Hand Wash Brush with Continuous Flow -- Standard Pump: Electric Motor -- Fluid Capacity 80 gallons -- Fluid Level 12" 17 1/2" -- Load Capacity 250 lbs 750 lbs --Overall Dimensions (D x W x H) 33" x 51 1/2" x 66 1/2" -- Interior Dimensions (D x W x H) 27 1/4" x 44 1/2" x 28" -- Tub Dimensions (D x W) 17 1/2" x 41 1/2" 27 3/4" X 54" -- Shipping Weight 556 lbs -- Compressed air required 8 cfm@ 120 p

ITALPRESSE R4/160 Top & Bottom Glue Spreader Specifications: -- 63" working width, max. 3.5" opening, 7-1/4" dia. grooved rubber spreading rolls, -- 65 FPM feed speed, 0.5 HP feed drive.Also included: -- 1 New set of glue roller top/bottom.

ITALPRESSE R4/130 Top Glue Spreader with 51" working width, -- max. 4" opening, 9" dia. grooved at 13 grooves per inch rubber spreading rolls, -- Rubberized doctor roll 7" diameter -- 65 FPM feed speed, 0.5 HP feed drive.

ITALPRESSE - XL/6 30-13 120T: Veneer Hot PressPlaten Dimension: 3,000 mm x 1,300 mm (118" x 51"). Design allows loading from all (4) sides. -- 350 mm (13.8") Max. single daylight opening with: Infinitely variable stroke adjustment. -- (6) Hydraulic 85 mm dia. Chromium Plated upstroke cylinders. -- 120 Metric tons total pressure; 2.2 kW (3 HP) hydraulic pump motor; dual stage & speed w/automatic pressure readjustment. -- Features Rack & Pinion guide system made of: Self-lubricating material insures parallel closing of the platens. Equipped with: -- Patented, electrically heated platens w/automatic temperature adjustment; integrated electric heating system can heat up to: 120 °C Max. platen temperature; operating temperature: 90 °C. - Power requirement: 19 kW (25 HP). -- Manual Open & Close or automatic open with: Adjustable cycle timer. -- Perimeter Safety Stop Wire: On all (4) sides of Press; safety lockout for maintenance; safety circuit with 2-hand operation. -- Construction: Heavy I-beam; welded steel frame; cylinders have chromium plated steel pistons with Teflon bronze guides in cylinder.

ITALPRESSE SP/1-A SPECIAL CASE CLAMP (AUTOMATIC FEED THROUGH): -- Specifications:Case goods capacity: 92" (2,340 mm) max. & 12" (300 mm) min. length; 48" (1,220 mm) max. & 10" (250 mm) min. height, 27.5" (700 mm) max. width. -- 10' (3,500 mm) Infeed belt conveyor, 14' (4,267 mm) overall belt length inside clamp & infeed, standard belt width 27.5" (700 mm); Feed speed 53 FPM with 0.5 HP drive. -- Complete automatic reading of the case size, fast approach action to reduce clamp cycle, (1) scissor on top & (1) scissor on each end close & clamp the case. -- Hydraulic actuated scissors with adjustable pressure up to 5,000 Lbs, 3 KW hydraulic pump motor. -- Bottom & lateral intermediate locating bars from the top with pneumatic squaring; Intermediate side bars have electronic height positioning and are covered with PVC to prevent unwanted scratches. -- Clamp cycle is automatic with choice of three cycles (Manual, Semi-Auto & Automatic). Safety grid from rear and (6) electronic eyes from the front.

Italpress Matrix membrane-less press. See photos for specifications. Heating platen dimensions................................ 1,450 x 2,800 mm (57" x 110") Maximum useful lamination area........................1,250 x 2,600 mm (49" x 102") Maximum work piece thickness ......................... 43 mm (1.7") PVC foil width...................................................... 1,420 -1,450 mm (55.9" - 57") Maximum laminating pressure..............................200 metric tons (220 US tons) Maximum platen temperature................................ 150° C (302° F)

J & P MACHINE - 4-RSDC: Pocket Hole Boring Machine Through-FeedPocket hole grooving & boring machine is ideal for making frames in kitchen, furniture and similar industries.Loading the hopper magazine holds: (25) Pieces of 3/4″ thick material.Machine operates automatically by: Feeding, stopping, clamping, grooving, and boring the material in (1) continuous operation.Specifications -- Fast setup for grooving & boring with: Precision mechanical indicators to the accuracy of 1/10 mm. -- (4) High Frequency router heads with drilling. -- Closes to a min.: 7″. -- Opens to a max.: 48″. -- Min. width: 1-1/2";. -- Max. width: 6″. -- (1 or 2) Grooves per side can be selected. -- High Frequency motors with: 1/2" Collets; adjustable from 12,000 - 18,000 RPM with electronic inverter. -- PLC Controls. -- Precision linear bearings in opening & closing base. -- Produces approx.: (10 – 15) Pieces/ per Min. -- Requires: (1) Operator. -- 440 Volts - 3-Phase. -- 90 PSI Air required. -- Dust Collector hoods. -- DIM: 90″ Long x 36″ wide x 55″ high. -- Weight: 2,000 Lbs (approx.). Also included: -- Dust hood (spider type).

J & P MACHINES 6V2HD2GC BORING MACH. (FEED THRU, DRAWER PARTS) -- SpecificationsDrawer part Boring Machine is ideal for small to medium size production: Drills approx. 15 parts/minute; 12" min. working length; 28" max. working length; 2" min. working width; 28" max. working width; hopper loading/belt feeding magazine for automatic (1-man) operation. -- (2) Horizontal boring units with: 5-Spindle drilling chucks on 32 mm centers; ea. with 2 HP - 3,600 RPM motors; (3) vertical boring units with: 5-Spindle drilling chucks on 32 mm centers; ea. with 2 HP - 3,600 RPM motors. -- Drilling heads travel on linear guides with: Manual digital counter adjustments;, manual digital counter boring depth adjustment; PLC control for cycle functions of the machine. -- Machine requires 100 PSI Air pressure; dimensions are approx. 55" long x 34" wide x 58" high; weight is approx. 1,300 Lbs.

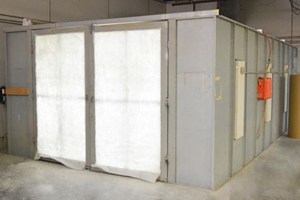

Complete Finishing Room of both Open Face and Enclosed spray booths total (5) five booths.This room has an air make up system and (2) two air curtains placed currently placed over the entry and exit door opening to the spray room listed separately under FE-Below is a list of the booths in the room, all are set up with BADGER dry chemical fire suppression systems with fan power and lights for all booths controlled by a central control panel. Very nice equipment that can give you a Ton of finishing capacity in one purchaseDismantling Packing and Loading will be an additional charge and can be discussed at the time of quotation. Qty (1) one Fully Enclosed booth interior dimensions 14' wide x 25' deep x 9' high. Includes filter doors and rear exhaust spray booth, includes (1) one man door on the exhaust end. (6) six wall lights and (2) two Ceiling lights. Qty (3) three Open Face booths with interior dimentions of 10' wide x 6' deep x 93" high and overall depth of 110"Qty (1) one Open Face small part booth with down draft shelf at approximately 4' above floor. Inside dimensions of 10' wide x 4'" deep and 4' highNOTE: Booths will be available early December , possibly before.

125 HP 460 Volt 28” x 44” inlet 7” x 40” outlet hopper included as pictured

Jenkins Tenoner Single station only with (2) trim saws Opens to 8' will close to 7-8" Very good condition

Jenkins Tenoner Single station only with (2) trim saws Opens to 8' will close to 7-8" Very good condition

JENKINS - JSM, NC Controlled Shaper & MortiserNC Controlled with: (1) Shaper head with ATC (18) tools, (1) tenon head, and (1) mortising head.Machine Specifications: -- Total X-travel: 122". -- Y-Axis (useful zone-1 only): 8". -- Min. length rail: 4". -- Max. length rail (Zone 2, 3 only): 96". -- Min. width rail: 1-1/4". -- Max. width rail: 12". -- Min. stock thickness: 1/2". -- Max. stock thickness: 2-1/4". -- Max. arch height (Zone 1 only): 6".Spindles: -- (1) 10 HP - 12,000 RPM non-tilting Cope spindle. -- (1) 10 HP - 18,000 RPM non-tilting high-speed Tenon spindle. -- (1) 5 HP - 18,000 RPM non-tilting, high-speed Mortise spindle. -- Tool Changer Capacity: (18) Tools.Controls: -- Industrial PC: Base powered by NEXCOM PEAK "760VL2" all-in-one computer card, industrial-grade computer chassis, LCD color touchscreen. -- YASKAWA Model "V1000": Adjustable AC frequency drives. -- ALLEN-BRADLEY: AC Servo Plus drive model "Ultra 3000".Over all dimensions: -- 16-1/2' Length. -- 120" Width. -- Floor-to-top guarding: 55". -- Floor to tabletop: 37-1/2".

JET EHVS-80 6"; x 89" Non-Oscillating Horizontal/Vertical Edge SanderSpecifications: -- Table size 12-1/2"; x 37"; x 3/4"; Thick, Table tilt 0° - 90°. -- Platen size 7" x 34". -- Belt speed 3,900 SFPM.Equipped with: -- 6" x 89" Abrasive belt. -- 1-1/2 HP 3,600 RPM Direct drive motor.Palletized Dimensions: 50" x 31" x 44" H.

JET EHVS-80 EDGE SANDER (NON-OSCILLATING)(Single-Phase) ---Price Negotiable---Make an Offer!--- - 6” x 89" Non-Oscillating Horizontal/Vertical Edge Sander - Table size 12-1/2” x 37” x 3/4” Thick, Table tilt 0° - 90° - Platen size 7" x 34" - Belt speed 3,900 SFPM - 6" x 89" Abrasive belt - 1-1/2 HP 3,600 RPM Direct drive motor - Palletized Dimensions: 50" x 31" x 44" H

JLT 79F-12-PC Multi Level Panel Clamp12' Wide, free-standing or wall mount Clamp Rack unit.Equipped with: -- (5) Levels for mounting clamps; -- (6) clamps per level (a total of 30) manually adjusted - side-to-side and manual open-and-close for all clamps. -- Clamps have a 40" opening with a 3-1/2" high x 4" wide jaw.Available Options: -- Pneumatic panel flattener with single lever valve operation, 40" reach and flatten up to 1-1/2" thick material, additional: ...$1,500 -- Glue applicator Redi spreader 6" x 27" grid capacity, additional ...$ 1,200 -- Glue applicator Plate spreader 8" x 48" grid capacity, additional ...$2,350 -- Clamp 3 1/2" X 40" opening ... $ 149 -- 79-1680-Handle $110 for use with 1/2" drive impact gun (adjustable torque preferred with setting of 50-55 ft/lbsFloor space requirement: 144" x 78" x 52" high

JLT 79F-16-PC Multi Level Panel Clamp16' Wide, free-standing or wall mount Clamp Rack unit.Equipped with: -- (5) Levels for mounting clamps; -- (36) clamps total manually adjusted - side-to-side and manual open-and-close for all clamps. -- Clamps # 302-40-H-R with 40" opening with a 3-1/2" high x 4" wide jaw. -- (72) # 80-1706 Rocker adaptor plates for up to 6" thick glue stock -- (1) Fastener and shim kit for precise clamp alignmentAvailable Options: -- Pneumatic panel flattener with single lever valve operation, 40" reach and flatten up to 1-1/2" thick material, additional: ...$1,500 -- Glue applicator Redi spreader 6" x 27" grid capacity, additional ...$ 1,200 -- Glue applicator Plate spreader 8" x 48" grid capacity, additional ...$2,350 -- Clamp 3 1/2" X 40" opening ... $ 149 -- 79-1680-Handle $110 for use with 1/2" drive impact gun (adjustable torque preferred with setting of 50-55 ft/lbsFloor space requirement: 16' x 52"W x 70" high

JLT 79F- 6-PC Multi Level Panel Clamp6' Wide, free-standing or wall mount Clamp Rack unit.Equipped with: -- (5) Levels for mounting clamps; -- (8) clamps manually adjusted - side-to-side and manual open-and-close for all clamps. -- Clamps have a 40" opening with a 3-1/2" high x 4" wide jaw. (52" clamp available upon request)Available Options: -- Pneumatic panel flattener with single lever valve operation, 40" reach and flatten up to 1-1/2" thick material, additional: ...$1,500 -- Glue applicator Redi spreader 6" x 27" grid capacity, additional ...$ 1,200 -- Glue applicator Plate spreader 8" x 48" grid capacity, additional ...$2,350 -- Clamp 3 1/2" X 40" opening ... $ 149 -- 79-1680-Handle $110 for use with 1/2" drive impact gun (adjustable torque preferred with setting of 50-55 ft/lbsFloor space requirement: 75" x 70" x 48" high

JLT 79F-8-PC Multi Level Panel Clamp8' Wide, free-standing or wall mount Clamp Rack unit.Equipped with: -- (5) Levels for mounting clamps; -- (18) clamps manually adjusted - side-to-side and manual open-and-close for all clamps. -- Clamps have a 40" opening with a 3-1/2" high x 4" wide jaw.Available Options: -- Pneumatic panel flattener with single lever valve operation, 40" reach and flatten up to 1-1/2" thick material, additional: ...$1,500 -- Glue applicator Redi spreader 6" x 27" grid capacity, additional ...$ 1,200 -- Glue applicator Plate spreader 8" x 48" grid capacity, additional ...$2,350 -- Clamp 3 1/2" X 40" opening ... $ 149 -- 79-1680-Handle $110 for use with 1/2" drive impact gun (adjustable torque preferred with setting of 50-55 ft/lbsFloor space requirement: 100" x 70" x 48" high
