Holzma HPL11 Rear Load Panel Saw Still under power. Ready to be removed the end of January 2024

HOLZMA PROFIMAT HPL 500 38/16 REAR LOAD, AUTOMATIC PANEL SAW: -- Specifications: 149.6" (3,800 mm) Cutting length & pull-back; 6.7" (170 mm) max. main blade projection; 40 HP (29.8 kW) Main & 3 HP (2.2 kW) scoring motor. -- Saw carriage: Infinitely variable speed from 0 - 492 FPM (0 - 150 MPM), constant return of 492 FPM (150 MPM).Carriage is electronically & automatically controlled (cutting height & length) through the CADmatic according to the material/program being processed."Power-Loc" quick change system for fast and easy saw blade change.NC Controlled scoring saw adjustment from the control panel during operation -- Pusher Fence:Rack & pinion digital drives with AC Servos on both sides, forward speed 295 FPM (90 MPM), return speed 295 FPM (90 MPM).(7) Material clamps which open up to 6.7" (170 mm): (3) Standard clamps with two fingers & (4) clamps with one finger.(4) Trimming rakes for thin strips/scrap removal are attached at the clamps. -- Operator Interface:HOLZMA "Power Touch Control" IPC multi-tasking controller with Windows "7 PRO" + "CADmatic 4.0 PRACTIVE" operating system;Intel i5 Dual-core Processor, Intel HD graphics card, 4GB RAM, SATA 2-250GB hard drive, (6) USB ports, (1) serial port, ATI/DVI video port, Standard industrial keyboard connection,21.5" LCD "Touch-Screen" monitor with real-time moving 2D & 3D graphics (displays cutting dimensions & error diagnostic); virtually unlimited cutting dimension memory.(2) Ethernet 10/100 interface connections; downloading from office PC is possible. -- Rear of machine: Profile rails & "Combi-rollers" at 50 mm centers; (2) integrated front & cross-aligning units before cutting to prevent off-set panels within the same book. -- Front of machine: (3) Air flotation tables 85" x 31.5" (2,160 x 800 mm) with (1) central blower unit. -- Rear Lift Table:7-Ton (14,000 LBS), 4-Column electro-hydraulic powered rear lift table running lengthwise with fork cut-outs, 150" x 63" (3,800 x 1,600 mm) capacity. Powered rollers are 4.2" (107 mm) dia x 7.79" (198 mm) spacing, 39 FPM (12 MPM) infeed/outfeed speed; Feeding material from (3) sides is possible with additional roller conveyors.22" (560 mm) Max. bunk height from floor level; 30.7" (780 mm) max. bunk height with a pit or risers; -- Complete With: Holzma's Unique "EcoPlus" System offers energy savings up to 20%; Includes Standby button & IE3 energy efficiency Motors rating.Angular cross-cut fence; Automatic side pressure device integrated into the saw carriage for cross-cutting, the machine cuts left to right to the cross-cut fence.Front & rear forks electronically & automatically controlled through the CADmatic according to the material/program being processed.Min. side aligning dimension 0" (0 mm), max. side aligning dimension 149" (3,800 mm)."Power-Loc" quick blade change system for main/scoring blades. -- Options Include: (1) Non-Powered in/out-feed staging conveyor with fork cut-outs as pictured. Micro In-feed for thin an

HOLZMA - HPP 350 31/31: Front Load, Automatic Panel Saw -- Specifications122" (3,100 mm) Cut length; 122" (3,100 mm) pull back; 3" (80 mm) saw blade projection.18 HP (13.5 kW) Main saw motor; 3 HP (2.2 kW) scoring motor; scoring saw adjustment from the "CADMATIC 4.0" control. -- Saw CarriageTravel speed: 16 - 426 FPM (5 - 130 MPM); Constant return: 426 FPM (130 MPM). -- Pusher FenceElectronically controlled overhead program fence with: (6) Gripper clamps; clamps open up to 90 mm (3-1/2").Rack & Pinion drive on both sides; forward speed: 82 to 262 FPM (24 - 80 MPM); Return speed: 262 FPM (80 MPM). -- Operator InterfaceHOLZMA Power Control with: "CADMATIC 4.0" + "Windows XP" Operating System; virtually unlimited cutting dimensions memory.17" TFT Flat screen monitor; REAL-TIME moving graphics; panel grooving & numeric display.Industrial keyboard, 1.44 MB Floppy & DVD R/W drives; capable of online operation via RS 232 or USB port for possible link to office PC. -- Complete with: Automatic "CENTRIC" side aligner with: Front & rear forks holding ripped strips squarely against the right angle fence.(1) Front air floatation tables: 86" x 25" (2,160 mm x 650 mm); (2) front air floatation tables: 69" x 25" (1.760 mm x 650 mm); rear support rails with non-marking rollers. -- Options include: ZEBRA "Z4M" Plus thermal label printer; (4) sets main/scoring blades; miscellaneous spare parts. -- Actual model: HOLZMA HPP 350 31/31

HOLZMA Optimat HPP 350 31/31, ...Front Load Automatic Panel SawSpecifications: -- 122" (3,100 mm) Cut length, 122" (3,100 mm) pull back;(80 mm) main saw blade projection;12 HP (9 kW) main saw motor and 3 HP (2.2 kW) scoring motor; scoring saw adjustment is from the "CADMATIC 4.0" control. Saw Carriage: --Travel speed from 16 - 426 FPM (5 - 130 MPM); constant return of 426 FPM (130 MPM). Pusher Fence: -- Overhead program fence with: (6) Gripper clamps; clamps open up to 90 mm (3-1/2"); rack & pinion drive on both sides; forward speed from 82 to 262 FPM (24 - 80 MPM); return speed of 262 FPM (80 MPM). Operator & Machine Control: -- HOLZMA Power Control with: "CADMATIC 4.0" + "Windows XP" operating system; virtually unlimited cutting dimensions memory;TFT 17" flat screen monitor, REAL TIME moving graphics; panel grooving & numeric display. -- Industrial keyboard: 1.44MB floppy & CD ROM drives; capable of online operation via RS 232 or USB port for possible link to office PC.Complete with: -- Automatic "CENTRIC" side aligner with front & rear forks holding ripped strips squarely against the right-angle fence. -- (3) Front air floatation tables 86" x 25" (2,160 mm x 650 mm). -- Actual model is HOLZMA OPT. HPP 350 31/31.

- SAW BLADE PROJECTION 3.2" - CUTTING LENGTH 126" - PROGRAM FENCE SPEED 295 ft/min - SAW CARRIAGE SPEED 492 ft/min - MAIN SAW MOTOR 18.5 HP - SCORING SAW MOTOR 3 HP - AVERAGE TOTAL AIR REQUIREMENT 4.3 cfm - COMPRESSED AIR REQUIREMENT 87 psi - EXTRACTION SYSTEM 1port 960 cfm - TOTAL CONNECTED LOAD 27 HP - WORKING HEIGHT 36" - AIR TABLES (3) 3/4 x 85"

HOLZMA HPP-11-32 OPTIMAT FRONT LOAD PANEL SAW:Specifications & features: 3,200 mm (126") Cutting length & pull-back behind the cutting line; 125 mm (4.9") saw blade projection; 30 HP (22.3 kW) main & 3 HP (2.2 kW) scoring motor. -- Variable saw carriage travel speed from 0 - 410 FPM (0 - 125 MPM), constant return of 410 FPM (125 MPM). -- Equipped with: Main blade 18" (450 mm) dia. and scoring blade 8" (200 mm dia.). -- Electronically controlled overhead pusher fence, rack & pinion drive on both sides by AC Servo motor; forward speed from 0 - 262 FPM (0 - 80 MPM), return speed of 262 FPM (80 MPM); equipped with (8) gripper clamps (open up to 4.7"). -- HOLZMA CADmatic Operating system; 15" color monitor (displays cutting dimensions); data input by keyboard or 1.44 MB floppy disk drive & downloading from office PC is possible. -- Control panel mounted on double swiveling arm for ergonomic positioning by the operator. -- Includes: Combi-rollers rear machine table with profile rails, rollers spaced at 50 mm centers; front with (3) air floatation tables, 85" x 26" (2,159 x 660 mm) each. -- Complete with: Angular square fence, automatic side aligner for crosscutting, (2) aligning devices on program fence; "Quick Saw Changing System" for main & scoring blade.

HOLZMA HPL 380 43/16 REAR LOAD, AUTOMATIC PANEL SAW + VrSS PPOST FORMING: -- Specifications169.2" (4,300 mm) Cutting length; 3.7" (95 mm) max. main blade projection; 28 HP (20.8 kW) main & 3 HP (2.2 kW) VrSS Post Form (Jump) scoring motor. -- Saw Carriage: Variable speed from 16 - 426 FPM (5 - 130 MPM); constant return of 426 FPM (130 MPM); electronically & automatically controlled through the CADmatic according to the material/program being processed. -- Pusher FenceRack & pinion drive on both sides: Forward speed 82 - 262 FPM (25 - 80 MPM); forward speed is currently set at 0 - 82 FPM (0 - 25 MPM) per CE standards; return speed 262 FPM (80 MPM).(6) Material clamps that open up to 3.9" (100 mm); 1st (2) clamps with: (2) Fingers and the others with (1) finger. -- Operator & Machine ControlHOLZMA "Power Control 22" IPC multitasking controller with: "Windows XP" + "CADmatic 4.0" Operating System.17" TFT Flat Screen display/monitor with: real-time moving graphics (displays cutting dimensions & error diagnostic); virtually unlimited cutting dimension memory.Standard industrial keyboard: CD ROM & 1.44 MB floppy drives; possible direct downloading from office PC through RS 232 or USB connection. -- Rear of MachineProfile rails & "Combi Rollers" at 50 mm centers; (2) integrated front & cross-aligning units before cutting to prevent offset panels within the same book. -- Front of Machine(4) Air flotation tables: 85" x 25-1/2" (2,160 x 650 mm); (1) central blower unit. -- Rear Lift TableAutomatic 4-column electrohydraulic rear load lift table; 169.2" x 62.9" (4,300 x 1,600 mm) capacity; 4.2" dia. powered rollers; 39 FPM (12 MPM) infeed/outfeed speed.22.8" (580 mm) Max. bunk height without pit or risers; 30.7" (780 mm) max. bunk height with a pit or risers; 8,800 Lbs (4,000 kG) lift capacity. -- Complete with:Angular crosscut fence; side pressure device for crosscutting with front & rear forks electronically & automatically controlled through the CADmatic according to the material/program being processed; min. side aligning dimension 0" (0 mm), max. side aligning dimension 169.2" (4,300 mm)."Power-Loc" quick blade change system for main/scoring blades. -- Actual model is: HOLZMA Optimat HPL 380-43/16

HOLZMA - HPP 380 32/32: Front Load Automatic Panel SawSpecifications -- 126" (3,200 mm) Rip cutting capacity & pull back; 3.74" (95 mm) saw blade projection.18 HP (13.5 kW) Main saw motor and 3 HP (2.2 kW) scoring motor; scoring saw adjustment via "CADMATIC" control. -- Saw CarriageVariable saw carriage travel speed from: 16 - 426 FPM (5 - 130 MPM); constant return: 426 FPM (130 MPM). -- Pusher FenceElectronically controlled overhead program fence; equipped with: (6) Clamps that open up to 100 mm (3.9").Rack & Pinion driven on both sides; forward speed: 262 FPM (80 MPM); return speed: 262 FPM (80 MPM). -- Operator InterfaceHOLZMA Power Control with "CADMATIC" + "Windows XP" Operating System; virtually unlimited cutting dimensions memory.TFT 17" Flat Screen monitor, REAL-TIME moving graphics; panel grooving & numeric display.Industrial keyboard; 1.44 MB Floppy & DVD R/W drives; capable of online operation via RS 232 or USB port for possible link to an office PC. -- Complete with:Automatic "CENTRIC" side aligner with front & rear forks; holding ripped strips squarely against the right-angle fence.(3) Front air flotation tables; 67" x 25" (1.700 mm x 650 mm). Rear support rails with non-marking roller modules. -- Options include:Label Printer as pictured & label printing software -- Actual model is HOLZMA HPP 380 32/32.

HOLZMA - HPP 350 38/38: Front Load Automatic Panel Saw -- Specifications149.6" (3,800 mm) Cut length; 145.7" (3,700 mm) pull back; 3" (80 mm) saw blade projection. 18 HP (13.5 kW) Main saw motor; 3 HP (2.2 kW) scoring motor; scoring saw adjustment is from the "CADMATIC 4.0" control. -- Saw CarriageTravel speed: 16 - 492 FPM (5 - 150 MPM); constant return 492 FPM (150 MPM). -- Pusher FenceOverhead program fence with: (7) Gripper clamps; clamps open up to 90 mm (3-1/2"); rack & pinion drive on both sides.Forward speed: 82 to 295 FPM (24 - 90 MPM); return speed: 295 FPM (90 MPM). -- Operator InterfaceHOLZMA "Power Control 22" with: "CADMATIC 4.0 PROFESSIONAL" + "Windows XP" operating system. Virtually unlimited cutting dimensions memory.TFT 19" flat Touchscreen monitor, REAL-TIME moving graphics; panel grooving & numeric display.Industrial keyboard; 1.44 MB Floppy & CD ROM drives; capable of online operation via RS 232 or USB port for possible link to office PC. -- Complete with: Automatic "CENTRIC" side aligner with front & rear forks holding ripped strips squarely against the right angle fence.(3) Front air floatation tables: 85" x 31.-1/2 (2,160 mm x 800 mm). -- Options Include:Label Printer as pictured. -- Actual model - HOLZMA HPP 350 38/38.

HOMAG - OPTIMAT BOF 211/30/R: Flat Tale Machine (w/ATC/Boring/C-Axis) -- Specifications4' x 10' Flat Matrix grid Phenolic working table. -- Working Field"X" Axis 120" (3.050 mm); "Y" axis 51" (1,300 mm); "Z" axis stroke 21" (535 mm); max material thickness 8.2" (210 mm). -- Positioning Speed"X" & "Y" Axis is 260 FPM (80 MPM); "Z" axis is 98 FPM (30 MPM). -- Boring Unit4.2 HP (3 kW) Variable speed from 1,500 - 7,500 RPM; (12) independent vertical spindles: (6) in "X" axis & (6) in "Y" axis. -- Machining(1) 19.4 HP (14.5 kW) Liquid-Cooled electrospindle router with: HSK 63F Adaptor; variable speed from 1,000 - 24,000 RPM. -- (1) NC Controlled C-axis for 360° horizontal processing. -- (1) 12-Positon automatic tool changer mounted at the back of the head for "on the fly" ATC. -- Operator Interface PC Front-End with: "Homatic" PC 85 Power Control + Windows "NT" + WoodWOP Operating System. -- 14" Color graphic monitor; industrial keyboard for data entry; 1.44 MB & CD RW disk drives; EtherNET interface for possible LAN connection to office PC. -- USB & RS-232 Serial interface for simple PC connection. -- NUM (PLC) With 3D Linear interpolation; 4-axis control for "X", "Y" "Z" & "C" axes. -- All mounted in separate free-standing control cabinet. -- Complete with:(1) 40 HP DEKKER "VMX055" Vacuum Pump; safety fencing; safety mats (will stop machine if operator enters work area); handheld pendent control. -- Actual Model: HOMAG - OPTIMAT BOF 211/30/R

HOMAG KAL 310/7/A3/S2 EDGEBANDER (W/PRE-MILLING & CORNER ROUNDING)Working Capacity: -- Edgebanding thickness in rolls (min/max) 0.3 - 3 mm. -- Panels thickness (min/max) mm 12 - 60 (1/2" through 2-3/8"). -- Feed speed (adjustable) 18 - 25 MPM (59 to 82 FPM). Front-End Equipped: -- In-feed fence, manual digital positioning. -- Pre-Milling Unit (vertical joint trimmers) (2) x 3 Kw each. -- Lamps to pre-heat the work pieces edge. -- Edge Magazine, vertical coil cart with 2 positions. -- Gluing Unit QA 34, EVA (Hot Melt) -- Side Pressure Zone, (3) rollers, adjustable by N.C. servo motor. Working Units: -- End Trimming Unit HL 81 Motors, 2 x Kw 0.22 (0.50 HP) -- Pre-Rough Trimming Unit: Top/Bottom, 2 x 0.55 Kw. (0.75 HP) 12,000 RPM motors, none tilt with digital indicator positioning. -- Multi Function Unit FK 11: Profile Contour Trimming, 2 x 0.4 Kw, 12000 RPM motors, for linear top/bottom edge trimming and vertical front/back corner rounding. -- Profile Edge Scraping Unit:Pneumatic in/out and manual digital indicator positioning. -- Glue Scraper:Top/Bottom, flat panel surface glue scraper. -- Buffing Unit: Top/Bottom oscillating buffing motors 2 x 0.25 Kw (0.35 HP).Operator & Machine Control: -- HOMATIC NC 21 controller, flat color LCD screen with keyboard and mouse input. Complete With: -- Top pressure system with rubber belt. -- Panel Support Outrigger. -- Sound and safety hoods over all working stations. Actual Model is HOMAG KAL 310/7/A3/S2

HOMAG OPTIMAT BAK 41/45/G FLAT TABLE MACHINE (W/EDGEBANDING): -- Specifications:Working capacity "X" Axis 177" (4,500 mm), "Y" axis 48" (1,220 mm), "Z" axis stroke is 7.8" (200 mm), max material thickness 2.3" (60 mm). -- Positioning Speed"X" & "Y" Axis 197 FPM (60 MPM), "Z" axis 98 FPM (30 MPM)AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration. -- Work Table:Phenolic Flat-Table design with (14) double side "pick-n-place" vacuum pods;Laser aided positioning of the vacuum pods according to the selected program -- Edge Banding unit:Floating "hot melt" glue pot & application roller with separate thermostats apply glue on the panel edge. Pneumatically controlled pressure roller with manually adjustable guides for coil & strip feeding; numerically controlled with encoder that measures strip feeding process; preheated tape magazine with warning sensor when the end of the spool is near. Pneumatically activated saw blade performs the end trimming for precise fitting of overlapping joints on adjoining edges. Precisely applies 0.4 - 3 mm ABS, 1 - 3 mm PVC & 0.4 - 2 veneer with 45 mm max. edge height (65 mm without edging). Minimum internal radius 300 mm (11.8"), Minimum external radius 8 mm (0.3"), both depending on the banding material & thickness when edge banding.The edgebanding is automatically applied to square or irregularly shaped parts as the CNC manufacturing head rotates along the "X", "Y" & "Z" axis & simultaneously rotates the tooling on a high precision "C" axis. -- Machining:(1) 6 HP (4.5 kW) liquid cooled electro-spindle router with HSK F63 adaptor, variable speed fr 1,500 - 18,000 RPM,NC Controlled "C" axis for 360° horizontal processing & contour edge banding.(1) 4-position "on the fly" plate-type rotary tool changer, max. tool dia 7.08" (180 mm) -- Operator & Machine Control:"HOMAG" NC 83 + "WoodWOP" 4.0 + "WINDOWS NT 4.0 operating system; Icon driven with a graphical interface to allow the operator to quickly and efficiently create programs; Pentium processor, 8 MB RAM, 8 MB hard disk; VGA video card.17" color LCD monitor, 1.44MB & CD ROMx32 drives, connection to an office PC is possible (up to 300 meters). Multitasking operating system, input/output modules, axes override, 4-axis interpolation, diagnostic graphics aid for programming, machine data & tool management. WoodWOP Editor Module for PC with same look and functionality of software on the machine, allows transmission of programs and work lists from an office PC (PC not included): -- Complete with: (1) 100 m³/Hr vacuum pump; (1) 1-coil tape magazine; perimeter protection cage, safety mats, user & maintenance manuals, wiring diagrams and operation of Numerical Control. -- Options Include:(1) Combination Snipping and Corner Rounding Unit; (1) Corner Rounding Radius Cutter Head; (1) Combi-Flush Trimming Scraping Unit; (1) Flush Trimming Unit; (1) extra glue pot; An assortment of spare parts as pictu

Homag D-200 Drill & Dowel Inserter

HOMAG KAL 310/4/A3/S2 Edgebander (w/Pre-Milling): -- Specifications:Working Capacity: 0.3 - 3 mm Edge thickness cap., min. panel width 22 mm; max. panel thickness 60 mm; Dual speed -- Equipped with: Pre-Milling Unit 3481: (2) motors, 3 kW, 9000 RPM each, pneumatic controlled/jump milling spindles and adjustable, manual with digital indicator in-feed fence. -- Hot Melt Glue System "QA 34" Quick-Melt Unit: with heated glue roller; -- Edge Magazine Unit 2456: Automatic (2) coil/strip magazine, coils 0.3 - 3.0 mm. -- Pressure Section: Pressure roll section with (3) rollers, (1) large dia. driven & (2) idle rollers; with pneumatic pressure control for straight edges -- HOMATIC "NC 21" Power Control System: Controller operates in Windows-XP environment; Keypad w/LCD display, fault diagnostic, etc.; diagnostic analysis from HOMAG service support via Modem. -- Workstations:End Trimming Unit: (2) motors, 0.18 kW - 12,000 RPM each, to cut excess edge on the front & back of the panel. -- Flush/Pre-Trimming Unit 3201: Top & bottom trim station, 0.55 kW - 12,000 RPM +/- 1° angle adjustment, manual positioning with digital counters. -- Fine/Bevel Trim Unit 3216: (2) motors 0.4kW - 12,000 RPM each, manual positioning with digital counters -- Profile Edge Scraping Unit: with electro-pneumatic adjustment -- Buffing Unit 4402: Top and bottom with oscillation. (2) motors, 0.25kW, 2850 RPM -- Complete with & Features:Electronic DC brakes on all trim motors; sound cabin for all workstations. -- Adjustable outboard panel support with swing out arms for up to 800 mm. -- 80 mm Feed track pads; manually adjusted V-groove belt on top pressure beam and Sound/Safety enclosure over workstations. -- Actual Model is HOMAG KAL 310/4/A3/S2Note: This machine has a new display and a new back up one as well!

HOMAG DRILLTEQ V-200 CNC MACHINING CENTER (VERTICAL/W/BORING): -- Specifications: Flexible "Vertical" Machining Center with "BORING": Uses less than 5 sq. meter of valuable floor space in addition to an innovative panel handling system. -- Working Cap.Max. workable part size for "X" axis is 120" (3,050 mm); "Y" axis 33.4" (850 mm); max. part thickness 3.1" (80 mm).Min. worktable part size for "X" axis is 7.8" (200 mm); "Y" axis 2.75" (70 mm); min. part thickness of 0.31" (8 mm). - Automatic infeed & outfeed from the LH or RH side. -- Positioning SpeedThe "V-200" can reach movement speeds of 164 FPM (50 MPM) in "X" & "Y" axis & 50 FPM (15 MPM) in "Z" axis with total safety, providing an unmatched working capacity. -- Boring Unit(1) 3 HP (2.3 kW); Variable speed from 1,500 - 7,500 RPM motor; (13) independent spindles with: (8) spindles in "X" axis & (5) spindles in "Y" axis.(6) Horizontal spindles with (2+2) in "X" axis & (1+1) in "Y" axis; boring block has "QUICK CHANGE" spindle system. -- Operator Interface:HOMAG "POWERTOUCH" + Windows + WoodWOP Operating System; "IntelCore 2 DUO" Processor.21" TFT Monitor; international keyboard, soft touch keypad & industrial mouse; RS-232 Serial ports, USB ports; (1) 1.44 MB floppy disk drive, (1) CD RW drive, modem, Ethernet connection.Real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible. -- Complete with:Pneumatic part clamping devices; sound enclosure and complete set of safety devices. -- Options Include:(1) "X" Grooving Saw; 9,000 RPM, max. saw blade dia. 100 mm.(1) 12 HP (9 kW) Electro Spindle router with manual Quick-Change adaptor; variable speed from 6,000 - 24,000 RPM. -- Actual Model is: HOMAG DRILLTEQ V-200 OPTIMAT BHX 055.

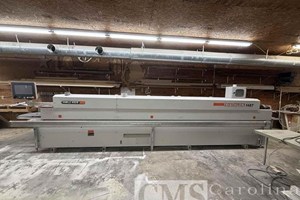

HOMAG AMBITION 2262 (KAL 210) PRODUCTION EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications:Working Capacity: Coiled stock min/max Edge thickness 0.4 - 3 mm (0.016. - 0.118"), Strip material min/max Edge Thickness 0.4 - 6 mm (0.16 - 0.234"). -- Panel stock min/max thickness12 - 40 mm (0.472" - 1.574"). Panel Over-Hang 30 mm (1.18"). -- In-feed Fence: Adjustable in-feed fence with manual digital indicator positioning. -- Pre-Milling Station: Two3.0 kW(4.0 HP), 150 Hz, 9,000 RPM Motors; equipped with trimming column,(2) horizontal and cross slides with spindle adjustment, electro-pneumatic horizontal jump movement of the first motor; includes electronic frequency inverter for control of motor speed and braking, two (2) dust extraction hoods, air jet panel blow-off device &SIKO digital counters for adjustments. -- Panel Pre-Heater: Pre-heating the panel brings the panel to an appropriate temperature for better adhesion; this is especially beneficial in cooler temperatures. --Quartz lamp for heating substrate edge before glue application improved edge quality and optimum bonding. -- Multi-Purpose Magazine: A multi-purpose 2-coil magazine expands capability by running coiled material, strips, and solid wood bands. -- Magazine height adjustment allows for greater usage of varying panel heights by raising and lowering the magazine table, allowing the operator to center the panel on the edgebanding. -- Gluing System: (EVA - Hot Melt) QA 34 -Quick Melt Overhead Unit & heated roller applicator digitally displayed thermostat for both upper and lower unit. -- 34 mm Dia. Glue Roller allows for excellent control of temperature for optimum bonding results with individual adjustment for leading and trailing glue gates. -- Lower melting unit equipped with automatic glue level control. Melting capacity: 12 KG/Hr (26 Lbs/Hr) -- Pressure Section: Manual Adjustment with digital counter, (1) large 160 mm dia. driven & (6) 70 mm dia idle rollers, pneumatic pressure control depending on edgebanding material used. -- WORKSTATIONSEnd Trimming Unit HL 81: 0.8 kW(1.0 HP)x 2 - 200 Hz, 12,000 RPM Motors. to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer 30 deg. to straight cut. -- Rough/Pre-Trimming Unit: Top & bottom,0.55 kW (0.74 HP)x 2 - 12,000 RPM Motors; Height adjustment with the top pressure-beam and tilting range +/- 1°. -- Manually adjusted with digital counters. -- Profile/Bevel/Corner Rounding Unit FK 11: Multi function0.4 kW(0.54 HP) x 2)- 12,000 RPM Motor to fine trim the edge overhangs at the work-piece upper& lower edge, as well as trimming around the front & rear vertical edge; Servo controlled, Max. feed speed 20 MPM (65.6 FPM). -- Profile/Bevel Scraping Unit: Top & bottom for thick PVC/ABS, pneumatically activated. -- Flat Glue Scraper Unit: Top & bottom, pneumatically activated to remove potential glue squeeze-out. -- Buffing Unit: Top & bottom edge buffing/polishing. -- Spraying Units: Top/Bot

Homag Vantech 512 CNC Router Infeed lift table Outfeed conveyor 5'x12' Table Boring Block

HOMAG BHT 500 CNC FEED-THRU MACHINING CENTER (2-HEAD) + BARGSTEADT STACKER: -- Specifications:Homag "BHT 500" CNC 2-Head Through-Feed PtP Machining Center: -- Working capacity: Single panel processing "X" Axis 98.4" (2,500 mm), "Y" axis 55.4" (1,406 mm); "Z" axis 0.5" - "2.36" (12 - 60 mm) min./max. panel thickness.(2) Panel processing "X" axis 98.4" (2,500 mm), Y" axis 23.6" + 23.6" (600 + 600 mm); 0.5" - "2.36" (12 - 60 mm) min./max. panel thickness. -- Positioning Speed:Vertical boring unit(s) positioning speed "X" Axis 328 FPM (100 MPM), "Y" axis 230 FPM (70 MPM), 'Z" axis 82 FPM (25 MPM);Panel transfer belt variable feed speed from 0 - 295 FPM (0 - 90 MPM). -- Horizontal Feed-Thru Boring Units:(2) 2 HP (1.5 kW) Motors (1-motor each side) with variable rotation speed up to 9,000 RPM. (2) 19-Spindle LH units (38) total LH spindles; (2) 19-spindle RH units (38) total RH spindles, spindle are on 32 mm centers,LH Horizontal drilling support is fixed, RH support motorized & equipped with LED indicator for precision positioning, pneumatic locking & individual adjustment for positioning according to the panel size. -- Horizontal PTP Boring Units:CNC controlled horizontal PtP boring units with (2+2 spindles in the "Y" axis on each boring head, (8) "Y" axis spindles total) -- Vertical PTP Boring Units:(2) 4 HP (3 kW) Motors (1-motor each head) with variable rotation speed up to 9,000 RPM;(2) Independently controlled top mounted CNC PtP boring/grooving heads; each head with (30) independent vertical spindles, spindle are on 32 mm centers -- Grooving Saws:(2) 2 HP (1.5 kW) Motors (1-motor each head) "X" axis grooving saw with variable rotation speed up to 12,000 RPM & 100 mm dia blade. -- Operator Interface:IPC with: HOMAG "Power Control 85T" + WoodWOP + Windows "XP" operating system; icon driven software with a graphical interface allows operator to quickly & efficiently create programs & diagnose malfunctions in simple terminology. 17" TFT Color monitor; multitask operating system, input/output modules, axes override, 4-axis interpolation, diagnostic graphics aide for programming, machine data & tool management. -- Options Include: BARGSTEADT "TBH 250/QL/25/12" Vacuum Stacker device.Work cap. "X" Axis 98.4" (2,500 mm), "Y" axis 55" (1,400 mm), 2.3" (60 mm) Max. panel thickness.High-speed workpiece stack exchange with a cycle time of 35 seconds; thin work piece device for panels from 8 mm thick. -- Actual Model is HOMAG BHT 500
