Woodworking Equipment For Sale
1982 Results Found
HOLYTEK - HRS-12TK, ...Straight Line Rip Saw with Glue Joint CutSpecifications: -- Overhead saw arbor, 15 HP motor belt driven, 4,500 RPM arbor. -- 12" Dia. max. saw blade. -- 3-3/8" Max. depth of cut. -- 18" Max. throat depth. -- 2 HP Stepped feed speeds of 50 - 65 - 83 - 100. -- Automatic lubrication of chain. -- Magnetic controls. -- Saw is glue line rated.Equipped with & Features: -- Overhead holddown rolls. -- Double-row of antikickback fingers. -- (6) Pressure rollers. -- Infeed adjustable fence line. -- Cast Iron table with rip fence.
$ 8,330
HOLYTEK - YRT 100: Round End Tenoner -- Twin positioning tables with: Traversing single cutterhead design; fully automatic work cycle; tables alternate into the cutting cycle for continuous operation; rotational movement of cutterhead is externally adjusted. Capacity: -- Width of tenon: 0" - 3.9" Plus both radii; thickness of tenon: 1/8" - 1-3/16"; depth of tenon: 3/8" - 1-3/4"; 1/4" - 3-1/2" with special tooling. Specifications: -- Belt driven cutterhead, 3 HP - 6,000 RPM spindle; 1 HP motor with variable rotational movement of cutterhead; straight, simple or compound angles are easily adjusted with tables. -- (2) 14" x 9" Tilting tables: 0° - 15° Up, 0° - 30° down, and 0° - 20° to the side; each table with: Pivoting fences & miter gauges, vertical height adjustment. -- Overhead pneumatic holddowns. -- Production rate approx.: (13) Pieces per Min.
$ 30,150
HOLYTEK MHB 242 Top/Bottom Wide Belt SanderHeavy-duty and powerful double surface sander providing significant time saving and improved productivity.Smooth and quiet oscillation. Belts oscillation controlled electronically by an infrared system which resists dust.Pneumatic sanding belts tensioning ensuring fast and easy belt replacement.Independent motor for each sanding belt.Pneumatic disc brake system automatically activated if power supply is interrupted, thus preserving the sanding belts from being damaged. Top and bottom 24" wide belt sanderFeatures: -- Spiral grooved 8" (D) rollers (R) and 3-1/2" (D) rollers (K) keep the sanding belts cool. -- Sanding belts: 75" Long. -- Elevation of table with digital readout and activated by independent motor. -- Control panel with: Ammeters indicating main motors current. Specifications: -- Upper Drum motor: 15 HP; 600 V; 60 Hz - 3-Ph. -- Upper Combination head motor: 10 HP; 600 V; 60 Hz - 3-Ph. -- Lower Drum motor: 15 HP; 600 V; 60 Hz - 3-Ph. -- Lower Combination head motor: 10 HP, 600 V, 60 Hz - 3-Ph. -- Feeding motors: 2 HP (x2). -- Table elevation motor: 0.5 HP. -- Electrical intensity: 53 A. -- Drums: 8" (D) - 75 DUROS. -- Max. working width: 24". -- Min. working length: 13-3/4". -- Working thickness: 3/16" ~ 5" -- Sanding belts dimensions: 25" x 75". -- Variable feeding speed: 8 - 16 MPM. -- Dust hoods Top: 4 x 4"(D); Bottom: 3 x 4"(D). -- OAL 127" x 70" x 75" high. -- Weight: 9,460 Lbs.
$ 26,010
HOLYTEK - KL-36PC, ...2-Head Sander 2-Head Planer Sander 36" with planer head & combination head.Description: -- Planing Head (P): 6'' Dia. made of steel with spiral design for heavy stock removal. 228 TCT Tips: 15 x 15 x 2.5 mm; each disposed on (6) rows. Each knife has: (4) Usable cutting edges; easy access to planing head for tips rotation or replacement. -- Precise dial indicator showing the exact positioning of the sanding pad; quiet & smooth oscillation! Pneumatic oscillation system controlled electronically by an infrared system, which is not affected by dust. -- Combination Head: (1) Drum & (1) sanding pad (C) for superior quality of finishing. Sanding belt with: 120 or 150 Grit; allows finishing sanding in a single pass. -- Elevation Table: (4) Screws. -- Infeed roller table extension: 15-3/4". -- Outfeed roller table: 15-3/4" with (2) Rollers. -- Centralized Control Panel with: Electronic digital readout (Metric or Imperial) for elevation; precise positioning at the elevation requested. -- Ammeter indicating: Electrical intensity on the spiral cutterhead and the combination head motors. -- Electrical box with: CSA Approved electrical components ensuring maximum dependability and an outstanding long-lasting performance.Specifications -- Spiral cutterhead motor: 20 HP - 600 V; 60 Hz - 3 Ph. -- Combination head motor: 15 HP - 600 V; 60 Hz - 3 Ph. -- Table elevation motor: 1/4 HP - 600 V; 60 Hz - 3 Ph. -- Feed motor: 2 HP - 600 V; 60 Hz - 3 Ph. -- Spiral cutterhead dia.: 6''. -- TCT Tips dim.: 15 x 15 x 2 mm (228); (6) rows. -- Max. working width: 36". -- Min. working length: 12". -- Max. working thickness: 5". -- Sanding belt dim.: 37" x 75". -- Dust hoods dia.: 4'' x 2 & 5" x 2. -- Machine dim.: 71" L x 76" W x 77'' H. -- Net weight: 1,450 kG or 3,190 Lbs.
$ 13,320

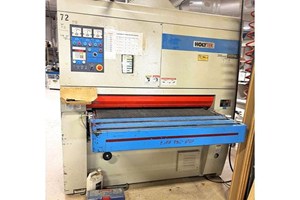

Holytek 37DA Wide Belt Sander (2) Heads37" Width cap Drum, Combination Head1st Head: 7" Dia. spiral grooved rubber covered contact roller, 20 HP motor;2nd Head: Combination sanding head with 5" dia. spiral grooved rubber covered contact roll & 2" wide polishing platen, 15 HP motor.Specifications -- Abrasive belt size of 37" x 60" -- Pneumatic belt tensioning and electronic abrasive belt tracking -- 12" min. working length. -- 2 HP Conveyor belt motor, -- Variable feed speed from 13 - 52 FPM,Equipped with & Features -- Infeed & outfeed rubber covered holddown rolls; -- 0" - 4" motorized thickness adjustment by 0.5 HP motor. -- Safety stop bar, emergency rail stop across the front of conveyor -- Motor load meters.
$ 7,650
HOLYTEK - GES 920 RK: Wide Belt Sander(2) Heads; drum and combination head. -- 2-Head; 36" width cap. -- 1st Head: Heavy-Duty rubber covered contact drum; 15 HP motor. -- 2nd Head: Combination head with 6" dia. contact roll; 20 HP motor. -- 2 HP Feed motor; 16 - 55 FPM variable feed speed. -- 37" x 75" Abrasive belts; electronic oscillating belt system. -- Motorized table elevation with: 0.25 HP Motor; max. height: 125 mm (4.9").Equipped with: -- Digital readout and infeed & outfeed spring loaded holddown rolls.
$ 55,300
HOLYTEK - 252 PRC Series 200: (3) Heads Planer Sander3-Head, 1,300 mm (52") Width cap.; (1) Knife Planer head followed by: (1) Rubberized Drum, (1) Combination Drum/Platen.Specifications -- 5 mm - 125 mm (0.196" - 5") Motorized opening with: PLC Control; keypad entry; LED readout for part thickness. -- 1st Head. 150 mm (6") Dia. helical planer head; (6) rows of staggered (312) carbide inserts; each insert has: (4) Usable sides; 30 HP motor. -- 2nd Head. Rubberized Drum sanding head with: 215 mm (8-1/2") Dia. rubber covered contact roll; 25 HP motor. -- 3rd Combi Head. Drum & finishing platen; 20 HP motor. -- Sanding belt: 1,330 mm x 2150 mm (52 3/8" x 84 5/8"). -- TRU-TRAK Solid-state belt tracking. -- 3 HP Variable feed drive from: 15 - 50 FPM; GOODYEAR endless belt conveyor with automatic tracking. -- Powered lowering & raising of bed table on: (4) Columns via a 1/2 HP motor; handwheel for fine adjustment of thickness control.Complete with: -- Infeed over thickness bar; emergency stops at infeed & outfeed; air-operated disc brakes on sanding heads; electrical interlocks on main access doors; TELEMECHANIQUE electrical controls with overload protection; motor load meters.Note: Scissor Lift not included.
$ 54,500
HOLYTEK "MD-630" Through feed moulder: -- 6-Head (B-R-L-T-T-B), working cap. 12" x 6". -- Head sequence: Bottom 15 HP, right 15 HP, left 20 HP, top 25 HP, top 15 HP and bottom 20 HP motor. -- Spindle dia. 50 mm with cutterhead speed of 6,000 RPM. -- Outboard bearings on spindles 4,5 and 6. Pneumatic locks on outboard bearing supports on top heads. -- Mechanical digital readouts, "Dual mechanical" readouts on left and top spindles. Mechanical readouts for pressure elements and chipbreakers; all chipbreakers and pressure elements with pneumatics. -- Feed works: Inverter driven 15 HP feed system with feed speed 10 -117 FPM. -- Infeed table 2M (6'6"), chromed tables and fences. Side pressure roller mounted at infeed. Includes: -- Central lubrication, short stock attachment, automatic table lubrication pump, side pressure roller mounted to infeed table and sound enclosure.
$ 63,500
HOLYTEK MX-7S23U 7 Heads Through Feed Moulder:7-Head (B-R-L-T-T-B-U), working cap. 230 mm X 160 mm (9" x 6.3").Head sequence: -- Bottom 10 HP, right 10 HP, left 15 HP, top 15 HP, Top 15 HP , Bottom 15 HP and Universal 10 HP motor. -- Spindle dia. 50 mm with cutterhead speed of 6,000 RPM. -- Mechanical digital readouts, "Dual mechanical" readouts on all spindles.Mechanical readouts for pressure elements and chipbreakers; all chipbreakers and pressure elements with pneumatics. -- Feed works: Inverter driven, 10 HP inverted feed system with feed speed 6 - 36 Meter/min (20 - 117 FPM). -- Infeed table 2M (6'6"), chromed tables and fences. Side pressure roller mounted at infeed. -- Phenolic insertion on second top spindle -- Pneumatic chip breaker on top head -- Universal head with inverted electric height adjustment Includes: -- Central lubrication, automatic table lubrication pump, side pressure roller mounted to infeed table, and sound enclosure.Net weight : 12,500 lbs
$ 61,200
HOLYTEK MX-7S23 Through Feed Moulder:7-Head (B-R-L-T-T-B-U), working cap. 230 mm X 160 mm (9" x 6.3").Head sequence: -- Bottom 10 HP, right 10 HP, left 15 HP, top 15 HP, Top 15 HP , Bottom 15 HP and Universal 10 HP motor. -- Spindle dia. 40 mm with cutterhead speed of 6,000 RPM. -- Mechanical digital readouts, "Dual mechanical" readouts on all spindles.Mechanical readouts for pressure elements and chipbreakers; all chipbreakers and pressure elements with pneumatics. -- Feed works: Inverter driven, 10 HP inverted feed system with feed speed 6 - 36 Meter/min (20 - 117 FPM). -- Infeed table 2M (6'6"), chromed tables and fences. Side pressure roller mounted at infeed. -- Phenolic insertion on second top spindle -- Pneumatic chip breaker on top head -- Universal head with inverted electric height adjustment Includes: -- Central lubrication, automatic table lubrication pump, side pressure roller mounted to infeed table, and sound enclosure.Net weight 12,500 lbs
$ 4,460
HOLYTEK SS-512 TS Shaper with Tilting Spindle, and Power FeederSpecifications: -- 1-1/4" Interchangeable spindle, 7.5 HP motor with (5) spindle speed settings of 3,000 - 4,000 - 6,000 - 8,000, & 10,000 RPM. -- Approx. 6" max. cap. under nut, 31" x 39" cast iron table. -- Insert ring diameters 2.8", 4/3", 6" and 8". -- Tilting spindle +10° and -45° -- Vertical movement of the spindle 7" -- sliding tableComplete with: -- Reverse rotation switch, adjustable fence assembly, and dust hood. -- 3-Roll Power Feeder
Call for Price
Call for Price
Call for Price
Year: 2008 Excellent Condition HolzHer Triathlon 1488 Edge Bander Ligmatec Return Conveyor Manual Included Description: PreMill Front & Rear Trim Saws Top & Bottom Rough Cutter Top & Bottom Combination Finish Cutter 3mm Corner Rounding Edge Scraping Edge Buffing Variable Speed 8-18 mpm 8-60mm panel thickness Electrical: 230V 3Phase
Call for Price
$ 6,260
HOLZ-HER 1402 HF Compact EdgebanderFeatures: -- Cartridge glue system, 3 mm edge thickness cap., -- Semi-automatic feed magazine, coil stock feeds automatically with guillotine cutoff, all strip stock is fed manually with pusher bar to advance the edging. Digital glue height indicator.Workstations: -- Double motor end trim (1 HP - 10,500 RPM motor ea.) -- Universal top & bottom fine trim (1942M) for bevels from 0° - 15³; allows simultaneous bevel & profile trimming (1 HP - 18,000 RPM motor ea.; trim motors are 0.6 kW HF - 300 Cy). -- Top & bottom PVC scraper unit (1929) for 0.8 - 3 mm radius. -- Top & bottom buffing (1940), 0.3 HP - 1,620 RPM motor ea. -- Single feed speed of 35 FPM. -- Complete with: Fixed outboard panel support, frequency converter, sound enclosure, and used tooling.
$ 5,180
HOLZ-HER 1435-SE EDGEBANDERCartridge glue system, 5 mm edge thickness cap. (up to 8 mm w/optional tooling), automatic magazine coil & strips, 3 mm PVC cap. pneumatic guillotine for coil cutoff.Workstations: -- Double motor end trim (2) 0.3 HP - 9,000 RPM motor ea.), chamfers 0° - 10° -- Universal top & bottom fine trim (for bevels from 0° - 15°) allows simultaneous bevel & profile trimming, (2) 0.8 HP - 18,000 RPM motor each; all trim motors are 0.6 kW HF - 300 Cy. -- Top & bottom PVC scraper unit for 0.8 - 5 mm radius, with air jets for blowoff. -- Top & bottom "jump" buffing (0.3 HP - 1,620 RPM ea.). -- Single feed speed 35 FPM. --Complete with: --Built-in operator control panel, outboard panel support, frequency converter, used tooling, and sound enclosure.
HOLZ-HER - 1432, ...CP/B Edgebander (Compact) -- Cartridge glue system (single cartridge system); edge thickness cap.: 0.3 to 3 mm (1/8"); max. banding height: 2"; min. panel width: 60 mm; min. length: 180 mm.Equipped with: -- Semiautomatic feed magazine; coil stock feeds automatically with guillotine cutoff; all strip stock is fed manually with pusher bar to advance the edging.Workstations: -- Single motor end trim for leading & trailing edge (trim motor recently replaced). -- Top & bottom flush/bevel trim: 1 HP - 28,000 RPM Motor ea. (recently replaced with BOSCH Trimmer motors). -- Top & Bottom buffing unit: 0.3 HP - 1,620 RPM ea. motor; equipped with: Cotton flap wheels. -- Single feed speed: 16-1/2 FPM.Complete with: -- Sound/safety enclosure; outboard panel support. - Machine is on casters.
$ 18,000
HOLZ-HER 1327 SPRINT CLASSIC SPECIAL EDGEBANDER + GLU-JET EVA & PUR GLUING TECHNOLOGY: -- NOTE: This is a "Special Machine for THIN TAPE Only". -- Specifications:Features the: HOLZ-HER Patented dual "GLU-JET" EVA & PUR Zero Joint Technology System.Edgebanding capacity: Edge thickness min./max. 0.4 - 8 mm (0.02 - 0.31"); coiled material 0.4 - 3 mm (0.016 - 0.157").Workpiece thickness: 6 - 60 mm (0.23" - 2.36"); Workpiece width min. of 65 mm (2.56").Workpiece length: Min. 160 mm (6.29"); variable feed speed 10 - 18 MPM (33 - 59 FPM). Machine Infeed -- "Open Space" for Premilling Station "1802": (2) 2.0 kW (2.68 HP) - 12,000 RPM motors.NOTE: This machine is not equipped with the Premilling Station, but it can be added. -- Edge Magazine "1903":For coil & strip processing; utilizes motion detector to ensure accurate, trouble-free positioning of edge material.Exclusive "Tractor Belt Feed System": Edge guide equipped with automatic guillotine lockout for safety.3° Approach angle allows easy feeding of solid wood edges. -- Pressure Section "1913 Mot":1-Axis Servo controlled adjustment of the edge thickness.Pneumatic Plunge controlled pressure section with: (1) Large driven roller and (2) cantered idle rollers. -- Gluing System "GJ301Auto":Glue Jet Hybrid Technology; processes "EVA" or "PUR" glue in cartridge or granulate form.Motorized programmable glue nozzle (upper glue line); height positioning; approx. 3-minute heat up time. Workstations -- End Trimming Unit "1918P": Front & Rear; (2) x 0.45 kW (0.6 HP) - 9,000 RPM each motor.For Straight or Chamfer trimming with: "UNI-POINT Axis for "PCS" pneumatic changeover/swiveling up to 10° bevel. -- Combination Trimming Unit "1827": Top & Bottom; (2) x 0.65 kW (0.87 HP) - 12,000 RPM each motor; for T & B Flush/Bevel/Radius trimming. - "ProLock" Clamping System for rapid tool change.Manual edge radius adjustment up to 3 mm; chamfer adjustment up to 15° with a max. edge thickness of 6 mm. -- "Open Space" for: 2nd T & B Trimming Unit.NOTE-1: This machine is not equipped with the 2nd T & B Trimming Unit, but it can be added. -- "Open Space"for Profile Scraping Unit "1929P". NOTE-2: This machine is not equipped with the Profile Scraping Unit "1929P", but it can be added. -- "Open Space" for Finish Scraping "1964". NOTE-3: This machine is not equipped with the Finish Scraping "1964", but it can be added. -- "Open Space"for Buffing Unit "1940". NOTE-4: This machine is no not equipped with the Buffing Unit "1940", but it can be added. Operator Interface: -- HOLZ-HER "PPC 231" Power-PC + "Windows-like" Operating System. - 15" SVGA Flat "Touchscreen" control.USB Connection & Ethernet network connection ready; programs can be easily created and recalled at will. Graphic interface makes programming easy; icon of each unit may be brought up on the screen to show the Operator the status of the unit and the parameters that can be programmed.Edgebander can be operated manually when required, without necessity to
Call for Price
Holz-her Streamer 1054 Edgebander Top/Bottom Trimmers End Trimmers Scraping Buffing Station No longer under power - Ready to ship! Serviced by Holly-her tech.
