Sanders For Sale

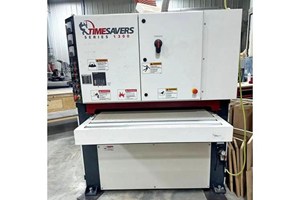

Timesavers Model 2321-24-01 Sander 43"x75" Belts 2-Head IceClean System on each head

TimeSaver Mdl 325-2 36" Wide Belt Sander S/N 7887

Timesaver Mdl 337-6 36" Belt Sander S/N 18395

Only 697 hours, taken from service (2) top heads - one orbit, one brush (1) 3HP main orbit motor (1) 3HP feed motor (1) 1HP brush motor (1) 1HP oscillation motor 460V Max. stock width 36" Max. thickness 6" 32-38" variable passline height 2,000 CFM @ 5,000 FPM exhaust air requirements

TIMESAVER - 113, ...12" Width Single-Head Wide Belt Sander12" Width cap., single drum.Specifications: -- 12" Width capacity. -- 7.5 HP Main motor. -- 6" Dia. drum. -- 0 - 8" Opening capacity. -- 0.5 HP Feed motor. -- Complete with: Posi-Trac electronic tracking and a 12" conveyor extension.

Unknown Dual Flap Sander

VIET - S211 R+ KRT, 2-Head Wide Belt Sander43" Width. cap.: Drum and Combination head.Head Configuration:1st Head: 160 mm 6.3″ Helical grooved rubber drum. 25 HP motor2nd Head: 160 mm (6.3") Helical grooved rubber drum with a platen combination head., 25 HP motorSpecifications: -- Each heads are powered by a 25 HP motor. -- The heads can be programmed to pneumatically raise & lower along with the platen and do (3) sanding combinations (with the twist of a button). -- Digital height readout and a calibration unit to the left side of the conveyor. -- Conveyor speed is controlled via a variable frequency drive 2.5 HP . -- Max width: 43″. -- Max. height: 6-1/4". -- Variable speed conveyor belt drive from: 3 - 16 MPM (11 - 52 FPM).Equipped with & Features: -- Both heads are equipped with: 1,130 x 1900 mm (44-1/2" x 75"). -- Roller & pressure shoe holddowns. -- Pneumatic tension of sanding belts and feed conveyor. -- Load meter on main motor. -- Disc brake on main motor. -- Emergency stops front & back. -- Roller table extensions front & back.NOTE: This is an extremely low-hour 2012 BIESSE Viet S1 dual head 43″ calibrating Wide Belt Sander.

BIESSE - Viet Opera5 RRRF: Wide Belt Sander (4-Head) w/53" width cap.Head Configuration1st Head: Drum Unit The Roller Working Unit is: Characterized for the precision & effectiveness of the work it does.Main motor: 22 kW (30 HP).Drum: 240 mm; Steel Linear blower cleaning sanding paper A.S.S. (Air Saving System).Infeed pressure shoe.The pressure beam is used to guarantee the maximum precision when calibrating; flattens the deformed or thin pieces.Chromed anti-wear metal removable tips.Outfeed pressure shoe.2nd Head: Drum UnitMain motor: 18.5 kW (25 HP).Drum: 300 mm; 70 Shore.Linear blower cleaning sanding paper: A.S.S. (Air Saving System).Infeed pressure shoe.Outfeed pressure shoe.3rd Head: Drum UnitMain motor: 15 kW (20 HP).Drum: 300 mm - 40 shore.4th Head: Superfinishing UnitSuper-finishing pad: The evolution of the pad unit (VIET patent, 1978). The pad unit has a "chevron belt" running between the pad itself and the abrasive belt that guarantees top-quality finishing and a longer performance to the abrasive.Main motor inverter: 15 kW (20 HP).Pneumatic “air cushion"; pad: Pneumatic pad is the ideal tool to solve finishing problems.Contact insert for pneumatic pad made of: Steel + felt + graphite.Linear blower cleaning sanding paper: A.S.S. (Air Saving System).Infeed pressure shoe.Specifications -- Working width: 1,350 mm (53.15"). -- Constant Pass (Fixed Table): Heads adjust up/down by program. -- Working Height: 200 mm (7.87").Equipped with and Features -- Laser Electronic Positioning for working thickness. -- Motors with amp meters. -- IPC Compact 15" Color Touchscreen Controller. -- Vacuum Table with: 7.5 HP Motor. -- Electronic System: IPC Control with feed speed up to 75 FPM. -- 50 Shore Rubber Conveyor. -- Vacuum bed for: Short parts. -- Front & Rear Extension Rollers (2 each).

Viet Opera 5-4.3 RRRR, (4) Head Wide Belt SanderCalibrating Sander (89 Hours)53″ wide cap. - Drum, Drum, Drum, DrumHead Configuration1st Head: 9″ Helical grooved steel drum powered by a 22 kW or 29.5 HP motor.2nd Head: VARIABLE SPEED (via VFD) 9″ helical grooved rubber drum powered by a 18.5 kW or 25 HP motor. 3rd Head: VARIABLE SPEED (via VFD) 11″ helical grooved rubber drum powered by a 15 kW or 20 HP motor. 4th Head: VARIABLE SPEED (via VFD) 11″ helical grooved rubber drum powered by a 15 kW or 20 HP motor.5th Station: Dust brush powered by a 1.27 kW or 1.7 HP motorSpecifications -- The durometer does get softer from head 2 to 3 and then from head 3 to 4. -- It has 53″ width capacity and a 200 mm or 7.87″ thickness capacity. -- Right above the machine's infeed, you will find inspection LED lighting, a digital thickness calibration unit, and a wireless Mitutoyo Digimatic Caliper that communicates with the Opera’s operating system. -- The vacuum bed is powered by an 11 kW or 15 HP blower under the sander to save space. -- The feed mat is powered by a 5.5 kW or 7.5 HP motor with variable speed via a VFD with feed speeds from 9.8 to 52.4 FPM.Equipped with & Features -- Inside you will find interior LED lighting while all the controls on this Opera are upfront via a touch screen -- Constant pass lineNOTE : This calibrating sander has a total of 1,982 power on hours and ONLY 89 run (conveyor) hours. This is a very loaded, LOW Viet Viet Opera 5 (4) Head 53″ Calibrating Sander

Vitek Stroke sander Approx 8 foot capacity

VALPATO LBK-150-ST 1 Feed Through Profile SanderTECHNICAL FEATURES: An added small needle type drum sander can be fitted with drum sanding aggregates of 25, ­30, ­35,­40, ­45 ­50 mm diameters which can be used for tighter curves and smaller radius sanding requirements. Storage compartments (2 in total) are located on each machine extremities, these are easily accessible and can be used for sanding belts and various tooling storage. Sanding belt motor power: 3 Kw Abrasive head motor power: 1.5 Kw Oscillation motor power: 0.38 Kw Feed motor power: 0.75 Kw Motor power for electrical adjustment of sanding group: 0.19 Kw Machine voltage: 480/3/60 Full Load Amps @ 480V: 15A Compressed air: Not required Dust collection requirement one (1) only 6" (150mm) port: 950 CFM Sanding belt speed: 14 Mt/sec Variable speed of the belt: from 5 to 25 m/min Sanding belt dimensions: 150 x 2640 mm Height of working table: 930 mm Dimensions of front working table: 1980 x 250 mm Machine dimensions: 2500 x 900 x 1600 mm Net weight: 1000 KMAIN FEATURES: User friendly PLC touch screen control panel is accessible from 360° by the operator, the control panel is centrally located on the infeed end of the machine. Factory installed variable feed drive (VFD), enables machine to run from 5 M/Min to 25M/min (+/­ 80 ft/Min). The entire sanding plenum rise and fall is motorized, it can be adjusted vertically in height to utilise the full height/width of the sanding belt. An oiling unit ensure long life of sanding plenum rise and fall master cylinder.

The VOLPATO LS-1N 1A Wide Belt Sander, introduced in 2006, epitomizes precision and efficiency in the woodworking industry. Crafted with advanced technology, this machine excels in delivering impeccable sanding results on wood surfaces, showcasing its commitment to high-quality finishing. Designed with a robust and reliable structure, the LS-1N 1A ensures stability during sanding operations, contributing to the production of top-notch wood products. The wide belt configuration allows for efficient material removal, achieving smooth and consistent finishes across various wood types.

VOORWOOD A212 FEED THROUGH SINGLED SIDED SHAPE AND SAND. FEEDS FROM RIGHT TO LEFTEquipped with: (4) workstations: (2) 5 HP - 6,000 RPM Shaping stations with 1-1/4" dia. x 2-3/8" long spindles, max. cutterhead dia. 6"; (2) 1 HP - 1,500 RPM sanding stations with 1-1/4" dia. x 4" long spindles. -- All spindles are 5-3/4" horizontally and 2-1/2" vertically, preset 20ø angle on all units; 1 HP feed motor with 0 - 35 FPM variable feed speed. -- Capacity: 5" x 5" Min. part size, 1/8" to 1-1/2" max. thickness, 1-3/4" max. profile face.Also included: Equipment is in good working order and is still under power as noted in the video. There is a variety of cutters included with the sale of machine, and also the return conveyor is included. Cutter heads are as seen in the photos and replacement knives. Also included are TURBO SAND Heads and sanding strips as well as the owners manual. The return conveyor has a single phase 110V roller at the top of the transfer and a 230V 3PH non-marking belt. a Formica top stand to catch doors returned included too. Machine A212: 40"W x 102"L x 69"HConveyor: 44"W x 87"L x 25 1/2"HTransfer Table: 37"W x 41"L x 36 1/2"HCatch Stand: 33 1/2"W x 27"L x 24 1/4 " HAssembled Footprint: 87"W x 144"L

VOORWOOD "A 515 GH" Arch Door Sander with Floating Head ARCH SANDER with: (4) 1.5 HP Motors for precision sanding; quality sanding using Disc sanding at continuous feed. Equipped with: -- (4) Floating Sanding Stations equipped with: 1.5 HP Precision balanced drive motors and quick change spindles. -- Infeed & outfeed (1st and last) spindles equipped with: Double collets and angular, horizontal & vertical adjustments with accurate and repeatable digital readouts. -- PLC Control with: Monitor at eye level height.Feedthrough Arch Machine capable of sanding arch profiles on cabinet door components, plus can do straight cuts.. .

WEBER KSF2-1100 Wide Belt Sander (2) Heads43" Width cap.: Combination Head , Combination HeadHead Configuration:1st Head: Combination Head 15 kW.2nd Head: Combination Head 15 kW.3rd Station: Cleaning .55 KWSpecifications: -- 43" Width cap. -- Operating width: 1100 mm. -- Max. workpiece thickness: 140 mm -- Min 4 mm. -- Height adjustment: 0.75 kW; Frequency Controlled. -- Feed motor: 4 kW. -- Feed Speed 22M/Sec. -- Max. height 55 mm Equipped with & Features: -- -- Workpiece blowing off: 2.2 kW Vacuum. -- Extraction duct dia.: 1 x 150 mm and 5 x 200 mm. --Vacuum air quantity: 7,500 CFM. -- Constant Passline. -- Vacuum Feed Belt .4 KW

WILTON 4421-2 20" Pedestal-Type Disc SanderSpecifications: -- Table size 10-1/2" x 27-1/2", Table tilt 45° Out/30° In, Table can be lowered below disc to accommodate large workpieces.Equipped with: -- 3 HP 1,720 RPM Direct drive motor, Low voltage protection switch. -- Positive lock rack & gear table tilt.

WILTON 4421-2 DISC SANDER ---Price Negotiable---Make an Offer!--- Heavy Duty for Wood, Metal, Fiberglass, or Plastic! - Pedestal-Type Disc Sander - Table size 10-1/2" x 27-1/2", Table tilt 45° Out/30° In, Table can be lowered below disc to accommodate large workpieces - 3 HP 1,720 RPM Direct drive motor, Low voltage protection switch - Positive lock rack & gear table tilt

NEW 24" WIDE 4 HEAD 1. Also Available in 36”, 51” Widths 2. Work piece thickness: 2-80mm 3. Min working length: 300mm 4. Feeding speed: 5-20m/min 5. Available in 2-6 head configurations Features: 1. Feed belt thickness 5mm, high temperature resistance fish bone belt. 2. Schneider Electronics 3. Delta frequency converter control each brushing heads individually 4. Adjustable height pressure roller- 2 rolls per head 5. Height counters with individual height adjustment 6. Multiple wire diameter and bristle lengths available Optional -Precision automatic lifting motor for height adjustment Electrical Requirements: Operating voltage: 460 Volt/60Hz/3 Phase

Woodtech Planer Sanders Touchscreen Operation Pneumatic Exclusion on the Planer head. Heavy Duty Planing head with anti kickback and pressure shoes - 30 HP 2 Sanding heads 1st sanding head Steel Drum - 30HP 2nd sanding head - Combi -head -rubber roll with Platen- 20 HP Dust Brush on the outfeed ABB electronics 480V 3phase Heavy duty heat treated frame

Woodtech 43" Sander Single Combination Head - Rubber roller with Platen ABB electronics 480V 3phase Heavy duty heat treated frame
