WEIMA WLK 15 Vertical Hopper-fed Low Noise Grinder Specifications: 59" x 59" Weima WLK-15 E-Rotor Shredder, 150 HP AC Motor15" Diameter RotorFilm & Fiber Rotor90 RPM Rotor Speed(63) 50MM CuttersBolt-In Cutter Holders3" Screen90" In-Feed HeightNEW Control Panel460/3/6010" Air-Veyor DischargeNew In 2007, Refurbished In 2023.NEW CUTTERSNEW CUTTER HOLDERSNEW BED KNIVESNEW BED KNIVE HOLDERSNEW RAM GUIDES - SIDES, TOP, AND BOTTOMNEW SLIP LEDGEOVER $45,000 In New WEIMA OEM Parts Installed$25,000 Spent On New Control PanelApproximate Dimensions:Shredder: 132" L x 111" W x 90" HControl Panel: 38" L x 18" W x 60" HHydraulic: 44" L x 36" W x 42" HWILL REQUIRE WIDE LOAD TRUCK

WEIMA WLK 15 Vertical Hopper-fed Low Noise Grinder Specifications: -- Single shaft Shredder/Grinder, 59" x 59" rear-flared hopper opening; 3 cu. yds. cap.; 368 mm (14.5") rotor dia.; 120 HP motor; hydraulic ram with 4-sided serrated ram. -- Equipped with: -- Patented "V-ROTOR" design utilizes a V-groove rotor closely matched to grooves in the counter-knife to ensure uniform discharge free of splinters; reduce friction, and dedicate more horsepower to grinding. -- (82) Welded knives, (4) broaching cutters & (4) counter-knives, recessed concave cutters with low clearance over the rotor to extend cutter life, protect the bolts, and reduce machine wear. -- Features: -- Drop out discharge, hydraulically actuated lift up door for easy purge cleaning; extended screen basket; cut-out for conveyor (not included); false wall; 3/8" - 4" screen available. -- Hydraulic serrated ram optimizes feed pressure by monitoring rotor motor amperage, lateral force on the ram is minimized by a unique "U-Joint" mounting system, Hydraulic clutch enables motor to start with the hopper full. -- Complete with: -- Heavy Duty structural steel frame, welded construction; integrated "plug-and-play" electrical control system with UL approved components (system UL certification available upon request for additional charge). -- Recommended for plastic, paper or wood applications.

WEIMA WLK 4 Vertical Hopper-Fed, Low-Noise GrinderSpecifications: -- 31-1/2" x 39" Hopper opening at the top, 1.1 cu. yds. cap. Features: -- 30 HP rotor motor, Patented "V-ROTOR" design utilizes a V-groove rotor closely matched to grooves in the counter knife to ensure uniform discharge free of splinters, reduce friction, and dedicate more horsepower to grinding. Equipped with: -- (14) Replaceable back bolt-on cutter knives, welded knife holders standard, recessed concave cutters with low clearance over the 10" dia. rotor extends cutter life, protects the bolts, and reduces machine wear. -- 6" Dia. dust collection outlet (1,200 CFM required); 3/8" - 2" interchangeable screens to produce chips from 1/2" to 2" (Output depending on screen size, material density, and moisture content); -- Hydraulic ram optimizes feed pressure by monitoring rotor motor amperage, the lateral force on the ram is minimized by a unique "U-Joint" mounting system. Includes: -- Heavy Duty structural steel frame, welded construction; integrated "plug-and-play" electrical control system with UL approved components (system UL certification available upon request for an additional charge). Options: -- Flared hopper, log Spacer, 2nd row of knives, material discharge auger; programmable logic controls;

WEIMA WLK-6 Vertical Hopper-Fed Low-Noise Waste GrinderEquipped with: -- 31-1/2" x 49" hopper opening at the top, 1.2 cu. yds. cap.; (3) sides straight with curved Front Wall. -- 30 HP rotor motor, 10" dia. Patented "V-ROTOR" design utilizes a V-groove rotor closely matched to grooves in the counterknife to ensure uniform discharge free of splinters, reduce friction, and dedicate more horsepower to grinding. -- 31-1/2" Long rotor operates at 80 - 120 RPM; equipped with (42) replaceable back bolt-on (4 x indexable) concave shaped cutter knives. -- Welded knife holders standard; recessed concave cutters with low clearance over the rotor extend cutter life, protect the bolts, and reduce machine wear. -- Features: -- WEIMA's proprietary gearbox designed specifically for slow speed grinders. -- 8" Dia. outlet for material discharge via auger, conveyor, or pneumatic (1,900 CFM required required for pneumatic conveying); choice of 3/8" - 2" interchangeable screens to produce chips from 1/2" to 2" (Output depending on screen size, material density, and moisture content). -- Hydraulic ram optimizes feed pressure by monitoring rotor motor amperage, lateral force on the ram is minimized by a unique "U-Joint" mounting system. -- Complete with: -- Heavy Duty structural steel frame, welded construction; integrated "plug-and-play" electrical control system with UL approved components (system UL certification available upon request for additional charge). -- Material output from 1,000 - 1,250 Lbs/Hr (output is an average and can be influenced by density, material size, screen size, feeding form, and other); 1" standard screen hole size. -- Includes: -- A/B Programmable Logic Controller. -- Options: -- Flared hopper, material discharge auger.

WEIMA WLK 8 Vertical Hopper-fed Low-noise GrinderSpecifications: -- 39" x 49" Hopper opening at the top, 1.75 cu. yds. cap.; (3) sides straight with curved back wall. -- 35 HP (27 kW) rotor motor, 10" dia. patented "V-ROTOR" design utilizes a V-groove rotor closely matched to grooves in the counterknife to ensure uniform discharge free of splinters, reduce friction, and dedicate more horsepower to grinding. -- Equipped with: --39.4" Long rotor operating at 80 - 120 RPM; with (54) replaceable back bolt-on (4 x indexable) concave shaped cutter knives. -- Welded knife holders standard; recessed concave cutters with low clearance over the rotor extend cutter life, protect the bolts, and reduce machine wear. -- Features: -- WEIMA'S proprietary gearbox designed specifically for slow speed grinders. -- 8" Dia. outlet for material discharge via auger, conveyor, or pneumatic (1,900 CFM required required for pneumatic conveying); choice of 3/8" - 2" interchangeable screens to produce chips from 1/2" to 2" (Output depending on screen size, material density, and moisture content). -- Hydraulic ram optimizes feed pressure by monitoring rotor motor amperage, lateral force on the ram is minimized by a unique "U-Joint" mounting system. -- Complete with: -- Heavy Duty structural steel frame, welded construction; integrated "plug-and-play" electrical control system with UL approved components (system UL certification available upon request for additional charge). -- Options: -- Flared hopper, material discharge auger; programmable logic controls and ram comb.

WEIMA WLK 800 Vertical Hopper-fed Low-noise Grinder --The beginner model WLK 800 is designed for the high throughput quantity and is especially suitable for the processing of nearly all plastics. Without any problems, i.a. start-up lumps, pipes, automotive-workpieces, blow-moulding-materials like PET-bottles, PE/PP-bottles, canisters and pails and also paper, cardboard and light metal. WLK shredders can be fed per conveyor belt, stapler or manually and are selectively equipped with mechanisms or a hydraulic drive. -- 48 HP --Cutting Chamber Dimensions 800 1450 mm

WEIMA Woodchuck Low Noise Slow Speed Vertical Wood Waste Grinder:A low cost/investment solution for Woodwaste disposal - feasible for a small shop.Specifications: -- 25 HP Main Drive motor; 24" x 41" hopper opening, 0.74 cu. yds cap; 10" dia. rotor, 100 RPM. -- Equipped with: -- (28) 40 mm x 40 mm Concave, indexable cutters; 6" discharge outlet. -- Features: -- Patented V-ROTOR design utilizes tooling closely matched to grooves in the counter-knife. -- V-ROTOR Produces uniform discharged material, free of splinters and dedicates more horsepower to grinding. -- Includes: -- 5/8" or 3/4" screen (TBD); Integrated "plug-and-play" electrical control system with UL approved components. -- (5,454) Total operating hours.

WEIMA Woodchuck Low Noise Slow Speed Vertical Wood Waste Grinder:A low cost/investment solution for Woodwaste disposal - feasible for a small shop.Specifications: -- 25 HP Main Drive motor; 24" x 41" hopper opening, 0.74 cu. yds cap; 10" dia. rotor, 100 RPM. -- Equipped with: -- (28) 40 mm x 40 mm Concave, indexable cutters; 6" discharge outlet. -- Features: -- Patented V-ROTOR design utilizes tooling closely matched to grooves in the counter-knife. -- V-ROTOR Produces uniform discharged material, free of splinters and dedicates more horsepower to grinding. -- Includes: -- 5/8" or 3/4" screen (TBD); Integrated "plug-and-play" electrical control system with UL approved components; 1-Year warranty, operations and parts manuals. .

WEIMA ZM-30 Quad Shaft 4-Shaft ShredderEquipped with: Model- ZM 30 S -- Unit was used to shred wire (6,000 – 8,000 lbs per hour) --20mm screen included 25 HP x 2 --480V- 3 phase --Cutting chamber is 19"; x 27"; Hopper is 33"; x 48"; --The ZM30S is a beefed up version of the ZM 30. Unit has the same size motors, shafts and cutters as the ZM 50 but with a shorter shaft length

WEIMA ZM-40 Quad Shaft 4-Shaft ShredderEquipped with: -- Dual drive motors - (2) 30 HP Drive motors. -- Hopper opening measures 51" x 55.1" (1,300 x 1,400 mm); cutting chamber opening of 30" x 27.6" (762 x 700 mm). -- Rotor length of 30" (762 mm); Rotor speed 25 RPM; cutting disc 11" (280 mm) diameter. -- Complete with: -- Control Panel with soft start and 16' cable bundle. -- Note: "Quad Shaft" Shredders, unlike Dual Shaft Shredders, allow shredded material to be circulated through the cutting chamber until it is small enough to pass through the sizing screen. -- Machine weight: 5,500 Lbs.

WEIMA ZM-40 Quad Shaft 4-Shaft ShredderEquipped with: -- Dual drive motors - (2) 30 HP Drive motors. -- Hopper opening measures 51" x 55.1" (1,300 x 1,400 mm); cutting chamber opening of 30" x 27.6" (762 x 700 mm). -- Rotor length of 30" (762 mm); Rotor speed 25 RPM; cutting disc 11" (280 mm) diameter. -- Complete with: -- Control Panel with soft start and 16' cable bundle. -- Note: "Quad Shaft" Shredders, unlike Dual Shaft Shredders, allow shredded material to be circulated through the cutting chamber until it is small enough to pass through the sizing screen. -- Machine weight: 5,500 Lbs.

WEIMA C 150 Briquette PressSpecifications & Features: -- Produces 2" (50 mm) dia. Briquettes; -- Hopper opening of 41" x 41" (1,040 x 1,040 mm); hopper volume 1.43 cu/yd (1.1 cbm). Equipped with: -- 9 HP Hydraulic motor; 0.75 HP auger motor; hydraulic oil volume of 26.4 gallons (100 liters). -- Vertical hydraulic ram compacts the material in the extrusion chamber to produce uniform material; extrusion chamber is continually filled via rotary screw type auger. -- Volume reduction from chip/dust to block up to 10:1 ratio at 2,600 PSI; hourly output up to 80 - 120 Lbs/Hr ("quoted output is an average and can be influenced by density, material size, screen size, feeding form, and other factors").Features: -- Briquette length control, chrome plated clamp, oil level switch, control panel side-mounted to hopper, and overheating protection for hydraulic oil. Solid German engineering. - Freight, start-up, discharge pipes, etc. not included.

WEIMA Horizontal Beaver 300 Slow Speed, High Torque Waste Grinder w/Vibratory Conveyor. 25 HP (18.5 kW), 10" rotor diameter, 11.8" (300 mm) rotor length, (14) 40 x 40 mm indexable, concave cutters; 11.8" x 4" infeed opening. Equipped with: -- WRRL 300 12' Vibratory Conveyor (550 Lbs). -- The "Horizontal Beaver" receives the material from a vibratory conveyor system; from the conveyor, a feed roller system pinches and feeds the material into the rotor. -- Features: Patented "V-Rotor" design utilizes a V-groove rotor closely matched to grooves in the counter-knife; the V-Rotor produces uniform discharged material that is free of splinters and dedicates more horsepower to grinding. -- Includes integrated "plug-and-play" electrical control system with UL approved components; -- Extraction requirements: 1,900 CFM (28 MPS), 8" (200 mm) diameter for dust collection. Total Approx. weight of 2,430 Lbs.

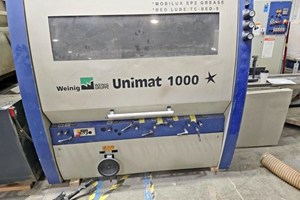

WEINIG UNIMAT 10005-Head (B-R-L-T-B), 9-1/16" x 4-3/4" cap. -- Head sequence: Bottom 10 HP, right 15 HP, left 15 HP, top 25 HP and bottom 20 HP motor. -- WEINIG "Memory Re-Dial" system with storage of (100) separate profiles; electronic LED readouts for all spindles. -- Spindle dia. 1-13/16" with the following cutterhead speeds; Spindle #1 at 6,000 RPM, spindles #2 - #5 at 7,000 RPM with high precision bearings & mechanical spindle brakes; adjustment of vertical spindles 3-1/8" axially. -- Electronic LED readouts for chipbreaker & pressure elements for top spindles. -- Cutting circles 8-7/8" on spindles #2 - #5; vertical spindles with adjustable table plates to cutting circles, hardened infeed bed plates before-and-after 1st bottom head. -- Motorized feed beam adjustment; variable feed speed from 20 - 118 FPM, 10 HP inverter controlled Cardan feed drive, overhead feed wheels with pneumatic pressure. -- (1) Powered table roller in bed at outfeed. -- Infeed straightening table 2 M (6-1/2') with adjustable fence and adjustable table at outfeed. -- Equipped with: Central location of lubrication points, side pressure roller at infeed, manual waxilit pump, and (2) lights inside sound enclosure. -- Includes Set-Up Stand.Note - Machine is in good running condition, but electric brakes are not functional, but does not affect running or performance.

WEINIG - U 1000, ...Feed Through Moulder6-Head (B-R-L-T-T-B); working cap. of 9-1/16" x 4-3/4".Specifications -- Head sequence: Bottom 10 HP; right 15 HP; left 15 HP; top 25 HP; top 20HP, and bottom 20 HP motor. All spindle motors with mechanical brakes. -- WEINIG Memory Redial system allows for storage of over (200) separate profiles; electronic LED readouts for all spindles, chipbreakers and pressure elements. -- Spindle dia. of 1-13/16"; spindle #1 at 6,000 RPM, spindles #2 - #5 at 8,000 RPM with high precision bearings; adjustment of vertical spindles 3-1/8" axially. Feed: -- Motorized feed beam adjustment with independent adjustment of top head; cutting circles 8-7/8" on spindles #2 - #5. -- Variable feed speed from 20 - 118 FPM; 10 HP inverter controlled Cardan feed drive; overhead feed wheels with pneumatic pressure. -- Vertical spindles with adjustable table plates to cutting circles; hardened infeed bed plates before & after 1st bottom head. -- (1) Powered table rollers in bed at outfeed. -- Infeed straightening table 2 M (6-1/2') with adjustable fence and adjustable table at outfeed; chromed tables and fences. Central location of lubrication points; Electromagnetic interlocking of safety hood, manual WAXILIT pump. -- Complete with: Axial adjustment of feed roller opposite left spindle and (1) light inside sound enclosure; all setup tools, manuals and spacers.

WEINIG UNIMAT 23 ATS, 6 HEAD MOULDER6-Head (B-R-L-T-T-B), working capacity 9-1/16" x 6" profiling. -- Head sequence: Bottom 10 HP, right & left by 15 HP, top 20 HP, top 15 HP and bottom 15 HP motor; Spindle dia. 40 mm with cutterhead speed of 6,000 RPM. -- WEINIG ATS (Automatic Tool Setting), Storage for up to (99) profiles; automatic positioning (radially) of left and top spindles (linked). -- Mechanical digital readouts on all other spindle adjustments for both axis, radial adjustment only on 1st bottom head. -- Motorized feed beam adjustment with independent adjustment of top heads, Receding chip breakers on left and top heads. -- Feed motor 7.5 HP, variable speed 18 - 118 FPM, overhead feed wheels with pneumatic pressure, (2) powered rollers in machine table. -- Large tool cutting circles, table plates adjustable to the cutting circle on vertical spindles with axial adjustment of 3-1/8" for multiple profiles. -- Infeed straightening table 2 M (6'6") with adjustable fence & adjustable outfeed table. Side pressure roller mounted to infeed table. -- Includes: Central lubrication, full sound/safety enclosure, manual bed lubrication pump.

WEINIG P-22 Feed Through Moulder5-Head WEING Molder with a working cap. 9-1/16" x 4-3/4".Head sequence: -- Bottom 10 HP, right/left 10 HP, top 15 HP, and bottom 10 HP motor. -- Spindle dia. 1-1/2" with cutterhead speed of 6,000 RPM; mechanical spindle brakes all spindles. -- Mechanical digital readouts on all spindles; Digiset readouts on left & top spindles; mechanical readouts on chipbreaker & pressure elements of top spindles.Feed: -- Controlled feed speed from 16 - 78 FPM, 5.5 HP feed drive. -- Infeed straightening table 2 M (6-1/2"), fences, side holdover roller mounted to infeed table, manual Waxilit pump.Features: Reduced distance feed roller, protection against backlash when splitting, central location of lubrication points, and sound/safety enclosure. -- It comes with a large assortments of cutter heads 9 inch - 2 inch approximately (30) and it includes a lot of different knives for each of the heads

WEINIG Powermat 1000 7-Head Feed Trough Moulder(B-R-L-T-T- B-U); working cap. 9-1/16" x 4-3/4". Head sequence: -- Bottom 15 HP, Right 15 HP, Left 15 HP, Top 30 HP, Top 40 HP , Bottom 30 HP, and Universal 15 HP motor. All motors with electronic brakes. WEINIG Touch-Screen "Power Com" -- PowerCom Plus software system features: Profile drawing storage, profile dimensions, tool changes and production optimization. -- Electronic LED readouts for all tool holder settings, including chip breakers & pressure elements.Spindle arrangement: -- Spindle #1: 1-13/16" w/Cutterhead speed of 8,000 RPM; -- PowerLock tool holders on #2 - #5 with 12,000 RPM, universal tool holder variable from 4,000 to 12,000 RPM and with high precision bearings; -- Adjustment of vertical tools 2-3/16" axially. -- Motorized tool positioning; radial & axial on tool holders #2 - #5; motorized feed beam adjustment with independent adjustment top head; top head with independent adjustment of chip breaker & pressure element. -- Universal spindle with 270° of movement.Feed System: -- Variable feed speed from 20 - 118 FPM, 7.5 HP inverter-controlled Cardan feed drive, overhead feed wheels with pneumatic pressure. -- Vertical tools with adjustable table plates to cutting circles, hardened infeed bed plates before & after 1st bottom head. -- Chromed tables and fences, (2) powered table rollers in bed and (1) between left and top spindles and (1) at outfeed. -- Infeed straightening table 2 M (6-1/2').Equipped with: -- Pedestal for machine controls separate from the electrical cabinet, central location of lubrication points. -- The safety hood, automatic table lubrication pump, and (2) lights inside the reinforced sound enclosure are electromagnetically interlocked, as is the phone modem..

6-Head (B-R-L-T-B-U); working cap. 9-1/16" x 4-3/4". -- Head sequence: Bottom 10 HP, right 15 HP, left 15 HP, top 25 HP, bottom 20 HP and universal 10 HP motor - all motors with electronic brakes. -- WEINIG Touch-Screen "Power Com" software system features: Profile drawing storage, profile dimensions, tool changes, and production optimization. -- Electronic LED readouts for all tool holder settings, including chip-breakers & pressure elements.Spindle configuration -- Spindle #1: 1-13/16" With cutter-head speed of 8,000 RPM; Power-Lock tool holders: #2 - #5 With cutter-head speed of 12,000 RPM and tool holder #6: variable speed 4,000 - 12,000 RPM. Adjustment of vertical tools 2-3/16" axially. -- Motorized tool positioning radial & axial on tool holders #2 - #5; motorized feed beam adjustment with independent adjustment of top head; top head with independent adjustment of chip-breaker & pressure element. -- Variable feed speed from 20 - 120 FPM, 10 HP inverter controlled Cardan feed drive, overhead feed wheels with pneumatic pressure. -- Vertical tools with: Adjustable table plates to cutting circles, hardened infeed bed plates before & after 1st bottom head. Equipped with: -- Chromed tables & fences, (2) powered table rollers in bed, (1) between bottom and universal spindles, and (1) at outfeed. -- Infeed straightening table 2 M (6-1/2'). -- Central location of lubrication points, electromagnetic interlocking of safety hood, manual table lubrication pump, and (2) lights inside reinforced sound enclosure and phone modem.

WEINIG PROFIMAT 23 Feed Through Moulder;(6)-Heads (B-R-L-T-T-B), working cap. 9-1/16" x 4-11/16".Specifications: -- Spindles 1-1/2" dia. with cutterhead speed of 6,000 RPM. -- Feed System & Features: variable feed speed from 20 - 78 FPM, powered by a 5.5 HP motor. -- Receding chip breaker at top spindles. Side pressure opposite right spindle; spring-loaded with (2) rollers; driven outfeed roller in bed. -- In-feed straightening table 2 M (78"), side pressure roller mounted to in-feed table. Note: Bare Machine: No dust manifold or tooling.
