Paw Taw John Services, Inc. ServoSensor™
Paw Taw John Services, Inc. ServoSensor™

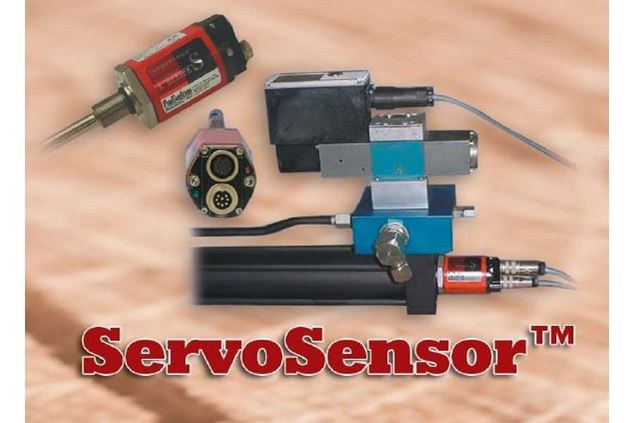

The S-Series ServoSensor™ is a complete servo controller installed and interfaced inside an Temposonics® R-Series platform. It consists of a Servo Controller Module (SCM), driver and sensing element (SE) combined inside the sensor head body. Temposonics® proprietary technology is integrated directly to the SCM. This integration in the SCM provides the ServoSensor™ Controller with very fast displacement measurements and servo control outputs. Hydraulic cylinders can typically be positioned to .001"
- Operates from single +24 Vdc power supply
- Low supply current – typical 100mA with current controlled devices
- Voltage or current drive output
- Single cable run to ServoSensor™ Controller
- Servo device interfaced at ServoSensor™ end cap
- 1 millisecond Servo Loop update time
- Two wire RS-485 network compatible
- Up to 26 units per link
- User selectable baud rates
- Same robust design as Temposonics® R-Series sensor
- Four user selectable modes of operation
- Hydraulic cylinders – linear motion
- Pneumatic cylinders
- Linear measure in control of ball screw applications, etc.
- Much More, Call for Information
