Mill Innovations & Design TDA-1220
Mill Innovations & Design TDA-1220

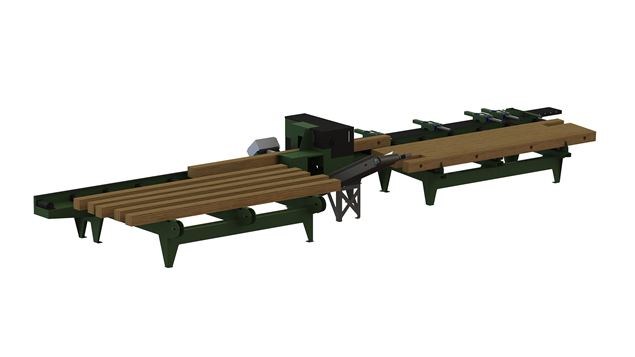

The TDA-1220 Mat Assembly System allows every sawmill currently producing mat materials to begin the profitable addition of manufacturing mats. The TDA-1220 will handle timbers up to 12" x 12" and 20' in length. This simple two operator machine will produce 40 or more ready to load mats in a single eight hour shift.
This self-contained unit is simple to install and only requires 110V single-phase power to trim to length, drill and assemble profitable mats.
- Powered Infeed Deck
- Powered infeed roll case
- Air actuated hydraulic drill
- Carbide tipped drill bit with build-in counter bore.
- Hydraulic actuated slasher saw
- Slasher saw incorporates an Oregon 53cm Harvester bar with a .404 pitch chain.
- Powered out-feed roll case
- Out-feed skate roll assembly deck
- Adjustable bolt patterns (air actuated stops)
- Fully electronic control panel
- 18” waste conveyor (build to your spec.)
- Capacity
- 6" to 12" timbers up to 20' long.
- Custom sizes up to 16" x 16" and 40' long available
- Technical Data
- Requires 110V single-phase AC power. (The system can run off of a minimum 10-amp breaker.)
- Requires 35 gallons per minute at 2000 PSI.
