Brewer BC-6
Brewer BC-6

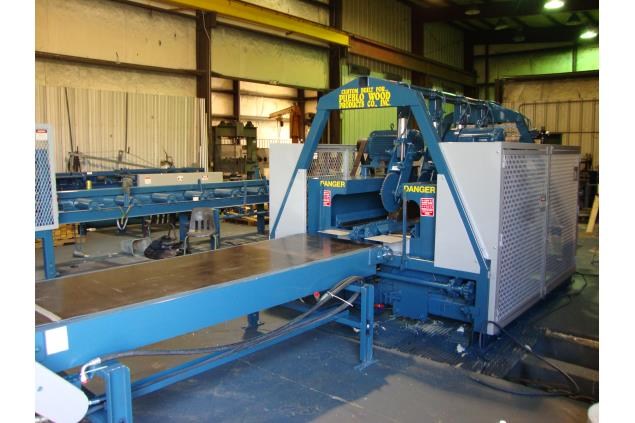

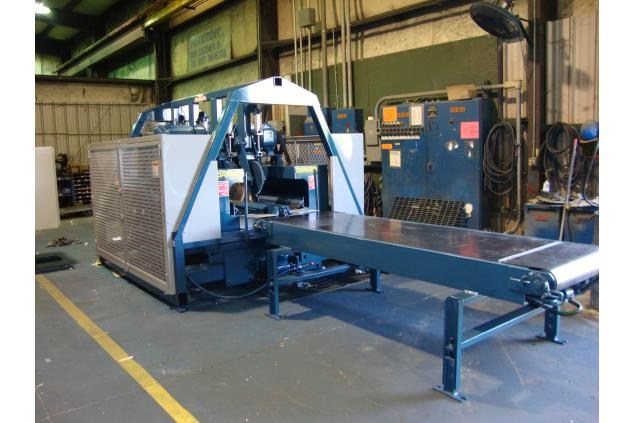

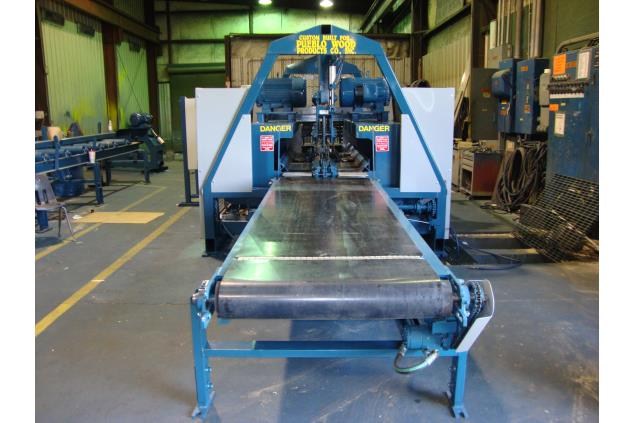

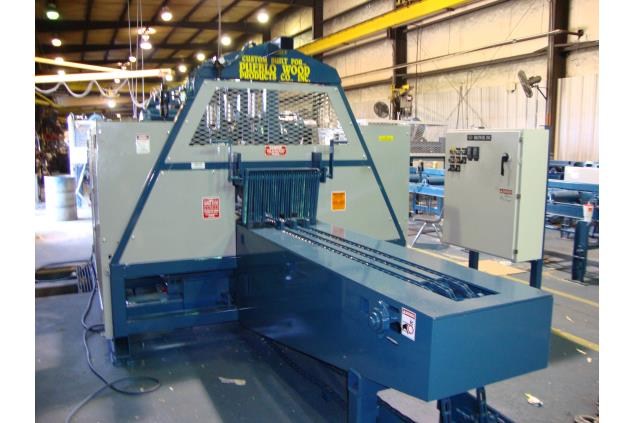

Edge slabs after the scraggs with the Brewer Golden Eagle Slab Saw Edger BC-6. Wide ranged variable speed allows the edger to work with the speed of the mill. As all of Brewer's machines are, built for high out put and built to last.
- Speed up belt on outside of both blades are included to help bring edging strips out of saw
- 4" X 4" X 5/16" square tubing or heavier
- Easy air cylinder controlled adjustment
- Variable feed system from 30 FPM to 90 FPM
- Complete electrical panel wired and ready with 440 VAC 60 HTZ 3 phase
- Frame
- 4" X 4" X 5/16" square tubing or heavier
- Material
- Maximum slab length 10’
- Minimum slab length 30"
- Maximum slab thickness 6"
- Maximum slab width 12"
- Adjustment
- Air cylinder controlled by manual hand valve moves both saws
- Maximum distance between saw 8"
- Minimum distance between saws 3 ½"
- Saws
- Carbide tipped circular saws
- 30" diameter
- 30 teeth
- 5/8" bore with 5/8" pinholes on 3" bolt centers
- Motors
- (2) 40HP motors on each arbor
- (1) hydraulic feed
- All motors are totally enclosed fan cooled
- Feed System
- Sharp chain feed
- One continuous chain with approximately 6' infeed and 15' outfeed
- Feed speed is variable from 30 FPM to 90 FPM
- Gravity hold down sprockets steady the slabs through the cut
- Includes infeed rolls with centering device
- Electrical
- Electrical panel consists of starters and controls for saw arbors, hydraulic unit,24 volt control circuit transformer, emergency stops located on both ends and in panel with other controls
- Electrical package is 440 VAC 60 HTZ 3 phase
- Hydraulic Unit
- Central hydraulic system is 10HP 1800 RPM motor with char-lynn motor for chain feed, furnished with filter, relief valve, heater and all controls
- Heating element designed to heat hydraulic fluid during low temperatures/cold start-up
- Requires 110 power supply
- Wiring and controls by customer
